About the digestion tank made from glass fused to steel
| Product Name |
glass lined steel tank, glass fused to steel tank, anaerobic digester, digestion tank |
| Coating Color | dark green, white, blue, color can be customized |
| Coating Thickness | 0.25~0.40mm ,double coating |
| Acid and alkalinity proof | Standard sheet PH:3~11 |
| Special sheet PH: 1~14 | |
| Adhesion | 3,450 N/cm |
| Elastic | Same as steel sheet,around 500 Kn /mm |
| Hardness | 6.0 ( Mohs ) |
| Service life | ≥30Years |
| Holiday test | >1500v |
| Permeability | Gas / liquid impermeable |
| Easy to clean | Teh Smooth, glossy, inert, non adhesive |
| Corrosion resistance |
Excellent, The digestion tanks are suitable for wastewater, sewage treatment plant ,salt water,sea water,high-sulfur crude oil,salt fox,organic and inorganic compounds |
Application

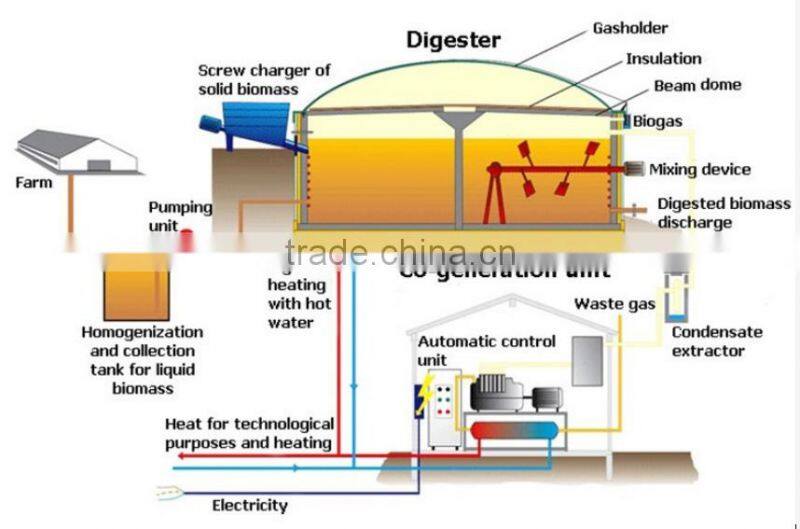

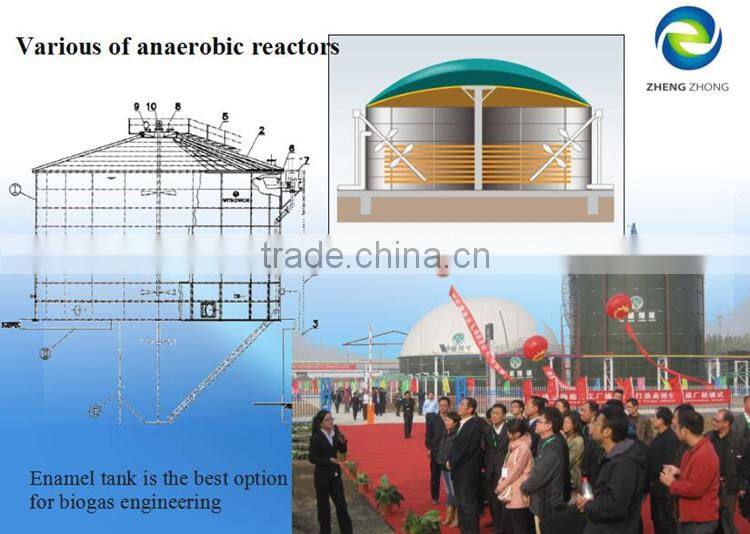

In water and waste water treatment and biogas project, GFS tank has been widely used as various aerobic and anaerobic reactors of UASB,EGSB,SBR,BAF,USR,CSTR, and equalization tank,Clarifier, sludge holding tank, etc.
Power and Energy |
Water supply and Treatment | Wastewater Treatment | Industrial dry bulk storage |
| Biogas biomass | Potable water/Water storage |
Buffer Pool | Mineral |
| Aviation oil | Bitter-brackish water | Aerobic Reactor | Wood product |
| Process water | Raw water/Fresh water | Biological Filter | Stone/Clay/Glass |
| Boiler Feedwater | Aeration | Effluent Treatment | Chemicals |
| Fuel Oil | Biological Filter | Regulating Tank | Petrochemicals |
| Kerosene | Water Purifying | Anaerobic reactor | Foods |
| DI water | Fire-fighting water | Leachate Storage | Foods Plasthetics |
| Coal Storage | Saline Water/Brine Water | Irrigation warter | Grain / Seeds |
| Diesel | Sedimention Container | Water Purifying | |
| Drilling mud | Ro Water | Sedimentation Container | |
| Reverse osmosis water | Sea water desalinization | Sludge Tank | |
| Fly ash silo | Lime Silo | Animal Wastes |

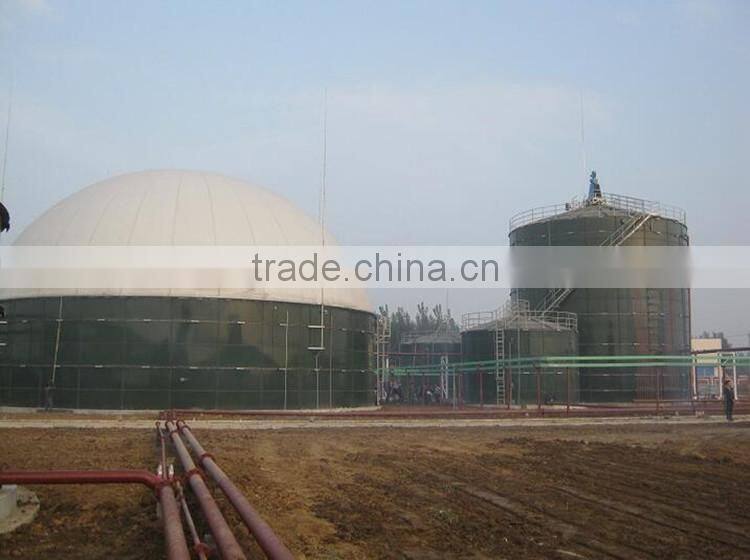

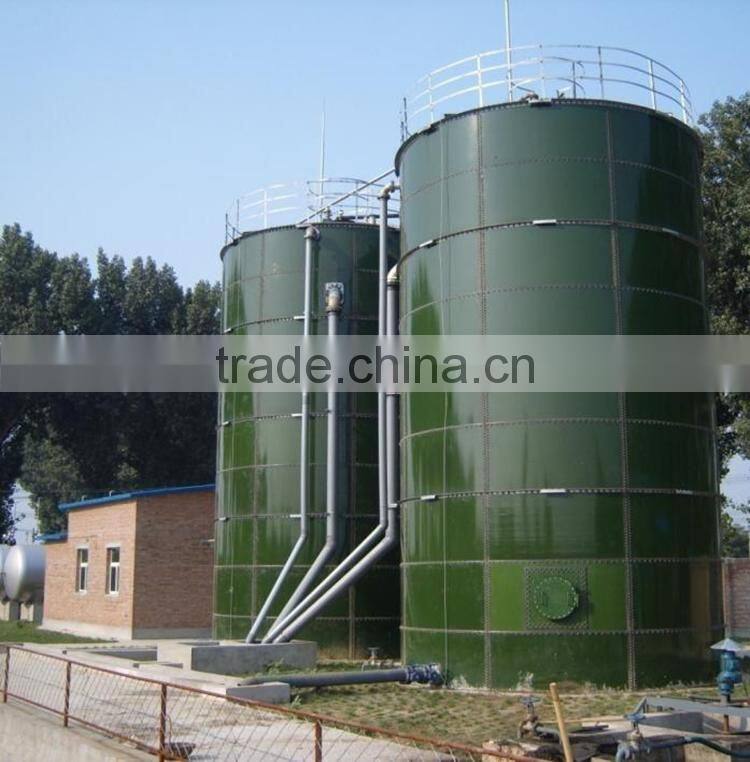

Part of our Projects :
-- 2008 Beijing Olympics Games wastewater project
-- 2009 Niger Azelik uranium deposits(China National Nuclear Corporation)
-- 2009 Niger Azelik uranium deposits(China National Nuclear Corporation)
-- 2009-2013 Palm oil wastewater treatment project in Indonesia
-- 2011 Anyang city Biogas project
-- Chengde Biology waste water project
-- Brewery wastewater treatment
-- Shandong Garbage waste water treatment project
-- Pharmacy waste water treatment project
-- 2013 Sichuan Chengdu Pharmaceutical wastewate treatment
-- 2014 Urban sludge treatment project- Kazakhstan
Advantages
| Comparison of various tank characteristics - 1 | ||||
| Name | Concrete Tank | Carbon steel tank |
Enamel tank (Glass-fused-to-Steel tanks) |
LIPP tank |
| Beautiful degree | Low | Low | High | High |
| Temperature adaption | A stress |
Adapt to low temperature |
Adapt to low temperature |
Adapt to low temperature |
| Shape | Any shape | Round shape | Round shape | Round shape |
| Ground Or underground | Both | Ground | Both | Ground |
| Corrosion resistance | Normal | No resistance to corrosion | Good | Not |
| Abrasion resistance | Good | Bad | Good | Bad |
| Easy to clean | Bad | Bad | Good | Normal |
| Easy to repaire | Normal | Good | Good | |
| Weight (T) | heavy | Little heavy | light | Little light |
| Tank cost | middle | high | low | low |
| Tank temperature protect | no | need | need | need |
| Anti-corrosive Treatment | no | need | no | need |
| Annual anticorrosive cost | no | High cost | no | High cost |
| Corrosion resistance | normal | no | superior | normal |
| Abrasion resistance | good | bad | good | bad |
| Service life | 30 | 10 | 30 | 25 |
| Comparison of various tank characteristics - 2 | ||||||
| Characteristic | Stainless steel | Carbon steel | FRP | Cement | Rubber/resin | Enamel |
| Abrasion resistance | Normal | Normal | Bad | Good | Bad | Good |
| Corrosion resistance | Good | Bad | Normal | Bad | Normal | Good |
| Impact resistance | Good | Good | Normal | Good | Good | Normal |
| Insulation | Bad | Bad | Good | Good | Good | Good |
| Easy to clean | Good | Normal | Very bad | Very bad | Very bad | Good |
| Heating | Allowed | Allowed | Not allowed | Not allowed | Not allowed | Allowed |
| Antistatic Property | Bad | Bad | Good | Good | Good | Good |

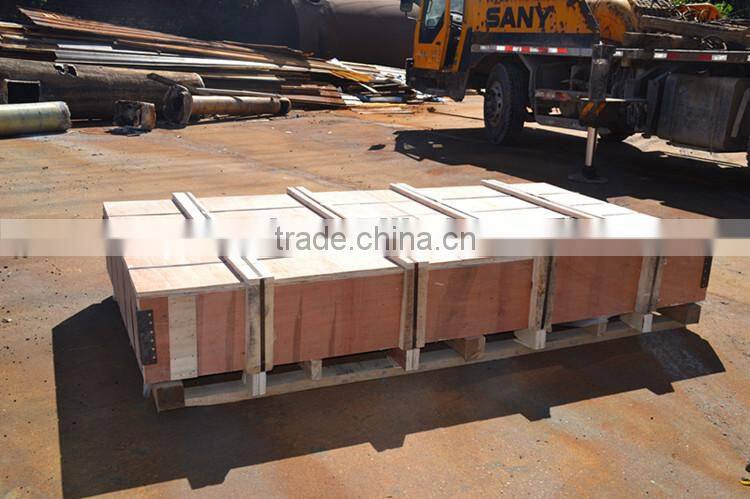

Double checking is required before packaging, confirm the plate’s code and quality. The steel plates is separated with each other by PE foam, to avoid any damage on the coating surface. And the whole pallet steels packed in wooden case.

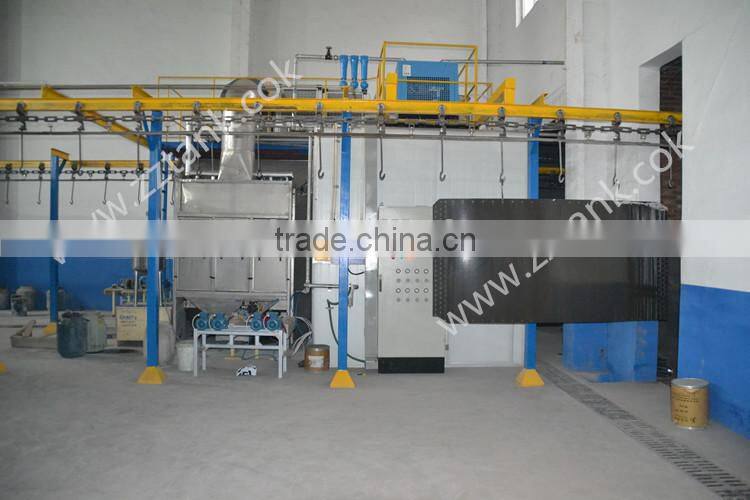

Center Enamel is the world leading manufacturer of glass fused bolted steel storage tank / digestion tank. We have our own factory cover 40,000 square meters and own our R&D team. Our factory has over 26 years experience in producing Enamle products.
We already passed ISO9001-2000 quality system certification, and product and design can reach AWWA D103-09 standard, OSHA and meet European standards. We are the only enterprise that can produce AA grade (acid-proof and alkali- proof ) enameled sheet now
And in a detail-oriented and pursuing perfect belief, we insist in providing the highest quality products and best services. Now we are supplying products services for all over the world.
Any questions will be replied within 24 hours
Dear friends, should you have any questions about our digestion tank made from glass lined steel tank, please feel free to contact with us. Wish to help you. Have a nice day.
