Dear Friend, WELCOME!
==============================================================================
high quality wastewater treatment plant equipment for industrial waste water

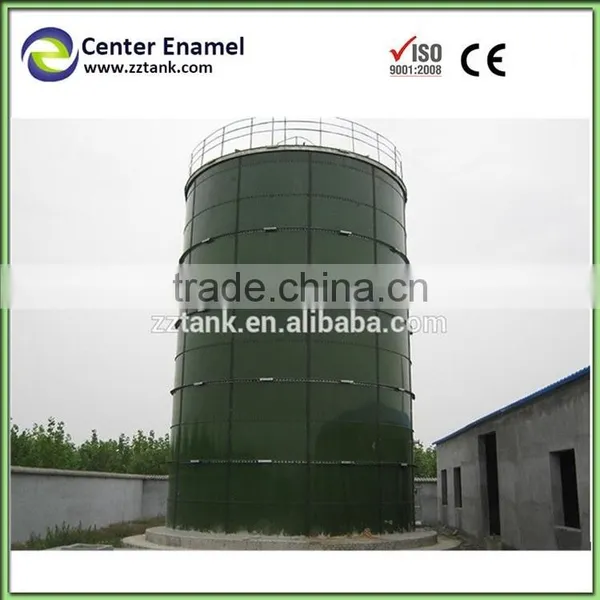

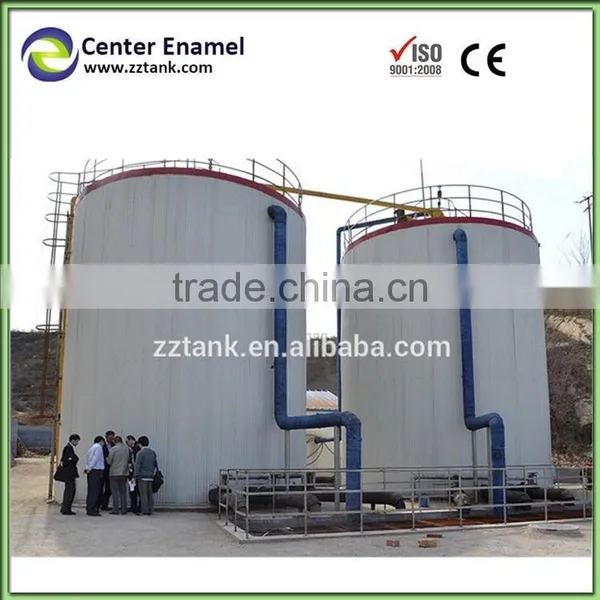

What is glass fused to steel tank for wastewater treatment plant equipment ?

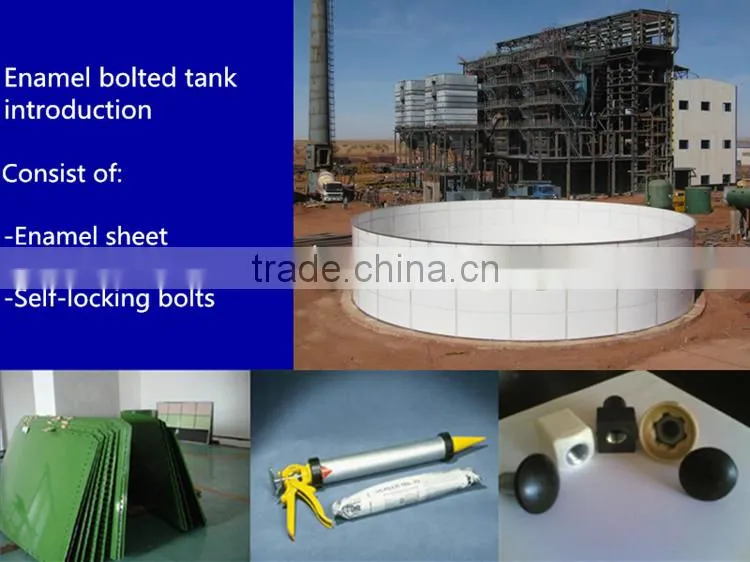

The steel round (cylindrical) shell of the tank is built from two-layer emanelled sheets coated on both sides. The sheets are attached with special high-grade bolts and sealed by constantly flexible silicone (sealant). The surface of connecting material and the shell itself are properly treated.
This is the only tank finish where two materials are fused together to achieve the best of both: the strength and flexibility of the steel combined with the corrosion resistance of the glass. The high temperature fusion of glass to steel fired at 850 degree results in an inert, durable finish. Applied to both interior and exterior, the GFS technology is able to withstand the rigours of the construction site and provide many years of trouble free service in harsh environments.

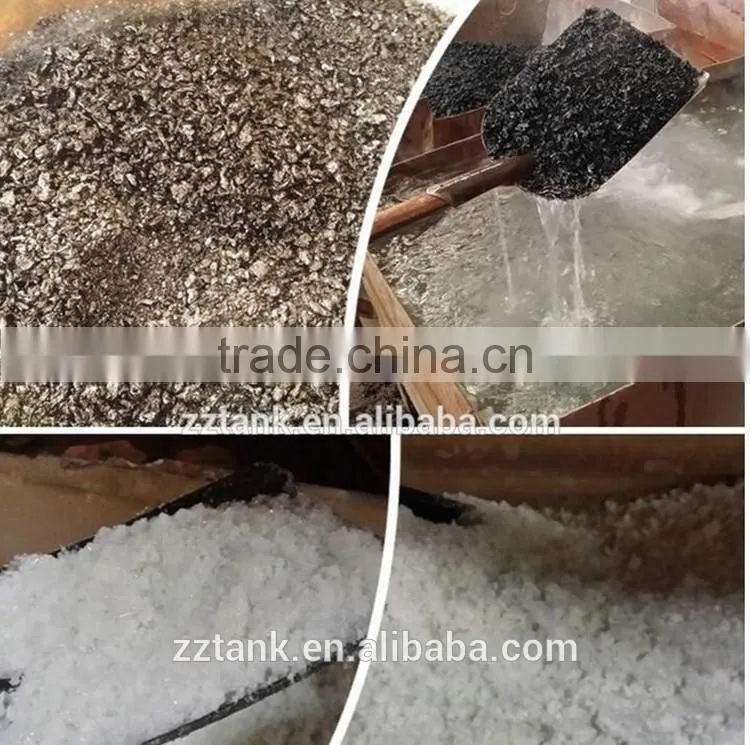

Raw Material
Detail Specification for glass fused to steel tank for wastewater treatment plant equipment ?
| Category | Specification |
| Coating Color | dark green, white, blue, color can be customized |
| Coating Thickness | 0.25~0.40mm ,double coating |
| Acid and alkalinity proof | Standard sheet PH:3~11 |
| Special sheet PH: 1~14 | |
| Adhesion | 3,450 N/cm |
| Elastic | Same as steel sheet,around 500 Kn /mm |
| Hardness | 6.0 ( Mohs ) |
| Service life | ≥30Years |
| Holiday test | >1500v |
| Permeability | Gas / liquid impermeable |
| Easy to clean | Teh Smooth, glossy, inert, non adhesive |
| Corrosion resistance | Excellent,suitable for wastewater,salt water,sea water,high-sulfur crude oil,salt fox,organic and inorganic compounds |
Advantage :
- Short construction period
- Superior corrosion resistance, service life is more than30 years
- Low project cost
- Lank volume can be easily expanded
- Beautiful appearance, color can be customized
- No need big installation equipment
- Easily expand , dismantle, move
Application fields
Power and Energy |

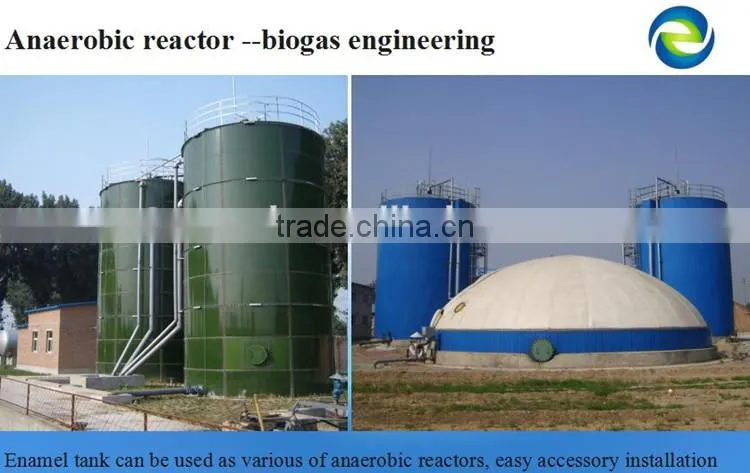

Water supply and Treatment | Wastewater Treatment | Industrial dry bulk storage |
| Biogas biomass | Potable water | Buffer Pool | Mineral |
| Aviation oil | Bitter-brackish water | Aerobic Reactor | Wood product |
| Process water | Raw water/Fresh water | Biological Filter | Stone/Clay/Glass |
| Boiler Feedwater | Aeration | Effluent Treatment | Chemicals |
| Fuel Oil | Biological Filter | Regulating Tank | Petrochemicals |

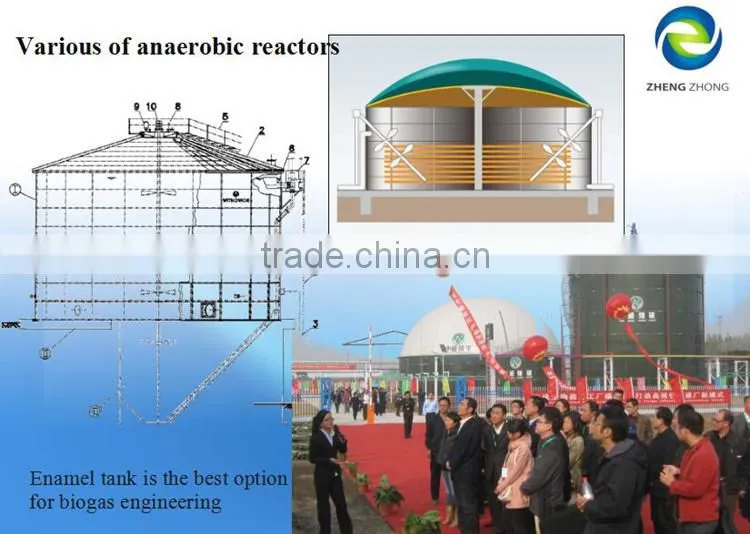

| Kerosene | Water Purifying | Anaerobic reactor | Foods |
| DI water | Fire-fighting water | Leachate Storage | Foods Plasthetics |
| Coal Storage | Saline Water/Brine Water | Irrigation warter | Grain / Seeds |
| Diesel | Sedimention Container | Water Purifying | |
| Drilling mud | Ro Water | Sedimentation Container | |
| Reverse osmosis water | Sea water desalinization | Sludge Tank | |
| Fly ash silo | Lime Silo | Animal Wastes |
-- 2008 Beijing Olympics Games wastewater project
-- 2009 Niger Azelik uranium deposits(China National Nuclear Corporation)
-- 2009 Niger Azelik uranium deposits(China National Nuclear Corporation)
-- 2009-2013 Palm oil wastewater treatment project in Indonesia
-- 2011 Anyang city Biogas project
-- Chengde Biology waste water project

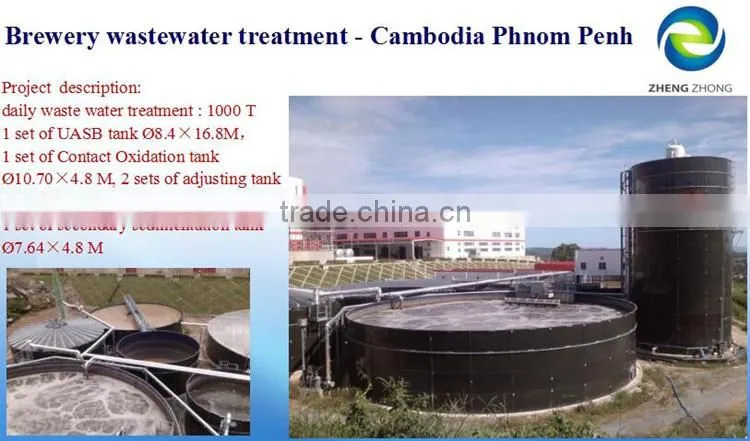

-- Brewery wastewater treatment
-- Shandong Garbage waste water treatment project

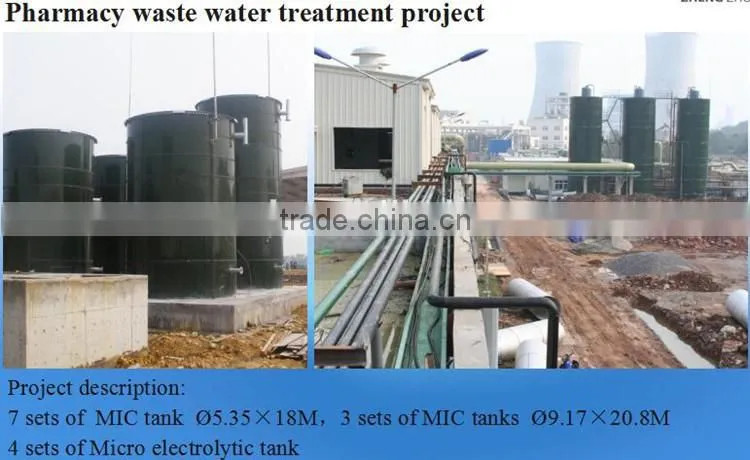

-- Pharmacy waste water treatment project
-- 2013 Sichuan Chengdu Pharmaceutical wastewate treatment
-- 2014 Urban sludge treatment project- Kazakhstan
Center enamel Co., Ltd is the largest and the most professional enamel bolted tank manufacturer & supplier in China with more than 26 years experience of enamel production. Our factory covers an area of 80,000 square meters. 2013 total annual turnover nearly 30 million dollars, including 7.6 million dollars for GFS tank, products have already been exported to more than 20 countries.
We have strong R&D ability as we own a professional R&D Team with:
1. 1 professor senior engineer, national famous expert with more then 50 years experience of enamel researching.
2. 8 Technical experts with more then 10 years’ enamel researching experience.
3. 23 person possess technical skills on different aspects.
4. More then 100 experiment & testing equipments.
Moreover, our company has the most advanced production line, and already passed ISO9001-2000 quality system certification, and product and design can reach AWWA D103-09 standard, OSHA and meet European standards. We are the only enterprise that can produce AA grade (acid-proof and alkali- proof ) enameled sheet now. According to customers’ different operating requirements, we can customize various products.
Dear Friend, Thanks for your time.
Gabby Xuan
E-mail : zztank_gabby(at)
Tel : 86-20-34061259
Skype: gabby8427
Mobile /whatsapp: +86 18620551151
