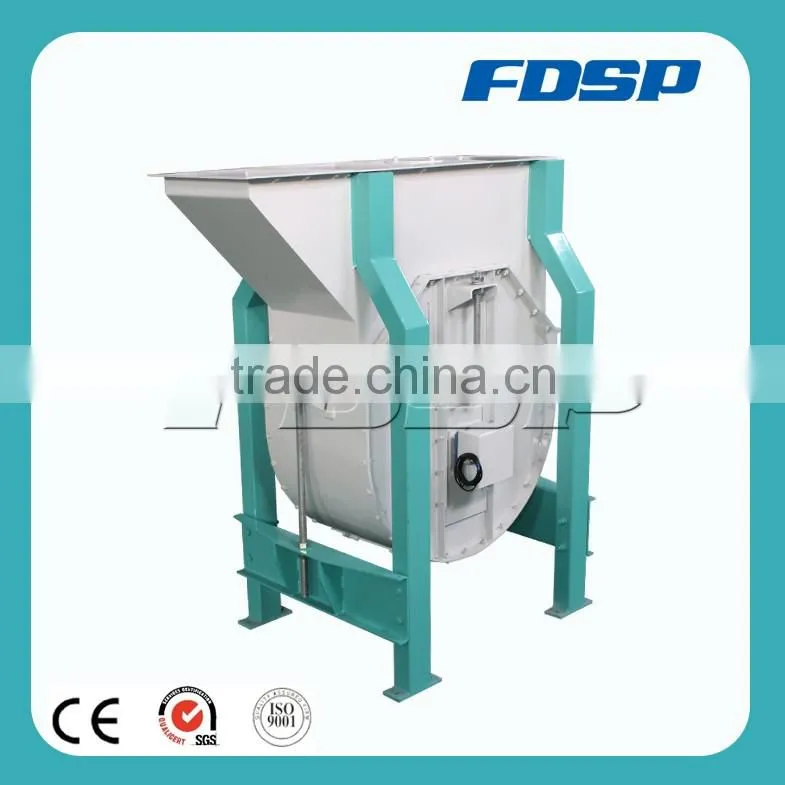

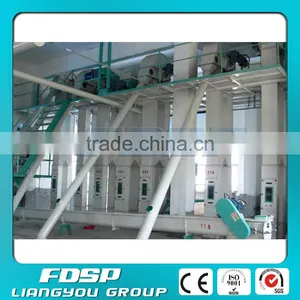

Widely Used Material Lifting Bucket Elevator for Rice Mill Plant Supplier
- 100 Set / Sets per Month
- Shanghai Port
- T/T Credit Card
- BEFZ Household Kitchen Scale High Precision Mini Digital Balance 0.01g digital pocket scale Capacity 500g/0.01g Pocket Scale
- 2014 New arrival western ladies Rivet new fashion belt with flower leather pattern buckle Wholesale /Retail sell
- Dung cleaning machine
- mini rice mill
- stainless steel seeds roaster
- incense stick making machine
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | FDSP |
Model Number: | TDTG Series | Dimension(L*W*H): | Customized Size | Weight: | By Actual |
Certification: | CE ISO SGS | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Widely Used Material Lifting Bucket Elevator for Rice Mill Plant Supplier
Introduction of Bucket Elevator
TDTG Series bucket elevators are quality products resulting from a combination of advanced foreign and domestic manufacturing technology. The maximum conveying volume is 1,000 tons per hour. Different configurations are available based on different customer requirements. The bucket elevator is a preferred equipment for lifting various materials with its stable operation conditions and high reliability.
Item | TDTG Bucket Elevator
|
Discription | TDTG Series bucket elevators are quality products resulting from a combination of advanced foreign and domestic manufacturing technology. It can be used for granular, powder and block materials vertical conveying and widely used for feed mill, oil plant, food, chemical industry. |
Packing Details | Iron case or iron pallet etc
|
MOQ | 1 Set
|
Payment | L/C, T/T, Western Union, Money Gram as client require
|
Warranty | One year warranty and all around after-sale service.
|
Advantage of Bucket Elevator
- Bucket Elevator has characteristics of large transport capacity, high elevation, stable operation and long working life.
- The machine is applicable for conveying the powder, grain and small block materials, such as coal, cement, block, sand, clay and ore.
- Bucket Elevator is allowed to convey materials with high temperature(250°c) whenarmed with special chain structure, and the elevating height can reach 40m.
- It has vast range of application with almost no limitation for lifting material forms and properties. Materials like power, grain or big lump could be all applicable .
- Also its good sealing condition could effectively reduces the environmental pollution. Excellent runningreliability. Advanced design and processing method ensure the running reliability of the complete machine.
- Long service life. The design of this machine ensures that the materials is seldom scattered while feeding and discharging, which reduces the mechanical wearing.
Specification of Bucket Elevator
Type | Head Pulley Diameter (mm) | Belt Width Bucket (mm) | Capacity (t/h) | Power (kw) |
TDTG(z)36/18 | 360 | 200 | 5-8 | Calculated by Height and Capacity |
TDTG(z)36/23 | 360 | 250 | 10-15 | |
TDTG(z)36/28 | 360 | 300 | 15-20 | |
TDTG(z)50/23 | 500 | 250 | 25-35 | |
TDTG(z)50/28 | 500 | 300 | 25-45 | |
TDTG(z)60/30 | 600 | 300 | 35-65 | |
TDTG(z)60/33 | 600 | 350 | 50-100 |

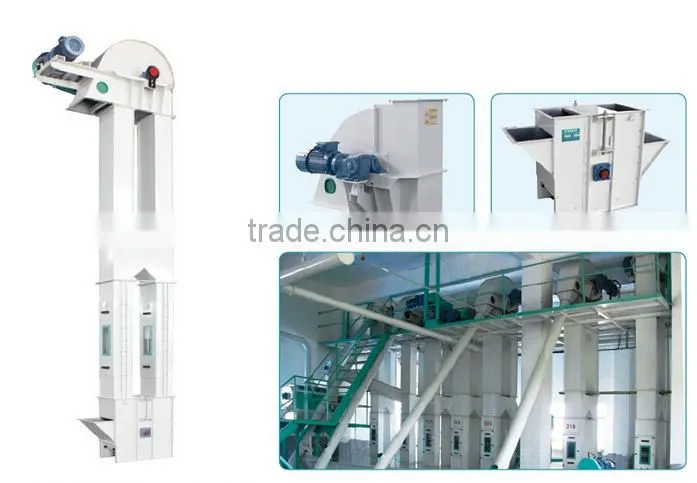

Consist Parts of Bucket Elevator
FDSP Bucket Elevators has compact structure and small overall dimensions of transect and floor space can be saved remarkably.
---Head of Bucket Elevator
Rubber covering technology is adopted for head pulley to increase friction coefficient and improve the driving efficiency.
Height of discharging section of head is increased, thus extending the materials discharging time. And it is fitted with outlet adjusting plate and buffer chamber to effectively reducing the returning of materials; The housing is lined with replaceable UHMW wear proof materials.
---Middle Casing
- The edge meshing technology is adopted, resulting in high strength and good tightness;
- The balancing pipe is added to balance the pressure between two housing of machine body;
- Wide opening access door facilitates the repair and replacing of bucket;
- Explosion- proof port is available and can effectively reduce pressure and release explosion.
---Bottom of Bucket Elevator
- New type shaft sealing structure prevents dust from leaking;
- Split structure of bearing housing guarantees the reliability of use of machine;
- Two sealing devices in the adjusting plate prevent the dust and materials from leaking out of the adjusting plate;
- The machine is fitted with anti-reverse device so as to avoid the blockage caused by power failure;
- Speed detector and off track alarm sensor are optional.
Related Conveying Equipment
As the professional manufacturer, we could customize the different models conveying equipment for customers, please feel free to contact with us and advise us your detailed requirement, We are sure that any of your questions will get our prompt reply and suitable solutions.
What We can Supply
- Feed Machinery: Hammer Mill, Mixer, Pellet Mill, Cooler, Crumbler etc.
- Biomass Machinery: Wood Chipper, Wood Hammer, Pellet Mill, Cooler, etc.
- Steel Silo Equipment
Our Service:
-24 Hours Online Service.
-All-the-way tracking service offered from placing order to delivery.
-Custmoized design for each different customer.
-Professional training for operation, debugging and daily maintenance.
-We can also provide professional guide installation.
-Customized design and flow chart are available for our clients.
-Independent R&D team and strict & scientific management system.
Company Information:
FDSP is a qualified manufacturer which specializes in developing, producing and marketing top class machinery equipment. Now we focus On Pellet mill, Hammer mill, Mixer, drum dryer, wood chipper, packing Machine etc. []
- More than 23 years'experience in biomass and feed pellet production field.
- Approved ISO9001 and international certificate: CE , ISO and SGS.
- 8 years golden Supplier in Alibaba.
- Exported to over 50 countries and finished more than 1550 turn-key projects.
- Specialized in designing, researching, developing, manufacturing and exporting.
Certifications
If you have any interest in our products, welcome to contact us at any time.
