Conveying equipment in port industries, silo area, Drag conveyors 90tph
Introduction of Chain Conveyor
FDSP TGSS and TGSU series en-masse conveyors are well constructed and diversified. There are different types can be chosen according to different raw materials. The conveyors are widely applied to grain storage, oil processing, feed processing, mine, cement, chemical, and metallurgy industries etc.
Item |
Conveying equipment/TGSU Series Chain Conveyor
|
Discription |
Our TGSU series en-masse conveyors are well constructed and diversified. There are different types can be chosen according to different raw materials. The conveyors are widely applied to grain storage, oil processing, feed processing, mine, cement, chemical, and metallurgy industries etc. |
Main scraper types |
--Flat scraper, --U shaped scraper --airtight scraper etc. Head pulley and tail pulley are dissection assembly type, whose rail is fixed by bolts, which is easy for maintenance and replacement.
|
Chain types |
--Weld cranked link chain, --Die forging chain, --Bush roller chain
|
Safety Protection device |
According to customers’ requirements and working condition, there are optional devices which include dust explosion proof motor, backstop, fluid coupling, blockage alarming devices, stall alarming device and chain-breakage proof device.
|
Packing Details |
Iron case or iron pallet etc
|
MOQ |
1 Set
|
Payment |
L/C, T/T, Western Union, Money Gram as client require
|
Warranty |
One year warranty and all around after-sale service.
|
Safety Protection device:
According to customers’ requirements and working condition, there are optional devices which include dust explosion proof motor, backstop, fluid coupling, blockage alarming devices, stall alarming device and chain-breakage proof device.
Advantage of Chain Conveyor
- It can be widely used for conveying raw materials, semi finished grains, feed etc. for grain warehouse, port, wharf.
- It is with simple structure, occupy small floor space.
- High quality with lower power consumption and large load capacity.
- It is with good tightness, stable conveying and low noise.
- Long using life and easily installation and maintenance.
- The chain is high strength type. Blockage detector is optional
Specification of Chain Conveyor
---TGSS Self Cleaning Chain Conveyor
Type |
(mm) Trough width |
(mm) Chain speed |
(t/h) Conveying capacity |
(mm) Material layer height |
TGSS16 |
160 |
0.3-0.5 |
5-20 |
220 |
TGSS20 |
200 |
0.3-0.6 |
10-30 |
280 |
TGSS25 |
250 |
0.3-0.6 |
20-50 |
280 |
TGSS32 |
320 |
0.3-0.7 |
30-100 |
340 |
TGSS40 |
400 |
0.3-0.7 |
50-200 |
430 |
TGSS42 |
420 |
0.3-0.7 |
80-250 |
450 |
TGSS50 |
500 |
0.3-0.75 |
100-300 |
540 |
TGSS63 |
630 |
0.3-0.75 |
200-500 |
630 |
TGSS80 |
800 |
0.3-0.8 |
300-800 |
720 |
TGSS100 |
1000 |
0.3-0.9 |
500-1000 |
720 |
TGSS120 |
1200 |
0.3-0.9 |
800-1350 |
720 |
TGSS160 |
1600 |
0.3-0.9 |
1000-2000 |
720 |

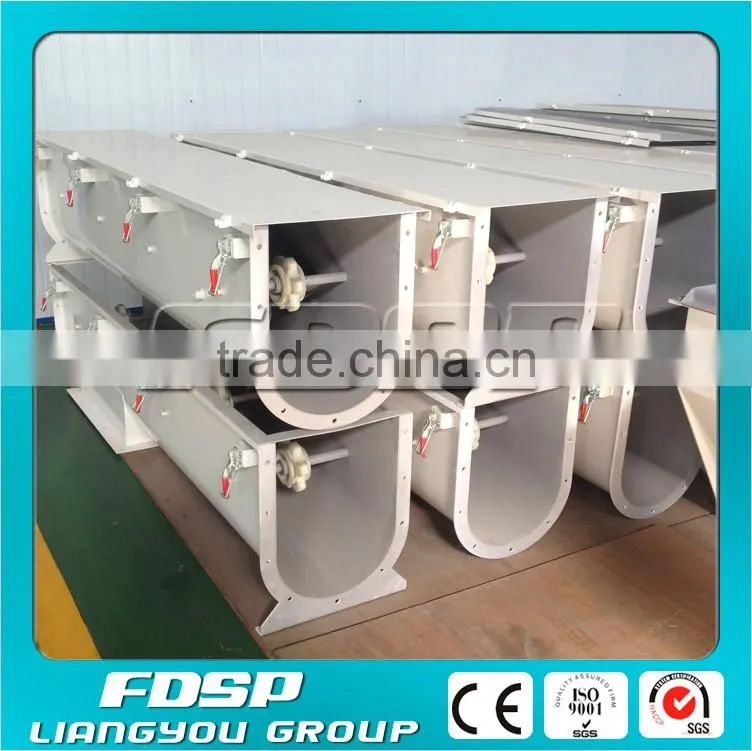

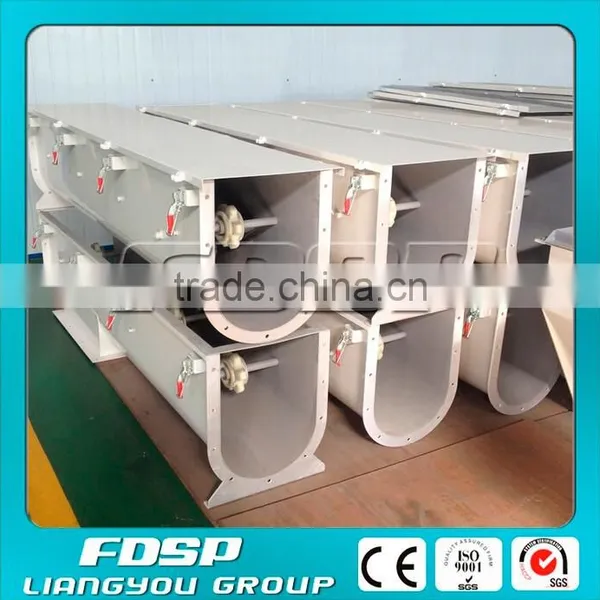

---TGSU Chain Conveyor (U-Shape)
Type |
Trough width (mm) |
Chain speed (mm) |
Conveying capacity (t/h) |
Material layer height (mm) |
TGSU16 |
160 |
0.3-0.5 |
4-8 |
220 |
TGSU20 |
200 |
0.3-0.6 |
8-15 |
280 |
TGSU25 |
250 |
0.3-0.6 |
15-30 |
280 |
TGSU32 |
320 |
0.3-0.7 |
30-50 |
340 |
TGSU40 |
400 |
0.3-0.7 |
50-80 |
430 |
TGSU50 |
500 |
0.3-0.75 |
80-120 |
540 |
Other Types of Conveyor Machine
- Srew Conveyor Machine
- Screw feeder
- Chain Conveyor Machine
- Enclosed Belt Conveyor Machine
- En-masse Conveyor Machine
- Bucket elevator, etc
What We can Supply
- Feed Machinery: Hammer Mill, Mixer, Pellet Mill, Cooler, Crumbler etc.
- Biomass Machinery: Wood Chipper, Wood Hammer, Pellet Mill, Cooler, etc.
- Steel Silo Equipment
Our Service:
-24 Hours Online Service.
-All-the-way tracking service offered from placing order to delivery.
-Custmoized design for each different customer.
-Professional training for operation, debugging and daily maintenance.
-We can also provide professional guide installation.
-Customized design and flow chart are available for our clients.
-Independent R&D team and strict & scientific management system.

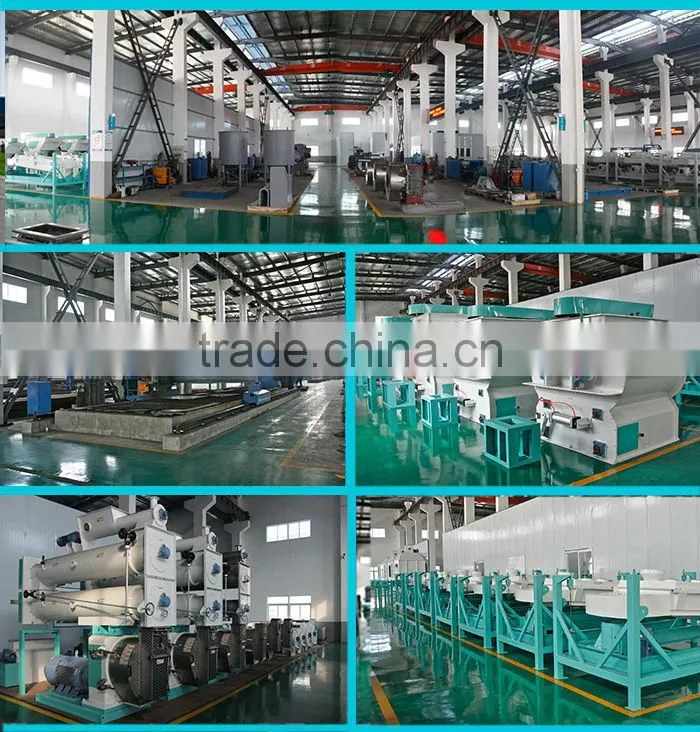

Company Information:
FDSP is a qualified manufacturer which specializes in developing, producing and marketing top class machinery equipment. Now we focus On Pellet mill, Hammer mill, Mixer, drum dryer, wood chipper, packing Machine etc. []
- More than 23 years'experience in biomass and feed pellet production field.
- Approved ISO9001 and international certificate: CE , ISO and SGS.
- 8 years golden Supplier in Alibaba.
- Exported to over 50 countries and finished more than 1550 turn-key projects.
- Specialized in designing, researching, developing, manufacturing and exporting.
Certifications
If you have any interest in our products, welcome to contact us at any time.
