Turnkey Engineering Provide Biomass Fuel Pellet Making Line with 1-5tph Capacity

Turnkey Engineering Provide Biomass Fuel Pellet Making Line with 1-5tph Capacity

Turnkey Project Introduction:

Introduction of Sawdust Pellet Proudction Line

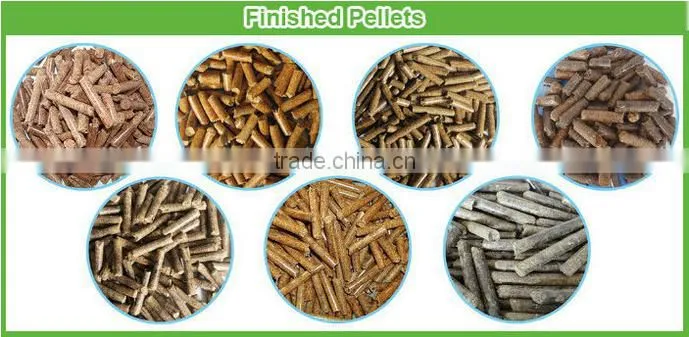

Finished Products:

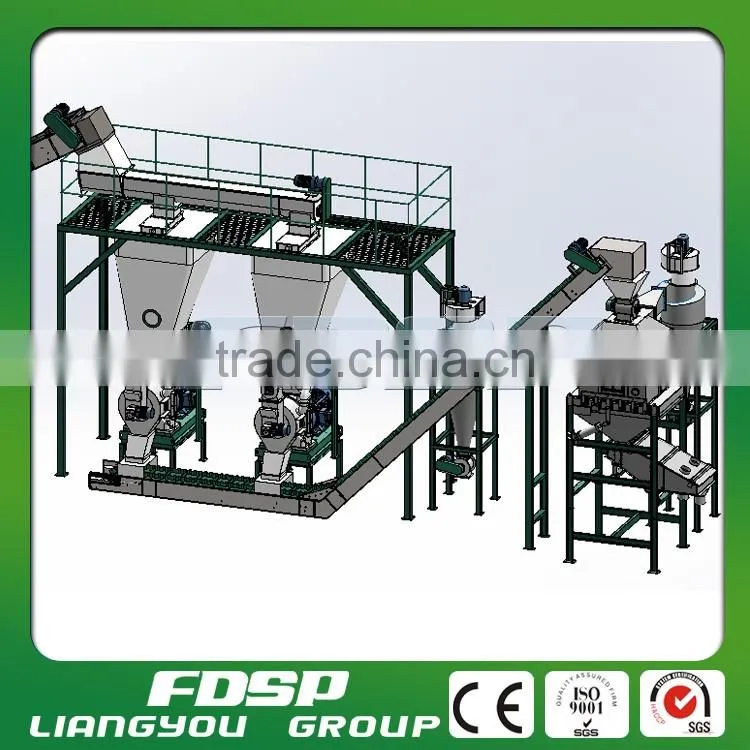

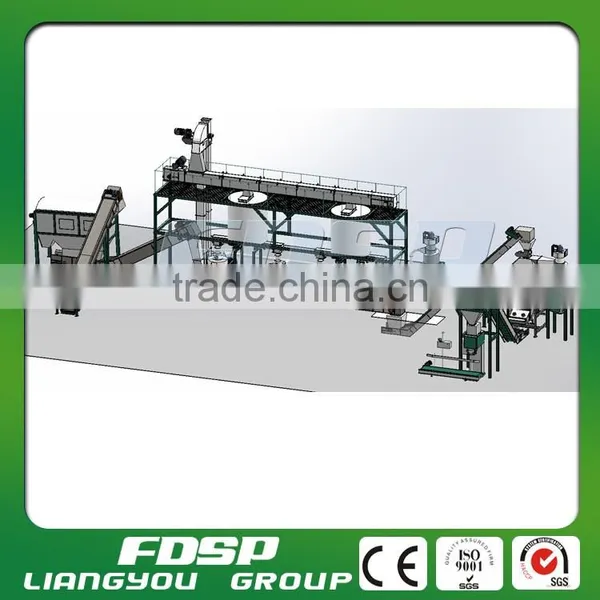

Illustration for 2tph Sawdust Pellet Production Line

As the rice husk is small pieces, there is no need of grinding machine. The complete whole process including precleaning system, pelleting system, cooling system, packing system.

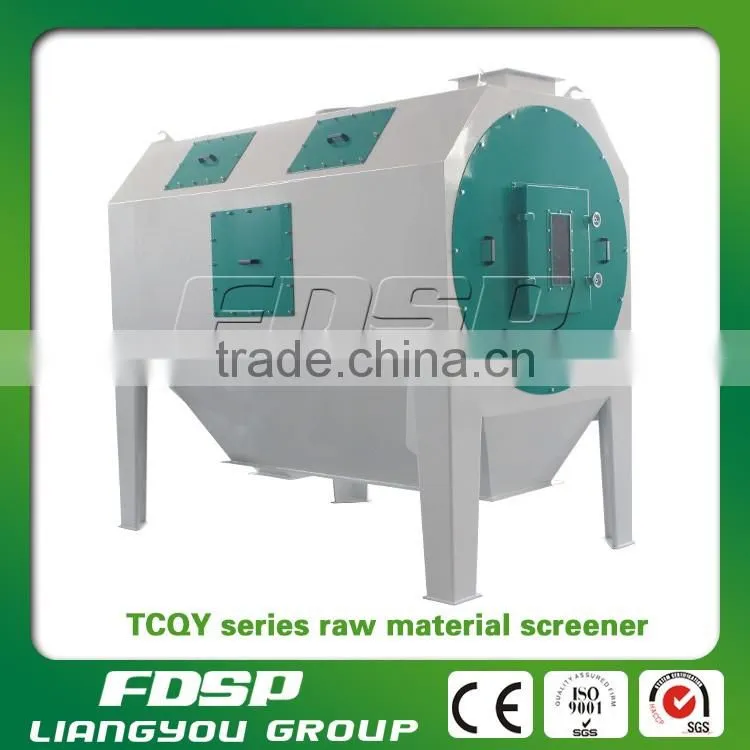

1. Precleaning System——Drum Cleaner Machine

At this stage, the raw materials will be dumping into the hopper and tranported by the belt conveyor to the drum cleaner machine for removing the impurites in the raw materials.

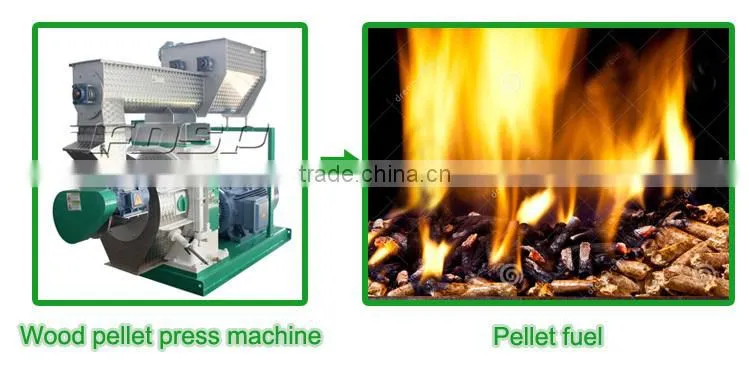

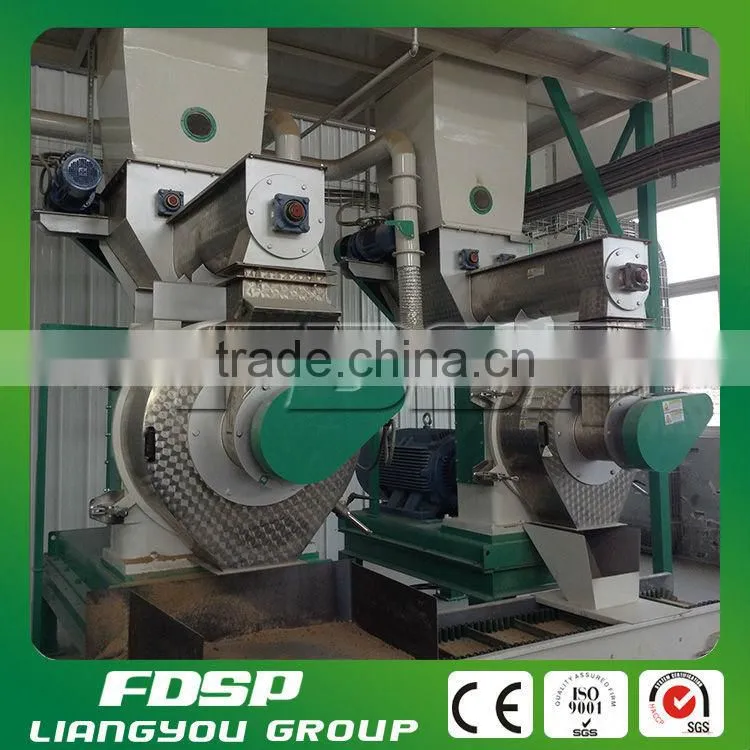

2. Pelleting System——Pellet Mill Machine

After cleaning the raw materials, the cleaned raw material will be tranported to the pellet mill machine by belt conveyor for pelleting. The pelletizing machine or press is the key piece of machinery in the pelletplant. It should be mentioned that impurities inthe raw materials like metal or stone, may damage the die and rollers of pellet making machine.

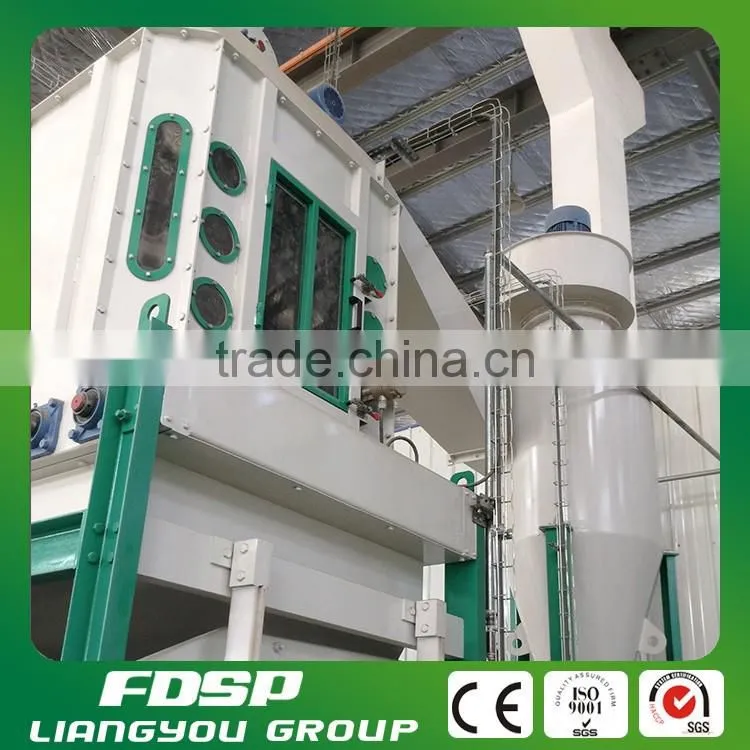

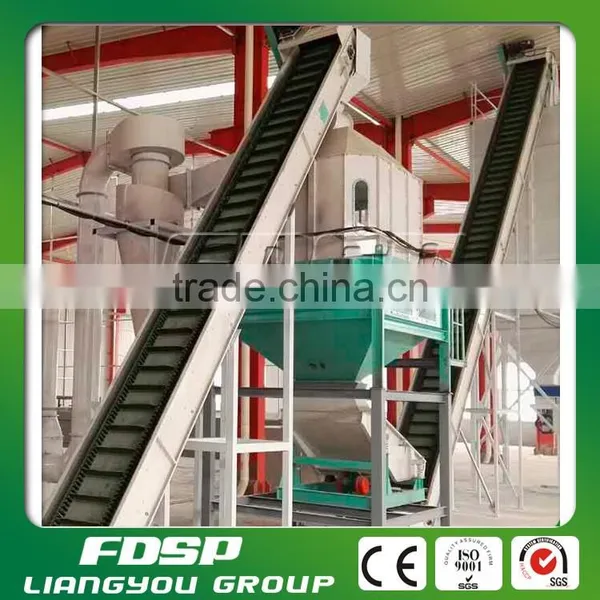

3. Cooling System——Cooling Machine

Usually after pelletizing, the temperature of pellets is between 60-80 degrees and the moisture content is close to 15%. For storage purpose, a cooler must be used to reduce their surface temperature and moisture content.

4. Packaing System

Finally is the packing process. In order to protect the wood pellets becoming getting

damp and to increase storability, proper packing is necessary.

Packing & Shipping:

Our Service:

  -24 Hours Online Service.

  -Inquiry will be replied within 2 hours.
  -All-the-way tracking service offered from placing order to delivery.
  -Free training for operation, debugging and daily maintenance.
  -We can provide professional guide installation.
  -One year warranty and all-round after-sales service.
  -Customized design and flow chart are available for our clients.
  -Independent R&D team and strict & scientific management system.

Following Information Needed for Best Solution Designed by Our Engineer:

• What capacity would your prefer?

       The Capacity Range of Wood Pellet Machine: 0.8-1T; 1.5-2T; 2-3T; 3-4T.

• What is your raw material?

       According to different raw material(such as hard wood, soft wood, straw, rice husk, wood waste), capacity is different.

• What is the specification of the raw materials?

       Best size for pressing high quality pellets is 3mm-5mm.

• What is the moisture of the raw materials?

       Better to be 10-15% (If it is large than this, then we will recommend you the Dryer Machine).

• Final Pellets Size requirment?

       We have Diameter for Pellets:6mm, 8mm, 10mm, 12mm,( Different Diameters for your Different Requirement.)

• Pellets Length: Adjustable 20-50mm. (Normally our clients ask pellets length of 33mm, between 30-36mm)

Why choose us?

• Experienced biomass and feed pellet line related supplier for over 23 years.

• Professional sales and engineers team for your service.

• High quality as all of the products have approved CE&ISO9001&SGS certifications

• Use most up-to-date CNC Machine Center to ensure the quality standards.

• Already supplied over 1,550 turn-key projects with great satisfaction.

Company Introduction ——FDSP Group

FDSP Group is a qualified manufacturer which specializes in developing, producing and marketing  top class machinery equipment. Now we focus On Pellet mill, Hammer mill, Mixer,  drum dryer,  wood chipper, packing Machine etc. []

More than 23 years'experience in biomass and feed pellet production field.

Approved ISO9001 and international certificate: CE , ISO and SGS.

9 years golden Supplier in Alibaba.

Exported to over 50 countries and finished more than 1000 turn-key projects.

Specialized in designing, researching, developing, manufacturing and exporting.
