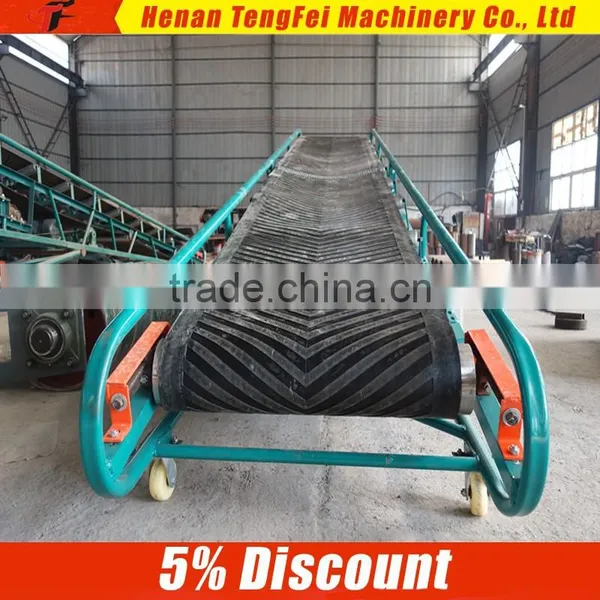

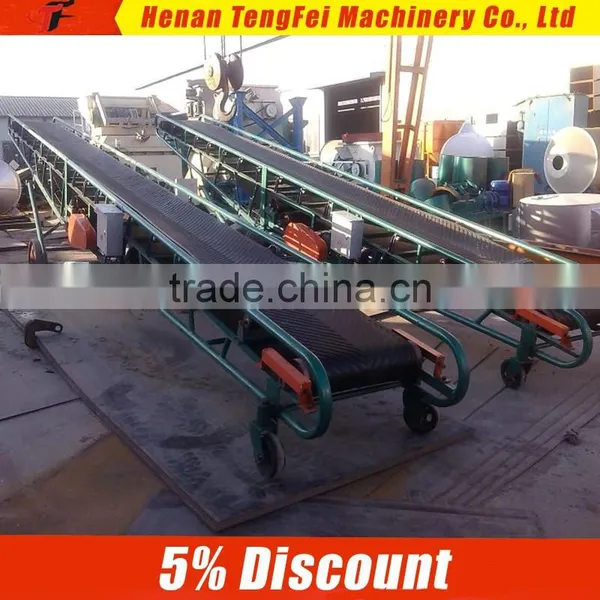

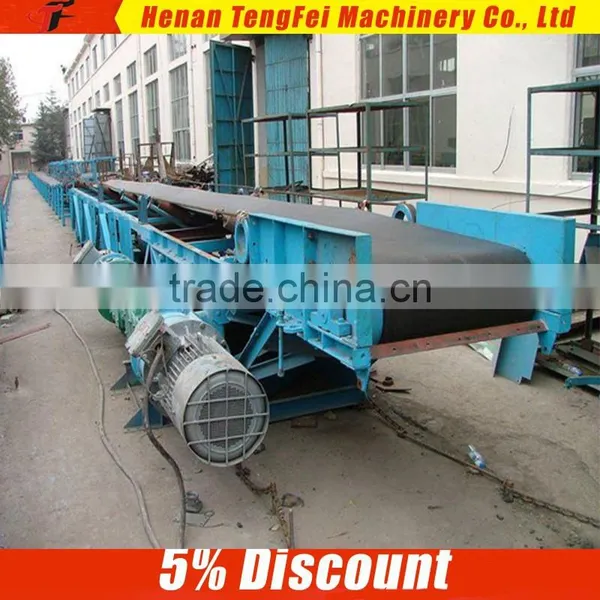

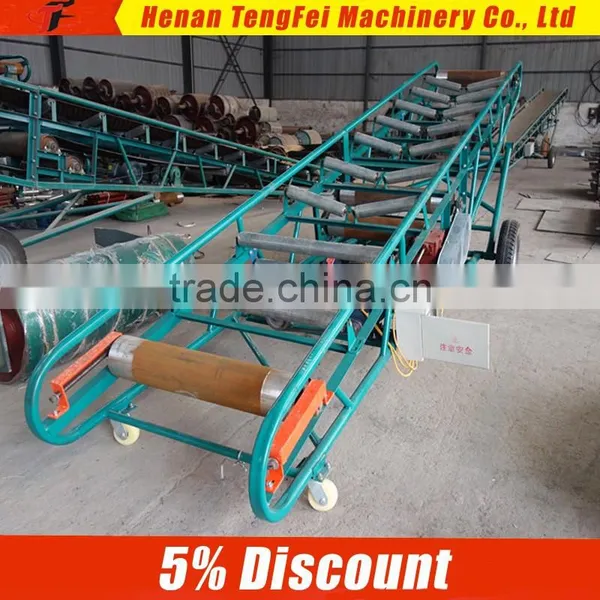

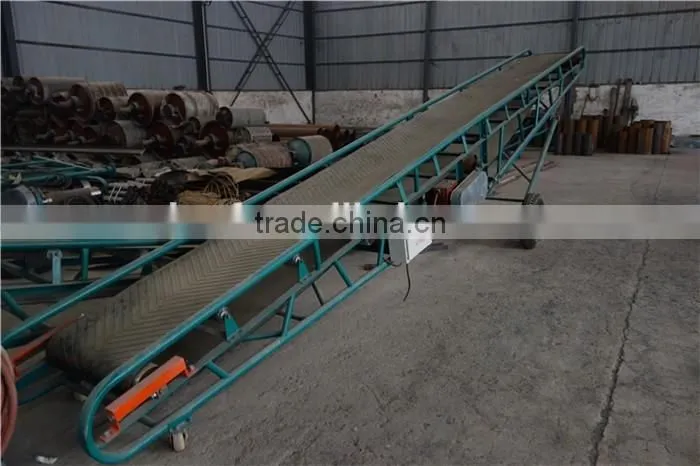

High efficiency fertilizer grain hopper belt conveyor price

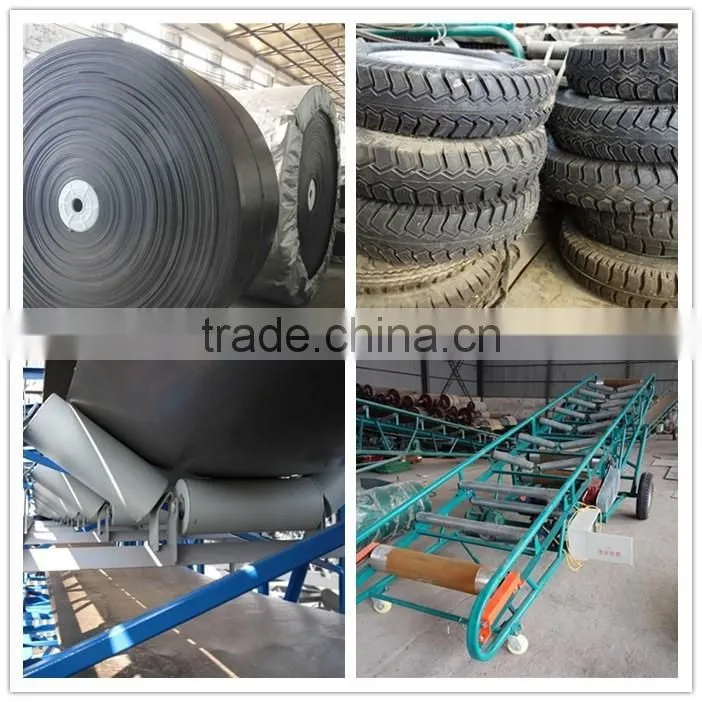

Brief Introduction of hopper belt conveyor:
It mainly consists of frame rack, belt, roller, tensioner, transmission part. The frame rack is made of steel, and the belt is made of cotton or nylon as the core. It has the advantages of big conveying capacity, simple structure ,convenient repair and standard parts.
Advantages of rubber hopper belt conveyor:
1. Stable running, low noise and long service life;
2. Thread rod type take-up (tensioner) can be fitted at the tail so as to meet various conveying requirements;
3.Flexible for multi-point feeding and discharging;
4. Equipped with an alarming device for material blockage;
5.Devices for speed loss and chain breakage protection are optional;
6.Widely used in port, dock, grain depot and the malt, flour, brewery, feed and chemical industries for horizontal bulk material conveying.
7.Move to anywhere. more convenience!
(The following points should be pay attention to: hopper belt conveyors can be operated in the circumstance temperature range from -20°C to +40°C. The temperature of transferred material by hopper belt conveyors should be lower than 50°C.)
Application of hopper belt conveyor:
It is widely used in such industries as mine, metallurgy and coal to convey loose materials and finished products.
Types of hopper belt conveyor:
We have various types of hopper belt conveyor, such as 400, 500, 650, 800, 1000, 1200 etc.
The Parameter of hopper belt conveyor:
Belt width(mm) |
Length (m) / Power (KW) |
Conveying Speed (m/s) |
Capacity (t/h) |
||
400 |
≤12/2.2 |
12-20/2.2-4 |
20-25/4-7.5 |
1-2.0 |
30-60 |
500 |
≤12/3 |
12-20/3-5.5 |
20-30/5.5-7.5 |
1-2.0 |
40-80 |
600 |
≤12/4 |
12-20/4-5.5 |
20-30/5.5-11 |
1-2.0 |
80-120 |
800 |
≤10/4 |
10-15/4-5.5 |
15-30/5.5-15 |
1-2.0 |
120-200 |
1000 |
≤10/5.5 |
10-20/5.5-11 |
20-40/11-22 |
1-2.0 |
200-320 |
1200 |
≤10/7.5 |
10-20/7.7-15 |
20-40/15-30 |
1-2.0 |
300-480 |

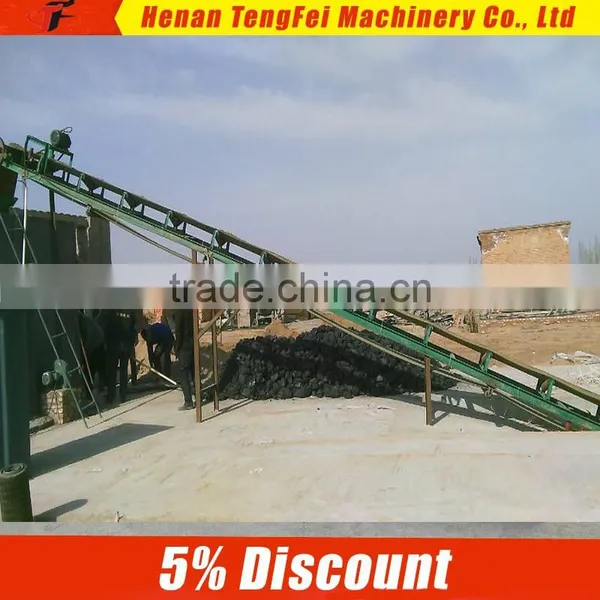

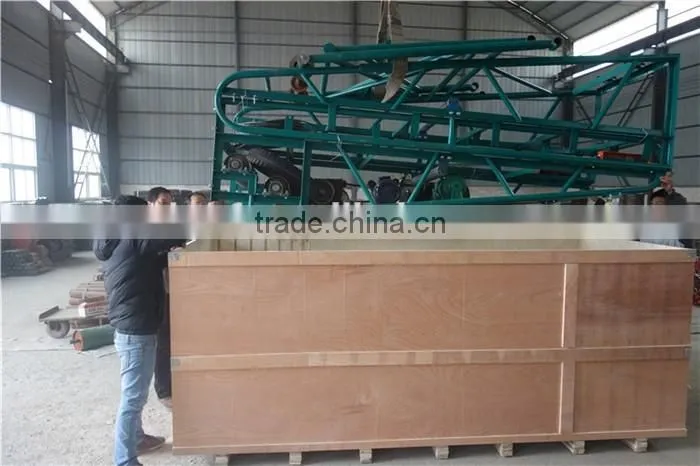

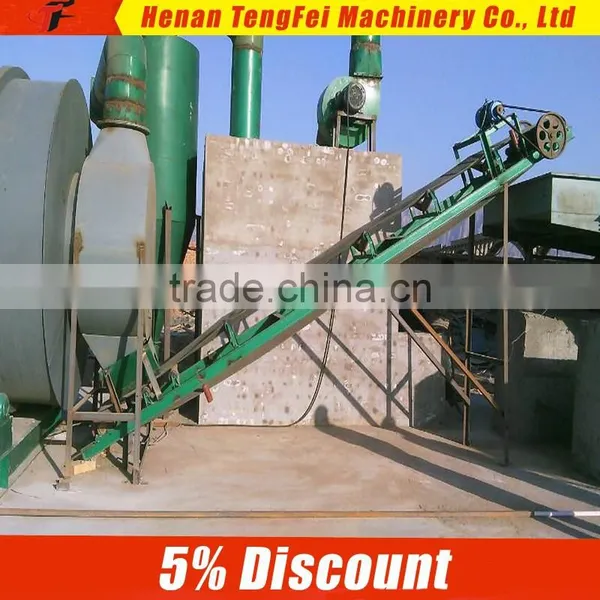

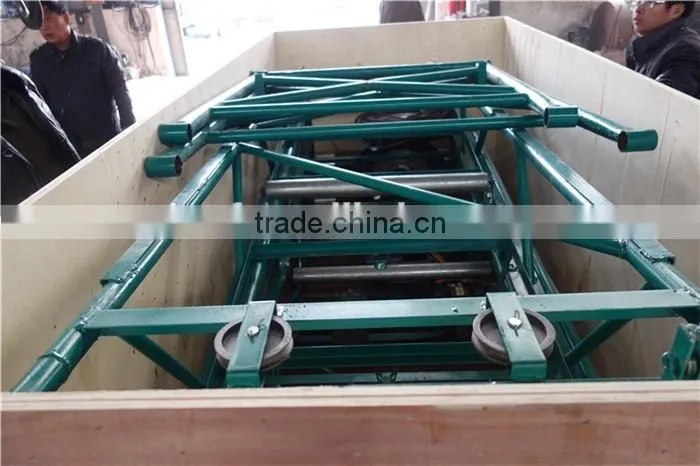

The Delivery Site Of hopper belt conveyor :
Our Services
1. Upon got your inquiry, We will reply to you in 24 hours.
2. Assist clients to prepare for the first construction scheme and supply foundation drawing.
3. Oversea installation and provide technical exchange, train client to operate the machine
4. Supply spare and accessory parts at favorable price for long-term.
5. Spare part are original, authentic, good quality, can be available from stock, and sent to client immediately by DHL, EMS, Fedex, and by air, guarantee client to receive it in shortest time.
Our advantages:
1. Rich experience in complete production line design, installation and training.
2. Comprehensive and professional services—supplying raw materials, formula, equipment, installation, and machine life services, to escort your success in one stop station.
3. Experienced exporter--our dry mortar plant exported to over 20 countries like Chile, Bulgaria, Colombia, Mongolian, UAE, India, Libya, Kazakstan, etc
4. Possess ISO9001:2008 certificate, and CE cerification.
5. Awarded as Henan first-class science and technology enterprise by government.
