Specifications
Flexible screw conveyor1. Competitive price,high efficiency.
2. LSY163/180/230
3. Excellent quality
4. Offer best service.
LSY series Vertical Flexible Screw Conveyor !! Pellet LSY163 Screw Conveyor
Brief introduction LSY163 Screw Conveyor Price:
1.LSY series screw conveyor is a new type of transporting equipment, which use rotary screw vane to push material continuously in closed
housing with round section.
2.Main characteristics: compact structure, small cross section, light weight, good seal performance, high transport efficiency, flexible
technological arrangement, and easy to be installed, dismantled and moved, safe operation. It is applicable to transport various kinds
of loose material such as power, granular and small piece material, for example: clay powder, pulverized coal, cement, sand, grain,
small piece of coal, cobble and cast iron filings, etc. it is not applicable to transport material with high viscosity, easy to be curdled.
3.Screw conveyor has horizontal, inclined form, and it can be used with other transport device, to accomplish combined transport,
separate transport, mixing, blending dehydration, compounding, discharging and stacking, etc. the product is suitable to loose cement
transport from cement warehouse to mixer or form cement warehouse to compounding machine at concrete batching plant.
4.The main parts (speed redactor, vane, middle shaft, gimbals and chrysanthemum sleeve, etc) of LSY series screw conveyor that produced
by our company.
Parameters of LSY163 Screw Conveyor Price :
Model |
LSY163 |
Spiral Diameter(mm) |
163 |
Rotation Speed(r/min) |
310 |
Housing Diameter(mm) |
194x6 |
Carrying Capacity(t/h) |
35 |
Conveying Length(m) |
2-12 |
Working Angle |
0-60 |
Motor Type |
Y132M-4 |
Power(kw) |
7.5 |

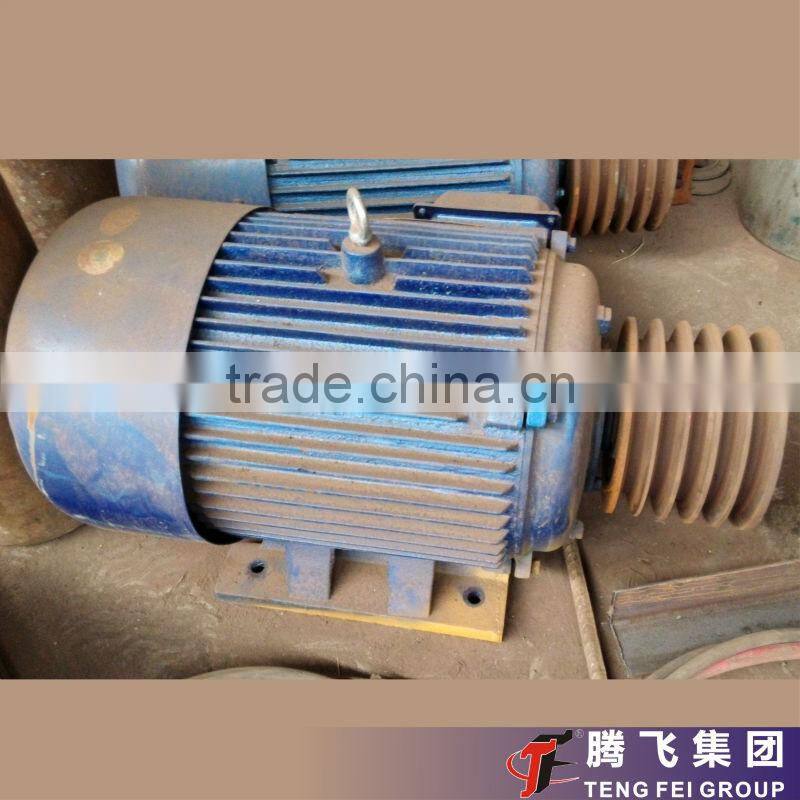

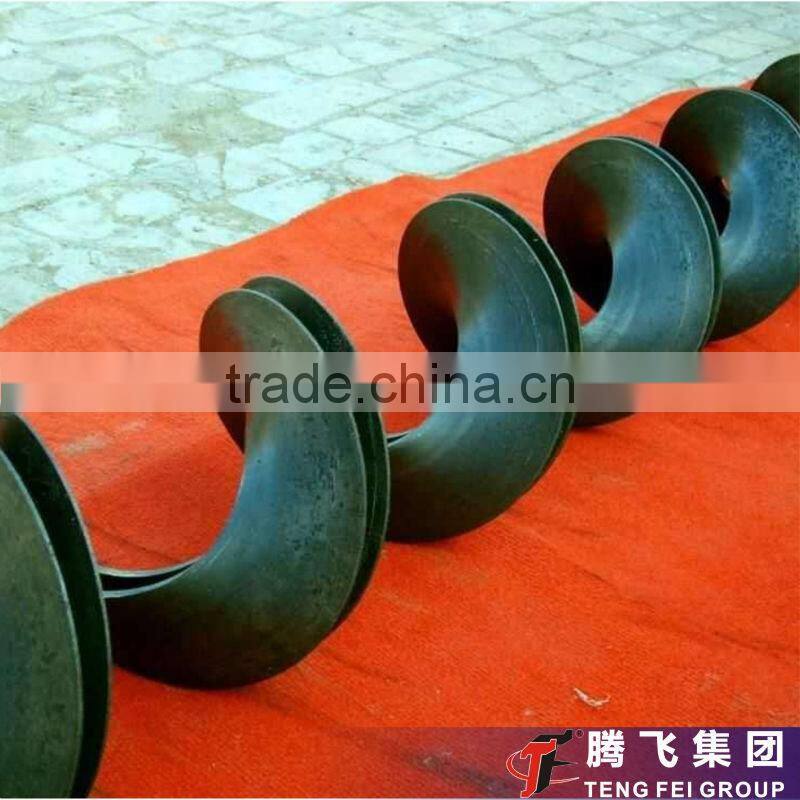

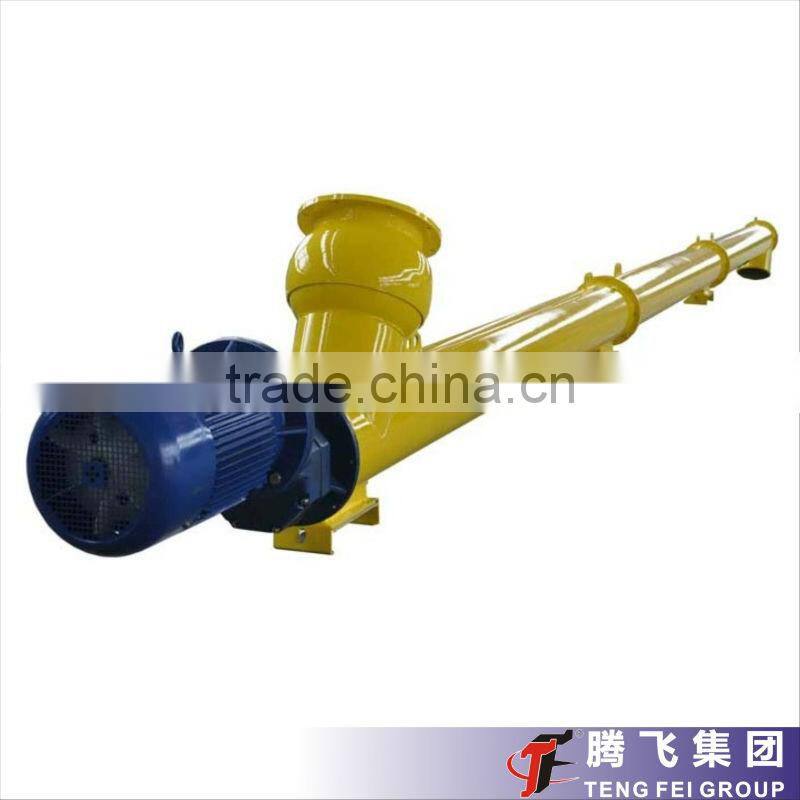

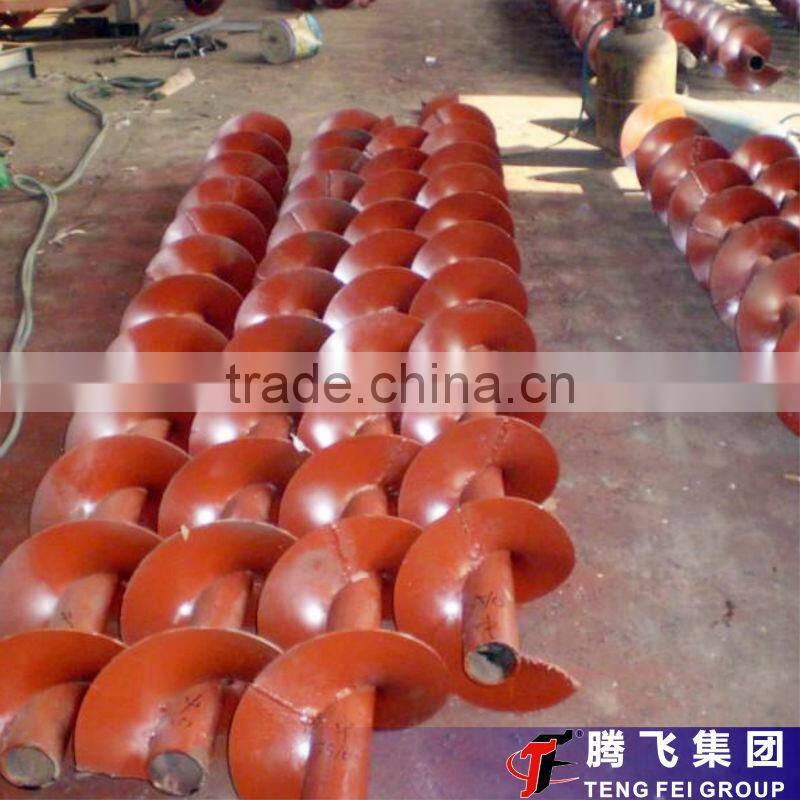

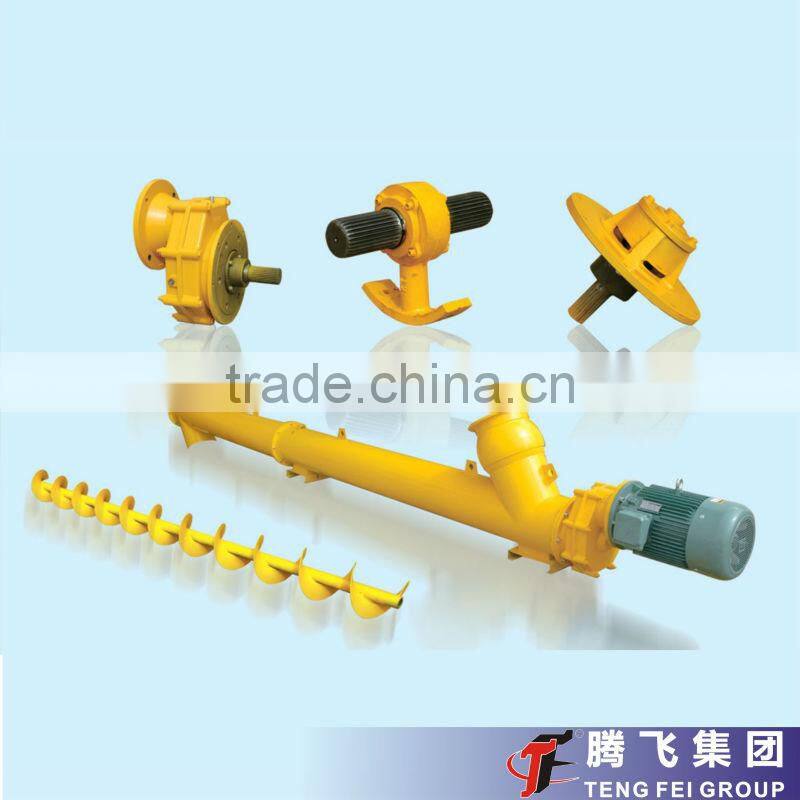

Detailed pictures of LSY163 Screw Conveyor Price :
Established in the year of 1958,Henan Tengfei Machine Manufacturing Co.,Ltd.formerly taking Henan Province
Prospecting Machinery Manufacturing Co.,and Henan Kowloon Machinery Manufacturing Co.,Ltd.as its branch
names,is a company group with itsR&D,manufacturing dapartment,sales department offering a variety of large
complete sets of mediumqualty concrete mixing plant of the modern professional company.The products are
exported to more than twenty countries and regions.Located in Zhengzhou Machinery (Processing) Park,With
the annual processing capacity of nearly 500 units.
As a professional exporter,our target is to serve worldwide clients with high-quality products,great reliability,devoted responsibility,professional services and honorable credibility to meet customers' requirements in all aspects. We will supply you 24 hours a day and 7 days a weekafter-sale services.
How is the quality of your products - LSY163 Flexible screw conveyor ?
Our products are manufactured strictly according to national and international standard,and we take a test on every grinder before delivered out. If you want see our quality certifications and all kinds of testing report, please just ask us for it.
Guaranteed- LSY163 Flexible screw conveyor:
If products’ quality don’t accord to description as we give or the promise before you place order,we promise 100% refund.
How about price - LSY163 Flexible screw conveyor?
Yes, we are factory and be able to give you lowest price below market one,
and we have a policy that “ for saving time and absolutely honest business attitude, we quote as lowest as possible for any customer, and discount can be given according to quantity”, if you like bargain and factory price is not low enough as you think, just don’t waste your time.Please trust the quotation we would give you, it is professional one.
Why should we choose you - LSY163 Flexible screw conveyor ?
Chose happens because of quality, then price, we can give you both.
Additionally, we can also offer professional products inquiry, products knowledge train(for agents), smooth goods delivery, excellent customer solution proposals.Our service formula: good quality+good price+good service=customer’s trust
