The product of asphalt mixing plant for hot sale
LB stationery asphalt mixing plant mainly including: cold aggregate supply system, drum dryer, burning system, hot aggregate elevator, vibrating screen, weighing system, mixing tower, dust collecting system, filler supply system, bitumen supply system, electronic control system, finished asphalt storage bin, ect.

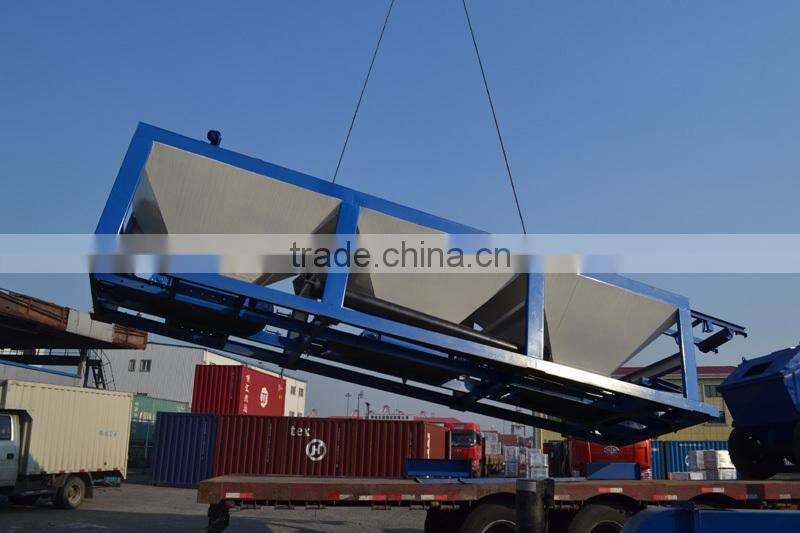

Cold Aggregate Supply System Of stationery asphalt mixing plant
Bin volume and number is customizable, Separated structure design significantly reduces dimensions for shipping and ensures a high capacity.
Two independent cold feeders and modular design, transport expediently.
Seamless ring belt, high reliability and long life.
Frequency convertor controlled SIEMENS motor, infinite variable speed adjustment, more accurate and energy saving.

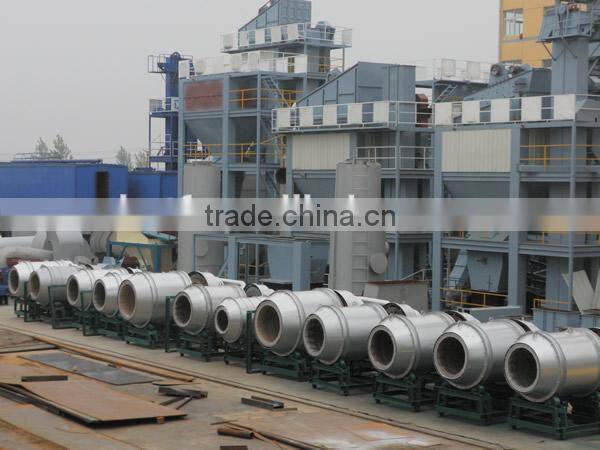

Drying Drum Of stationery asphalt mixing plant
SIEMENS motors, hard-teeth reduction gear, friction driving, drum rotating stably.
Optimized lift blade design, make sure heating equably and high energy using ratio.
With 50mm insulating layer and stainless steel skin, avoid heat be lost.

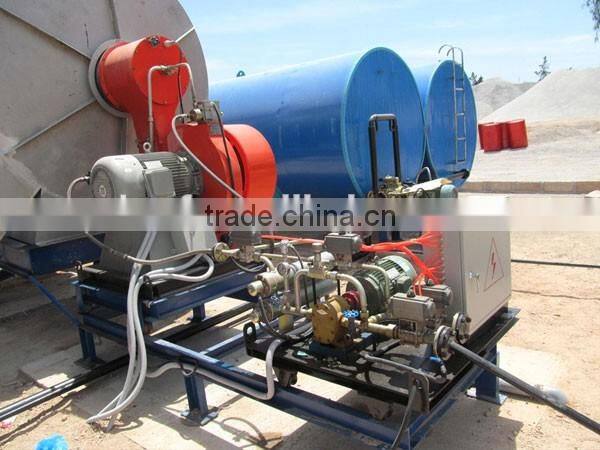

Burner Of stationery asphalt mixing plant
Italy EBICO oil burner imported with original packing, high burning efficiency, diesel, diesel/heavy oil dual purpose or gas as fuel is optional.
With automatic flame failure protection devices for emergency.

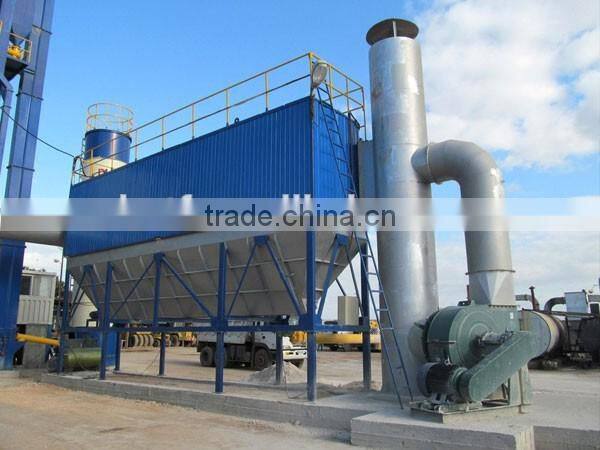

Dust Collection System Of stationery asphalt mixing plant
Two level dust collection system (volute casing collector + bag house collector), with high and low temperature protection device for the system security.
Bag house collector using USA Dupont NEMEX bags, heat resisting and long life.

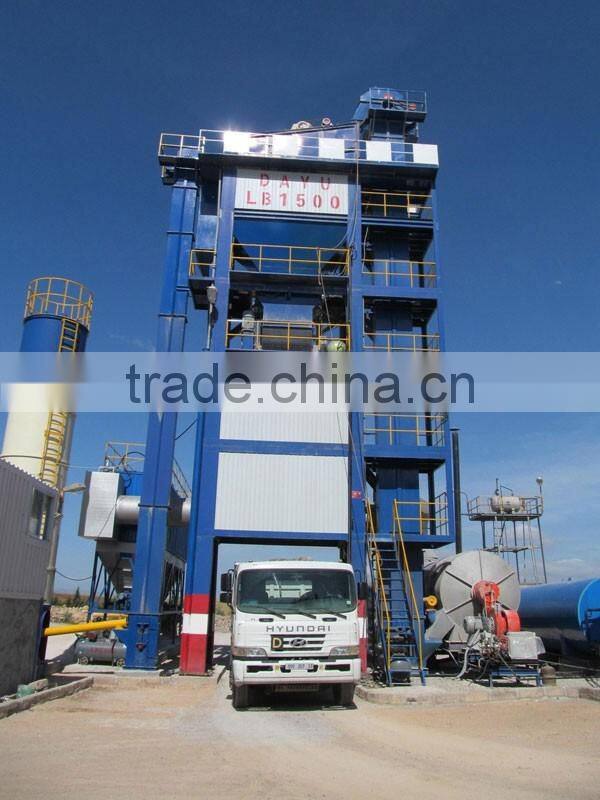

Mixing Tower Of stationery asphalt mixing plant
Both aggregate and filler elevators are equipped with a double ring chain bucket, which is more reliable and convenient for maintenance.
Twin shaft compulsory asphalt concrete mixer (the mixing arm is cross arranged with changeable gridded mixing blade), high mixing efficiency and long life.
SIEMENS motors with hard-teeth reduction gear, most stably and high performance.
Bitumen is sprayed into mixer through a special designed spray bar with high pressure to reduce feeding time and increase mixing uniformity.
Totally enclosed type circular vibration screen, modular design, vibration motor driving, low maintenance and long life.
Double layer much bigger hot aggregate storage hopper can effectively guarantee the continuity of the supply of hot aggregate; with 50mm insulating layer to avoid heat be lost.

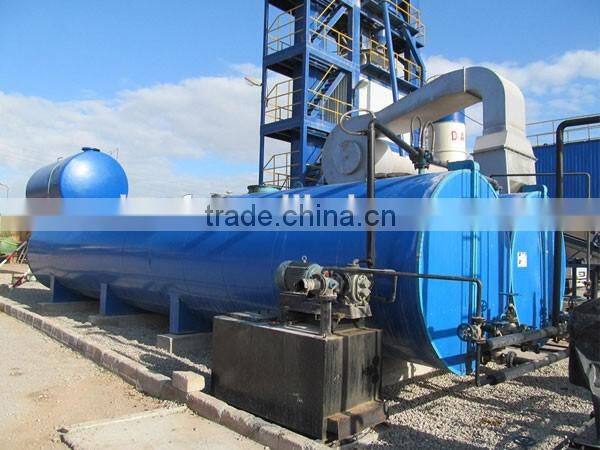

Bitumen Supply System Of stationery asphalt mixing plant
Volume and number of bitumen tanks is customizable according to user requirement.
Heat transfer oil heating type, heating equably.

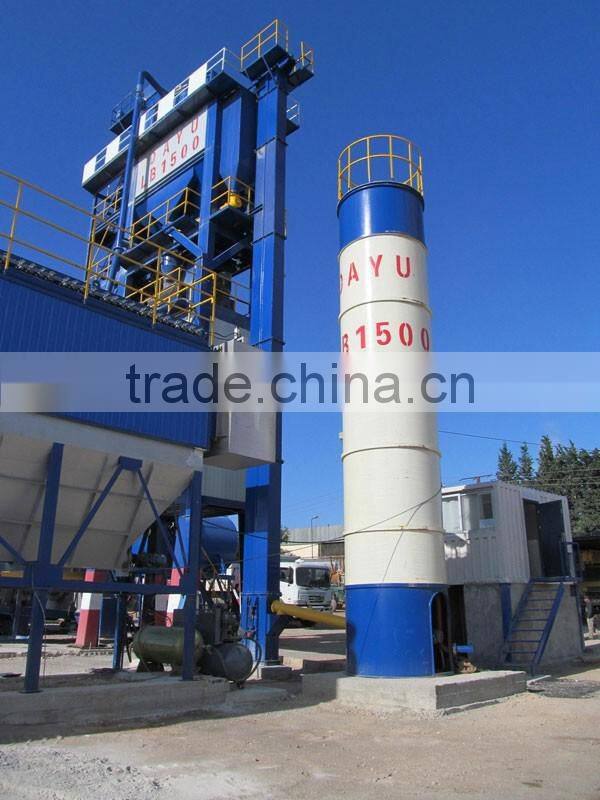

Filler Supply System Of stationery asphalt mixing plant
The standard stacked filler silo design is more convenient for connection with main tower and requires less space for installation.
Volume and number of filler silos is customizable.

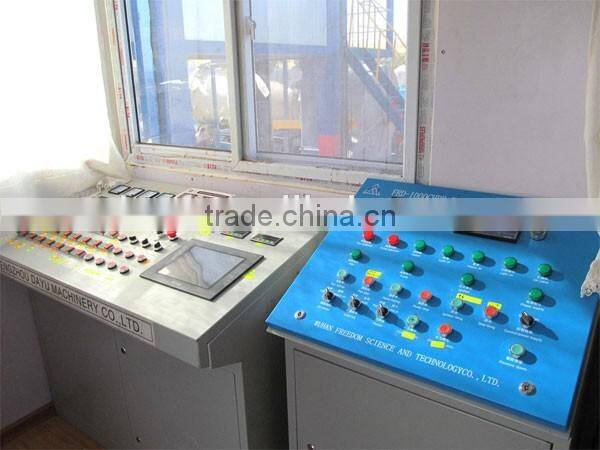

Control System of stationery asphalt mixing plant
Automatic/manual control system, with fault self-diagnosis process, operate easily and safely.
SIEMENS PLC electrical control system, reliability is high.
Fully graphic Multilanguage control interface is easy and convenient for different operators.
Technical parameters of stationery asphalt mixing plant

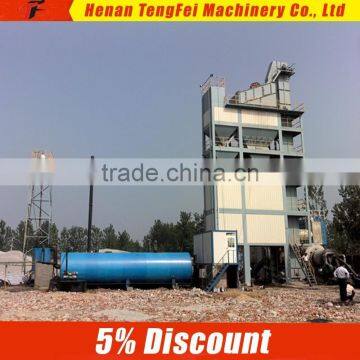

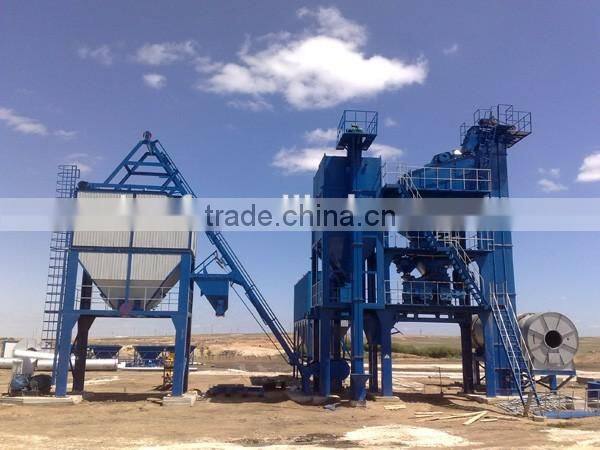

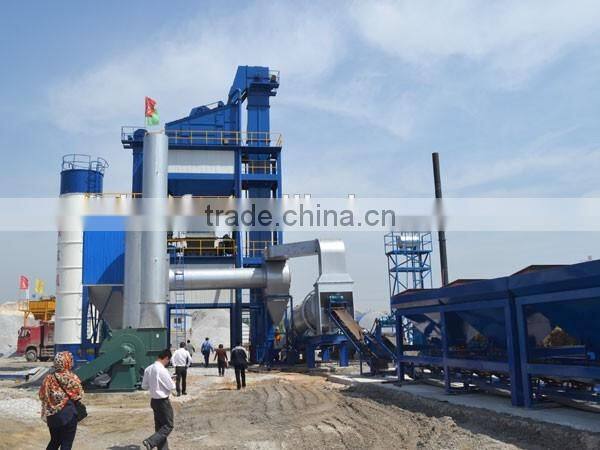

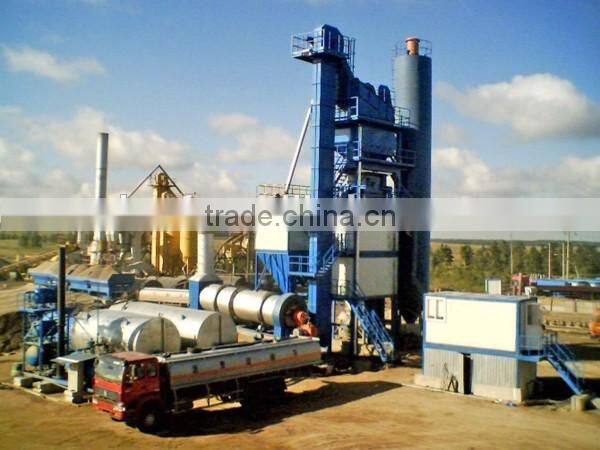

Working site of stationery asphalt mixing plant:
1. How about the investment of this stationery asphalt mixing plant?
A: Our engineer can design the dry mortar plant as your requirement and your budget, different type stationery asphalt mixing plant investment are difference.
Low capacity low cost, we will provide you cost effective solution as your requirement.
2. What equipment and service you can provide?
A: We can provide you turnkey solution of stationery asphalt mixing plant from working site planning to asphalts machines, transportation, installation and training, formula of asphalts, after sales services, life time technical support etc.
3. What is the area required for this stationery asphalt mixing plant?
A: According to different capacity, the capacity required 40-400T/H.
4. What is the capacity of your stationery asphalt mixing plant?
A: We have stationery asphalt mixing plant capacity from 4-400T/H as your requirement, And also we can customize the machine for you.
5. What is the guarantee period?
A: 12 months, with in this period we provide you technical services for free.
6. Can you install the stationery asphalt mixing plant in my country?
A: Yes, we will send engineers to your country for guiding installation and training your workers to operate the machine.
10. If you want to know more about our stationery asphalt mixing plant, please send us inquiry or contact us directly.
