Specifications
AAC block production line plant1.Light weight and fire -proof
2.Automatic aac cutting machine
3.ISO
4.Flyash:70%

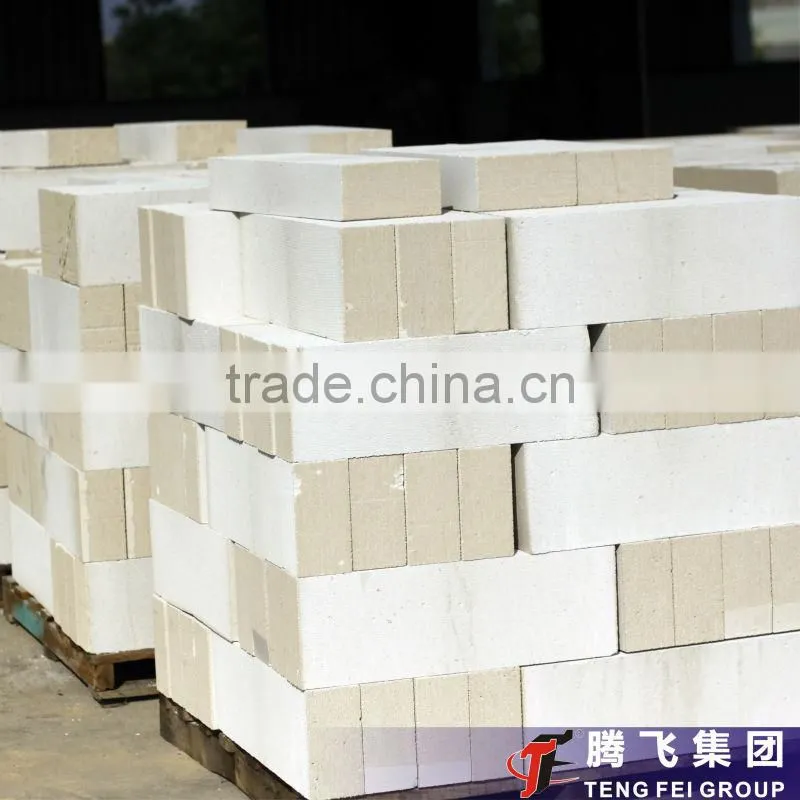

Factory direct-aac block production line plant/ china aac blocks for sale
1. Advantages of aac block production line plant
1.1, Lightweight:The aerated concrete dry bulk density generally is 400-800kg/m3, equivalently to clay
brick 1/3, normal concrete 1/5, lower than normal light-weight aggregate concrete and hollow brick, hollow clay
brick. so, using aerated concrete as wall material can lighten the building self weight, and then reduce the
size of building foundation, girder and pillar etc. Structure, save building material and project cost, improve the building
shock resistance.
Several common building material volume density (kg/m3)
material |
aerated concrete |
wood |
clay brick |
lime and sand brick |
hollow brick |
ceramsite concrete |
normal concrete |
index |
400-800 |
400-650 |
1600-1800 |
1700-1800 |
900-1700 |
1400-1800 |
2000-2400 |
1.2, Fireproof: Most of the major raw materials is inorganic materials, so it has good fire resistance, and do not emit harmful gases when meet fire. Fire 650 degrees, as a refractory material, the thick up of 90mm walls can reach to 245 minutes fire resistance, 300mm thick up wall can reach to 520 minutes fire resistance.
1.3,Sound insulation: Due to a unique porous structure, so it has a sound absorption capacity. The sound absorption capacity can reach of 10mm thick wall up to 41 db.
1.4, Insulation: As the material inside has a large numbers of the pores and porous, which has a good thermal insulation properties. The Thermal conductivity is 0.11-0.16W/MK, as 1/4-1/5 of brick. Typically, the insulation effect of 20cm thick aerated concrete wall is equivalent to 49cm thick solid brick walls ordinary.
1. 5, Permeability: Result of material by the composition of many independent small pores, the moisture absorption is slow, in the volume of absorbent is 5 times of clay saturation do. When used in the bathroom, the wall can be treated to interface directly paste tiles.
2. Normal size of aac block production line plant
Length (mm): 600
Width (mm): 75, 100, 125, 150, 175, 200, 250
60, 120, 180, 240
Height (mm): 200, 240, 250, 300
Remarks: the size can be customized
3. Main Raw maerial of aac block production line plant
1) Typical Formula and Consumption of Fly ash AAC
Fly ash: content ratio 70%, consumption 350kg/m3; Cement: content ratio 13.8%, consumption 25-30kg/m3; Lime: content ratio 13.8%, consumption 140-150kg/m3; Phosphogypsum: content ratio 2.96%, consumption 15kg/m3; Aluminum: micro scale, consumption 0.4kg/m3
2) Typical Formula and Consumption of Sand AAC
Sand: content ratio 69.2%, consumption 350kg/m3; Cement: content ratio 13.8%, consumption 70kg/m3; Lime: content ratio 13.8%, consumption 70kg/m3; Gypsum: content ratio 2.96%, consumption 15kg/m3; Aluminum: micro scale, consumption 0.4kg/m3
2). After distributing,feed raw material into pouring mixer to make slurry
3). Through thoroughly mixing,the slurry is poured to mould
4). After pre-curing under a certain temperture and time,the block would reach a certain hardness prepare for cutting
5). Tilting hoister would turn over 90 degree of mould
6). Then open the mould and separate it from block,and take the block woth side plate ti cutting cart

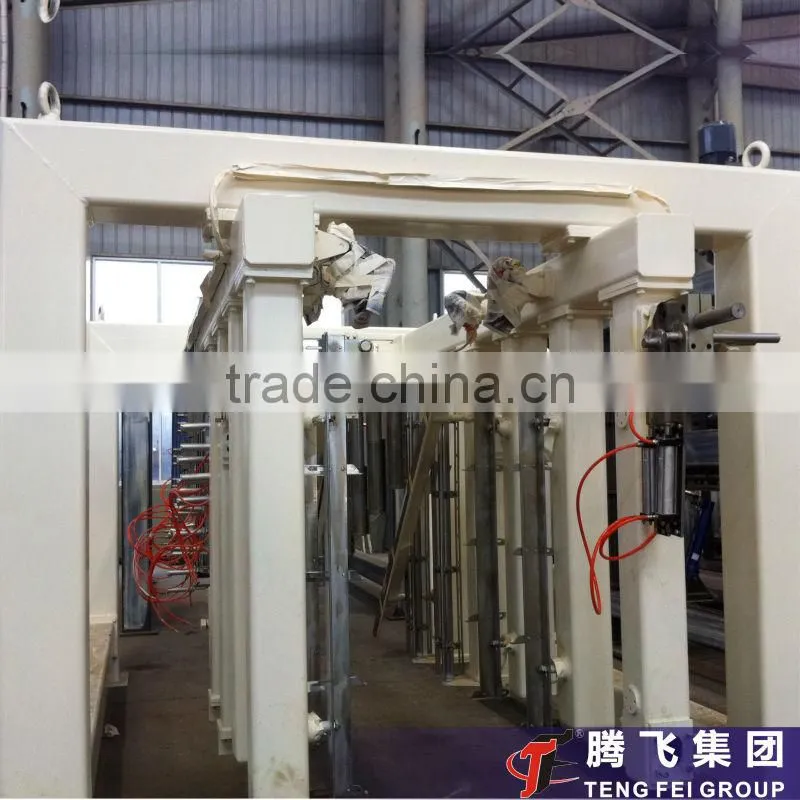

7). The blocks then be cut through the cutter firstly of two vertical sides of block
8). Secondly the horizontal cutting
9). Finally the vertical cutting
10). After cutting,the block is hanged to trolly with side plate by semi-finished product hoiste
Why chose Henan Teng Fei?
1.Teng Fei give priority to with construction company, during years of construction equipment, progress in practice and
has strong practicability.
2.Our company has years of experience in project negotiation and can provide customers with effective business negotiations
guidance to win project
3.in addition to providing equipment and technical training, we also provide free foam concrete project system
solutions to help you get maximum benefit.
How long is the warranty?
The warranty period is 12 months.
What services does it provide?
1.pre-sale service: our company can provide technological guidance and formulate suitable
equipment matching program according with your specific production requirements.
2.on-purchase service: our company can solve professional technical problems and other related issues for you.
3.after-sales service: our company provides that engineers available to service machinery overseas and
equipment for life maintenance.
What is the Teng Fei’s basic philosophy?
Henan Teng Fei Machine Manufacturing Co., Ltd. is a collection of scientific research, development, production marketing for the integration of manufacturing enterprise; The company execute principles “development is a competition philosophy” and take “efficient, pragmatic, cooperation, innovation “as beliefs.
About us:
1.Delivery time: 15 days after receipt of your deposit.
2.Payment terms: 30% T/T in advance, the balance is paid (by T/T) before delivery.
3.Package:
1).Wire cables are used for fastening the machine on the trailer or inside the container.
2).Cork wood are placed in front or behind the machine to protect it.
3).Plastic film is covered on the machine as a rain-roof.
4).Crane is used during the whole loading.
