Aerated concrete block/aac block plant for sale

Specifications

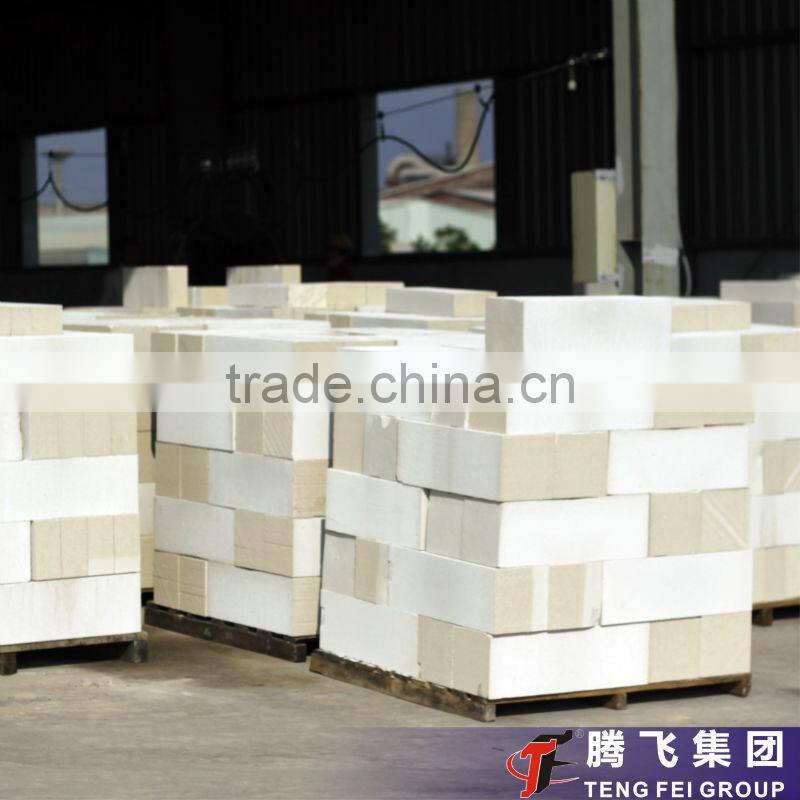

Aerated concrete block
1.Power:630kw
2.FOB price get latest
3.Light weight
4.Environment friendly

Aerated concrete block/aac block plant for sale



 1. Advantage of AAC/aac autoclave Block Plant:



1.Light-weight :

The AAC block weight usually is 500-700kg/m3. It apply to fill walls of high-rise building and the main wall of low-rise buildings to make the whole building self-weight than normal weight reduce above 40% of composite

masonry structure building . And that improves much building anti-aseismic ability.



2.Good heat preservation:

The AAC block coefficient of thermal conductivity is commonly 0.11 0.18 kcal/m 0  hour.

The heat preservation effect of 20 cm aerated concrete wall is equivalent to 49 cm thick clay brick wall thermal

insulation effect. Obviously the heat insulation performance is significantly superior to 24 cm brick wall.

Thus,it greatly thin the thickness of wall body. Correspondingly it will expand the effective use of the building

area, save construction materials thickness, improve the construction efficiency, reduce the engineering cost

and weight of the building.



3.High strength:

By experiment, aerated concrete block compressive strength is greater than 25 kg/cm2, equivalent to 125 clay

brick and lime-sand brick compressive strength .



4.Nice anti-seismic performance:

The aerate concrete block is light-weight,good overall performance,small inertia force during the earthquake .



5.High temperature resistance:

When temperature is below 600, the aerated concrete block compressive strength increased slightly, when the

temperature is controlled in 600, its compressive strength is close to room temperature compressive strength,

so the aerated concrete as building material fireproof performance meet national fire protection standards.



2. Aerated Autoclaved Concrete plant, AAC/aac autoclave block plant,aac  line,aac plant,AAC brick plant

1)Product weight is according to 600kg/m3 to control.

2)Annual capacity 50,000m3-450,000m3

3)Water and material rate 0.631

4)One mould product 2.88M3

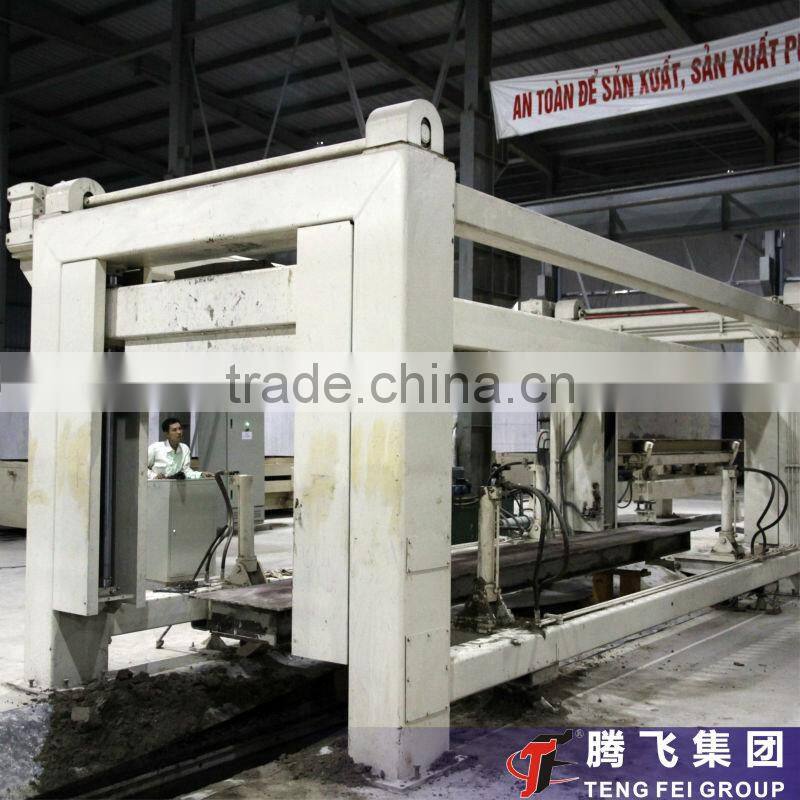

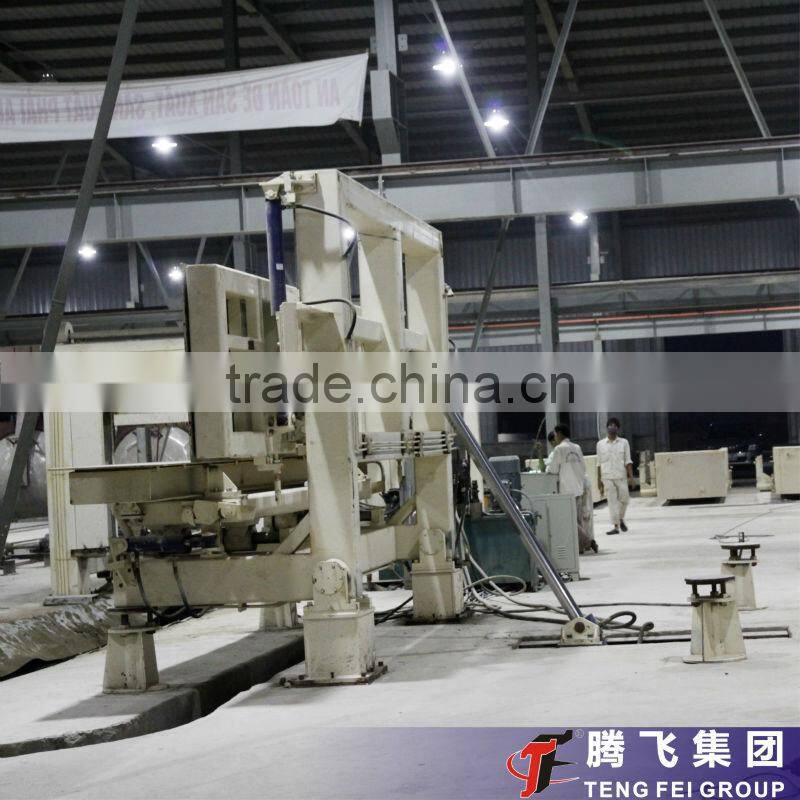

5)Casting slurry cycle time 5-6 minutes, cut cycle time 5 minutes.

3. Cement lime Sand style aac autoclave block raw material proportion

Name	Unit	Cement Lime Sand
Sand	%	55-65
Cement	%	10-20
Lime	%	20-30
Gypsum	%	2-3
Aluminum powder paste(600kg/m3)	1/10000	8
Water & material rate		0.65-0.75
Casting system	OC	35-38
Aluminum mixing time	S	30-40



4. Cement lime fly ash style aerated block raw material proportion

name	unit	Cement lime fly ash
flyash	%	65-70
cement	%	6-15
lime	%	18-25
gypsum	%	3-5
Aluminum powder paste(600kg/m3)	1/10000	8
Water & material rate		0.60-0.65
Casting system	OC	36-40
Aluminum mixing time	S	30-40



1.Delivery time: 15 days after receipt of your deposit.

2.Payment terms: 30% T/T in advance, the balance is paid (by T/T) before delivery.

3.Package:

1).Wire cables are used for fastening the machine on the trailer or inside the container.

2).Cork wood are placed in front or behind the machine to protect it.

3).Plastic film is covered on the machine as a rain-roof.

4).Crane is used during the whole loading.



Why chose Henan Teng Fei?

1.Teng Fei give priority to with construction company, during years of construction equipment, progress in practice and has strong practicability.

2.Our company has years of experience in project negotiation and can provide customers with effective business negotiations guidance to win project

3.in addition to providing equipment and technical training, we also provide free foam concrete project system solutions to help you get maximum benefit.

What services does it provide?

1.pre-sale service: our company can provide technological guidance and formulate suitable equipment matching program according with your specific production requirements.

2.on-purchase service: our company can solve professional technical problems and other related issues for you.

3.after-sales service: our company provides that engineers available to service machinery overseas and equipment for life maintenance.
