Ground Turn Over Craft- Aac Concrete Block Machine 50,000-150,000 CBM/year Aac Bricks

Ground Turn Over Craft- Aac Concrete Block Machine 50,000-150,000 CBM/year Aac Bricks thumbnail-1
Ground Turn Over Craft- Aac Concrete Block Machine 50,000-150,000 CBM/year Aac Bricks photo-1
US$ 300,880 - 356,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Autoclaved Aerated Concrete Brick
Brick Raw Material:
Other, cement,sand/fly ash,gypsum,lime and so on
Contact Supplier Request Quote Chat Now
Henan Teng Fei Machine Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Autoclaved Aerated Concrete Brick
Brick Raw Material Other, cement,sand/fly ash,gypsum,lime and so on
Processing Brick Production Line
Method Autoclaved Aerated Concrete
Automatic Yes
Capacity 50,000-150,000m3 /year
Place of Origin Henan, China
Brand Name Teng Fei
Model Number 100,000m3/year aac concrete block machine
Voltage 380V
Power 350kw
Dimension(L*W*H) 40*35*18m
Certification BV
Warranty 24 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

aac concrete block machine
1.Cutting moulds No.:5/10
2.Production cycle:5
3.Block error:2*1*1mm
4.Environment friendly


Product Description

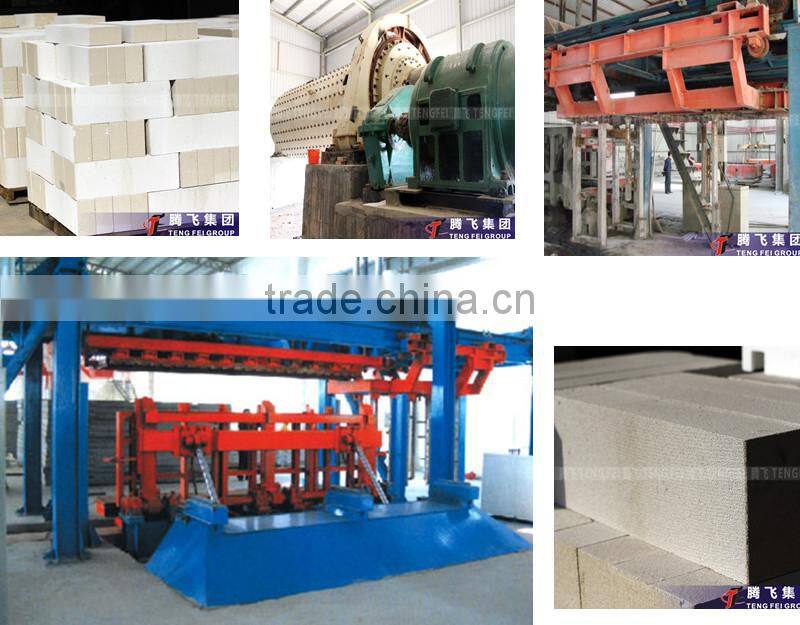

Ground turn over craft- aac concrete block machine 50,000-150,000 CBM/year aac bricks



1. AAC line Classification of 150,000 stere/year aac concrete block machine

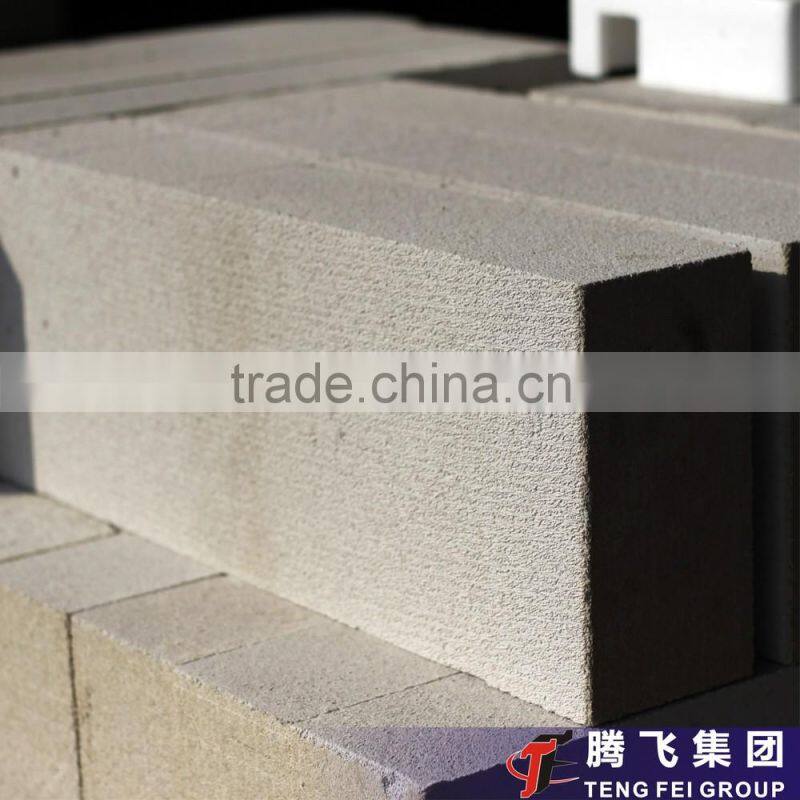

In general, it can be classified according to the types of raw materials,   manufacture process and functions. Based on the shape of AAC products, it can be divided   into: AAC blocks and AAC panels. It is a revolutionary material offering an unique combination of high durability and strength, low weight, excellent heat insulation, fire resistant, noise absorption, unprecedented build ability and superior ecological green features. In China, AAC is one of the light wall materials which was popularized and applied at the earliest and the most widely.

2. AAC Classification :

In general, it can be classified according to the types of raw materials,   manufacture process and functions. Based on the shape of AAC products, it can be divided   into: AAC blocks and AAC panels. It is a revolutionary material offering an unique combination of high durability and strength, low weight, excellent heat insulation, fire resistant, noise absorption, unprecedented build ability and superior ecological green features. In China, AAC is one of the light wall materials which was popularized and applied at the earliest and the most widely.

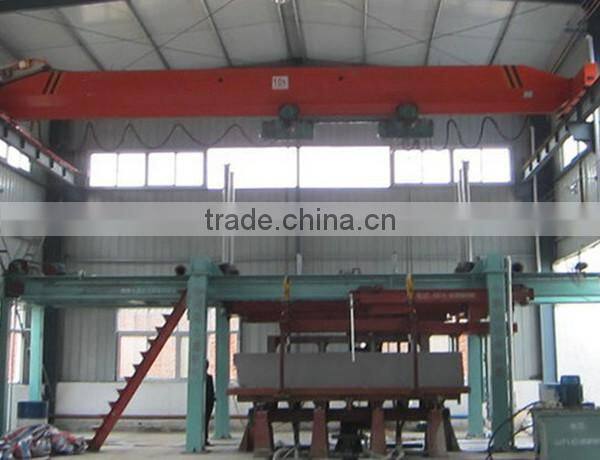

3. Cutting Machine

Ground turn over craft- aac concrete block machine 50,000-150,000 CBM/year aac bricks


Spec

Size of blank(mm)

Cutting cycle

(around)

Capacity (m³/year)

Cutting precision(mm)

Total power

(KW)

Dimensions

4M

4050*1240*650

6min/mould

≥100,000

Six-side cutting <±2

26.5

1100*

4200*

5600

6M

6050*1540*650

4min/mould

≥300,000

Six-side cutting <±2

30

13200*4600*

5800

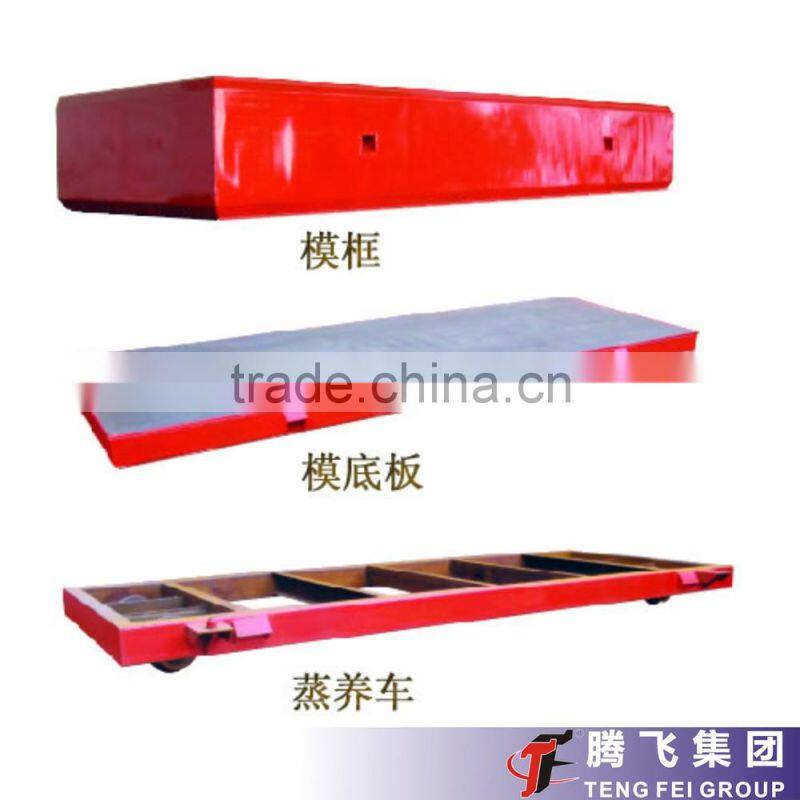

4. Mould,Side Plate and Hardening Car



No.

Specification

Inner net size

I

4M

4040*640*1240

2

6M

6050*670*1250



Ground turn over craft- aac concrete block machine 50,000-150,000 CBM/year aac bricks

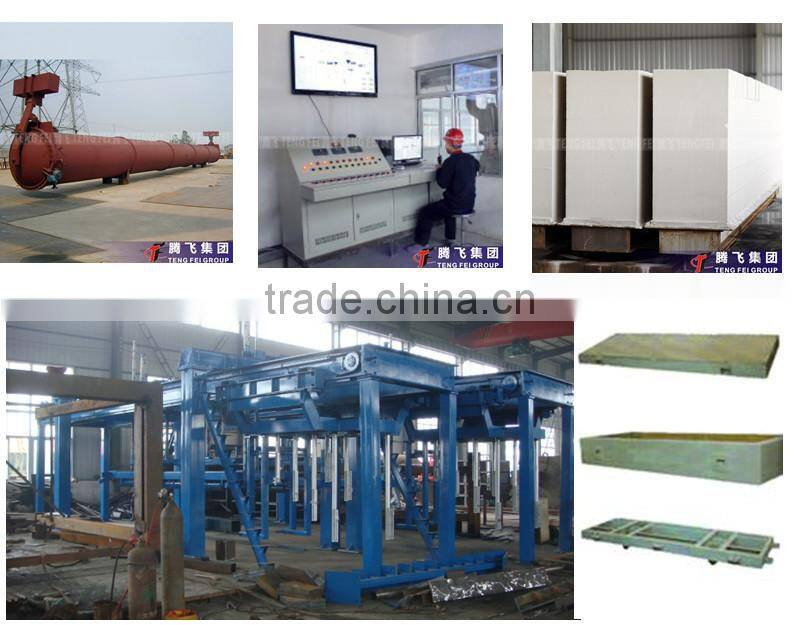

5. Working Principle of 150,000 stere/year aac concrete block machine

1. First, dose and match measured raw materials;
2. After distributing, feed raw material into pouring mixer to make slurry.
3. Through thoroughly mixing, the slurry is poured to mould;,
4. After pre-curing under a certain temperature and time, the block would reach a certain hardness and prepare for cutting;
5.Tilting hoister would turn over 90 degrees of mould;
6.Then open the mould and separate it from block. And take the block with side plate to the cutting cart;
7.After cutting, the block is hanged to trolley with side plate by semi-finished product hoister;
8.Organizing the cut blocks and put them into autoclaves;
9.Hardening the blocks under certain temperature and pressure;
10.Carry the finished product out of autoclave;
11. The finished product hoister take the finished product to stock shield;
12.Packed for loading;
13.The side plate return back through side plate roller;
14. Plate would be organized with open mould;.
15.Clean the mould and prepare for next pouring;
16.Steel bars processing line for slab production.











Ground turn over craft- aac concrete block machine 50,000-150,000 CBM/year aac bricks



6. Main Raw maerial of 150,000 stere/year aac concrete block machine



1. Cement lime fly ash style aerated block raw material proportion



Name

Unit

Cement lime fly ash

Flyash

%

65-70

Cement

%

6-15

Lime

%

18-25

Gypsum

%

3-5

Aluminum powder paste(600kg/m3)

1/10000

8

Water & material rate



0.60-0.65

Casting system

OC

36-40

Aluminum mixing time

S

30-40



2. Cement lime Sand style aerated block raw material proportion



Name

Unit

Cement Lime Sand

Sand

%

55-65

Cement

%

10-20

Lime

%

20-30

Gypsum

%

2-3

Aluminum powder paste(600kg/m3)

1/10000

8

Water & material rate



0.65-0.75

Casting system

OC

35-38

Aluminum mixing time

S

30-40





 Ground turn over craft- aac concrete block machine 50,000-150,000 CBM/year aac bricksGround turn over craft- aac concrete block machine 50,000-150,000 CBM/year aac bricks

Ground turn over craft- aac concrete block machine 50,000-150,000 CBM/year aac bricks




Packaging & Shipping



1.Delivery time: 15 days after receipt of your deposit.

2.Payment terms: 30% T/T in advance, the left is paid (by T/T) before delivery.

3.Package:

1).Wire cables are used for fastening the machine on the trailer or inside the container.

2).Cork wood are placed in front or behind the machine to protect it.

3).Plastic film is covered on the machine as a rain-roof.

4).Crane is used during the whole




FAQ

Why chose Henan Teng Fei?

1.Teng Fei give priority to with construction company, during years of construction equipment, progress in practice and has strong practicability.

2.Our company has years of experience in project negotiation and can provide customers with effective business negotiations guidance to win project

3.in addition to providing equipment and technical training, we also provide free foam concrete project system solutions to help you get maximum benefit.



How long is the warranty?

The warranty period is 12 months.



What services does it provide?

1.pre-sale service: our company can provide technological guidance and formulate suitable equipment matching program according with your specific production requirements.

2.on-purchase service: our company can solve professional technical problems and other related issues for you.

3.after-sales service: our company provides that engineers available to service machinery overseas and equipment for life maintenance.



What is the Teng Fei’s basic philosophy?

Henan Teng Fei Machine Manufacturing Co., Ltd. is a collection of scientific research, development, production marketing for the integration of manufacturing enterprise; The company execute principles “development is a competition philosophy” and take “efficient, pragmatic, cooperation, innovation “as beliefs.
