Specifications
AAC block machine and price1.Light weight and fire -proof
2Automatic aac cutting machine
3.ISO 9001 Certificate
4Quality

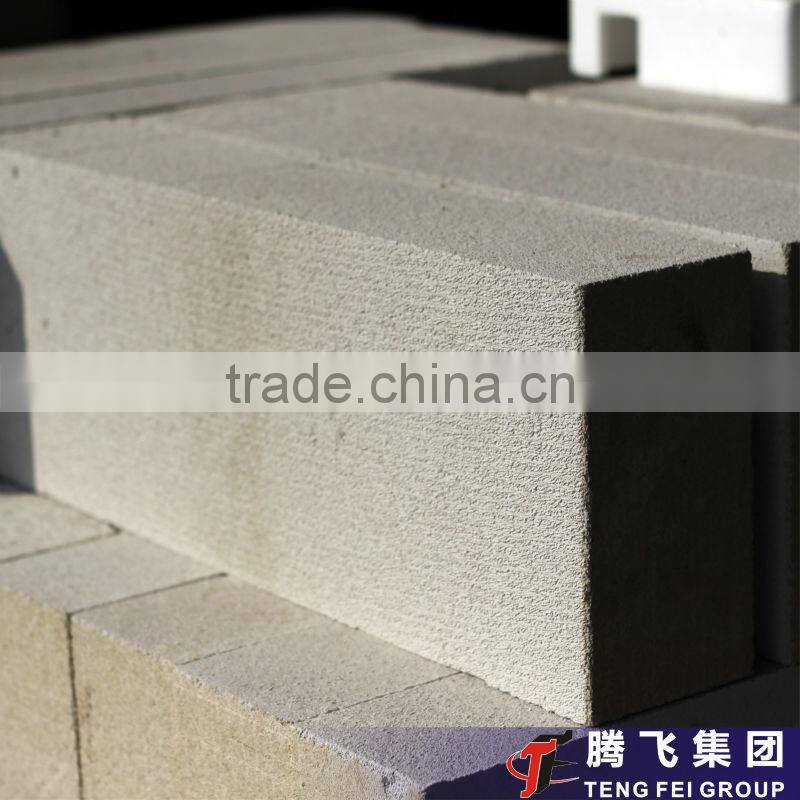

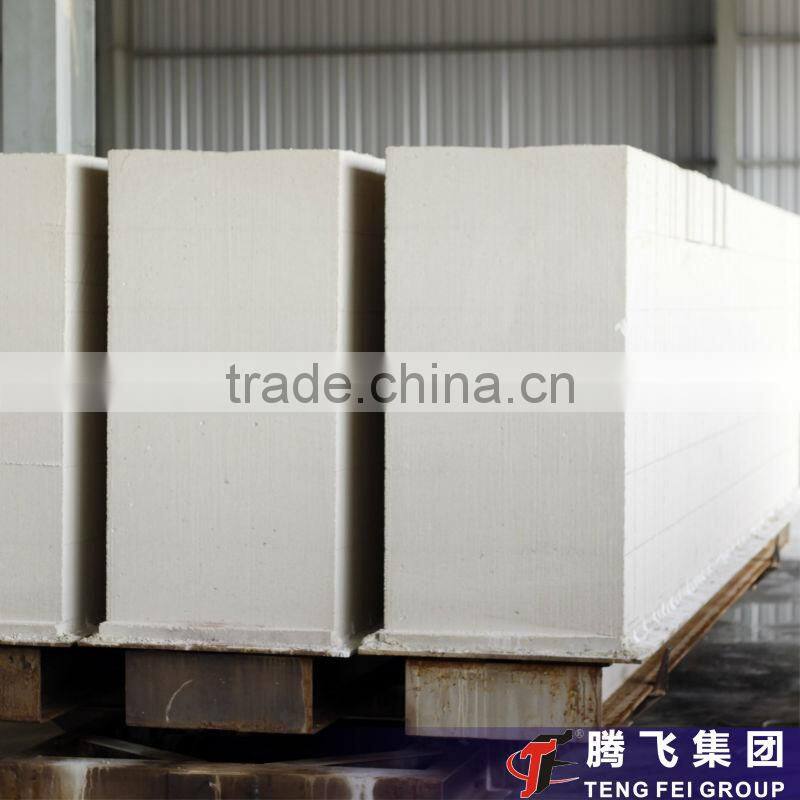

AAC block machine and price/aac block and new aac for sale-all types for sale
1. Advantages of aac block machine and price :
1.1, Lightweight:
The aerated concrete dry bulk density generally is 400-800kg/m3, equivalently to clay brick 1/3, normal
concrete 1/5, lower than normal light-weight aggregate concrete and hollow brick, hollow clay brick.
so, using aerated concrete as wall material can lighten the building self weight, and then reduce the size of
building foundation, girder and pillar etc. Structure, save building material and project cost, improve the building
shock resistance.
Several common building material volume density (kg/m3)
material |
aerated concrete |
lime and sand brick |
hollow brick |
ceramsite concrete |
normal concrete |
index |
400-800 |
1700-1800 |
900-1700 |
1400-1800 |
2000-2400 |
1.2, Fireproof: Most of the major raw materials is inorganic materials, so it has good fire resistance, and do not emit harmful gases when meet fire. Fire 650 degrees, as a refractory material, the thick up of 90mm walls can reach to 245 minutes fire resistance, 300mm thick up wall can reach to 520 minutes fire resistance.
1.3,Sound insulation: Due to a unique porous structure, so it has a sound absorption capacity. The sound absorption capacity can reach of 10mm thick wall up to 41 db.
1.4, Insulation: As the material inside has a large numbers of the pores and porous, which has a good thermal insulation properties. The Thermal conductivity is 0.11-0.16W/MK, as 1/4-1/5 of brick. Typically, the insulation effect of 20cm thick aerated concrete wall is equivalent to 49cm thick solid brick walls ordinary.
1. 5, Permeability: Result of material by the composition of many independent small pores, the moisture absorption is slow, in the volume of absorbent is 5 times of clay saturation do. When used in the bathroom, the wall can be treated to interface directly paste tiles.
1.6, Anti-seismic:The same building structure, improve the two seismic than the brick level.
2. Performance of aac block machine and price :
Finished AAC block is Suitable for all nonbearing wall and bearing wall of multi-story (less than six-floor), nonbearing wall internal parting wall, thermal insulation rooms front panel, floorslab.
2.1, Unit weight grade (kg/m3): 500, 600, 700, 800 (means 05,06,07,08 grade)
2.2, Compression strength grade (Mpa): A3.5, A5.0, A7.5, A10.0 (1Mpa=10kg/m2)
2.3, Drying shrinkage (mm/m): ≤ 0.8
2.4, Heat conductivity(w/m.k): 0.09-0.22
2.5,Sound-proofing performance(db): 40-47.75
Conforming with China national standards GB11968-1997 (the latest AAC block national standard)
3. Normal size of aac block machine and price :
Length (mm): 600
Width (mm): 75, 100, 125, 150, 175, 200, 250
60, 120, 180, 240
Height (mm): 200, 240, 250, 300
Remarks: the size can be customized
4. Main Raw maerial of aac block machine and price :
4.1 Typical Formula and Consumption of Fly ash AAC
Fly ash: content ratio 70%, consumption 350kg/m3; Cement: content ratio 13.8%, consumption 25-30kg/m3; Lime: content ratio 13.8%, consumption 140-150kg/m3; Phosphogypsum: content ratio 2.96%, consumption 15kg/m3; Aluminum: micro scale, consumption 0.4kg/m3
4.2 Typical Formula and Consumption of Sand AAC
Sand: content ratio 69.2%, consumption 350kg/m3; Cement: content ratio 13.8%, consumption 70kg/m3; Lime: content ratio 13.8%, consumption 70kg/m3; Gypsum: content ratio 2.96%, consumption 15kg/m3; Aluminum: micro scale, consumption 0.4kg/m3
1.pre-sale service: our company can provide technological guidance and formulate suitable equipment matching program according with your specific production requirements.
2.on-purchase service: our company can solve professional technical problems and other related issues for you.
3.after-sales service: our company provides that engineers available to service machinery overseas and equipment for life maintenance.
Company advantage
1).Tengfei give priority to with construction company, during years of construction equipment, progress in practice and has strong practicability.
2).Our company has years of experience in project negotiation and can provide customers with effective business negotiations guidance to win project
3).in addition to providing equipment and technical training, we also provide free foam concrete project system solutions to help you get maximum benefit.
About us:
1.Delivery time: 15 days after receipt of your deposit.
2.Payment terms: 30% T/T in advance, the balance is paid (by T/T) before delivery.
3.Package:
1).Wire cables are used for fastening the machine on the trailer or inside the container.
2).Cork wood are placed in front or behind the machine to protect it.
3).Plastic film is covered on the machine as a rain-roof.
4).Crane is used during the whole loading.
