20,000-300,000CBM Aac Block Production Line -Ground Turn Over Craft
US$ 12,868 - 208,809
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, aac block production line
Brick Raw Material:
Sand
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2014 Top Selling! 100000m3/year Aac Production Line for SaleUS$ 98,650 - 156,890MOQ: 1 Unit -
2014 Famous Brand-300000M3/year Aac Block Price for SaleUS$ 110,258 - 198,690MOQ: 1 Set
-
2014 Big Sale-50000-300000 M3/year Autoclaved Aerated Concrete Aac Blocks Price for SaleUS$ 158,630 - 285,963MOQ: 1 Set
-
Flyash Aac Production LineUS$ 480,000 - 1,000,000MOQ: 1 Set
-
Aac Block Plant/aac Block Production LineUS$ 480,000 - 1,000,000MOQ: 1 Set
Condition
New
Type
Other, aac block production line
Brick Raw Material
Sand
Processing
Brick Production Line
Method
Autoclaved Aerated Concrete
Automatic
Yes
Capacity
20,000-300,000m3/year
Place of Origin
Henan, China
Brand Name
Teng Fei
Model Number
20,000-300,000CBM
Voltage
380v
Power
280KW
Dimension(L*W*H)
45*20*20m
Certification
ISO9001/CE/BV
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
20,000-300,000CBM aac block production line -Ground turn over craft
Product Description
1. AAC line Classification of 20,000-300,000CBM aac machine
In general, it can be classified according to the types of raw materials, manufacture process and functions. Based on the shape of AAC products, it can be divided into: AAC blocks and AAC panels. It is a revolutionary material offering an unique combination of high durability and strength, low weight, excellent heat insulation, fire resistant, noise absorption, unprecedented build ability and superior ecological green features. In China, AAC is one of the light wall materials which was popularized and applied at the earliest and the most widely.
2. AAC Classification :
In general, it can be classified according to the types of raw materials, manufacture process and functions. Based on the shape of AAC products, it can be divided into: AAC blocks and AAC panels. It is a revolutionary material offering an unique combination of high durability and strength, low weight, excellent heat insulation, fire resistant, noise absorption, unprecedented build ability and superior ecological green features. In China, AAC is one of the light wall materials which was popularized and applied at the earliest and the most widely.

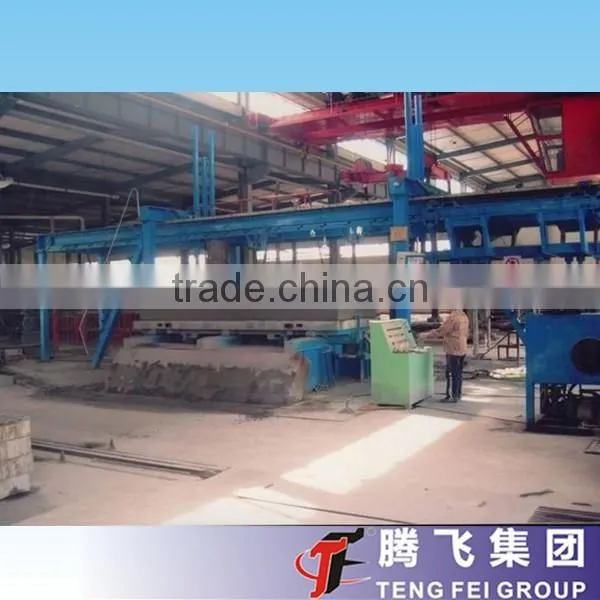

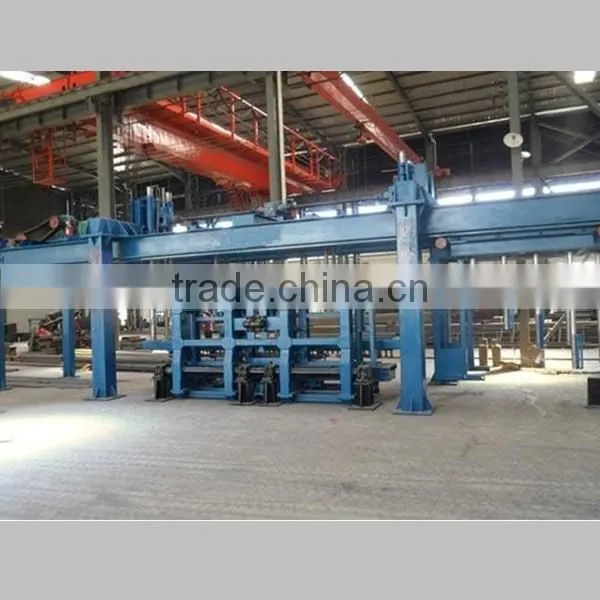

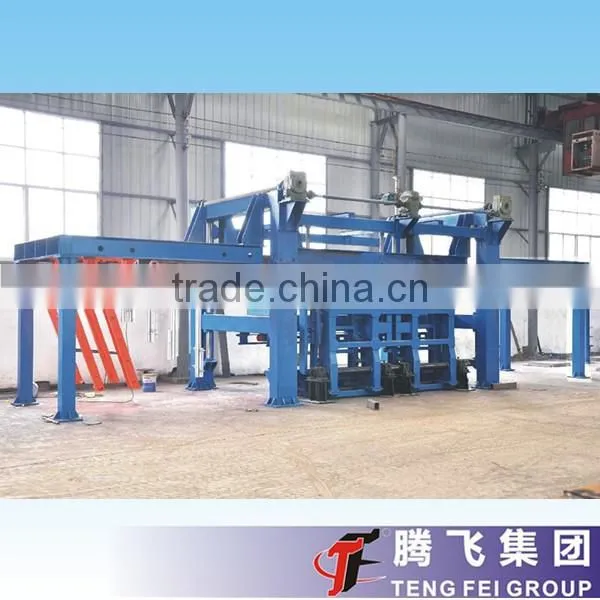

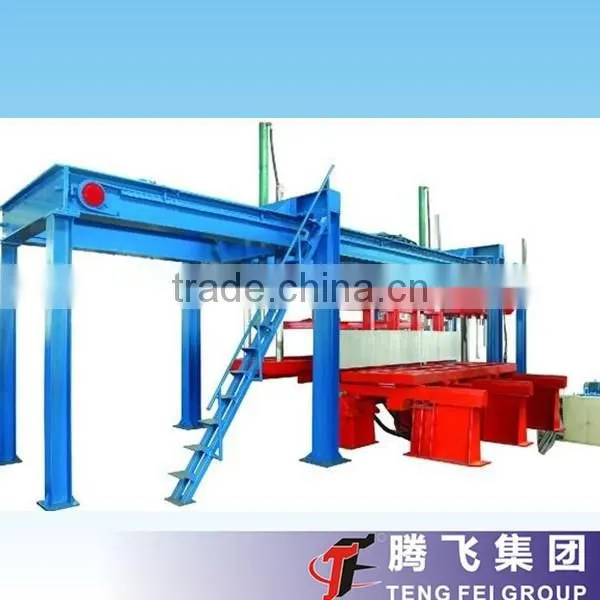

3. Cutting Machine
Spec |
Size of blank(mm) |
Cutting cycle (around) |
Capacity (m³/year) |
Cutting precision(mm) |
Total power (KW) |
Dimensions |
4M |
4050*1240*650 |
6min/mould |
≥100,000 |
Six-side cutting <±2 |
26.5 |
1100* 4200* 5600 |
6M |
6050*1540*650 |
4min/mould |
≥300,000 |
Six-side cutting <±2 |
30 |
13200*4600* 5800 |

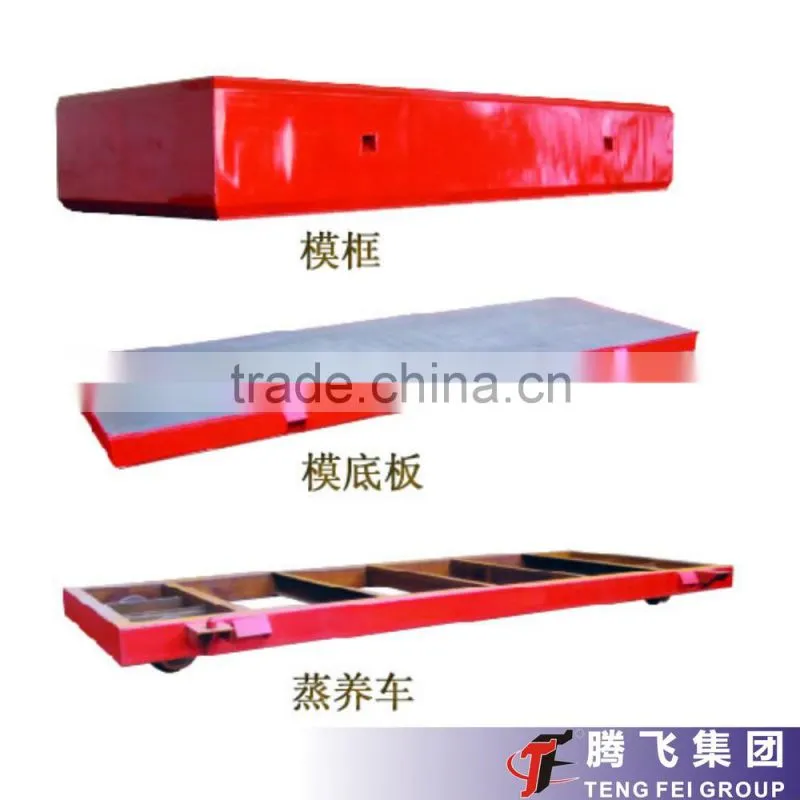

4. Mould,Side Plate and Hardening Car
No. |
Specification |
Inner net size |
I |
4M |
4040*640*1240 |
2 |
6M |
6050*670*1250 |
20,000-300,000CBM aac machine
1. First, dose and match measured raw materials;
2. After distributing, feed raw material into pouring mixer to make slurry.
3. Through thoroughly mixing, the slurry is poured to mould;,
4. After pre-curing under a certain temperature and time, the block would reach a certain hardness and prepare for cutting;

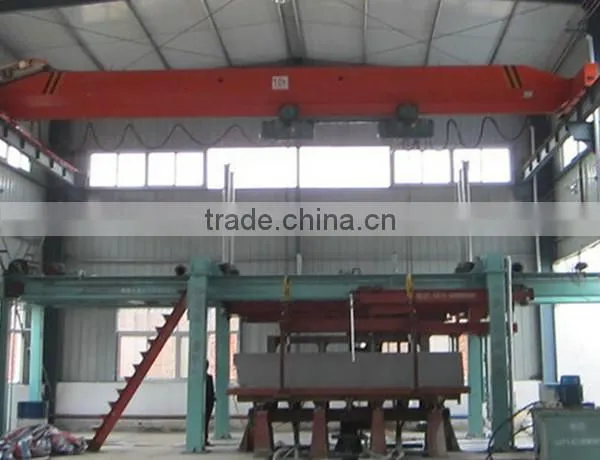

5.Tilting hoister would turn over 90 degrees of mould;
6.Then open the mould and separate it from block. And take the block with side plate to the cutting cart;
7.After cutting, the block is hanged to trolley with side plate by semi-finished product hoister;

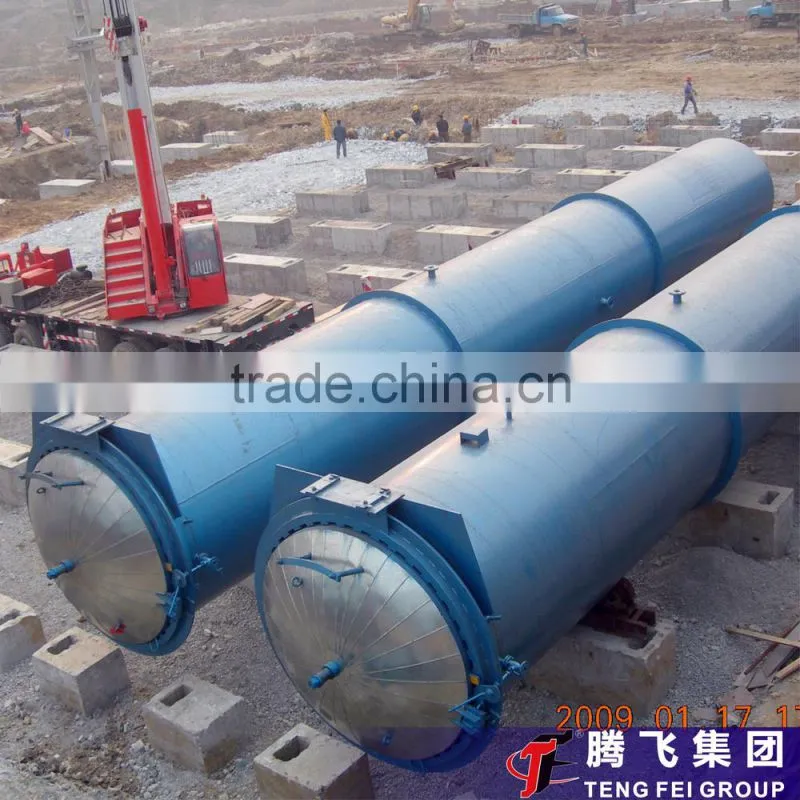

8.Organizing the cut blocks and put them into autoclaves;
9.Hardening the blocks under certain temperature and pressure;
10.Carry the finished product out of autoclave;
11. The finished product hoister take the finished product to stock shield;
12.Packed for loading;
13.The side plate return back through side plate roller;
14. Plate would be organized with open mould;.
15.Clean the mould and prepare for next pouring;
16.Steel bars processing line for slab production.
20,000-300,000CBM aac machine
1 Cement lime fly ash style aerated block raw material proportion
Name |
Unit |
Cement lime fly ash |
Flyash |
% |
65-70 |
Cement |
% |
6-15 |
Lime |
% |
18-25 |
Gypsum |
% |
3-5 |
Aluminum powder paste(600kg/m3) |
1/10000 |
8 |
Water & material rate |
|
0.60-0.65 |
Casting system |
OC |
36-40 |
Aluminum mixing time |
S |
30-40 |
2 Cement lime Sand style aerated block raw material proportion
Name |
Unit |
Cement Lime Sand |
Sand |
% |
55-65 |
Cement |
% |
10-20 |
Lime |
% |
20-30 |
Gypsum |
% |
2-3 |
Aluminum powder paste(600kg/m3) |
1/10000 |
8 |
Water & material rate |
|
0.65-0.75 |
Casting system |
OC |
35-38 |
Aluminum mixing time |
S |
30-40
|
