FOCUS Concrete Boom Pump Truck / Truck Mounted Concrete Pump 45m

FOCUS Concrete Boom Pump Truck / Truck Mounted Concrete Pump 45m photo-1

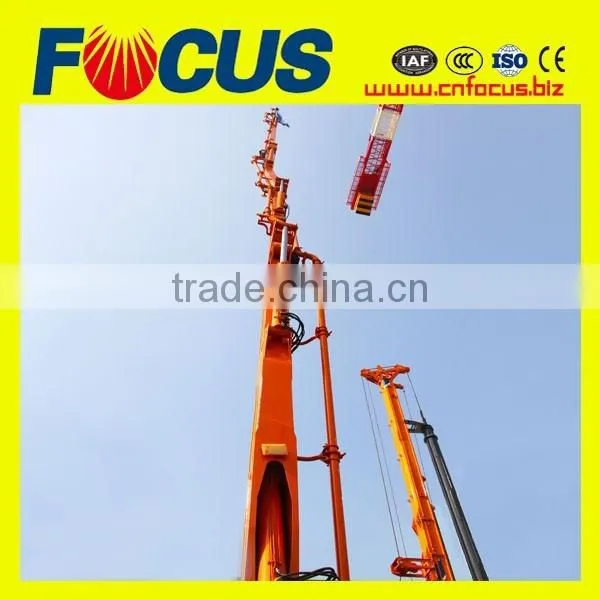

FOCUS Concrete Boom Pump Truck / Truck Mounted Concrete Pump 45m photo-2

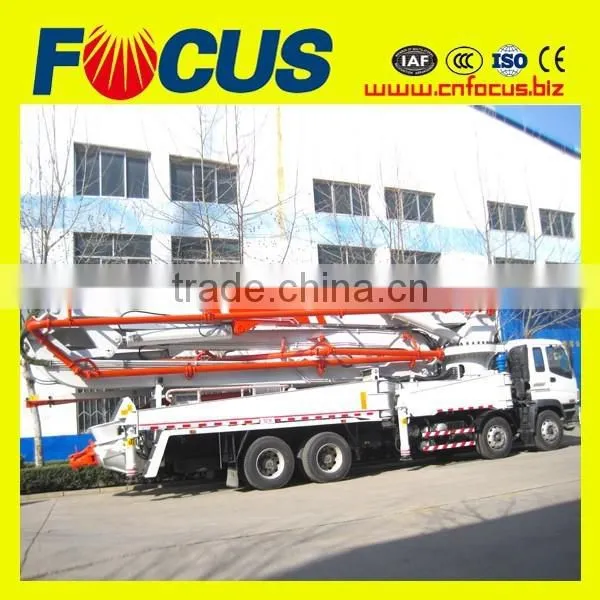

FOCUS Concrete Boom Pump Truck / Truck Mounted Concrete Pump 45m photo-3
US$ 150,000 - 500,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Power Type:
Diesel
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Power Type Diesel
Place of Origin Henan, China
Brand Name FOCUS
Model Number HDT-THB
Power(W) 287kw
Weight 38t
Dimension(L*W*H) 13800x2490x3995mm
Certification TUV, ISO, CCC
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications



FOCUS concrete pump truck:

1.good pumping performance;

2.ISUZU Chassis,low oil consumption,great mobility;

3.ISO certified.





Why would our clients choose FOCUS concrete pump truck?



1.     large pumping capacity with high efficiency;

2.     light-weighed and optimized design enables FOCUS concrete pump truck small occupation of ground area;

3.     low oil consumption, economic engineered;

4.     full hydraulic system guarantee stable pumping performance;

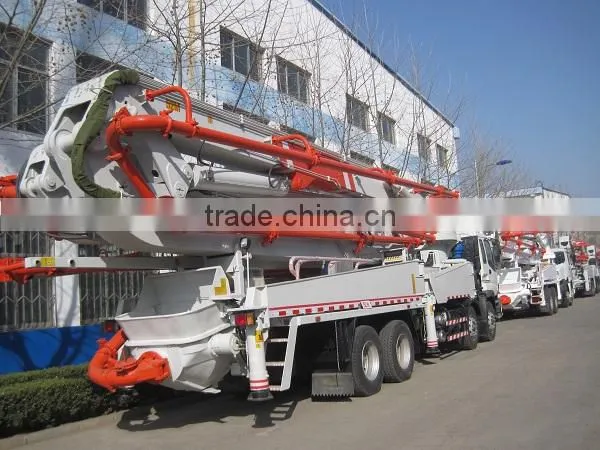

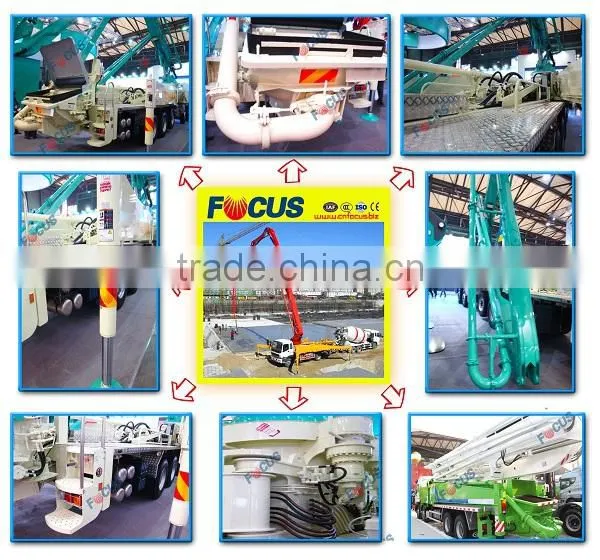

FOCUS Concrete Boom Pump Truck / Truck Mounted Concrete Pump 45mFOCUS Concrete Boom Pump Truck / Truck Mounted Concrete Pump 45mFOCUS Concrete Boom Pump Truck / Truck Mounted Concrete Pump 45m

42m/45m truck mounted concrete beton pump Main Parameters

Item

unit

HDT5340THB-42/4

HDT5380THB-45/5

output in theory

m3/h

125

125

index of the pump carry capacity

Mpa.m3/h

586

586

theoretic pumping pressure

Mpa

8.5

8.5

bucket volume

L

700

700

height of top surface of bucket

mm

1400

1400

model of distribution valve



S Valve

S Valve

max. operation radius

m

38

40.7

max. operation height

m

41.8

44.7

max. operation depth

m

29

31.3

open height of boom

mm

8600

8495

diameter of delivery pipe

mm

125

125

length of hose pipe

m

4

3

rotary range of boom



370°

365°

quantity of boom



4

5

rotary angle of each boom

°

92/180/180/240

91/180/180/180/270

wire line control distance

m

33

33

remote control distance

m

200

200

max. speed

km/h

85

85

min. turn radius

mm

11900

11900

brake distance

m

10

10

approach angle

°

16

16

departure angle

°

11

11

chassis model



ISUZU CYH51Y

ISUZU CYH51Y

max. engine output power

kw

287(1800r/min)

287(1800r/min)

max. engine output torque

n.m

1863(1100r/min)

1863(1100r/min)

max. gradient ability

%

37

35

fuel consumption

L/100km

38

40

out dimension

(LxWxH)

mm

13800x2490x3995

13100x2500x3900

total weight

kg

34500

38000

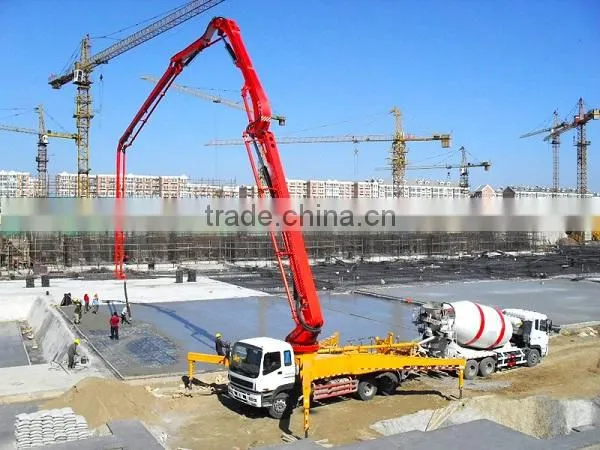

Our construction equipments are being purchased, installed and operated all over the world:



FOCUS Concrete Boom Pump Truck / Truck Mounted Concrete Pump 45m





Thanks for visiting, by the time you are paying attention to us, our construction equipments are being delivered /distributed to the world everyday - it’ll be such a great honor if you can join us:

FOCUS Concrete Boom Pump Truck / Truck Mounted Concrete Pump 45m

FOCUS Concrete Boom Pump Truck / Truck Mounted Concrete Pump 45m



For more information please visiting us @
