Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Concrete Machinery > 21m Concrete Boom Pump Truck,concrete Pump Car

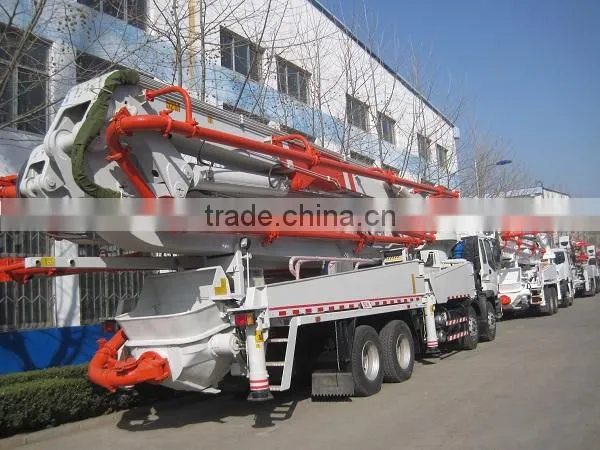

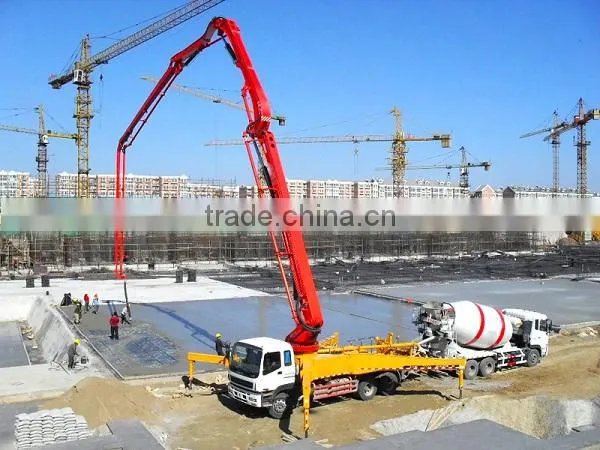

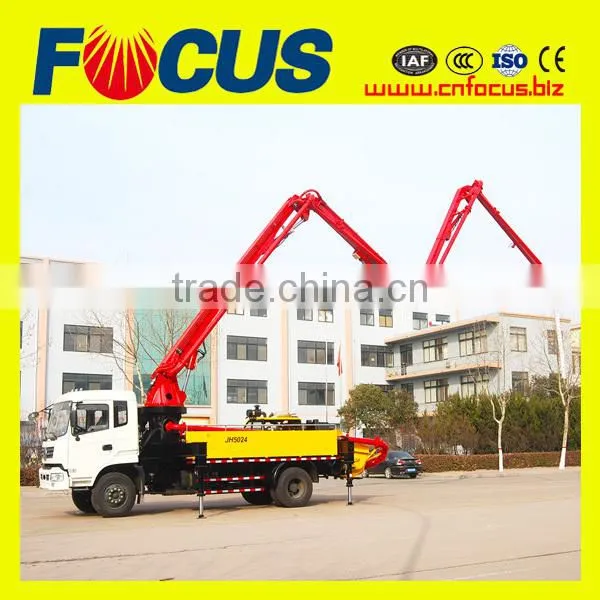

21m Concrete Boom Pump Truck,concrete Pump Car

Name: 21m Concrete Boom Pump Truck,concrete Pump Car
Brand: FOCUS concrete pump car
SKU: 139824137

21m Concrete Boom Pump Truck,concrete Pump Car thumbnail-1

21m Concrete Boom Pump Truck,concrete Pump Car photo-1

US$ 120,000 - 250,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Henan, China

Brand Name:

FOCUS concrete pump car

Contact Supplier Request Quote Chat Now

Zhengzhou Focus Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO;TIANJIN CHINA

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Henan, China

Brand Name FOCUS concrete pump car

Model Number JH5021 concrete pump car

Weight 14500kg

Dimension(L*W*H) 9450x2500x3500mm

Power(W) 132

Certification ISO;CE

Warranty 12months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

concrete pump car
1.good pumping performance;
2.ISUZU Chassis,low oil consumption,great mobility;
3.ISO certified

Why would our clients choose FOCUS concrete pump car?

1.large pumping capacity with high efficiency;

2.light-weighed and optimized design enables FOCUS concrete pump car small occupation of ground area;

3.low oil consumption, economic engineered; concrete pump car

4.full hydraulic system guarantee stable pumping performance; concrete pump car

21m Concrete Pump Car Main Parameters

Model		HDT5180THB-24/3	Chassis Model			SX1165TN561
Total Weight		18460kg	Driving Mode			4x2
Max. Driving Speed		92km/h	Driver Cab with Air Conditioner, Sleeping Room
			Wheel Base	No.1 & No.2				5600 mm
shape	Total Length	13740mm		No.2 & No.3				1310mm
	Total Width	2490mm	Wheel Tread	Front				2065mm
	Total Height	4000mm		Rear				1850mm
Engine	Engine Model	Weichai Power WP10.290	Tire Size					12.00R20 Radial Tire
			Mini. Turning Radius					8800mm
			Driving Brake					Double Loop Air Brake
	Power	290PS(213KW)	Boom System		Model			3 section, Folded, Hydraulic
	Max. Torque	1055NM			Max. Height			23.1m
	Emission Standard	EU III			Pipe Diameter			DN125
	Displacement	9726ML			Section1boom		Length	8220
Pump Delivery System	Driving Mode	Hydraulic					Rotation	910
	Oil cylinder DiameterxStroke	φ140mmx2000mm			Section2boom		Length	5680mm
	Delivery cylinder DiameterxStroke	φ230mmx2000mm					Rotation	1800
	Distribution Vale	S Valve Mode			Section3boom		Length	5215mm
	Concrete Output in Theory	100/70m3/h					Rotation	2680

					Rotation Range			Any Angles
	Pump Delivery Times in Theory	19times/min			Max. Working Radius			19.1 m
					Max. Working Height			23.1 m
					Hydraulic System Pressure			32MPa

Our construction equipments are being purchased, installed and operated all over the world:

Thanks for visiting, by the time you are paying attention to us, our construction equipments are being delivered /distributed to the world everyday - it’ll be such a great honor if you can join us:
