Specifications

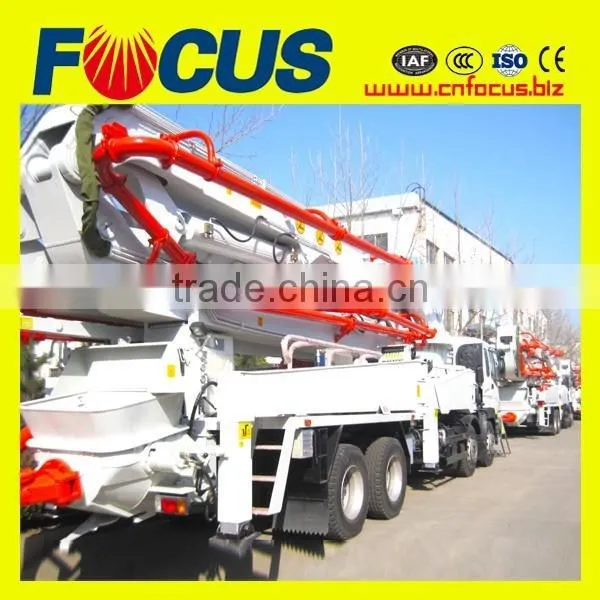

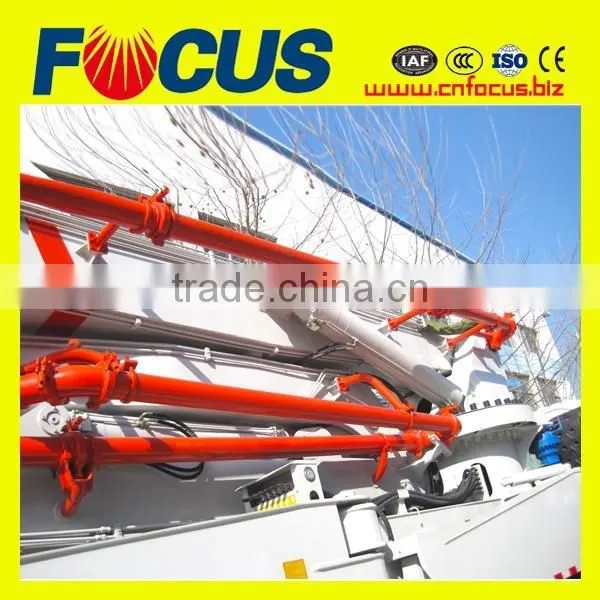

FOCUS concrete pump truck:
1.good pumping performance;
2.ISUZU Chassis,low oil consumption,great mobility;
3.ISO certified.
Why would our clients choose FOCUS concrete pump truck?
1. large pumping capacity with high efficiency;
2. light-weighed and optimized design enables FOCUS concrete pump truck small occupation of ground area;
3. low oil consumption, economic engineered;
4. full hydraulic system guarantee stable pumping performance;
Item |
unit |
HDT5340THB-42/4 |
HDT5380THB-45/5 |
output in theory |
m3/h |
125 |
125 |
index of the pump carry capacity |
Mpa.m3/h |
586 |
586 |
theoretic pumping pressure |
Mpa |
8.5 |
8.5 |
bucket volume |
L |
700 |
700 |
height of top surface of bucket |
mm |
1400 |
1400 |
model of distribution valve |
|
S Valve |
S Valve |
max. operation radius |
m |
38 |
40.7 |
max. operation height |
m |
41.8 |
44.7 |
max. operation depth |
m |
29 |
31.3 |
open height of boom |
mm |
8600 |
8495 |
diameter of delivery pipe |
mm |
125 |
125 |
length of hose pipe |
m |
4 |
3 |
rotary range of boom |
|
370° |
365° |
quantity of boom |
|
4 |
5 |
rotary angle of each boom |
° |
92/180/180/240 |
91/180/180/180/270 |
wire line control distance |
m |
33 |
33 |
remote control distance |
m |
200 |
200 |
max. speed |
km/h |
85 |
85 |
min. turn radius |
mm |
11900 |
11900 |
brake distance |
m |
10 |
10 |
approach angle |
° |
16 |
16 |
departure angle |
° |
11 |
11 |
chassis model |
|
ISUZU CYH51Y |
ISUZU CYH51Y |
max. engine output power |
kw |
287(1800r/min) |
287(1800r/min) |
max. engine output torque |
n.m |
1863(1100r/min) |
1863(1100r/min) |
max. gradient ability |
% |
37 |
35 |
fuel consumption |
L/100km |
38 |
40 |
|
out dimension (LxWxH) |
mm |
13800x2490x3995 |
13100x2500x3900 |
total weight |
kg |
34500 |
38000
|
