Application of cellular concrete machine :
1.The production of foam concrete which use cement or fly ash and some other materials for raw material
2.Foam concrete insulated roof project, Cushion Project, Floor Heating Project, Filling project, etc.
3.The production for foam concrete production.
Features of cellular concrete machine :
1. The Shell of this machine chooses high precision steel plate, the surface is through 280 degrees high temperature paint treatment, and it is durable.
2. Small in size, light in weight, it is easy to transport and loading and unloading.
3. It can mix and foam the material automatically. The cement paste is automatically pumped by main engine.
4. Main pump is controlled by frequency convertor. The throughput size can be showed in digital.
5. The cement slurry is outputted steady, uniform density of foam concrete production, quality and stability.
6. Adopt the most advanced hose pump pumping system, while the operation is simple, the fault rate is lower, and maintenance is convenient and cost is lower.
7. Compared with other similar equipment, it can save 50-100kg cement dosage per cubic meter of product. It reduces the production cost greatly and improves the economic benefit;
8. We have professional technical team and perfect after-sales service; we can also provide professional on-site technical guidance. Therefore, you don’t have any troubles with our products.

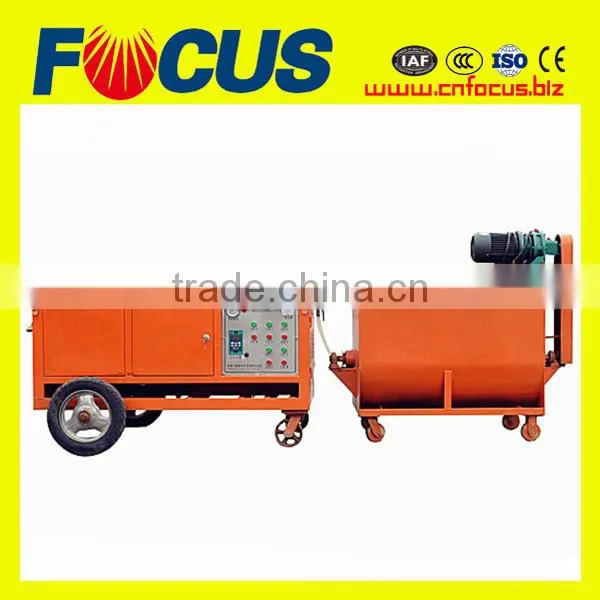

Diagram of cellular concrete machine :
Density and Strength of Foam Concrete:
Grade of Dry Density |
A03 |
A04 |
A05 |
A06 |
A07 |
A08 |
A09 |
A10 |
A12 |
A14 |
A16 |
|
Dry Density (kg/m3) |
300 |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
1200 |
1400 |
1600 |
Strength |
0.3-0.7 |
0.5-1.0 |
0.8-1.2 |
1.0-1.5 |
1.2-2.0 |
1.8-3.0 |
2.5-4.0 |
3.5-5.0 |
4.5-6.0 |
5.5-10.0 |
8.0-30.0 |
Parameter of Foam Concrete Machine:
Parameters |
Unit |
HT-60 |
Foam Concrete Output |
m3/h |
6-8 |
Max. Horizontal distance |
m |
500 |
Max. Vertical distance |
m |
40 |
Frequency adjustment range of the main engine |
Hz |
0-70 |
Power |
kw |
8.5 |
Overall Dimension(L×W×H) |
mm |
Foam Machine:1640x950x830 Mixer:1350x650x1100 |
Weight |
kg |
450 |
Delivery pipe |
m |
40m |

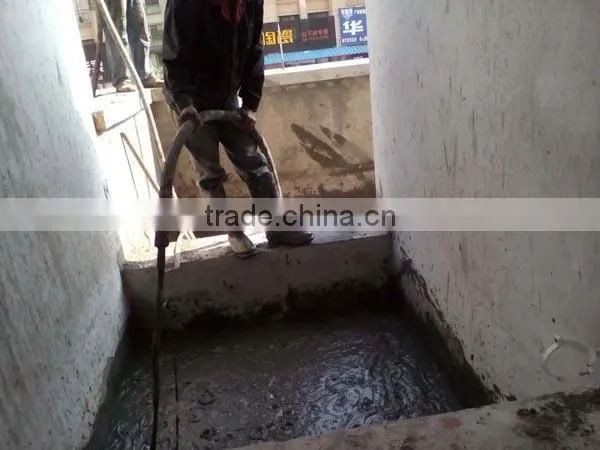

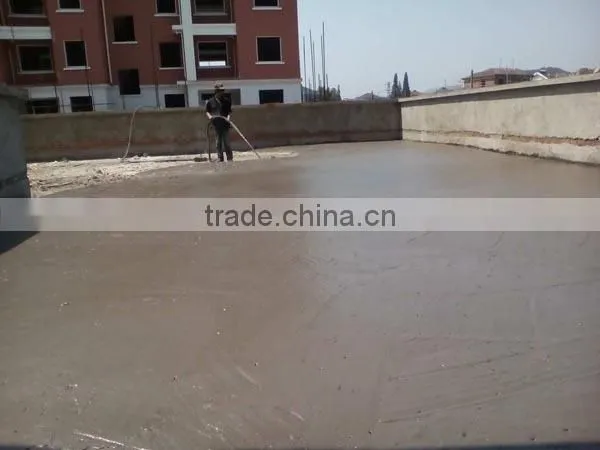

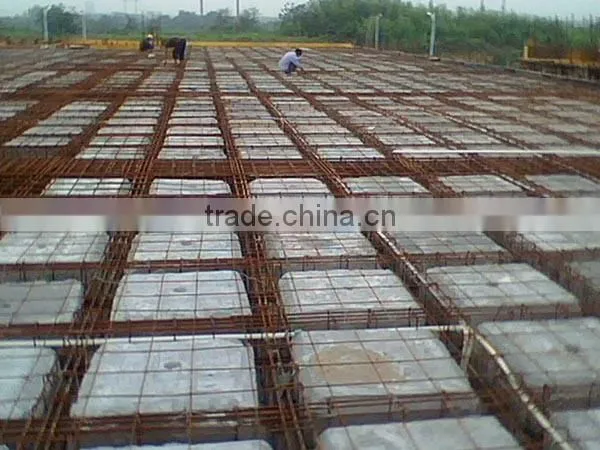

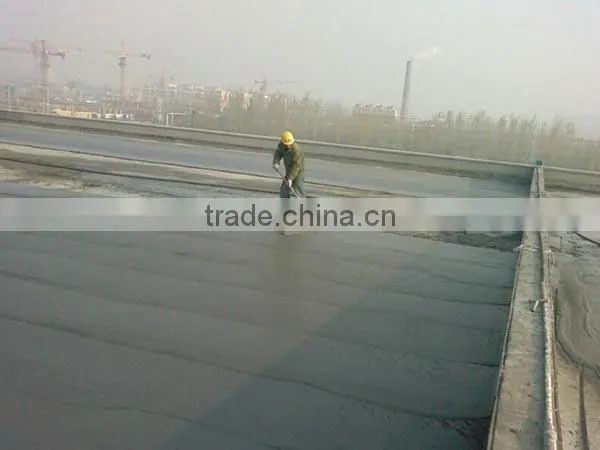

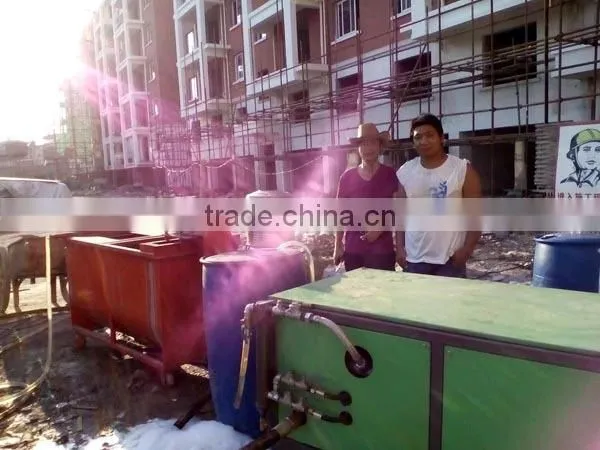

Foaming Concrete Machine and Projects:
