Specifications
spun concrete pipe mouldncrete pole or concrete pipe
2.6-25m length
3.can make mould as required
Overview of FOCUS spun concrete pipe mould :
Pre-stressed spun concrete pipe mould is a kind of mould equipment, which is used for making a variety of different diameter and length of reinforced concrete poles and other cement products.
Pre-stressed spun concrete pipe plant is operated by remote-controlled continuously variable motor. It runs smoothly and has a variable-speed range. So the production of concrete pipes and piles are good at quality.
The base of the machine is welded in box-type structure, sturdiness and durability. The bearings are sealed and reliable, long life. Random electric control equipment is complete and easy to use.
Working Principle of FOCUS spun concrete pipe mould :
1. Adding the slurry into the mould, it is driven quickly and rotated in the same speed of the machine. Each component is separated and released under the centrifugal force. Usually the higher the slurry rotate speed, the better the slurry separating effect.
2. Centrifugal sedimentation is the use of different density of each component in the slurry, which is rotated under the centrifugal force. To realize the liquid - solid (or liquid - liquid) separation.
3. The speed of separation is slow when the viscosity of slurry is high.
4. It is good for centrifugal sedimentation when the slurry density is different in each component.

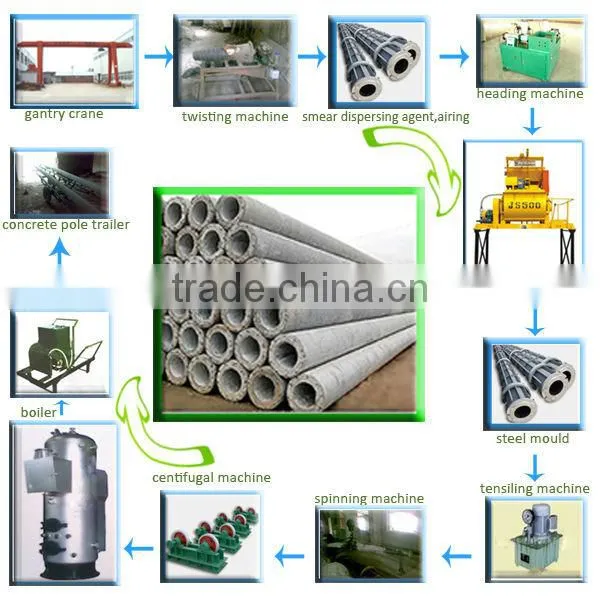

Diagram of FOCUS spun concrete pipe mould :
Technical Parameter of FOCUS spun concrete pole mould :
top end inner diameter (mm) | Tread (mm) | Running wheel diameter (mm) | Length (m) |
150 | 2000 | 600 | 7-12 |
170 | 2000 | 600 | 7-12 |
190 | 2000 | 650 | 7-15 |
230 | 2000 | 650 | 6-9 |
300 equal diameter | 2000 | 600 | 6-9 |
350 equal diameter | 2000 | 650 | 6-12 |
310 | 2000 | 650-780 | 6-15 |
Features of FOCUS spun concrete pole mould :
1. Saving a great deal of steel, about 30~70% (employing cold drawn steel wire can save 30%~60%; employing high stress steel wire can save 40%~69%).
2. Crack resistance can increase about 3~5 times.
3. Rigidity increases 1~3 times.
4. Reducing the cost (using cold drawn steel wire can reduce 25%~40%; using high stress steel wire can reduce 12%~21%).
5. Good durability, can delay the existence and expansion of cracks.
6, Protect the environment on which human beings depend on for existence, and reduce the deforestation.

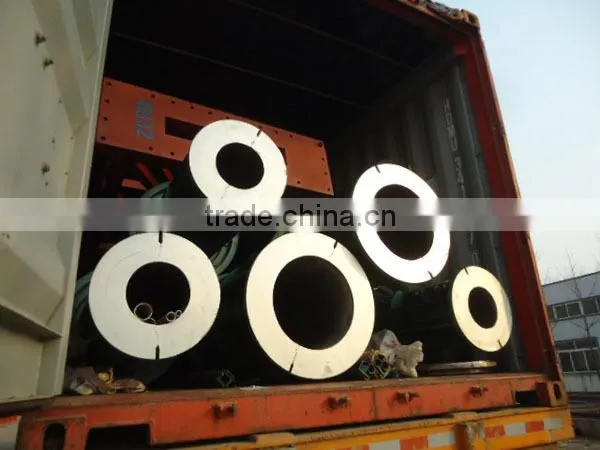

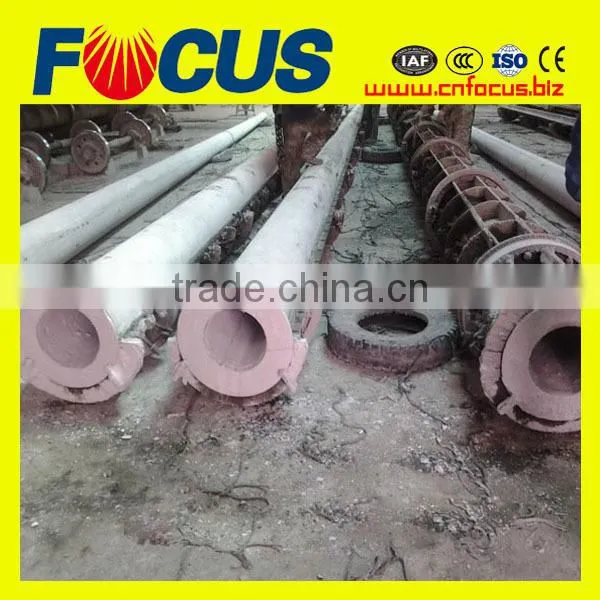

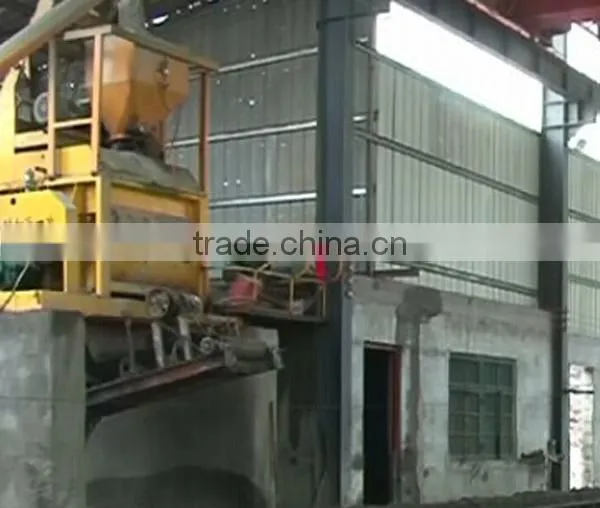

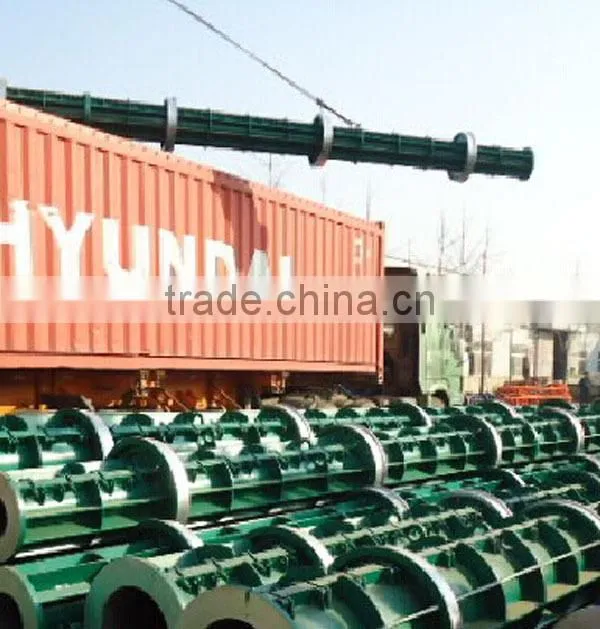

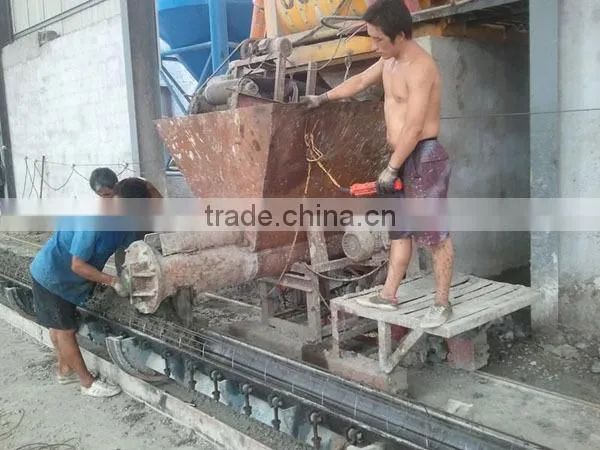

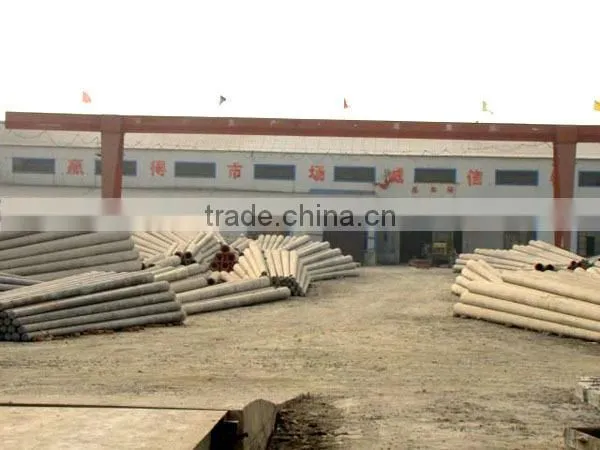

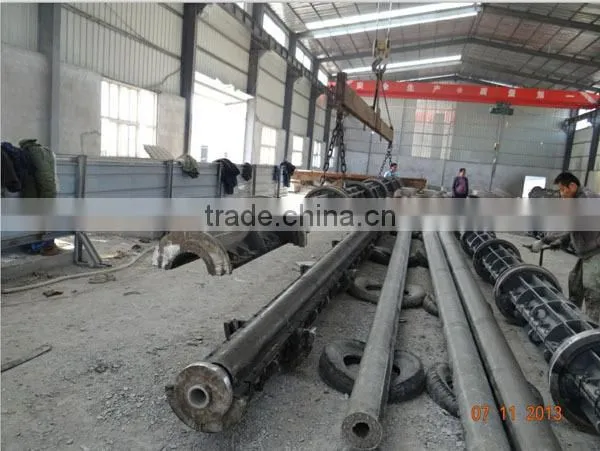

Photos of FOCUS spun Concrete Pole mould :
