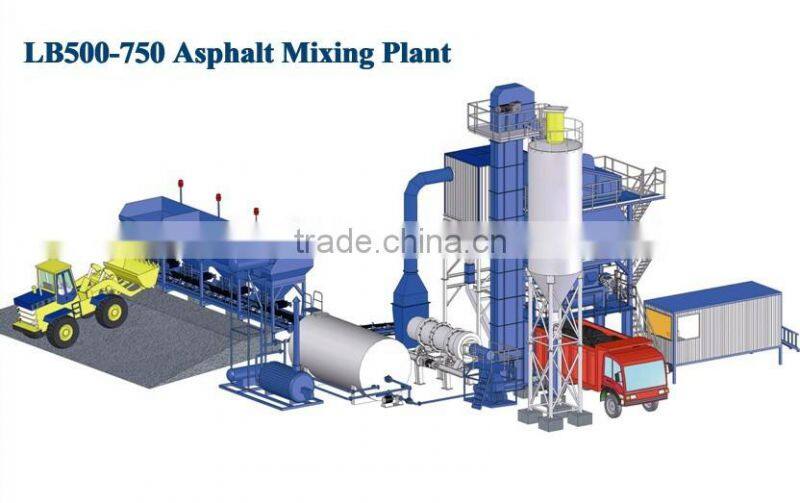

Hot Mix Asphalt Plant,
LB500 Asphalt Mixing Plant Manufacturer
Asphalt Batch Mixing Plant mainly including: cold aggregate supply system, drum dryer, burning system, hot aggregate elevator, vibrating screen, weighing system, mixing tower, dust collecting system, filler supply system, bitumen supply system, electronic control system, finished asphalt storage bin.
LB500, LB750,LB1000, LB1500, LB2000,LB2500,LB Series Asphalt mixing plant has highly accurate aggregate feeder, high quality mix, high production rate,excellent asphalt mixing plant.
The modular design and clearly defined interfaces between the asphalt mixing components allow the utilization of local manufacturing sources. The reduction of transportation and production costs is a direct benefit for our customers. The modular design and the preparation of the modules through the production lead to a fast and uncomplicated working site assembly.
Main technical parameters of LB500 asphalt mixing plant:
| Type | LB500 | |
| Rated production | 40t/h | |
| Cold aggregate container | 4 containersx6m3 | |
| Dry cylinder | 1.1mx4.2m | |
| Bag dust-remover | CNM156 | |
| Emission standard | 50mg/Nm³ | |
| Vibrating screen | 4 layers | |
| Hot aggregate container | 12t | |
| Mixing kettle capacity | 500kg | |
| Mixing cycle | 45s | |
| Mineral powder tank volume | 30t | |
| Asphalt tank volume | 30000L | |
| Heat conduction oil stove | 200,000 kcal/h | |
| End-product container volume | 50t | |
| Control system | Manual /semi-auto / automatic | |
| Weighing accuracy | Aggregate | ≤±0.4% |
| Powder material | ≤±0.3% | |
| Asphalt | ≤±0.2% | |
| Installed general power | 190kw | |
What are the main features of FOCUS Asphalt Mixing Plant?
1. The original modular design of the mixing plant makes transport and installation work quick and convenient.
2. Loop belt feeder for the measuring hopper: provide high and low speed.
3. The high-efficiency and heat-preservation drying drum and the special vanes make heat exchange more sufficient.
4. Vibrating screen: high sieving efficiency, easy maintenance and changing, and the imported bearings more reliable.
5. Hot aggregate bin: easy to know the level of material, precise measurement of aggregate, less blockage.
6. Main mixing machine: agitating more even and speedy, used material can be recycled.
7. Dust-removing system: completely up to the national standard of environmental protection, dust blown down will be collected for reuse to avoid secondary pollution.
8. Control system: SIEMENS integrated solution, PROFIBUS field bus to form a distributed automatic system.
9. Operation: double hot standby on the industrial computer, dynamic display and buttonless design.
Product details of FOCUS Asphalt Mixing Plant:
Thanks for visiting, by the time you are paying attention to us, our asphalt mixing plants are being delivered /distributed to the world everyday - it'll be such a great honor if you can join us.
