Help CenterHigh Efficiency Toroidal Common Mode Choke Coils
Related Products
-
Toroidal Common Mode Choke CoilsNegotiableMOQ: 300 Pieces -
Low Cost Common Mode Chokes CustomizedNegotiableMOQ: 300 Pieces
-
Nanocrystalline Common Mode ChokesNegotiableMOQ: 300 Pieces
-
Easy Operation Thermal Transfer Amorphous Ribbon Cutting MachineUS$ 50,000 - 90,000MOQ: 1 Set
-
High Efficiency Amorphous Ribbon Cutting MachineUS$ 50,000 - 90,000MOQ: 1 Set
Specifications
toroidal common mode choke coils1.Inductances Range: 0.1uH~26.0mH
2.Inductances Tolerance:40KHz
3.factory supply
toroidal common mode choke coils
Applications
1.Noise suppression of DC circuit for switching regulator.
2.Protects primary AC side from being affected by a
switching regulator.
3.Filters noise emitting from ultrasonic equipment.
4.Filters electrostatic noise from power and signal lines.
5.Eliminates contact noise.
6.Filters incoming spike noise for ICs and equipment
using microcomputers.
7.Minimizes noise emissions for conforming to FCC,VCCI, FTZ, CISPR.
Specifications
| Datasheets | Low Cost Power Inductors |
|---|---|
| Product Photos | Down below |
| Standard Package | 300 |
| Category | Inductors, Coils, Chokes |
| Family | Fixed Inductors |
| Series | - |
| Type | Powdered Iron Core |
| Inductance | 1uH-500uH |
| Current Rating | 0.1-50A |
| Current - Saturation | 0.11A-50.5A |
| Tolerance | ±20% |
| Material - Core | Powdered Iron |
| Shielding | Unshielded |
| DC Resistance (DCR) | 71.5 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | Radial |
| Size | - |
| Mounting Type | Through Hole |
| Packaging | Bulk |
| Frequency - Test | 100kHz |
| Dynamic Catalog | CTX |
| Other Names | MD1uH-500uH |
Features
1.Strict and responsible quality control department, so we could ensure about the quality.
2.The current can be as high as 50A
3.The inductance can be as high as 100mH
4.High energy saving, low resistance.
5.Primary competitive advantages:
a) Country of region
b) Small order accepted
c) Experienced technical staff
d) Pass the ISO9001, RoHS packing
6. Lead free RoHS compliant
7.We have successfully exported to Russia, Malaysia, HK, Czech Republic, America, Australia, Belgium and Singapore and UK and other countries, we have win good praise in consumers due to the high quality, good service, low price and short delivery time.
Why Choose us?
- High quality and best services.
- Our Products has the UL Insulation System.
- Our company has pass the ISO9001:2008 and ISO 14001:2004
We will feel appreciated if you can provide the parameters of the product or the photo of the item.
All products of the size,electrical performance can be designed according to customer requirements in R&D.

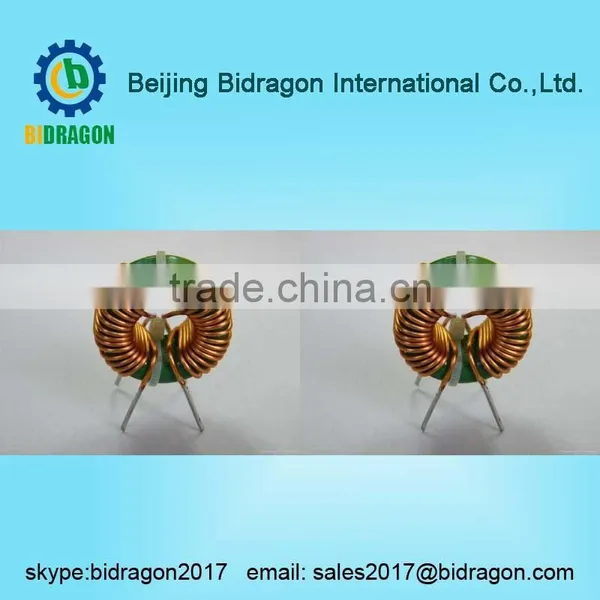

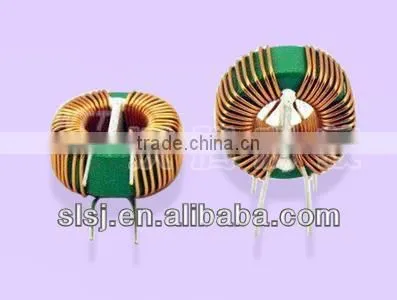

product pictures:
For more information please feel free to contact with Ms.Yolanda. skype: bidragon2017
