Specifications
Nanocrystalline common mode chokes1.Inductances Range: 0.1uH~26.0mH
2.Inductances Tolerance:40KHz
3.factory supply
Nanocrystalline common mode chokes
Specifications
| Datasheets | Low Cost Power Inductors |
|---|---|
| Product Photos | Down below |
| Standard Package | 300 |
| Category | Inductors, Coils, Chokes |
| Family | Fixed Inductors |
| Series | - |
| Type | Powdered Iron Core |
| Inductance | 1uH-500uH |
| Current Rating | 0.1-50A |
| Current - Saturation | 0.11A-50.5A |
| Tolerance | ±20% |
| Material - Core | Powdered Iron |
| Shielding | Unshielded |
| DC Resistance (DCR) | 71.5 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | Radial |
| Size | - |
| Mounting Type | Through Hole |
| Packaging | Bulk |
| Frequency - Test | 100kHz |
| Dynamic Catalog | CTX |
| Other Names | MD1uH-500uH |
Features
1.Strict and responsible quality control department, so we could ensure about the quality.
2.The current can be as high as 50A
3.The inductance can be as high as 100mH
4.High energy saving, low resistance.
5.Primary competitive advantages:
a) Country of region
b) Small order accepted
c) Experienced technical staff
d) Pass the ISO9001, RoHS packing
6. Lead free RoHS compliant
7.We have successfully exported to Russia, Malaysia, HK, Czech Republic, America, Australia, Belgium and Singapore and UK and other countries, we have win good praise in consumers due to the high quality, good service, low price and short delivery time.
Applications
1. Output smoothly in Power Supply;
2. Chopper Control;
3. Output smoothly(LPF) in large current digital amplifier
4. Switching Mode Power Supply output smoothing circuit;
5. Electromagnetic Interference(EMI) and Radio Frequency Interference(RFI) filers;
6. Other oscillation circuits.
Be able to design and manufacture under customer's special request.
Why Choose us?
- High quality and best services.
- Our Products has the UL Insulation System.
- Our company has pass the ISO9001:2008 and ISO 14001:2004
Note:
MOQ:500PCS
Delivery time:7-10days or as per customer’s quantity
Samples is free, but the fee of freight must be paid by recipient
Port: China main port
Package: As per customer’s requirements
We will feel appreciated if you can provide the parameters of the product or the photo of the item.
All products of the size,electrical performance can be designed according to customer requirements in R&D.

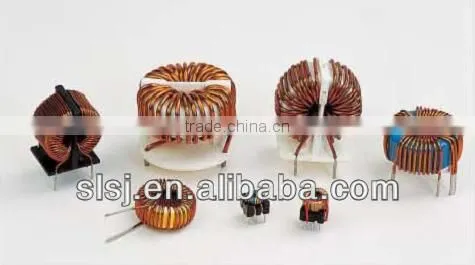

product pictures:
For more information please feel free to contact with Ms.Yolanda. skype: bidragon2017
