Hot sell high quality screw conveyor price,conveyor price
- 100 Unit / Units per Month
- Qingdao
- T/T
Product Details
Condition: | New | Type: | Screw Conveyor | Material: | Other, Carbon steel |
Material Feature: | Heat Resistant | Structure: | Conveyor System | Load Capacity: | 20-170t/h |
Place of Origin: | Shandong, China | Brand Name: | SZ | Model Number: | SD168 |
Voltage: | Customzied | Power(W): | 4-7.5kw | Certification: | CE |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

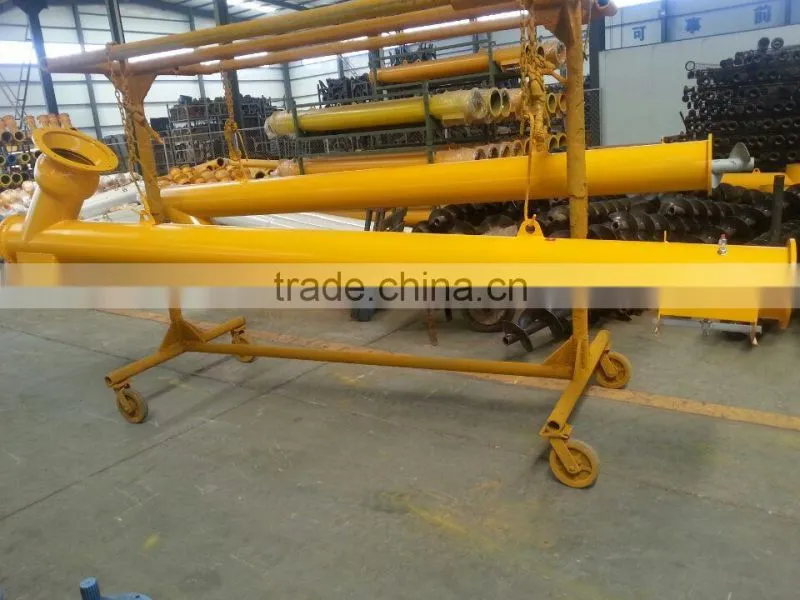

Cement screw conveyor,powder screw conveyor
Characteristics:
1. Adopt high-quality steel pipe with good integral rigidity.
2. Adopt double-pitch paddles, which decrease the compression degree of material when being transported.
3. Adopt high-quality reduction gear box with heavy-duty design, large torque and low noise.
4. Adopt optional universal ball joint, which facilitates installation, adjustment and steering.
5. Equipped with high-quality middle-hoisting bearing and tail bearing.
6. Sufficient spare parts with complete specification.
7. Large stock for common diameter of 165,219,273, 323 and 407, and dimension & angle can be customized according to your requirement.
8. Assembled by standard parts and components, which makes it convenient for transportation.
9. Adopt Siemens motor.
Technical Data
Φ168(mm)24t/h | Φ219(mm)40t/h | Φ273(mm)80t/h | Φ323(mm) 110t/h | Φ407(mm)170t/h | |
Pipe Length (m) | Reducer/speed ratio/output axle diameter/motor power | Reducer/speed ratio/output axle diameter/motor power | Reducer/speed ratio/output axle diameter/motor power | Reducer/speed ratio/output axle diameter/motor power | Reducer/speed ratio/output axle diameter/motor power |
2 | SD1500/5/28/4 | SD1500/5/28/4 | SD2000/7/38/5.5 | SD2000/7/38/7.5 | SD3000/10/42/15 |
3 | SD1500/5/28/4 | SD1500/5/28/4 | SD2000/7/38/5.5 | SD2000/7/38/7.5 | SD3000/10/42/15 |
4 | SD1500/5/28/4 | SD1500/5/38/5.5 | SD2000/7/38/7.5 | SD2000/7/42/11 | SD3000/10/42/15 |
5 | SD1500/5/28/4 | SD1500/5/38/5.5 | SD2000/7/38/7.5 | SD2000/7/42/11 | SD3000/10/42/15 |
6 | SD1500/5/38/5.5 | SD1500/5/38/7.5 | SD2000/7/42/11 | SD3000/10/42/15 | SD3000/10/48/18.5 |
7 | SD1500/5/38/5.5 | SD1500/5/38/7.5 | SD2000/7/42/11 | SD3000/10/48/18.5 | SD3000/10/48/18.5 |
8 | SD1500/5/38/5.5 | SD1500/5/42/11 | SD2000/7/42/15 | SD3000/10/48/18.5 | SD3000/10/48/22 |
9 | SD1500/5/38/7.5 | SD1500/5/42/11 | SD2000/7/42/15 | SD3000/10/48/22 | SD3000/10/48/22 |
10 | SD1500/5/38/7.5 | SD1500/5/42/11 | SD2000/7/42/15 | SD3000/10/48/22 | SD3000/10/48/30 |
11 | SD1500/5/38/7.5 | SD1500/5/42/11 | SD3000/7/42/15 | SD3000/10/48/22 | SD3000/10/48/30 |
12 | SD1500/5/38/7.5 | SD1500/5/42/11 | SD3000/7/48/18.5 | SD3000/10/48/22 | SD3000/10/48/30 |
13 | SD1500/5/38/7.5 | SD1500/5/42/15 | SD3000/7/48/18.5 | SD3000/10/48/30 | |
14 | SD1500/5/38/7.5 | SD1500/5/42/15 | SD3000/7/48/18.5 | SD3000/10/48/30 |
Dimension
Diameter of outer pipe D | Diameter of Inlet flange | Height of Inlet | Height of outlet | ||||||
A | B | C | 0-20° | >20-40° | >40-50° | 0-20° | >20-40° | >40-50° | |
H1 | H1 | H1 | H2 | H2 | H2 | ||||
140 | 200 | 250 | 280 | 400 | 450 | 500 | 250 | 300 | 350 |
168 | 200 | 250 | 280 | 400 | 450 | 500 | 250 | 300 | 350 |
219 | 300 | 350 | 380 | 500 | 550 | 600 | 300 | 400 | 450 |
273 | 300 | 350 | 380 | 500 | 600 | 700 | 350 | 450 | 500 |
323 | 300 | 350 | 380 | 550 | 700 | 800 | 400 | 500 | 600 |
407 | 470 | 470 | 530 | 750 | 900 | 1000 | 450 | 600 | 700 |
Details of the screw conveyor

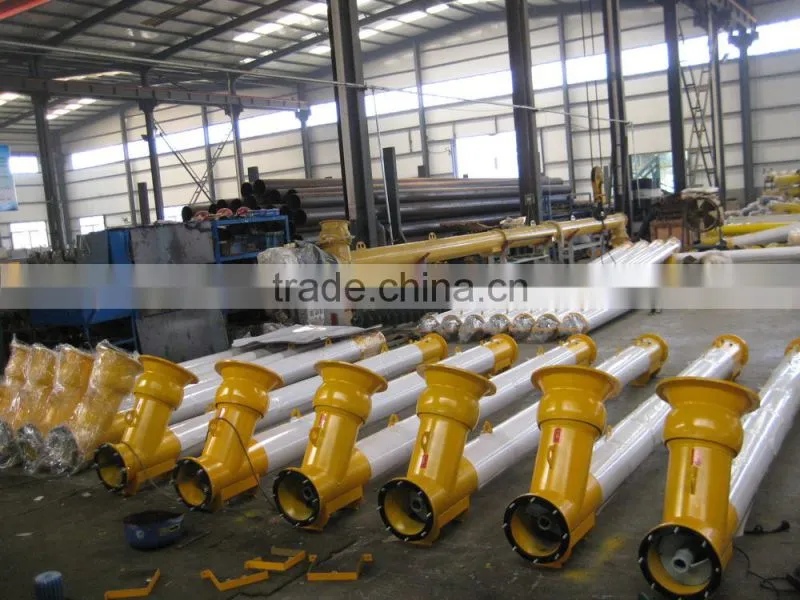

Outsider material is steel.

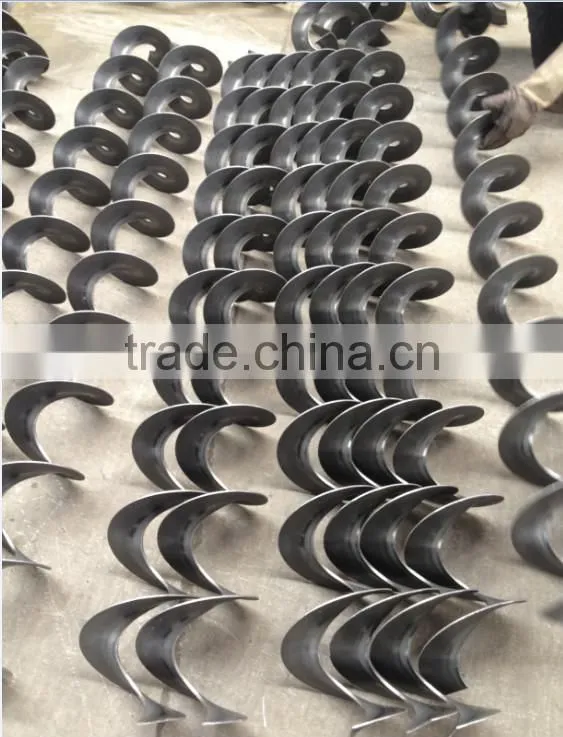

The blade inside

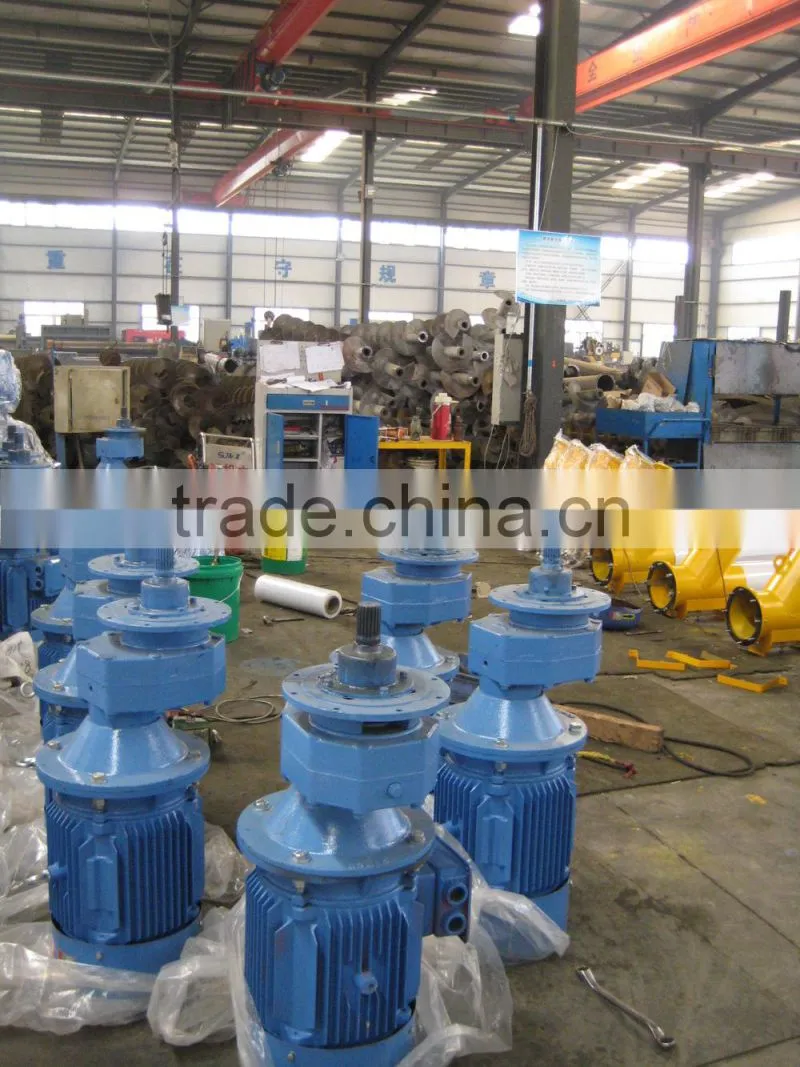

The motor.Voltage and frequency can be made according customers' requirements.
Painting process

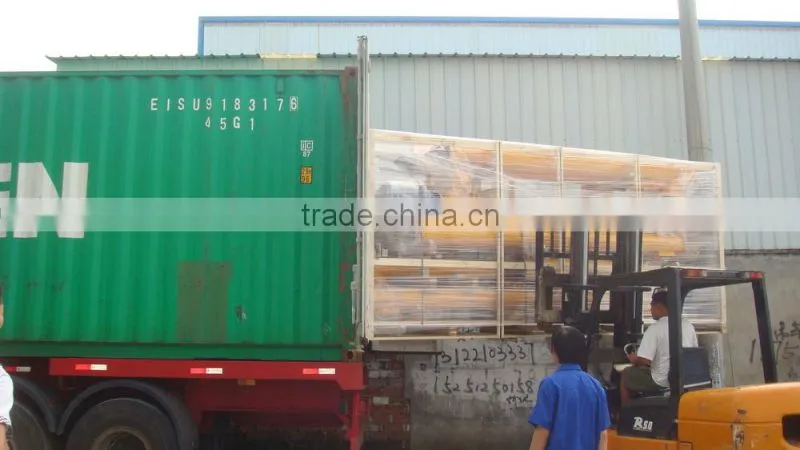

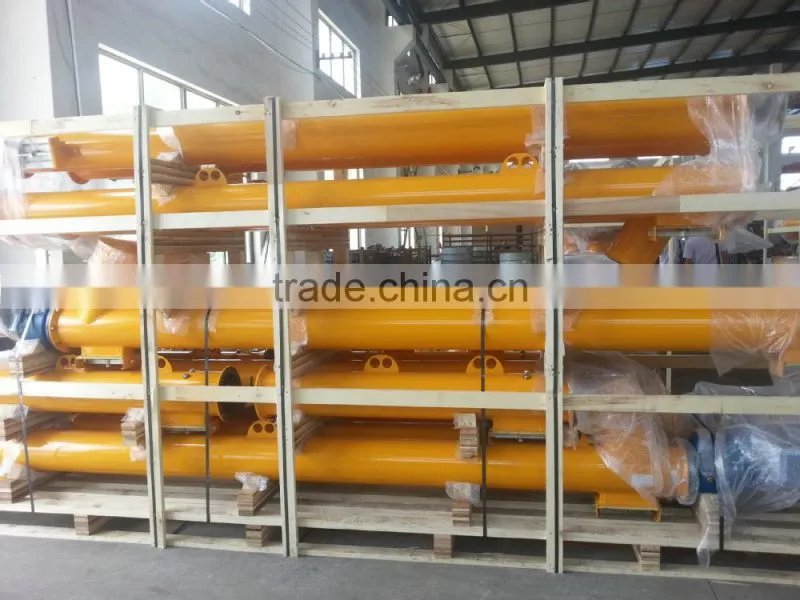

wooden frame packing or according to the clients' requirements
Taian Shizhe Trading Company is the international trading department of Shandong DOM Machinery Equipment Co., Ltd. We are engaged in import and export trading. As the manufacturer of concrete mixing plant and asphalt plant, we provide the whole concrete batching plant and asphalt plant. We also provide the other components used in the plant, such as concrete mixers, cement silo, screw conveyor, aggregte batching plant, belt conveyor, mixing pump, mixing truck, brick production line and related equipments of construction. Customization is acceptable in our factoy. According to your requirements, our engineer will provide you the professional suggestions.Welcome to visit our factory.
