Small/ Mini Flexible Screw Conveyor Factory Offered

Name: Small/ Mini Flexible Screw Conveyor Factory Offered
Brand: SHIZHE
SKU: 139815997
Availability: InStock

Small/ Mini Flexible Screw Conveyor Factory Offered thumbnail-1

Small/ Mini Flexible Screw Conveyor Factory Offered photo-1

US$ 600 - 5,300 MOQ: 10 Sets

Key Specifications

Get Latest Price

Condition:

New

Type:

Screw Conveyor

Material:

Other, Carbon steel

Contact Supplier Request Quote Chat Now

Taian Shizhe Trading Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Screw Conveyor

Material Other, Carbon steel

Material Feature Heat Resistant

Structure Conveyor System

Place of Origin Shandong, China

Brand Name SHIZHE

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

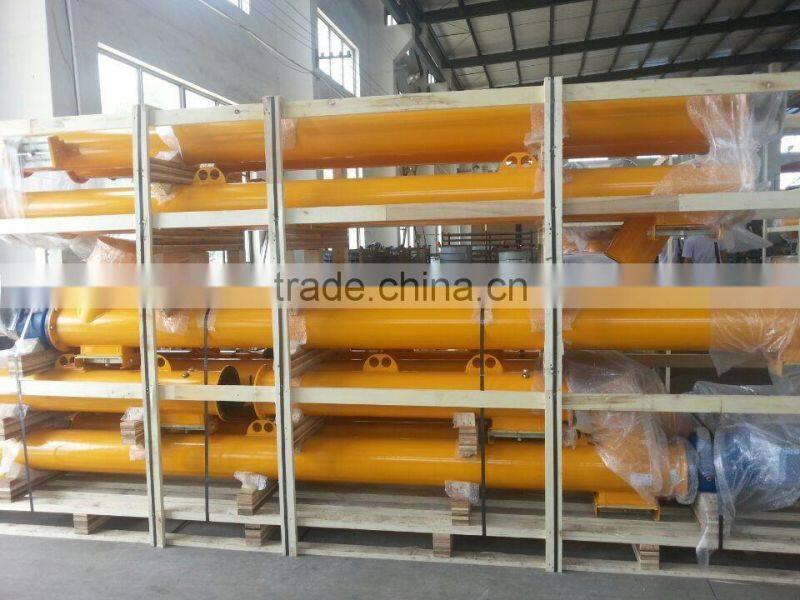

Small/ Mini flexible screw conveyor factory offered

Product Description

We have successfully develop and put into batch production for Non-greasy lubricate screw conveyor.

1. Adopt non-greasy bearing, reliable in using and we guarantee 1.5years.

2. Avoid trouble of oil injecting and save grease.

3. Simple in structure and easy for maintenance.

Work functional picture

Specification:

Diameter of outer pipe D	Diameter of Inlet flange			Height of Inlet			Height of outlet
	A	B	C	0-20°	>20-40°	>40-50°	0-20°	>20-40°	>40-50°
	A	B	C	H1	H1	H1	H2	H2	H2
140	200	250	280	400	450	500	250	300	350
168	200	250	280	400	450	500	250	300	350
219	300	350	380	500	550	600	300	400	450
273	300	350	380	500	600	700	350	450	500
323	300	350	380	550	700	800	400	500	600
407	470	470	530	750	900	1000	450	600	700

Characteristics

1. Adopt high-quality steel pipe with good integral rigidity.

2. Adopt double-pitch paddles, which decrease the compression degree of material when being transported.

3. Adopt high-quality reduction gear box with heavy-duty design, large torque and low noise.

4. Adopt optional universal ball joint, which facilitates installation, adjustment and steering.

5. Equipped with high-quality middle-hoisting bearing and tail bearing.

6. Sufficient spare parts with complete specification.

7. Large stock for common diameter of 165,219,273, 323 and 407, and dimension & angle can be customized according to your requirement.

8. Assembled by standard parts and components, which makes it convenient for transportation.

9. Adopt once-forming spiral double pitch paddles

Details:

Diameter 168mm
Length (m)	reducer	speed ratio	motor power (kw)
3	SD1500	5/28	4
4	SD1500	5/28	4
5	SD1500	5/28	4
6	SD1500	5/28	5.5
7	SD1500	5/28	5.5
8	SD1500	5/28	5.5
9	SD1500	5/28	5.5
10	SD1500	5/28	7.5
11	SD1500	5/28	7.5
12	SD1500	5/28	7.5
13	SD1500	5/28	7.5
14	SD1500	5/28	7.5
Diameter 219mm
Length (m)	reducer	speed ratio	motor power (kw)
3	SD1500	5/28	4
4	SD1500	5/38	5.5
5	SD1500	5/38	5.5
6	SD1500	5/38	7.5
7	SD1500	5/38	7.5
8	SD1500	5/38	7.5
9	SD1500	5/42	11
10	SD1500	5/42	11
11	SD1500	5/42	11
12	SD1500	5/42	11
13	SD1500	5/42	15
14	SD1500	5/42	15
Diameter 273mm
Length (m)	reducer	speed ratio	motor power (kw)
3	SD2000	7/38	5.5
4	SD2000	7/38	7.5
5	SD2000	7/38	7.5
6	SD2000	7/42	11
7	SD2000	7/42	11
8	SD2000	7/42	11
9	SD2000	7/42	15
10	SD2000	7/42	15
11	SD3000	7/42	15
12	SD3000	7/42	15
13	SD3000	7/48	18.5
14	SD3000	7/48	18.5
Diameter 323mm
Length(m)	reducer	speed ratio	motor power (kw)
3	SD2000	7/38	7.5
4	SD2000	7/42	11
5	SD2000	7/42	11
6	SD3000	10/42	15
7	SD3000	10/42	15
8	SD3000	10/48	18.5
9	SD3000	10/48	18.5
10	SD3000	10/48	18.5
11	SD3000	10/48	22
12	SD3000	10/48	22
13	SD3000	10/48	22
14	SD3000	10/48	22
