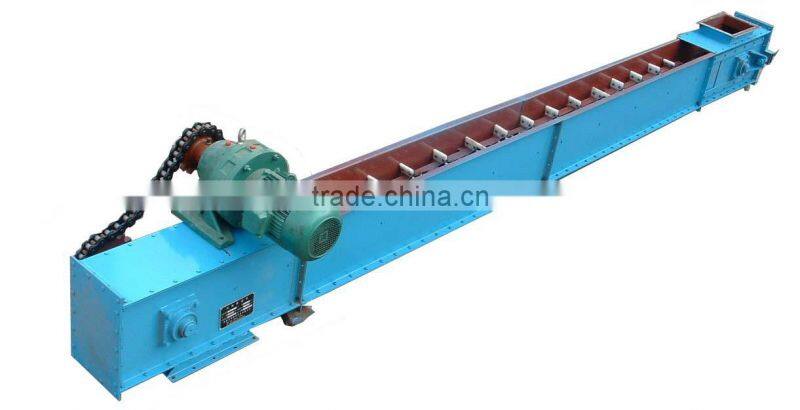

agricultural drag chain grain conveyor machine equipment
Drag chain conveyor specification:
1.Chain grain conveyor widely used In Grain Silo System for transportation.
2.Chain grain conveyor low noise and long service life
3.Drag chain conveyor belt for grain horizontal transportin
TGSS belt drag chain grain conveyor machine Introduction:
This chain grain conveyor system is used to horizontal transport grain, seed, feed, cement,
coal and other granular or powdered materials.Current applications
of the conveyor is to provide efficient and affordable transport for grain,feed , etc.
1.Stable running, low noise and long service life;

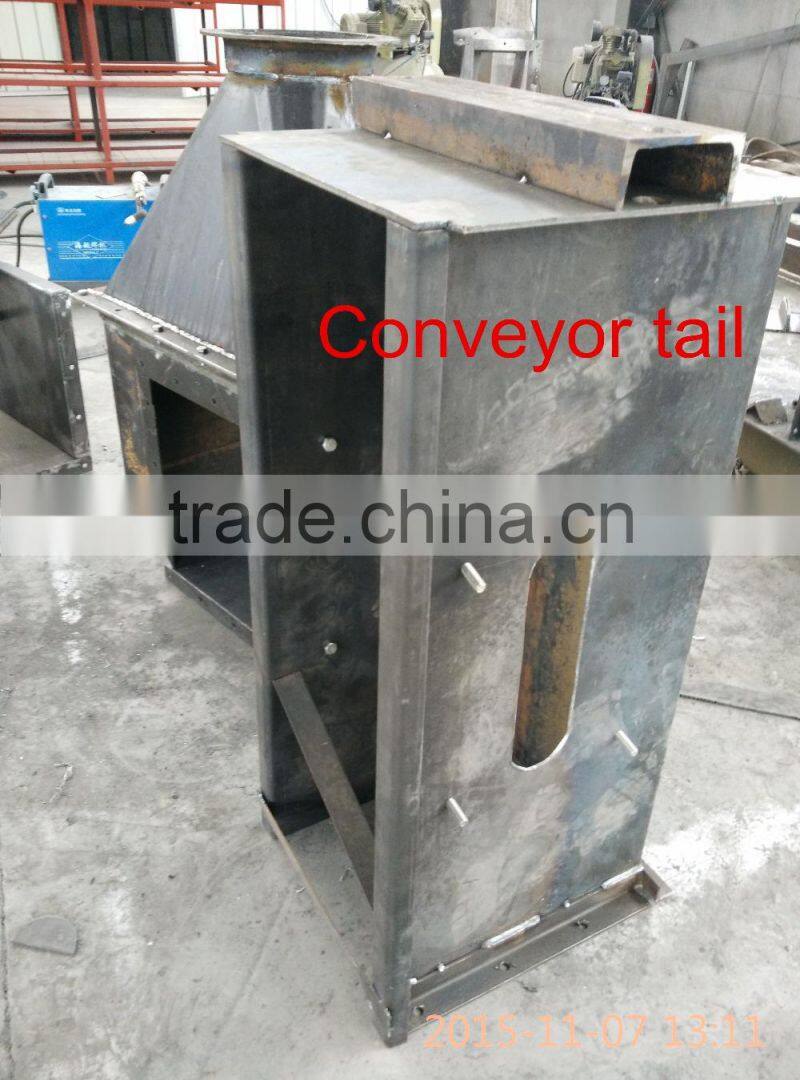

2.Thread rod type take-up (tensioner) can be fitted at the tail so as to meet various conveying requirements;
3.Flexible for multi-point feeding and discharging;
4. Equipped with an alarming device for material blockage;
5. Devices for speed loss and chain breakage protection are optional;
6. Widely used in port, dock, grain depot and the malt, flour, brewery, feed and chemical industries for horizontal bulk material conveying.
Drag chain conveyor Structure:

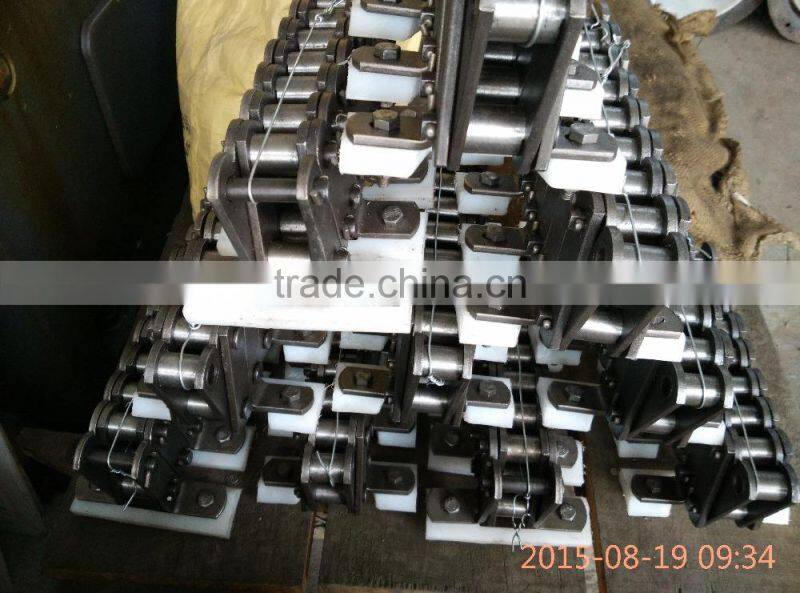

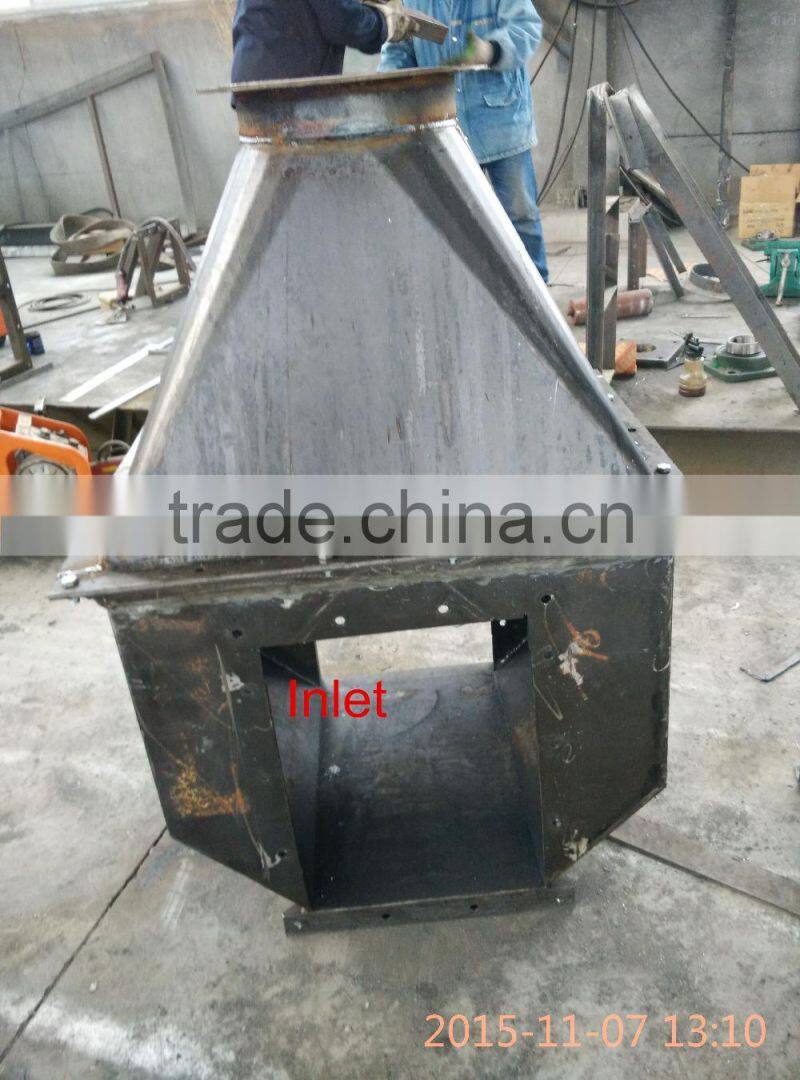

Chain grain conveyor is made up with Machine channel,chain,input,output,drive device,tension device etc.

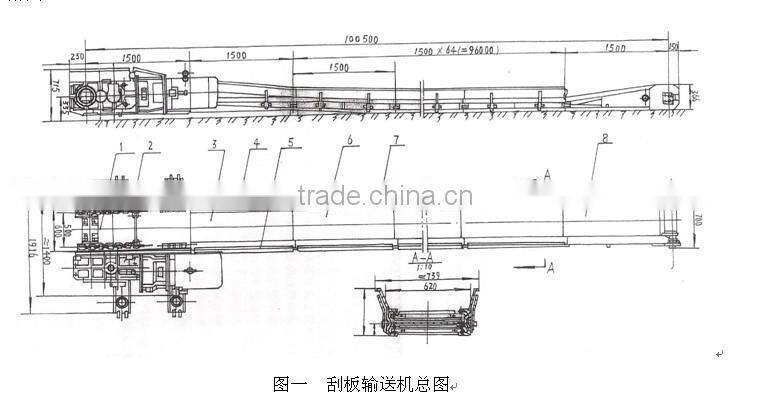

One Simple Drawing For Reference
belt drag chain grain conveyor machine Model Details:
Model |
Channel width*height |
Conveying capacity |
Chain speed |
Scraper separation distance |
Section distance |
Price |
(mm) |
(t/h) |
(m/s) |
(mm) |
(mm) |
||
TGSS16 |
160×160 |
15—28 |
0.4—0.6 |
200 |
100 |
|
TGSS20 |
200×200 |
29—56 |
0.4—0.6 |
200 |
100 |
|
TGSS25 |
250×250 |
56—84 |
0.4—0.6 |
250 |
125 |
|
TGSS32 |
320×320 |
85—140 |
0.4—0.6 |
320 |
160 |
|
TGSS40 |
400×400 |
141—211 |
0.4—0.6 |
384 |
128 |
|
TGSS50 |
500×400 |
212—281 |
0.4—0.6 |
384 |
128 |
belt conveyor machine

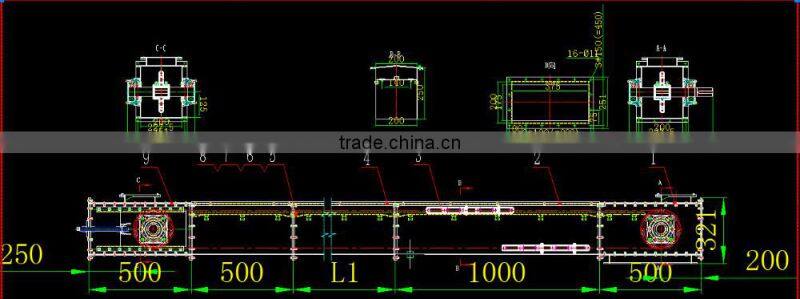

drag chain conveyor drawing for your reference.

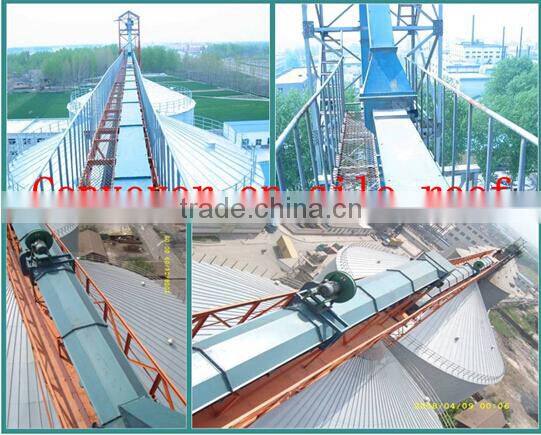

belt drag chain grain conveyor machine on the silo roof
Welcome you visit us,We are always here waiting for you!
If you are intersted in our product, please don't hesitate to contact with me.
