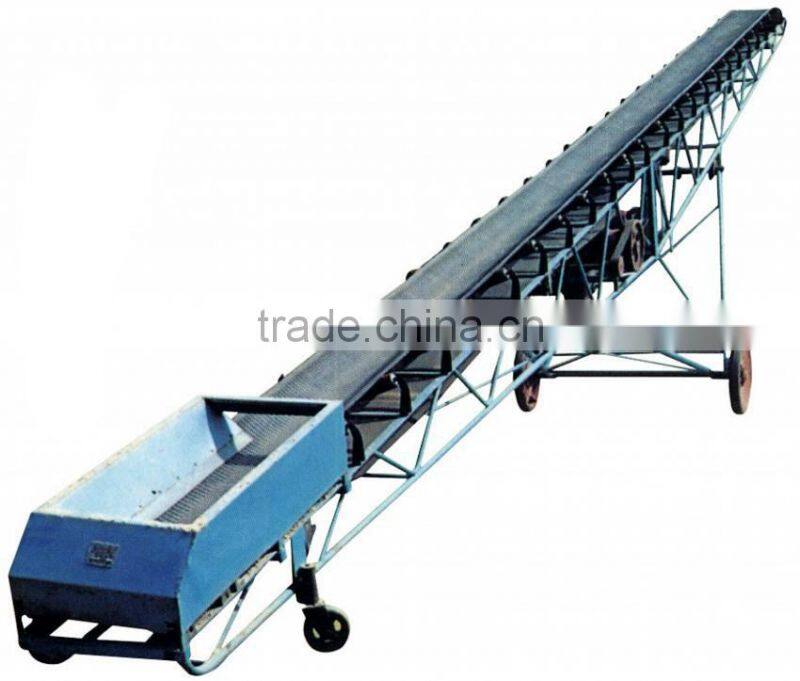

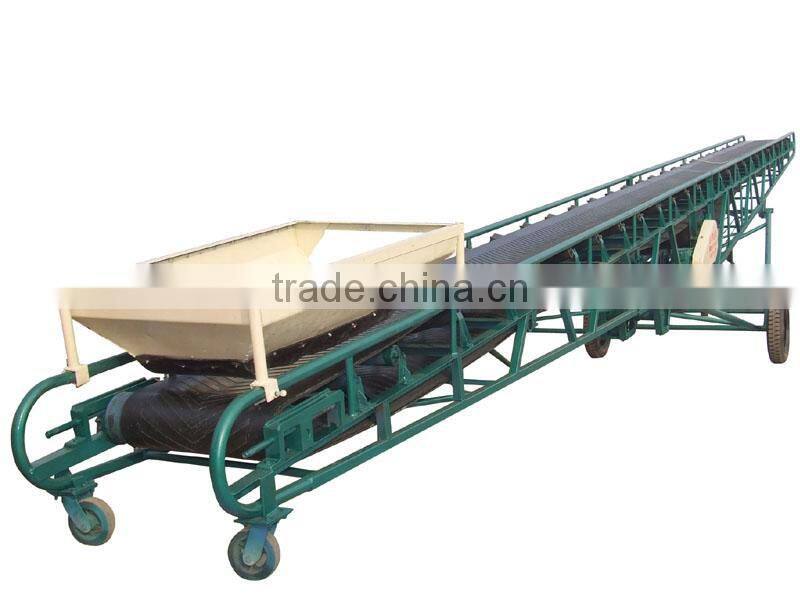

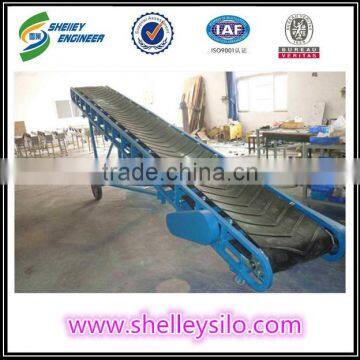

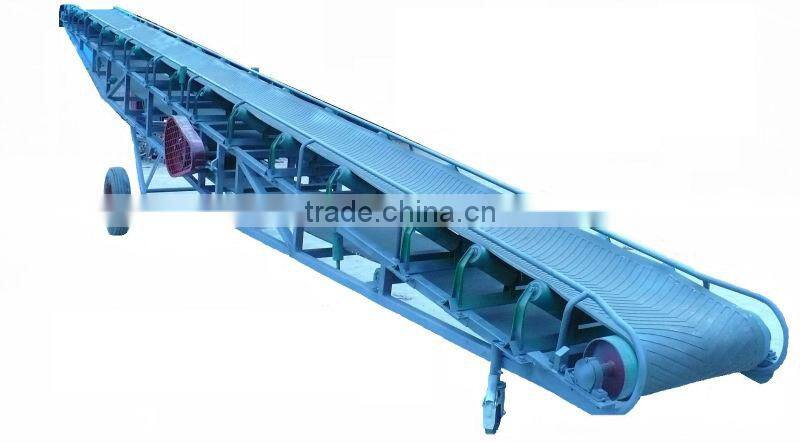

horizontal Grain Belt Conveyor for corn chips
Belt conveyor
Grain Belt conveyor is a kind of safe conveyor for grain transporting; It will do less damage to the material and will protect the material.
Application
Our grain belt conveyor is used for horizontally transporting grain, seed, feed, cement, coal and other granular or powdered materials.
Current applications of the conveyor is to provide efficient and affordable transport for grain,feed , etc.
Are you looking for a bulk material transportation solution?
Taian Shelley Engineering Co., Ltd is one of the biggest bulk material handling companies in China
.We provide the clients the best possible solutions based on the study and our expertise. It's our aim to become a lifelong partner with our client in their growth.
If you have a headache with bulk material transportation, do not hesitate to contact me
, we will be happy to provide you with a free design and detailed quotation
. Hope our products could highly improve the efficiency of your operations.
We supply Bucket elevator, drag conveyor, belt conveyor, screw conveyor for grain handling.
A Belt Conveyors consists of a body of a metal frame with pulleys at either end and bed of rollers
in between.Belt is looped around each pullies. When one of the belt is powered by electrical motor
, the belting slides across the rollers there by moving the product on the top of the belt
. We have technical capabilities to design, manufacture and commission belt conveyors with
various bulk densities, moistures, atmospheric conditions and corrosive properties
.We manufacture belt conveyors with capacities up to 200TPH.
Grain Used Inclined Belt Conveyor Price
Introduce:
Grain Used Inclined Belt Conveyor Price
TDSG Belt Conveyor is a kind of constantly conveying machine
, widely used in industrial department. It can be applied to conveying various bulk material
,like particle, powder of 0.5~2.5t/m³density, also to goods of pieces or packages
. It can be used with other conveying machine. With simple structure
, it is safe and easy maintaining ,which can be widely used in flour mill
, feed processing mill, oil and fats mill, starch mill,mine and chemicals etc.
Structure:
Grain Used Inclined Belt Conveyor Price
Belt, rollers,machine structure,supporting rollers,drive device etc
Model:
Grain Used Inclined Belt Conveyor Price
Model |
Capacity |
Belt Width |
Belt Speed |
t/h |
mm |
m/s |
|
TDSG30 |
30 |
300 |
2.5 |
TDSG40 |
50 |
400 |
2.5 |
TDSG50 |
100 |
500 |
2.5 |
TDSG65 |
200 |
650 |
2.5 |
TDSG80 |
300 |
800 |
2.5 |
TDSG100 |
500 |
1000 |
3.5 |
TDSG120 |
800 |
1200 |
3.5 |
Advantages of moving drag conveyor:
1. Stable running, low noise and long service life;
2. Thread rod type take-up (tensioner) can be fitted at the tail so as to meet various conveying requirements;
3.Flexible for multi-point feeding and discharging;
4. Equipped with an alarming device for material blockage;
5.Devices for speed loss and chain breakage protection are optional;
6.Widely used in port, dock, grain depot and the malt, flour, brewery, feed and chemical industries for horizontal bulk material conveying.
7.Move to anywhere. more convenience!

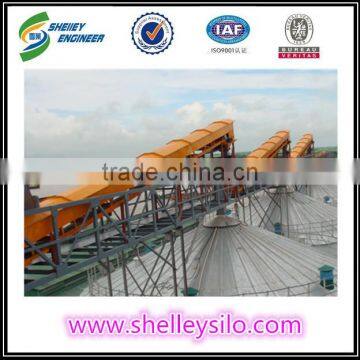

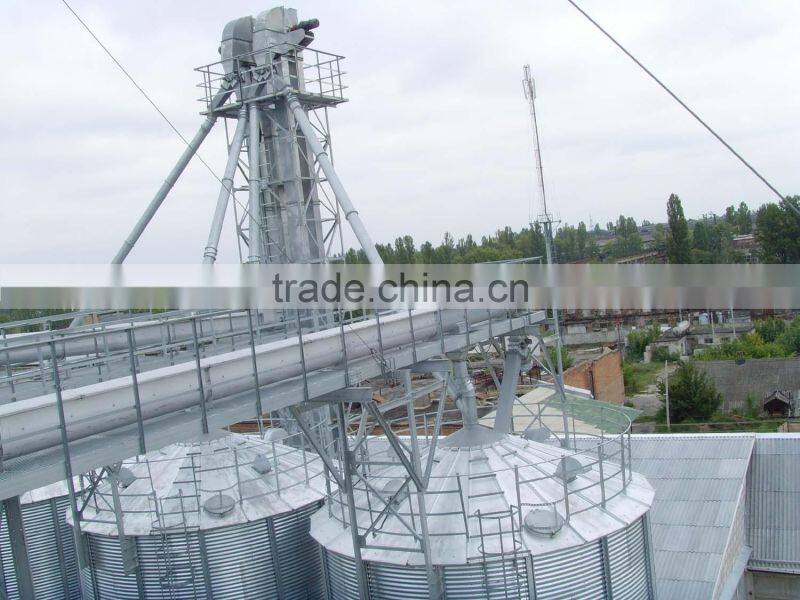

conveyor used in silo project
ISO 9001 Certificate & BV Certificate
If you want to get lower cost and high quality galvanized grain steel silo .
Contact us now . We are always here waiting for you!
