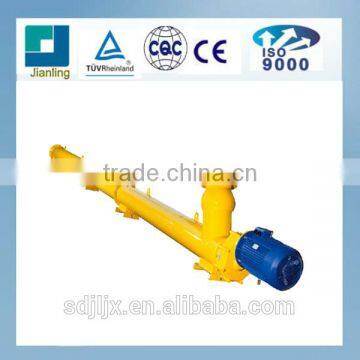

cement screw type conveyor
LSJ series screw conveyor is a conveying equipment for ash materials such as cement and coal ash. It plays key role in concrete batching plant and concrete mixing plant, as its performance directly influencing the production efficiency and measuring accuracy of the complete set of batching plant or mixing plant.
Working principle of cement screw type conveyor:
The material feed into the casing and screw flight was hold back by the frication resistance acted on the wall of casing during running, the screw flight push the material and make the material do axial movement, simultaneity the clockwise and counterclockwise fight act as mixer. The material can be discharged at the proper outlet at the bottom of casing or transport out at the end of chute. Conveyor with simple construction, be able to feed and discharge in many position, it is easy to operate, have good seal capability and environmental friendly.
Main Technical Parameters of Cement Screw type Conveyor:
Model |
Output Rate |
Speed of Screw Shaft |
Motor Power |
Diameter |
Screw Pitch |
Conveying Length |
LSJ20 |
20t/h |
204rpm |
2.2-5.5kw |
168mm |
112-150mm |
3-13m |
LSJ40 |
40t/h |
204rpm |
5.5-11kw |
219mm |
133-200mm |
4-12m |
LSJ80 |
80t/h |
204rpm |
11-18.5kw |
273mm |
166-250mm |
4-12m |
LSJ120 |
120t/h |
143rpm |
15-22kw |
325mm |
200-300mm |
6-11m |

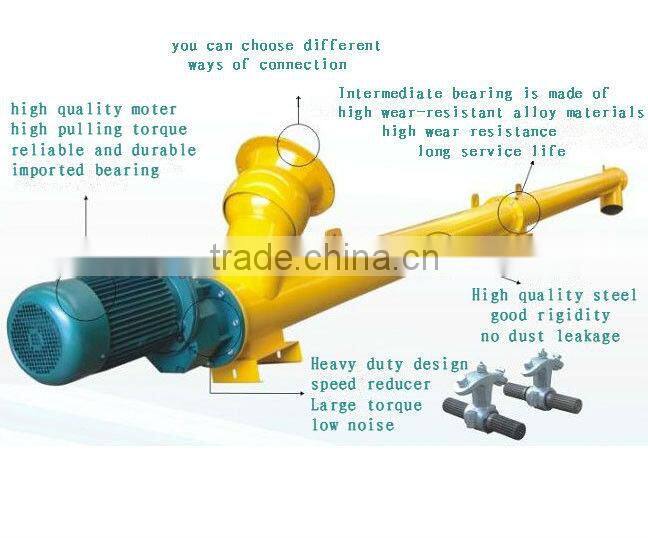

Features of Screw Type Conveyor:
1. Adopt advanced engineering from Italy, with screw blades molded in one time and middle pendent shaft made of special wear-resistant material, featuring low noise and high efficiency.
2. Inlet trough with progressive solid-flight screw for uniform storage bin discharge
3. Two designs: all-closed design and open-type design
4. Simple construction, be able to feed and discharge in many position, it is easy to operate
5. This machine is a safe and reliable product, having a good air-proof performance and no leaking-out of powdery dust and can be considered as an ideal product of new generation for environmental protection.
6. Small size and rapid rotary speed, which ensures rapid and average conveying
After-sale service of Screw Type Conveyor Supplying technique, building design, instruction, installation and debugging for free.
Our Advantages:
1. Trade directly with factory who has over 20 years' history.
2. Professional team.
Perfect quality.
Perfect service idea.
3. Competitive price.
4. Best manufacturer in jinan China.
5. We accept all kinds of payment & trade terms.
6. with advanced technology and prompt service, we build long business with world customers, such as Canada,Poland,Russia,Kazakhstan, Azerbaijan ,
Canada,Poland,Russia,Kazakhstan, Azerbaijan, Mongolia, Saudi Arabia, UAE, Yemen, Algeria, Malaysia, Indonesia, Philippines. Etc.we have good experience in servicing customers abroad.
Complete after-sale service system
1.Warranty:1 year.
2.Eengineer is available to service abroad.
2.In the overall process,provide installation instruction and debugging for customers and train operating staff free of charge.
3.Techincal assistance is avaible in 24 hours.
*We mainly supply concrete batching plant, concrete mixing plant, Stabilized soil mixing station, dry mortar mixing plant, concrete mixer, planetary mixer, Dry mortar mixer, Concrete batching machine, screw conveyor, cement silo.
If you are interested in our products, welcome to enquire.
Shandong Jianling Machinery Co., Ltd.
has more than 25 years of production experience. The Company seeks survival with quality and promotes development with science and technology. The Company has developed successively a wide range of concrete machinery and road construction machinery since it’s establishment and now it is one of the Chinese enterprises with complete types, advanced technology and strong capacity in producing complete sets of concrete batching, mixing and conveying machinery and road construction machinery. The Company has long been dedicated to transforming traditional industry with high & new technology through international cooperation, so as to realize leapfrog development and make “JIANLING” a prestigious Chinese brand.

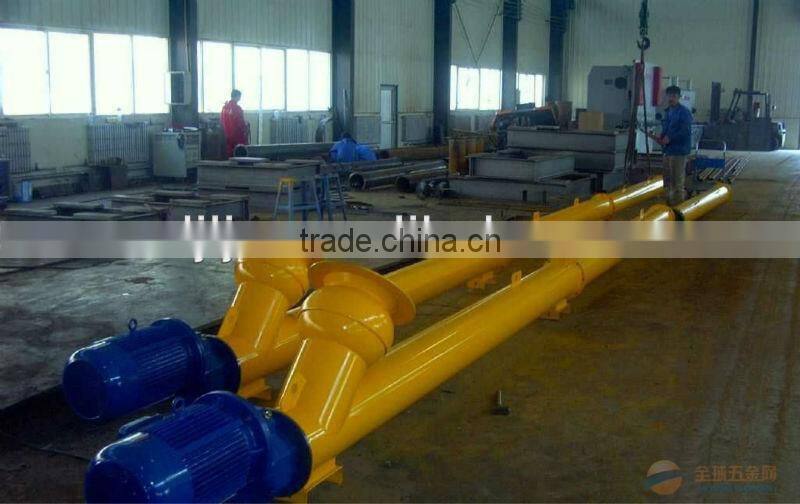

Welcome to our factory:
Certificate:
