Home > Products > TWISTED ROPE MACHINE > pp plastic rope machine
pp plastic rope machine
- 500 Set / Sets per Month
- QINGDAO
- T/T
Product Details
Condition: | New | Product Type: | Other, nylon ,pp ,polyester ,cotton,sisal ,jute ,cloth twisted rope, | Place of Origin: | Shandong, China |
Brand Name: | ROPE NET | Model Number: | RM005 | Voltage: | 380V,50HZ,3PHASE |
Power(W): | 5.5kw | Dimension(L*W*H): | 2.35*0.8*1.25M | Weight: | 4000KG |
Certification: | CE ISO9001:14000 | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
SHANDONG ROPE NET MACHINERY CO.,LTD WECLOME YOU
Our company supplys rope making machine line.
Rope making Process Catalogue Picture
Accessories
Rope Picture

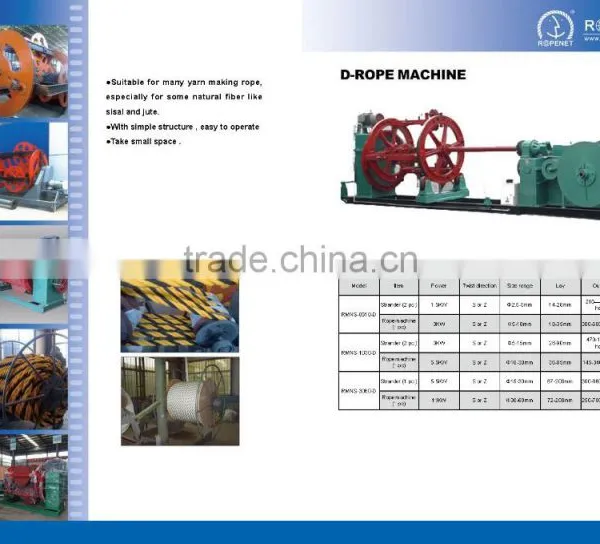

One Type :D Twisted Rope Making Machine
can make 5mm-60mm 3 strand or 4 strand rope ,any material ,any color
Good Performance
1.High reliable and stability
2.Easy to operate and maintain
3.High output capacity ( Increased take-up capacity) and high speed
4.Strong suitability to material
Leading feature
1. Rope lay : s or z
2. Fitted with inverter drive
3. Constant winding tension
4. High reliability
5. Easy change of strand twist ;
6. Rugged and simplified design.
Technical Parameter for D type Rope Machine
Model | item | power | twist direction | size range | twist lay(mm) | output m/hour | outline dimension |
RMNS-SR510 | strander | 1.5kw | s or z | 2.5-5mm | 14-28 | 210-500 | 2.4*0.5*0.65m |
rope machine | 3kw | s or z | 5-10mm | 18-35 | 300-600 | 4*0.8*1.0m | |
RMNS-SR1030 | strander | 3kw | s or z | 5-15mm | 28-90 | 500-1600 | 4.8*1.755*1.0m |
rope machine | 5.5kw | s or z | 10-30mm | 36-85 | 150-340 | 6.8*1.75*1.75m | |
RMNS-SR2460 | strander | 5.5kw | s or z | 12-30mm | 67-200 | 300-900 | 4.0*0.85*1.45m |
rope machine | 11kw | s or z | 24-60mm | 120-200 | 400 |
Leading Feature
1:With frequency converter
2:Meter counter
3:Overtravel-limit switch
4: Auto-stop device
5:It is easy to adjustable the rope tensility
6: Change the direction of twisted and lay length
7:Strong stability,low energy consumption,low noise,high reliable
Good Performance
- It consists of rope making device and strand making device
- Increased take-up capacity
- Two rope lays per revolution
- Constant winding tension
- Low power consumption
- Easy change of strand twist.
- Rope making with strand making as a union
Two Type:M Series 2 IN 1 Rope Making Machine
All kind of specification of twisted rope for 3-strand 0r 4-strand can be made by one set machine
Technical Parameter for M Type Rope Machine
Shipment Picture
Exhibition Picture
Our company
Shandong Rope Net Machinery Co.,Ltd,we are manufacturer of kinds of extruders ,(PP,PE,PET,Monofilament fiber, film fiber, flat fiber ),ring twister,twisted and braided rope making machine,rope packing machines ,winding spool machine winding ,ball machine ,shrink machines and strapping machines.We have gain the ISO9001:14001 certification
We have 5 factories to produce rope and 1 factory to produce machinery,our rope and machinery products are mainly exported to the whole world,we have professional engineer to your configuration for your equipment, our professional and technical personnel to help you produce high quality products
Our Team and Certificate
FAQ
The machines will be made as your requirements. We are appreciated if you can provide the information as follows:
1:What's the rope size you want to make and how many strands?
2:What's the material of the rope?
3:What's your country voltage ?
Our Service
1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.Clients Traning Services
We can train your staff to use your equipment systems properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
3.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
Reduce Your Cost Furthest
Name Card:
Company Name: Shandong Rope Net Machinery Co., Ltd. & Taian Rope net plastic Co.,ltd
ADD:HIGH-TECH DEVELOPMENT ZONE TAIAN SHANDONG PROVINCE CHINA
TEL:0086 538 8514322
FAX:0086 538 8669066
Mobile:0086 15163879588
Skype:alice-shen2525
Contact person:Alice shen
HTTP://
HTTP://ropemachine.en.china.cn/
Rope Net,win future through partnership!!
You are Warmly Welcome to Visit Our Factory !!
