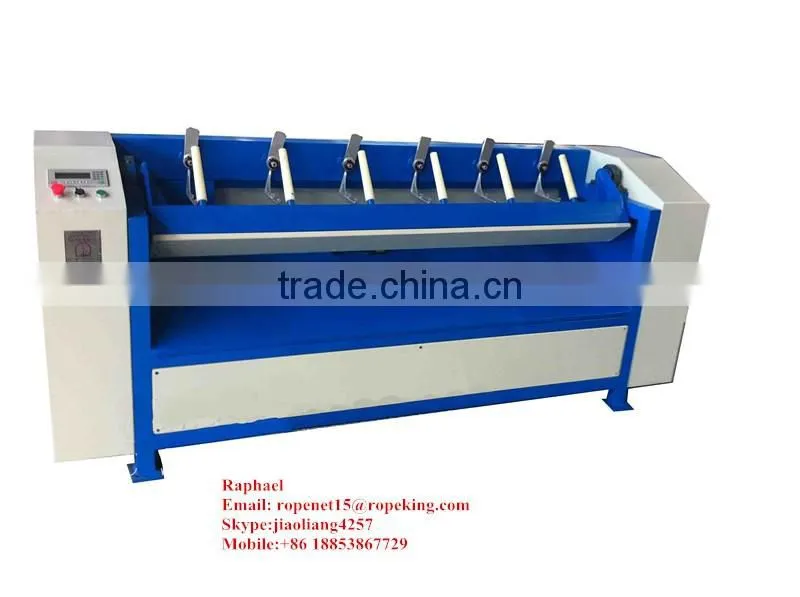

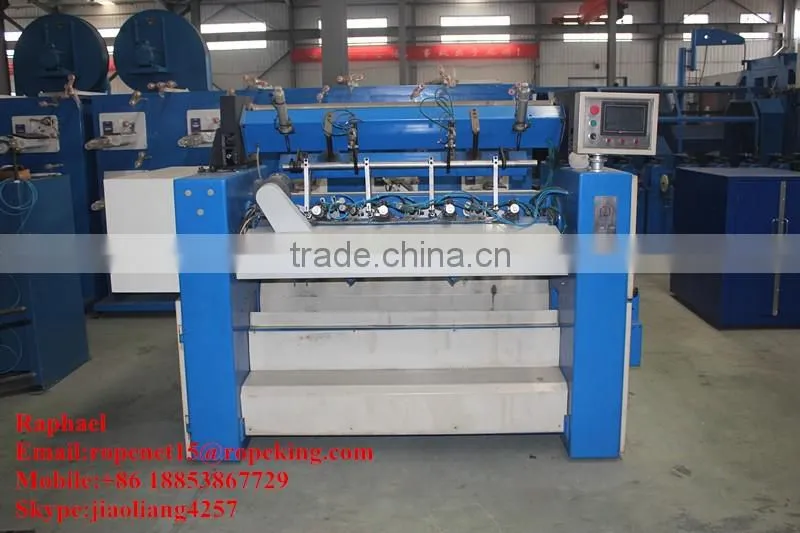

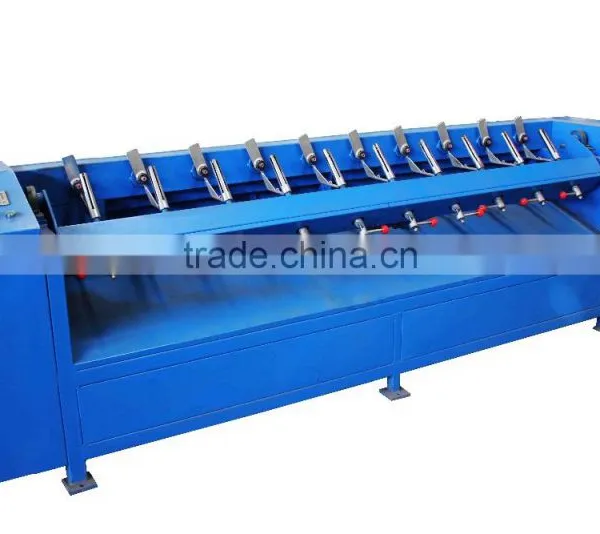

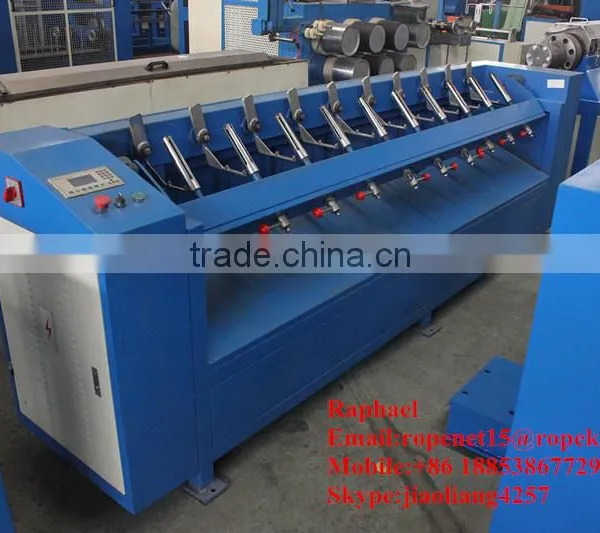

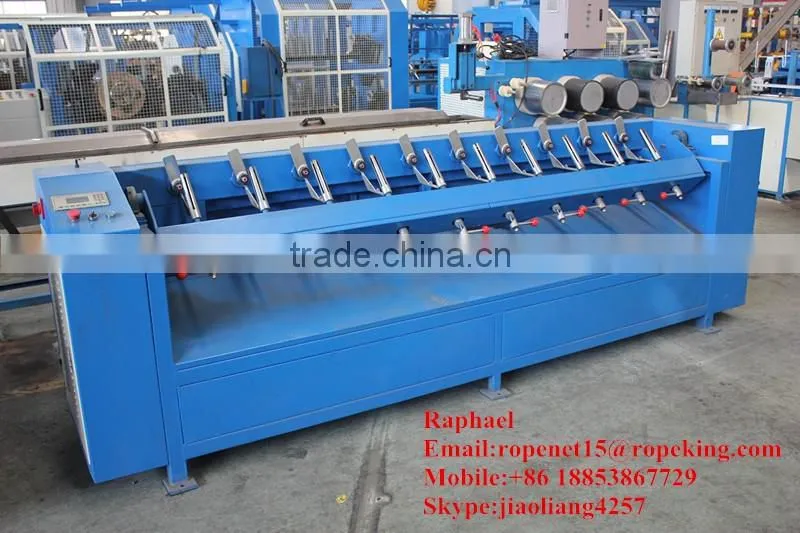

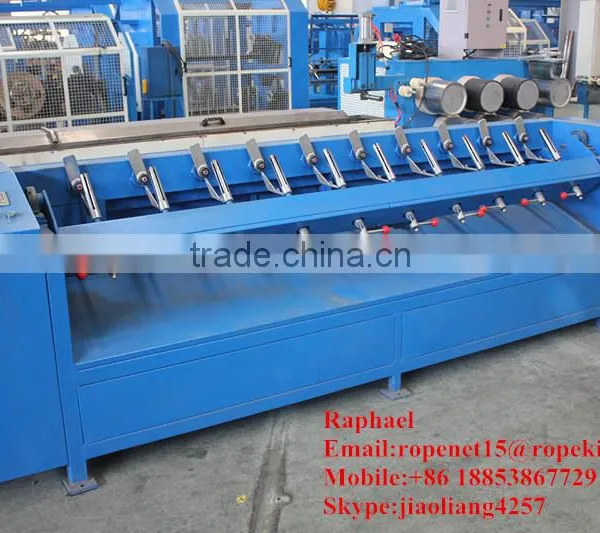

Production Application

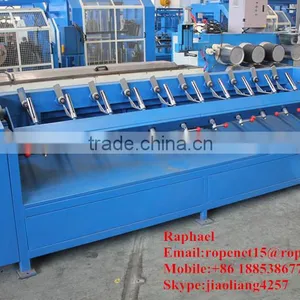

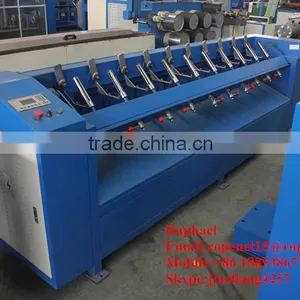

The machine is suitable for winding different size of PP Split-film, flat yarn, and cotton into ball shape. The machine can break line automatically, unloading automatically, convey automatically, count automatically, yarn break stop automatically.

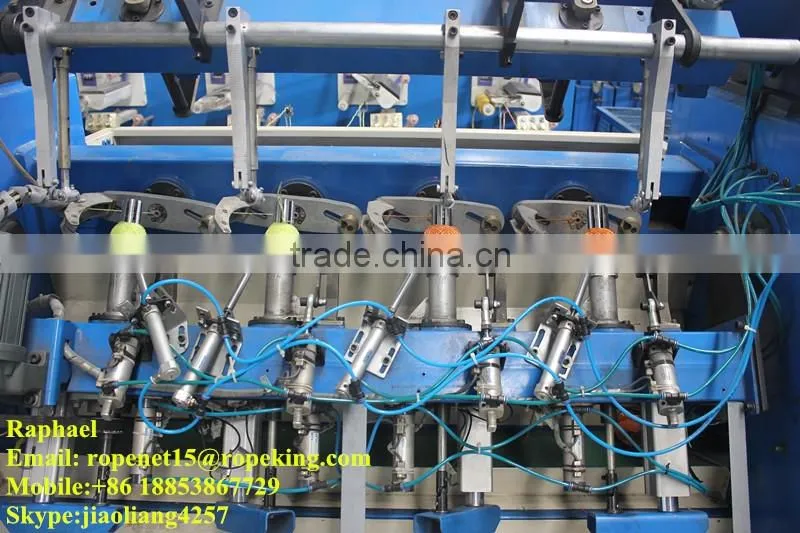

Multi-heads work at the same time
PLC control, easy to operate
Different Ball shape
Durable and stable

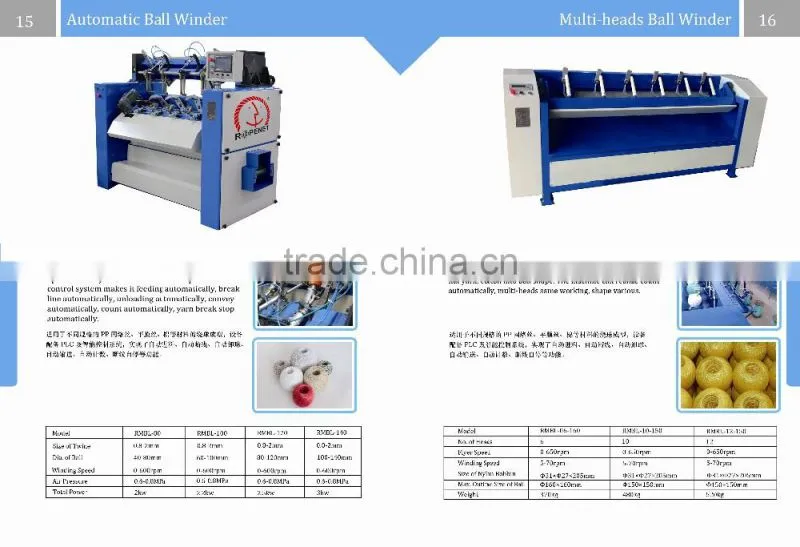

| Model | RMBL-06-160 | RMBL-10-150 | RMBL-12-150 |
| No. of Heads | 6 | 10 | 12 |
| Flyer Speed | 0-650rpm | 0-650rpm | 0-650rpm |
| Winding Speed | 5-70rpm | 5-70rpm | 5-70rpm |
| Size of Nylon Bobbin | ø31Xø27X205mm | ø31Xø27X205mm | ø31Xø27X205mm |
| Max. Outline Size of Ball | ø160X160mm | ø150X150mm | ø150X150mm |
| Power | 380V, 3-phase, 2.54kw | 380V, 3-phase, 2.54kw | 380V, 3-phase, 2.54kw |
| Outline dimension | 2600X1100X1150mm | 3600X1100X1150mm | 4000X1100X1150mm |
| Weight | 370KG | 480KG | 520KG |
SHANDONG ROPE NET MACHINERY :
1. Established in the year 2002, with more than 1000 empoyees, As a professional manufacturer of rope machines more than 10 years!
2.We are the largest and most professional manufacturer which can produce a
complete set of rope making machines in China. Now we are the ropeking in China
Products Including:
1) Plastic Monofilament extruder
2) Plastic Film extruder
3) Ring twister.
4) High speed twisted rope making machine
5) High speed braided rope making machine
6) High speed ball winder including single head and multi-heads(for Plastic PP
tape twine&Cotton twine&Sisal twine&Jute twine)
7) Spool winder machine
8) Coiler machine
9) Hank winder machine.
10) Shrinking machine.
11) Strapping machine.
