Help CenterDecoration Webbing FDY Multifilament Yarn Extruder Machine
Related Products
-
Good Quality Curtain Webbing Multifilament Yarn Extrusion LineUS$ 50,000 - 80,000MOQ: 2 Sets -
Hot Selling Safety Webbing Multifilament Yarn Spinning MachineUS$ 50,000 - 80,000MOQ: 2 Sets
-
First Class Luggage Webbing PP Multifilament Yarn Extrusion LineUS$ 50,000 - 80,000MOQ: 2 Sets
-
Draw Texturing Machine for Fdy YarnUS$ 50,000 - 80,000MOQ: 2 Sets
-
Colored and White 300D-1500D FDY Polypropylene Multifilament Yarn Spining Machine for Rope Belt Cord MakingUS$ 50,000 - 80,000MOQ: 2 Sets
Product Application
The machine can produce different size of PP FDY yarn which is widely used in rope,net,twine,webbing,garments etc.The machine has the characteristics of high efficiency,high strength,long life span,easy maintenance.
This machine is used for FDY making, with new design screw, yarn scope is from 150D to 3000D. Supply customer good spinning equipment for high tenacity industry filament. The machine has feedback control system with AC inverter , imported instrumentation and automatic take-up winder, also with specialized symmetrical structure design and energy saving cooling system, easy to maintain.
Main Features
Machine Parts
Name : Extruder
Brand : ROPENET
Original : CHINA
1.Screw diameter Ф90 L/D=30
2.heating power 35kw
3.drive power 18.5kw/380v
Main Features
Name:Filter and pipe
Brand:ROPENET
Original:CHINA
1.4-20mA pressure measurement and feedback
2.Double filter element heating power 12kw/220v
Machine Parts
Name:Spinning beam
Brand:ROPENET
Original:CHINA
1.heating by heat transfer oil
2.heating power 8kw/220v
Main Features
Name:Winder
Brand:ROPENET
Original:CHINA
1.SLW 1200/6,1500-2800M/min
2.Paper bobbin size Ф125 mm x Ф110mm x 200mm
3.Maximum yarn spool size Ф430mm x Ф125mm x 170mm (13kg max)
Installation Service
We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
After-Sales Service
Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
automatic hank winder
97.8% Response Rate

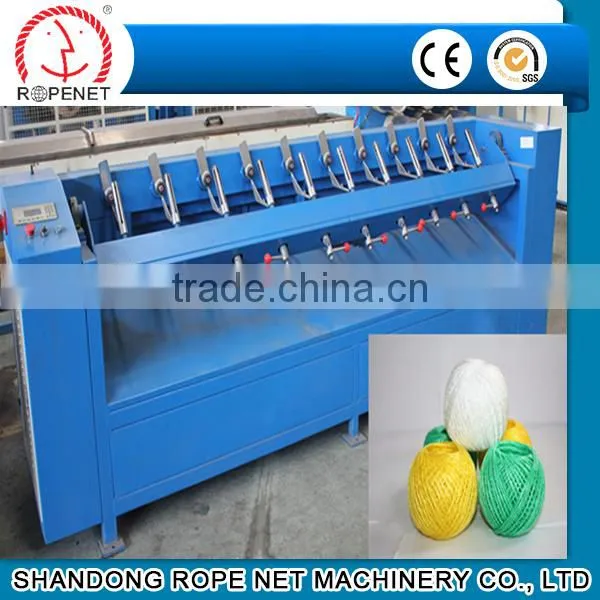

semi-automatic ball winder
98.6% Response Rate

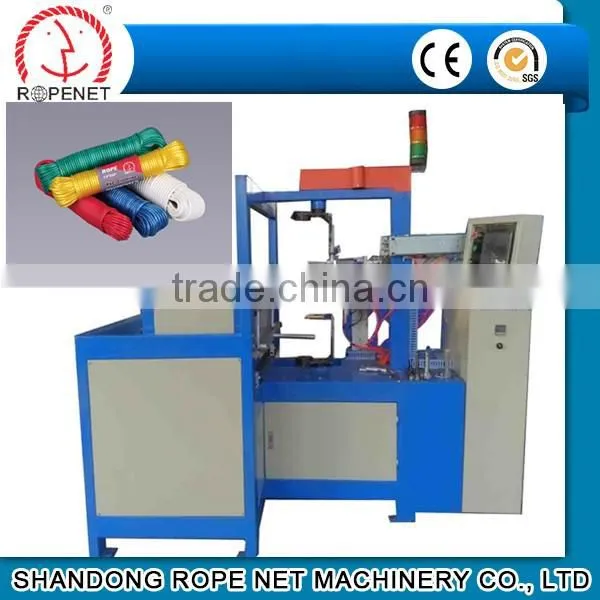

2 in 1 spool winder
