Help CenterHot Sale Rope Making Machine/M Rope Machine/Twisted Rope Machine
Related Products
-
High Speed Rope Making Machine With Good QualityUS$ 6,500 - 30,000MOQ: 1 Set -
China Manufacturer 3 Strand Plastic Cord Twisting Machine // Email:ropenet16@ropeking.com ,Mobile:008618253809206NegotiableMOQ: 1 Set
-
10mm Polypropylene Rope Machine // Email:ropenet16@ropeking.com ,Mobile:008618253809206NegotiableMOQ: 1 Set
-
Pre-Twister Machine Suitable for Many Materials,such as PE,PP,PET,PAUS$ 3,000 - 5,000MOQ: 1 Set
-
Pre-Twister Machine Take up Small AreaUS$ 3,000 - 5,000MOQ: 1 Set
(1) COMPANY INTRODUCTION:
Shandong Rope Net Machinery Co.,Ltd,we are manufacturer of kinds of rope and extruders,ring twister,rope making machine,rope packing machines,shrink machines and strapping machines.
More than 1000 workers, 5 factories to produce rope and 1 factory to produce machinery,our rope and machinery products are mainly exported to the whole world.

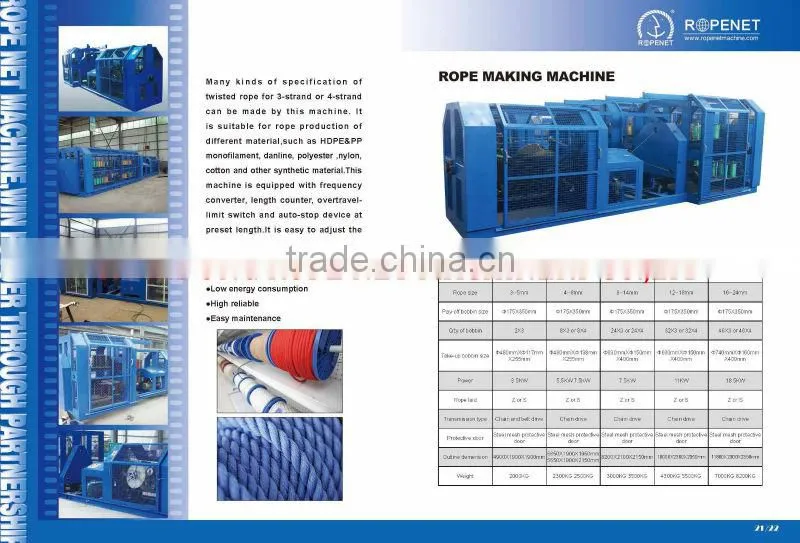

(2) MACHINE INTRODUCTION:

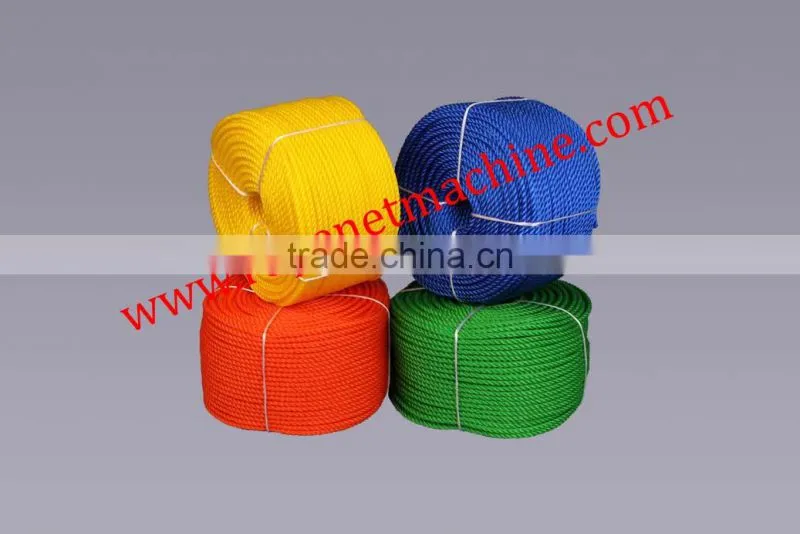

All kinds of specification of twisted rope for 3-strand or 4-strand can be
made by this machine.It is suitable for rope production of different
material,such asHDPE&PP monofilament,danline,polyester,nylon,cotton,
sisal,jute and etc.
(3) GOOD PERFORMANCE:
This machine is equipped with
1.frequency converter
ter counter
3.overtravel-limit switch
4.auto-stop device
It is easy to adjust the rope tensility and change the direction of twist and
lay length. Strong stability. Low energy consumption, low noise, high
reliable, easy maintenance.
(4) TECHNICAL DATA:
Item |
RNTM-M22 |
RNTM-M33 |
RNTM-M44 |
RNTM-M55 |
RNTM-M66 |
rope range |
3-6mm |
4-10mm |
6-14mm |
12-20mm |
20-26mm |
lay range |
18-30mm |
15-38mm |
20-50mm |
32-78mm |
40-105mm |
power |
1.5kw |
5.5kw |
7.5kw |
11kw |
18.5kw |
take-up capacity |
130x350x255 |
130x500x320 |
130x600x430 |
130x660x400 |
140x700x450 |
size ofpay off bobbin |
178x380mm(8") 220x350mm(10") |
178x380mm(8") 220x350mm(10") |
178x380mm(8")220x350mm(10") |
178x380mm(8")220x350mm(10") |
178x380mm(8")220x350mm(10") |
quantity of 8" bobbin |
4 |
10x4or 10x3 |
20x4 or 20x3 |
32x4 or 32x3 |
46x4 or 46x3 |

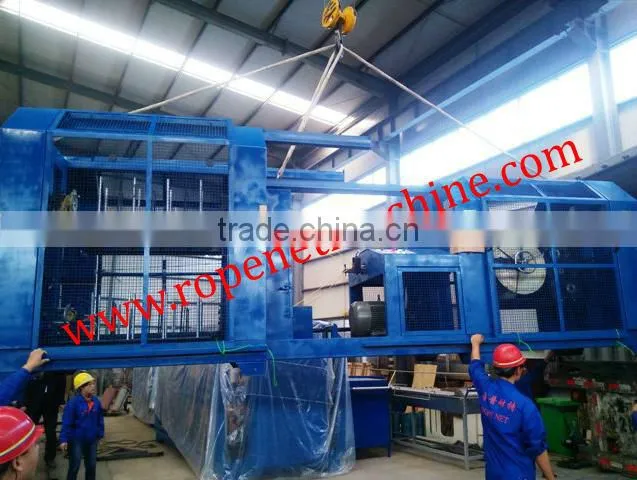

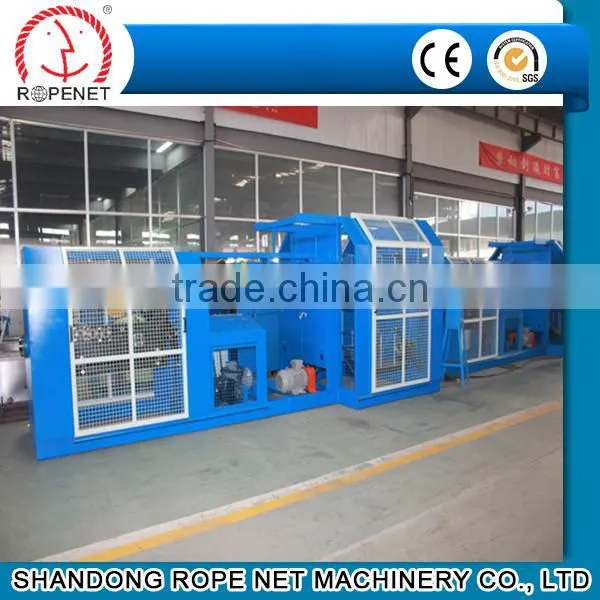

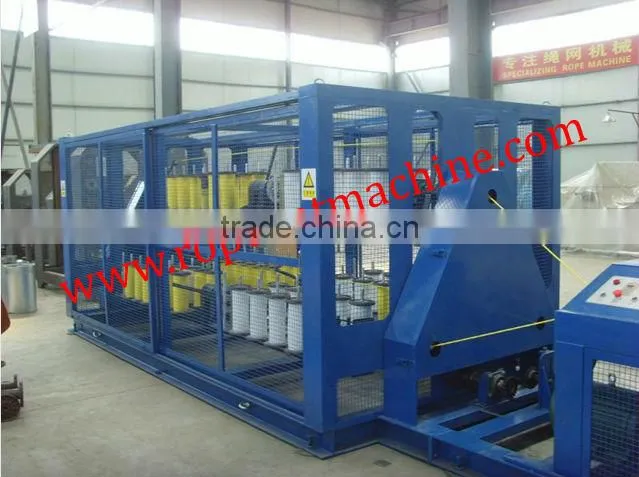

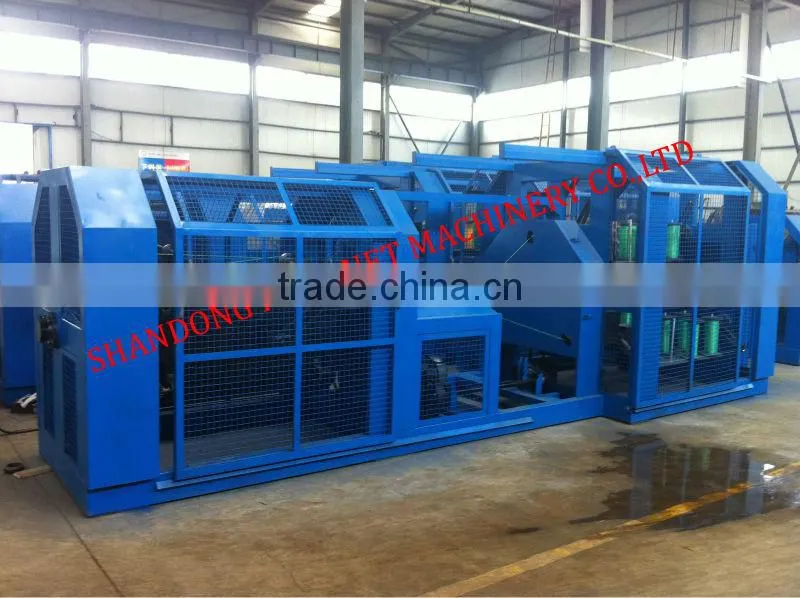

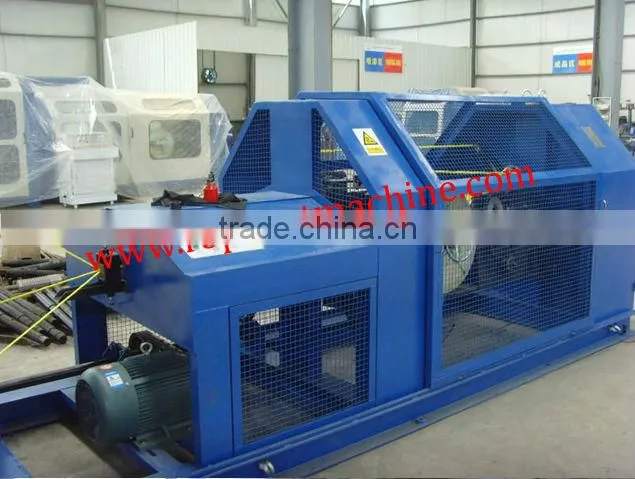

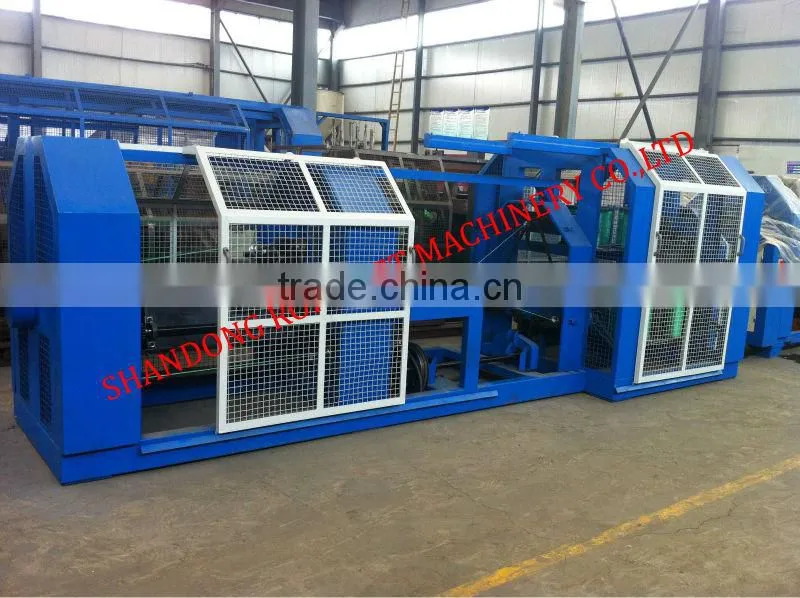

(5) MACHINE SHOW:
(6) HIGH QUALITY SERVICE:
High quality after-sale service
Engineers avalible to service machinery overseas
Worker trainning service
(7) HOW TO ORDER:
Send Inquiry to This Supplier
