Help CenterFlexible Graphite Packing
Related Products
Description

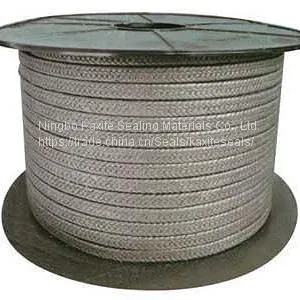

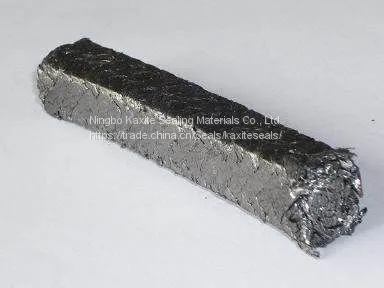

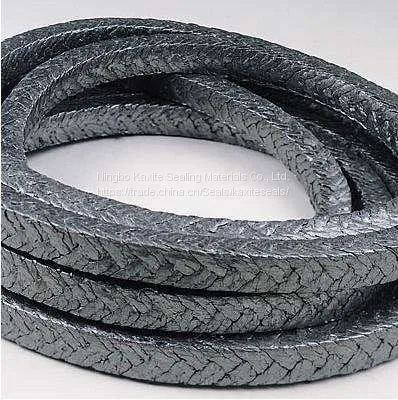

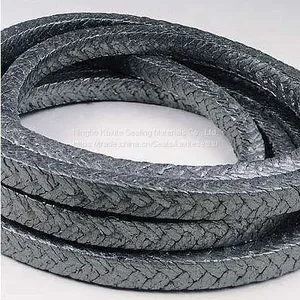

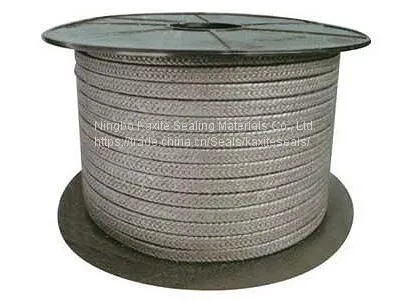

Flexible graphite packing braided from expanded graphite yarns, reinforced of cotton fiber, glass fiber, carbon fiber, etc. It has good thermal and chemical resistance and high elasticity. Low friction does not damage shafts and stems.
Kaxite P400K -- Flexible Graphite Packing with Corrosion Inhibitor
Corrosion inhibitor acts as a sacrificial anode to protect the valve stem and the stuffing box.
Typical Application
> Flexible graphite packing is a multi-service packing capable of a wide variety of uses throughout a plant.
> It can be used in valves, pumps, expansion joints, mixers and agitators in high-pressure and temperature.
> Effective sealing is vital.
Prime Features
> Reinforced with glass fiber: high strength, lower cost
> Reinforced with carbon fiber: less weight loss
> Good thermal and chemical resistance and high elasticity.
Technical Data
| Material | 100% Expanded Graphite Yarn | |
| Temperature Range |
-200 up to +555 oC atmosphere; -200 up to +650 in Steam
|
|
| Process | Rotating | 3 Mpa |
| Reciprocating | 10 Mpa | |
| Valves | 20 Mpa | |
| Shaft Speed | 20m/s in rotary | |
| PH | 0~14 | |
| Density | 1.3~1.5 g/cm3 | |
