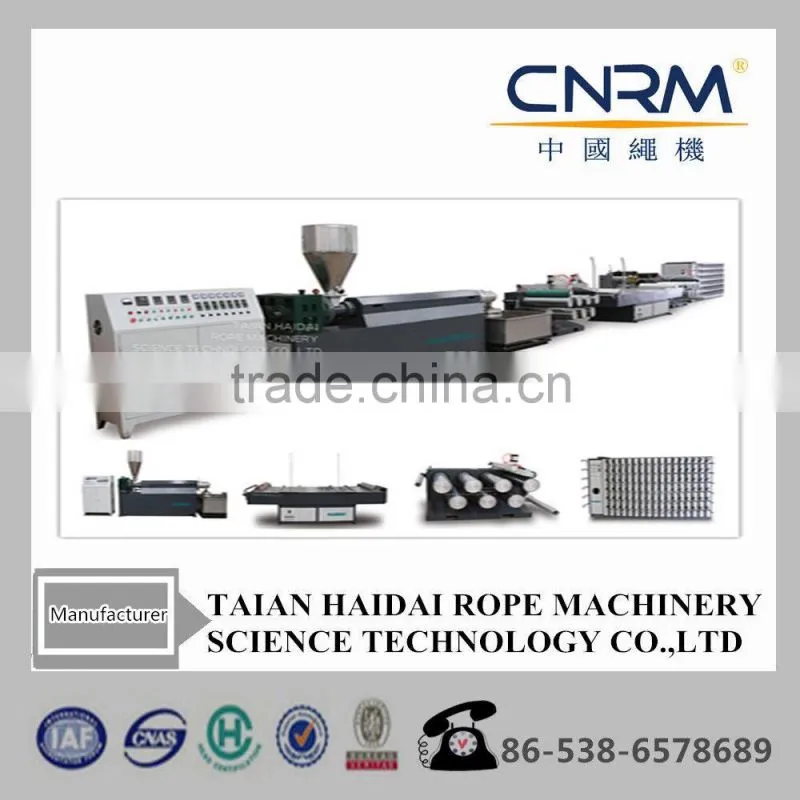

PP/PE Monofilament Yarn Extruder Machine

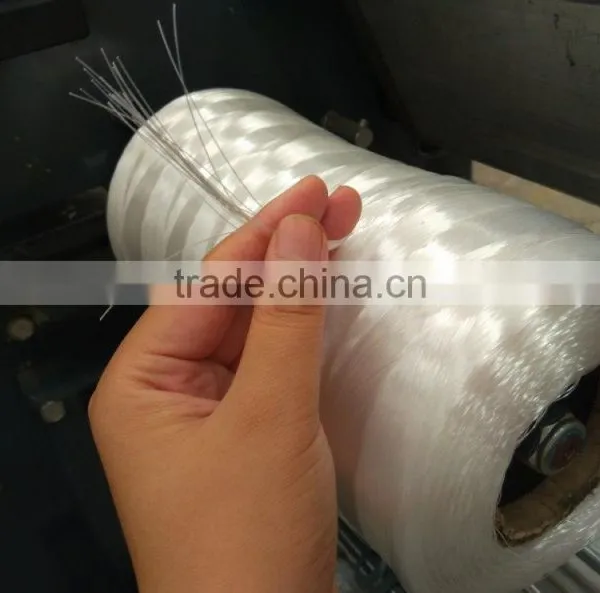

This set of machine is a professional yarn drawing line, which is mainly used for producing PP, HDPE net yarn, and also can be used for processing other plastic yarns via corresponding adjustment.

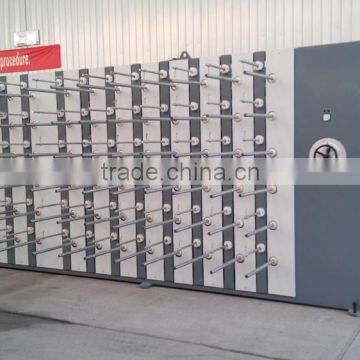

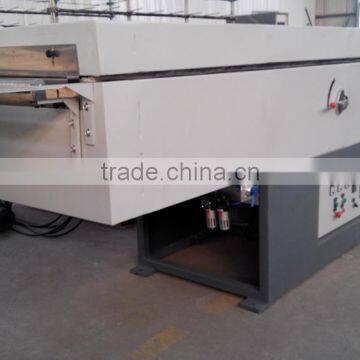

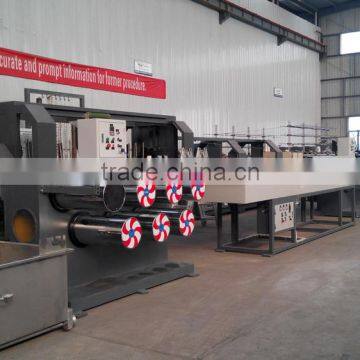

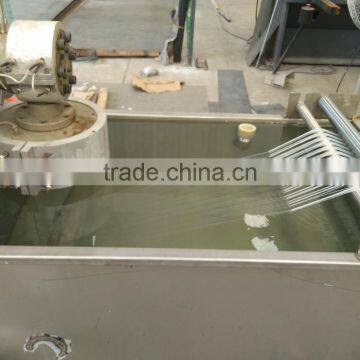

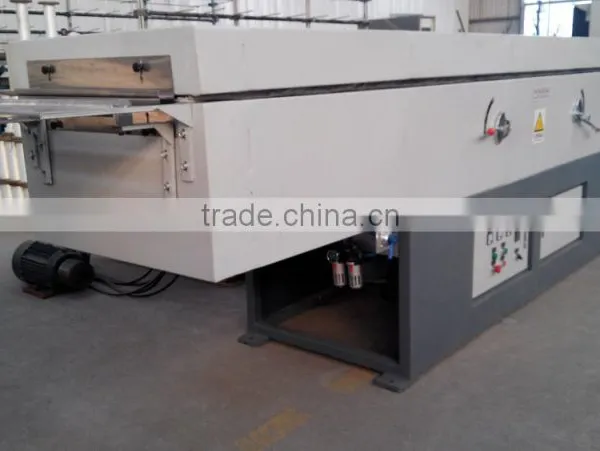

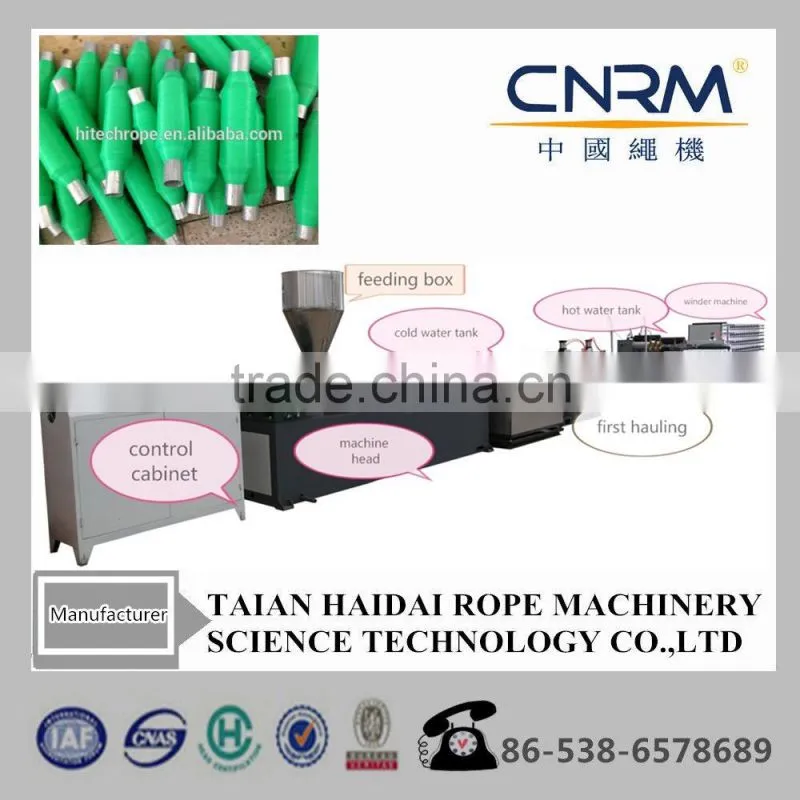

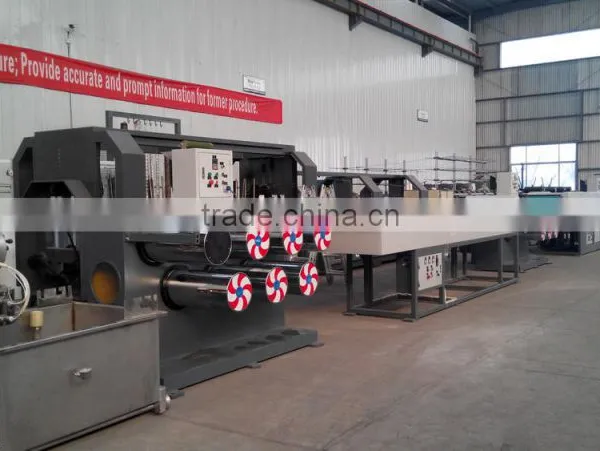

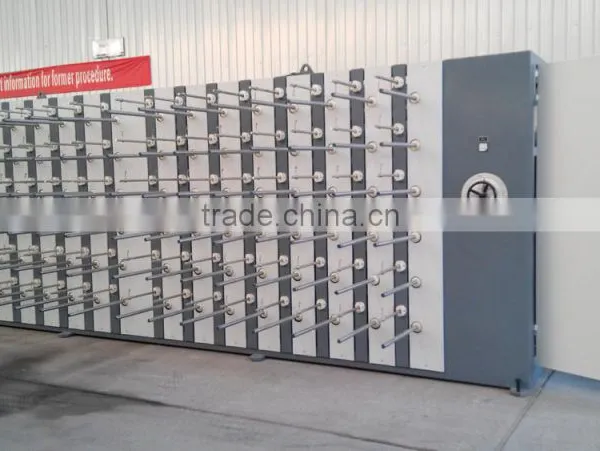

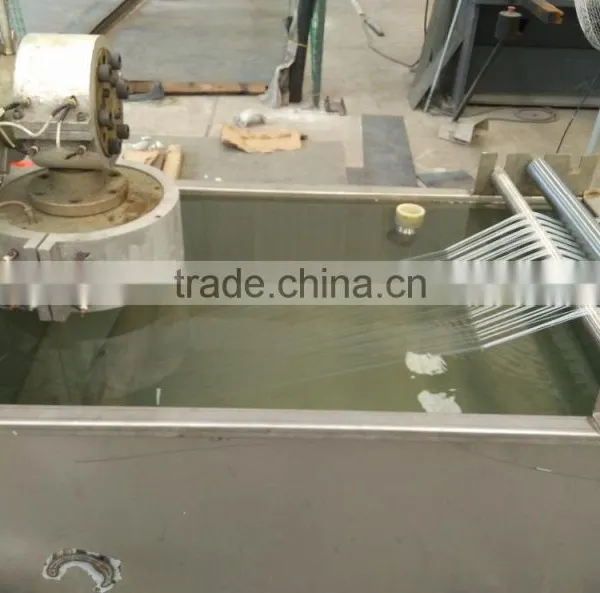

This line consists of extruder, cool water tank, the first stretching device, hot water tank, the second stretching device and coiling machine. The matching devices for production process are complete, so it can continuously finish the whole procedures from putting material to coil yarn onto bobbins...
Item |
HDYSJ-70 |
HDYSJ-80 |
HDYSJ-90 |
Dia of Fiber |
0.13mm-0.30mm |
0.13mm-0.30mm |
0.15mm-0.3mm |
Dia of Screw |
70mm |
80mm |
90mm |
Ratio of L/D |
30 |
33 |
33 |
Rotation Speed of Screw |
20-90r/min |
20-90r/min |
20-90r/min |
Drawing Ratio |
4-10 |
4-10 |
4-10 |
Heating Mode |
Electric heating |
Electric heating |
Electric heating |
Cooling Mode |
Water Cooling |
Water Cooling |
Water Cooling |
Power Consumption |
100kw/65kw |
130kw/80kw |
150kw/100kw |
Max Outputcapacity |
1400kg/24h |
2000kg/24h |
3000kg/24h |
Machine Dimension(L*W*H) |
20m*3m*2.5m |
23m*3m*2.5m |
27m*3m*2.5m |
Machine Weight |
9000kg |
12000kg |
15000kg |

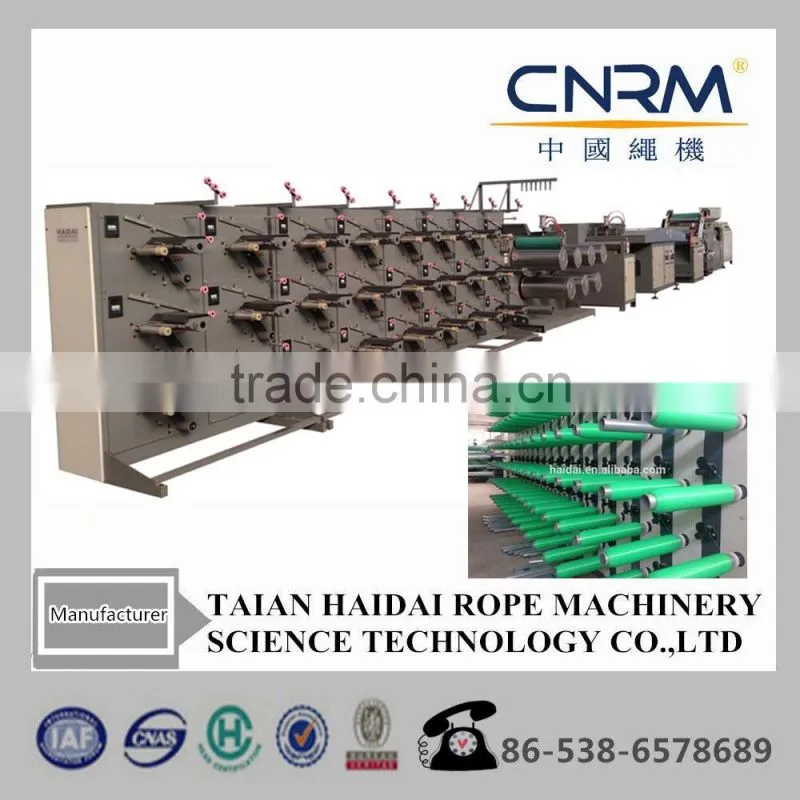

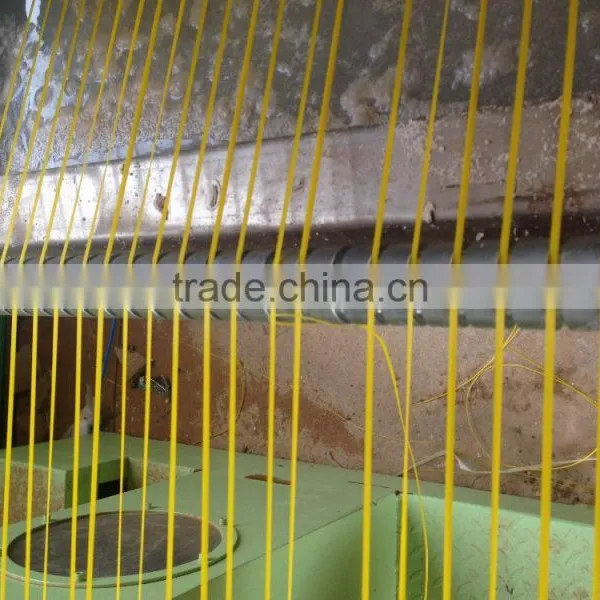

PP/PE monofilament yarn extruding machine

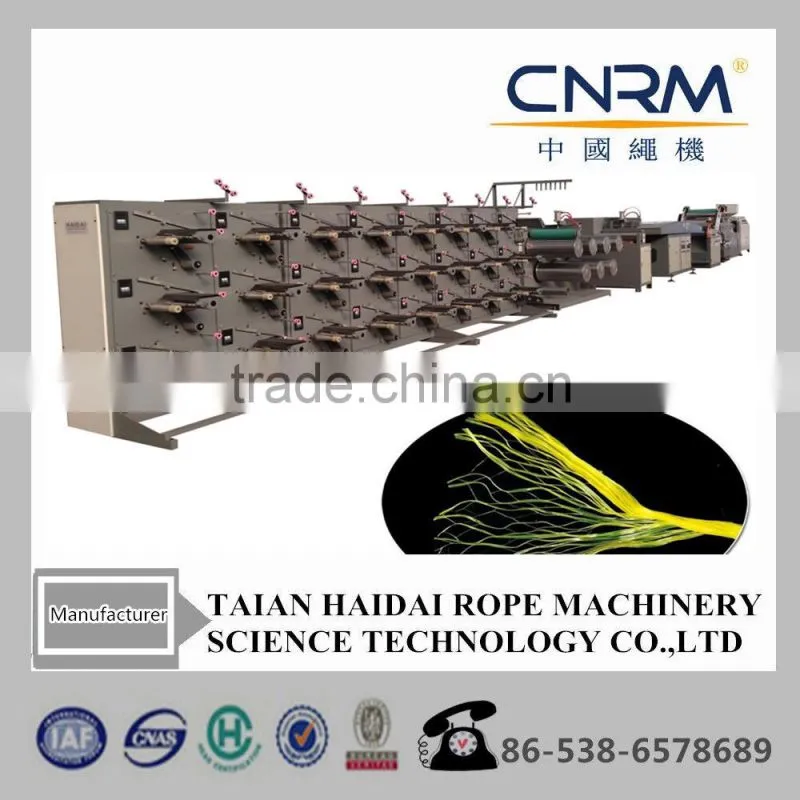

PP spilt film extruder machine

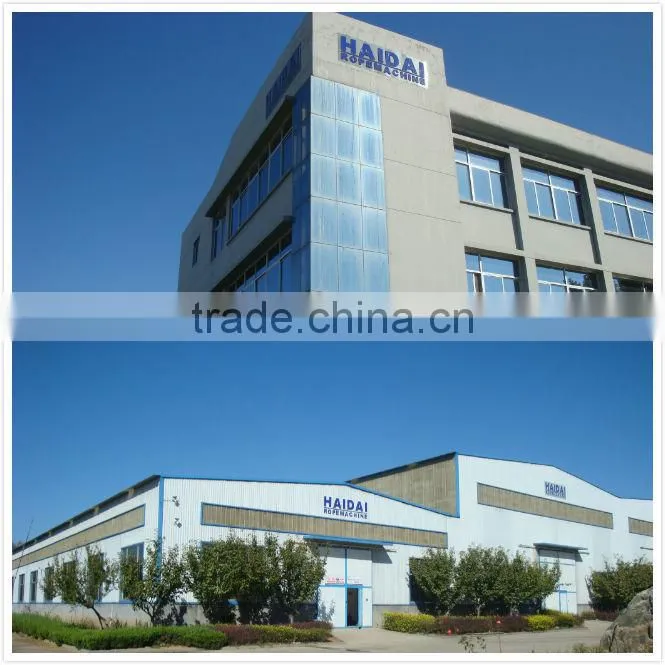

Taian Haidai Rope Machinery Science Technology Co., Ltd is science technology and innovation enterprise ,an initiative co-founded by science technology researchers who researched rope product and rope machine for many years
Our rope and net machinery mainly including: Extruder, Ring Twister, Twisted Rope Making Machine, Braided Rope Machine, Ball Winder, Spool Winder, Coiler Machine , Hank Winding Machine and Package Machine and more than 10 kinds series production
the rope making process: making yarn--twisting twine-- twisting rope/braiding --packing.
the corresponding machine: extruder--ring twister--twisted/braided machine--packing machine
Extruder |
PP Monofilament Extruder |
PP Split Film Extruder | |
PP Flat Film Extruder | |
Ring twister |
HDRT--721A,--721B,--722,--723 |
Rope making machine |
Twisted rope making machine (3/4 strand) |
|
Braided rope making machine (diamond /double /hollow /solid braided ) (8/12/16/24/32/36/48 strand) | |
Package machine |
Ball winder (semi-automatic/ full automatic) (4/6/8/10 head) |
Coil (Reel)machine | |
Spool winder | |
Hank machine | |
Shrinking machine |
Please feel free to contact with me !
