HDPE PLASTIC MONOFILAMENT YARN EXTRUDER

HDPE PLASTIC MONOFILAMENT YARN EXTRUDER photo-1
HDPE PLASTIC MONOFILAMENT YARN EXTRUDER photo-2
HDPE PLASTIC MONOFILAMENT YARN EXTRUDER photo-3
HDPE PLASTIC MONOFILAMENT YARN EXTRUDER photo-4
HDPE PLASTIC MONOFILAMENT YARN EXTRUDER photo-5
HDPE PLASTIC MONOFILAMENT YARN EXTRUDER photo-6
US$ 30,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other
Plastic Processed:
PP
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Other
Plastic Processed PP
Screw Design Single-screw
Automatic Grade Semi-automatic
Place of Origin Shandong, China
Brand Name CNRM
Model Number HDYSJ-80
Voltage 380V
Power(W) 130KW/80KW
Dimension(L*W*H) 23m*3m*2.5m
Weight 12000kg
Certification CE ISO9001 BV
After-sales Service Provided Engineers available to service machinery overseas
Product Description

                               HDPE PLASTIC MONOFILAMENT YARN EXTRUDER



HDPE PLASTIC MONOFILAMENT YARN EXTRUDER





The PP monofilament yarn extruder can produce many kinds of fiberby differernt screw and related equipments,such as HDPE and PP monofilament fiber.



The fibers can be used for the manufacturing of industry, fishing industry and civilian use, like rope ,fishing net,construction safety net, PP bad and etc.





Flow Chart of PP monofilament extruder



Raw material---> Extruder---> Water cooling--->Stretching--->Heating--->Stretching



---> Guide roller--->Winder



Performance & Advantages



* Longer life of screw & barrel



* AC Invertor & Motor which synchronizes the entire extruder



* PP & LD can be processed due to its special screw design



* Latest technology used to force the melt into the die very effectively



* Take up small area



* Simple operation



* High output capacity



* Low maintenance



Technology information details

Item

HDYSJ-70

HDYSJ-80

HDYSJ-90

Dia of Fiber

0.13mm-0.30mm

0.13mm-0.30mm

0.15mm-0.3mm

Dia of Screw

70mm

80mm

90mm

Ratio of L/D

30

33

33

Rotation Speed of Screw

20-90r/min

20-90r/min

20-90r/min

Drawing Ratio

4-10

4-10

4-10

Heating Mode

Electric heating

Electric heating

Electric heating

Cooling Mode

Water Cooling

Water Cooling

Water Cooling

Power Consumption

100kw/65kw

130kw/80kw

150kw/100kw

Max Outputcapacity

1400kg/24h

2000kg/24h

3000kg/24h

Machine Dimension(L*W*H)

20m*3m*2.5m

23m*3m*2.5m

27m*3m*2.5m

                 Machine Weight

            9000kg

         12000kg

15000kg

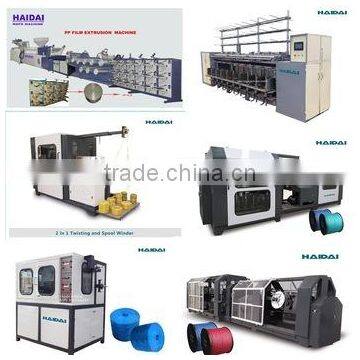

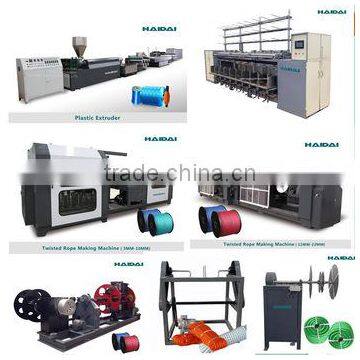

Product Show


HDPE PLASTIC MONOFILAMENT YARN EXTRUDER





HDPE PLASTIC MONOFILAMENT YARN EXTRUDER

 Olivary Shape Winder



HDPE PLASTIC MONOFILAMENT YARN EXTRUDER



 H Bobbin Shape Winder



HDPE PLASTIC MONOFILAMENT YARN EXTRUDER

 Column Shape Winder



HDPE PLASTIC MONOFILAMENT YARN EXTRUDER
