Taian Haidai Rope Machinery Supplied Plastic Rope Machinery and Accessories

Taian Haidai Rope Machinery Supplied Plastic Rope Machinery and Accessories thumbnail-1
Taian Haidai Rope Machinery Supplied Plastic Rope Machinery and Accessories thumbnail-2
Taian Haidai Rope Machinery Supplied Plastic Rope Machinery and Accessories thumbnail-3
Taian Haidai Rope Machinery Supplied Plastic Rope Machinery and Accessories thumbnail-4
Taian Haidai Rope Machinery Supplied Plastic Rope Machinery and Accessories thumbnail-5
Taian Haidai Rope Machinery Supplied Plastic Rope Machinery and Accessories thumbnail-6
Taian Haidai Rope Machinery Supplied Plastic Rope Machinery and Accessories photo-1
Taian Haidai Rope Machinery Supplied Plastic Rope Machinery and Accessories photo-2

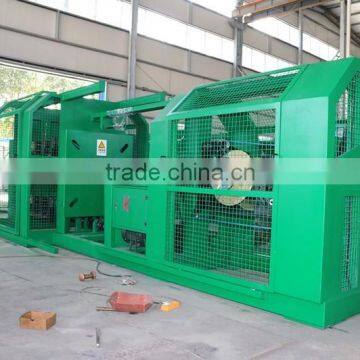

Taian Haidai Rope Machinery Supplied Plastic Rope Machinery and Accessories photo-3

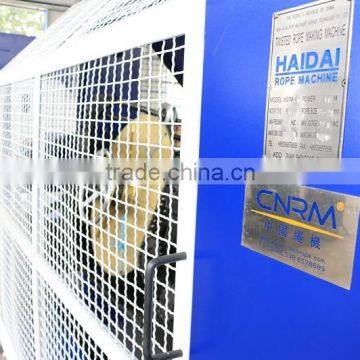

Taian Haidai Rope Machinery Supplied Plastic Rope Machinery and Accessories photo-4

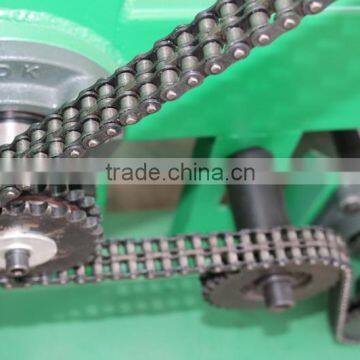

Taian Haidai Rope Machinery Supplied Plastic Rope Machinery and Accessories photo-5
Taian Haidai Rope Machinery Supplied Plastic Rope Machinery and Accessories photo-6
US$ 6,200 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Plastic Rope
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Taian Haidai Rope Machinery Science Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Plastic Rope
Place of Origin Shandong, China
Brand Name Haidai
Model Number HDTM-M55
Voltage 380VAC,3 Phase
Power(W) 11KW
Dimension(L*W*H) 9.0X2.2X2.3m
Weight 2000kg
Certification CE
Warranty 1YEAR
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

All kinds of specification of Plastic Rope Machinery can be made by this machine.It is suitable for rope production of different material, such as HDPE&PP monofilament, danline, polyester, nylon, cotton and etc. This plastic rope making machine is equipped with frequency converter, meter counter, overtravel-limit switch and auto-stop device.It is easy to

adjust the rope tensility and change the direction of twist and lay length.

Item
HDTM-M22
HDTM-M33
HDTM-M44
HDTM-M55
HDTM-M66
Rope Range
3-6mm
3-10mm
6-14mm
12-22mm
18-26mm
Lay Range
18-30mm
15-38mm
20-50mm
32-78mm
40-105
Power
5.5kw
5.5kw
7.5kw
11kw
18.5kw
Take-up capacity
 Φ130*Φ350*Φ255
 Φ130*Φ500*Φ320
 Φ130*Φ600*Φ400
 Φ130*Φ600*Φ400
 Φ140*Φ700*Φ450
Size  of pay-off bobbin
175*300mm(8")
175*300mm(8")
175*300mm(8")
175*300mm(8")
175*300mm(8")
Qty of 8" bobbin
4 or 6
8*3 or 8*4
24*3 or 24*4
32*3 or 32*4
46*3 or 46*4
Machine weigth
2000kg
2500kg
3500kg
5000kg
6000kg

Click left for machine running video.

Main Features

Hgh output                                                                                               Low noise
Low maintenance                                                                                  Easy to operate

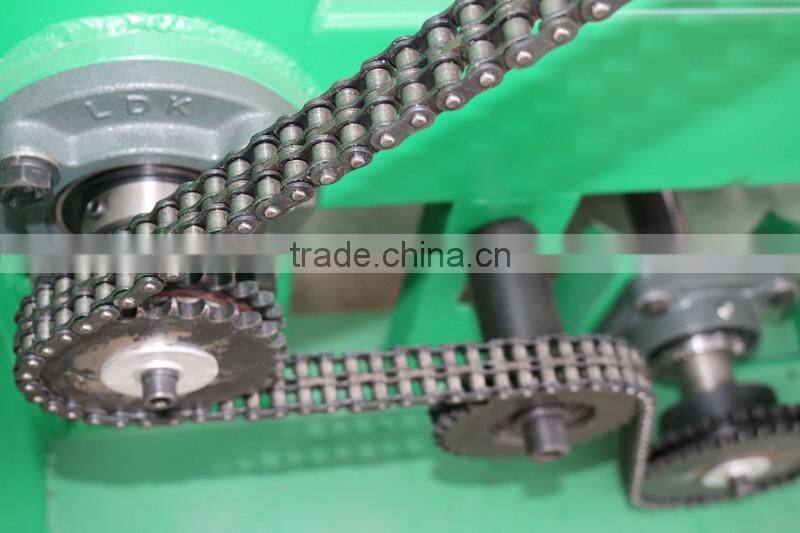

Rigid construction                                                                                 Power transmission by timing belts.
Auto stop after yarn breakage to control wastage                    Digital length counter meter.
Door sensor   A/C drive                                                                      Direct coiling head winding

Certifications

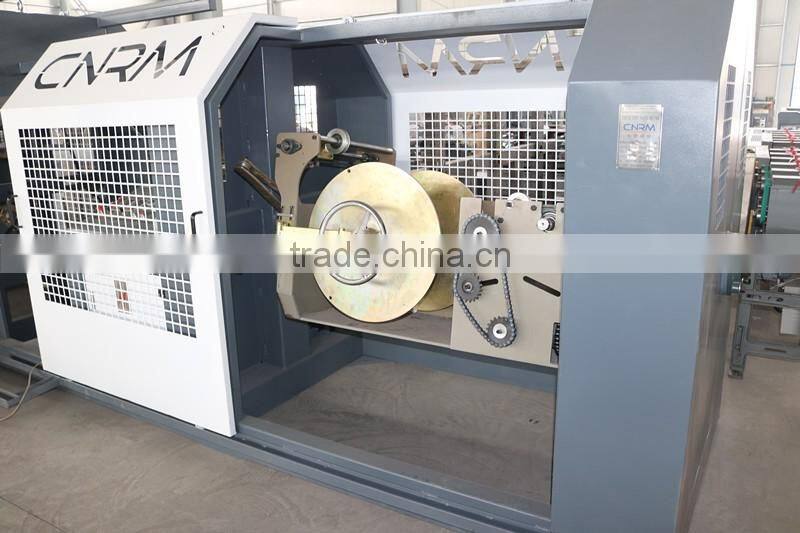

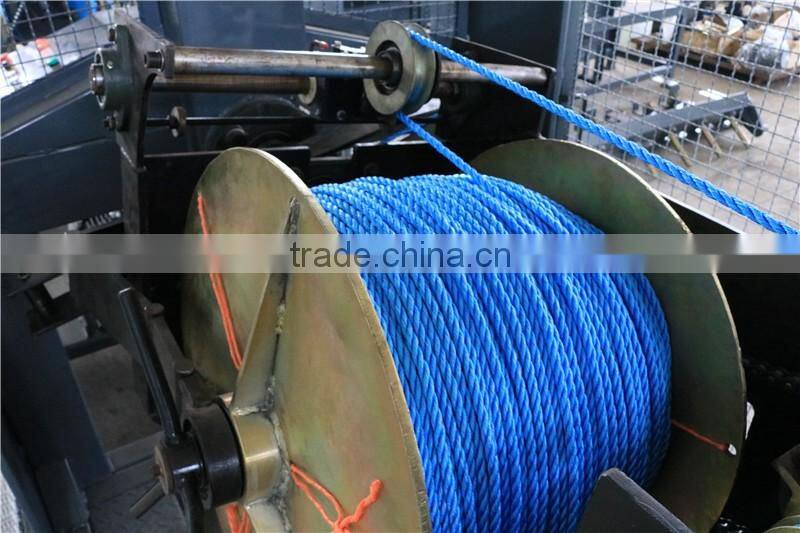

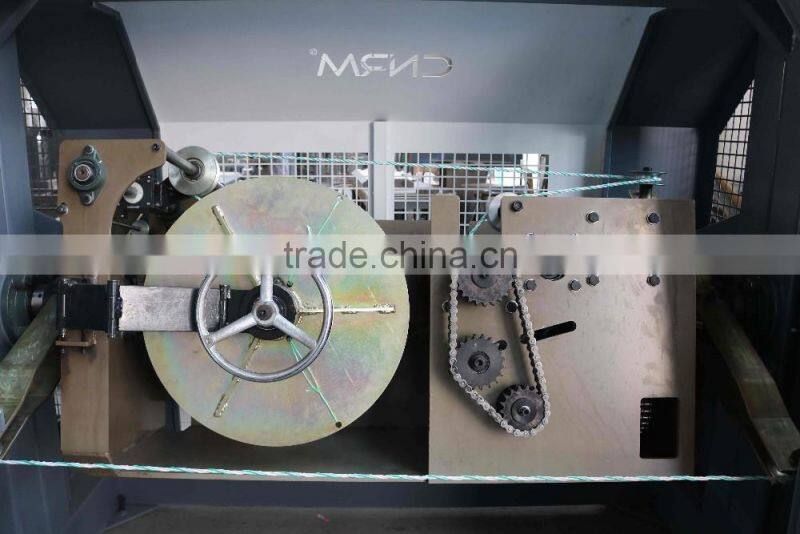

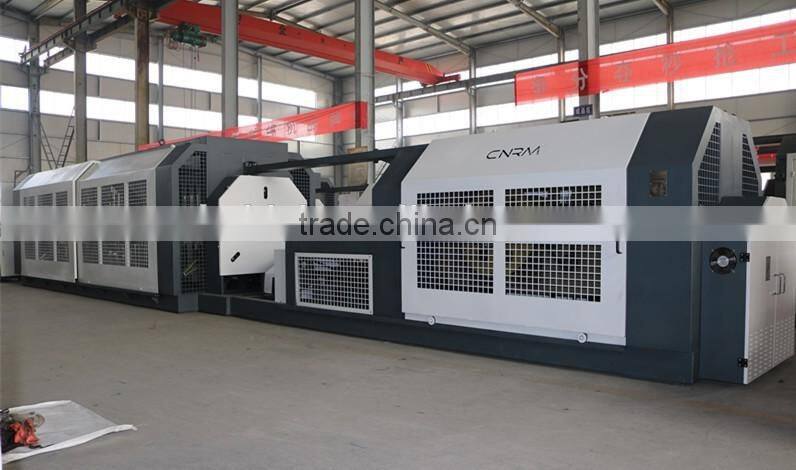

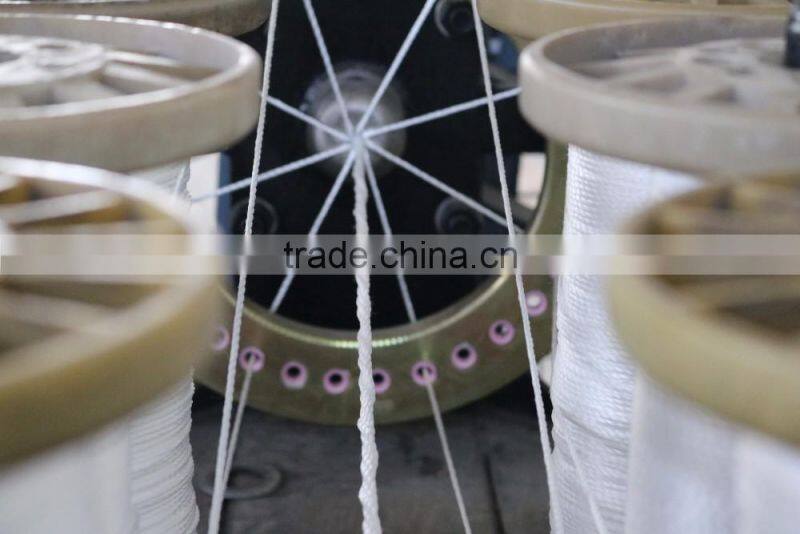

Detailed Images
Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

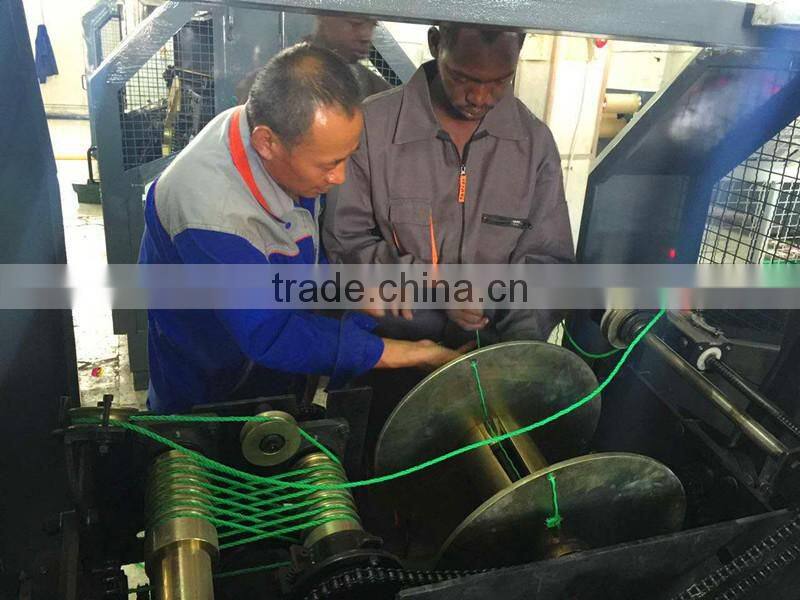

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

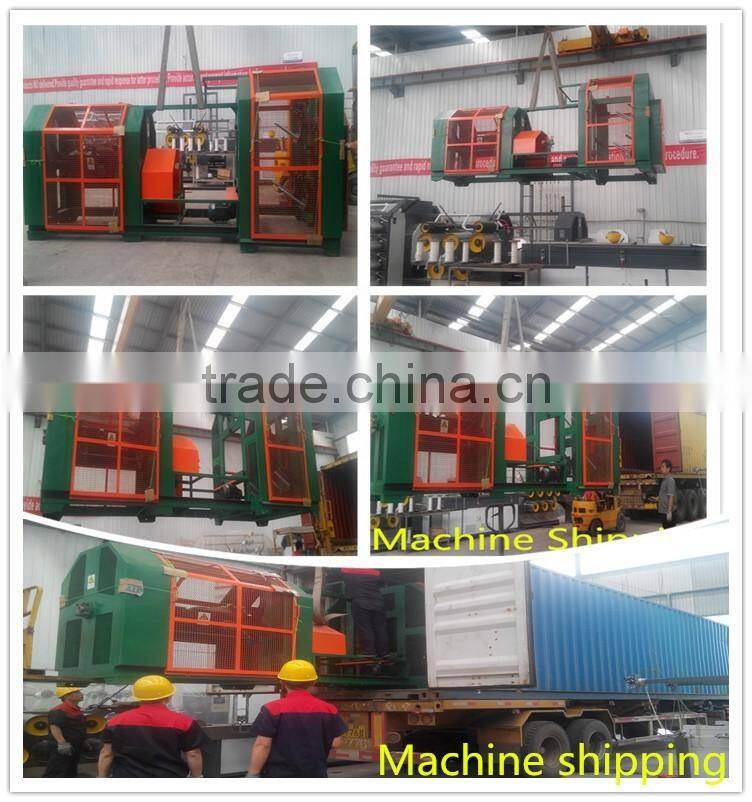

Packing & Delivery
