rope making machine
1. Description
All kinds of specification of twisted rope for 3 strand or 4 strand can be made by this machine.It is suitable for
rope production of different material, such as HDPE&PP monofilament, danline, polyester, nylon, cotton and etc.
This pp rope making machine is equipped with frequency converter, meter counter, overtravel-limit switch and
auto-stop device.It is easy to adjust the rope tensility and change the direction of twist and lay length.
2. Technical parameters
| Item | HDTM-M22 | HDTM-M33 | HDTM-M44 | ||||||
| Rope Range | 3-6mm | 4-10mm | 6-14mm | ||||||
| Lay Range | 18-30mm | 15-38mm | 20-50mm | ||||||
| Power | 1.5kw | 5.5kw | 7.5kw | ||||||
| Take-up capacity | Φ130*Φ350*Φmm | Φ130*Φ500*Φ320mm | Φ130*Φ600*Φ430mm | ||||||
| Output kg/12hours | 4 | 5 | 6 | 4 | 6 | 10 | 8 | 10 | 12 |
| 50 | 80 | 120 | 50 | 200 | 250 | 320 | 550 | 880 | |
| Size of pay Off bobbin | 175*430mm(8’’) | 175*430mm(8’’) | 175*430mm(8’’) | ||||||
| 220*350mm(10”) | 220*350mm(10”) | 220*350mm(10”) | |||||||
| Quantity of 8” bobbin | 4'' | 10*4 or 10*3 | 20*4 or 20*3 | ||||||
| Machine size | 2.0*0.95*1.2m | 4.0*1.7*1.85m | 7.7*2.3*2.2m | ||||||
3. ROPE MAKING MACHINE PERFORMANCE &ADVANTAGES:
- High Productivity
- Less than Maintenance.
- Easy Operation System
- Rigid Construction
- Power transmission by timing belts.
- Auto Stop after yarn breakage to control wastage.
- Digital length counter meter.
- Door Sensor
- A/C drive
- Direct Coiling Head winding

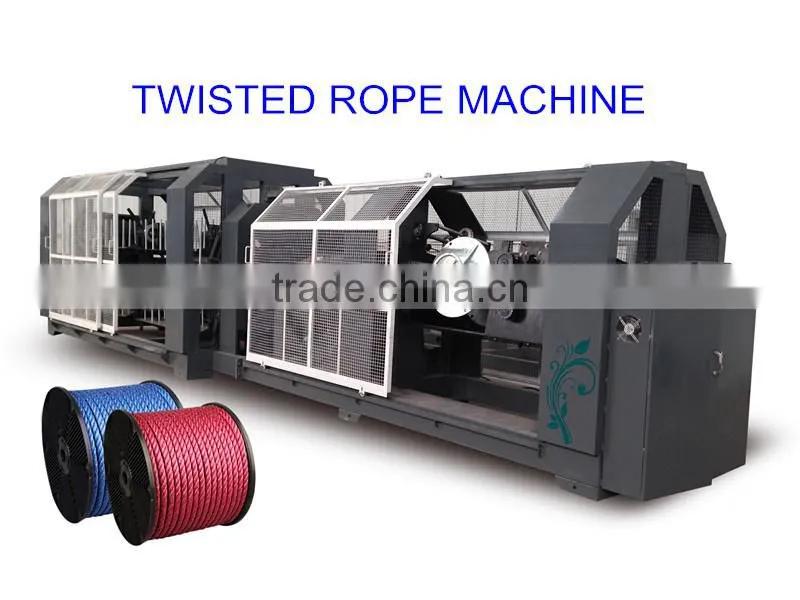

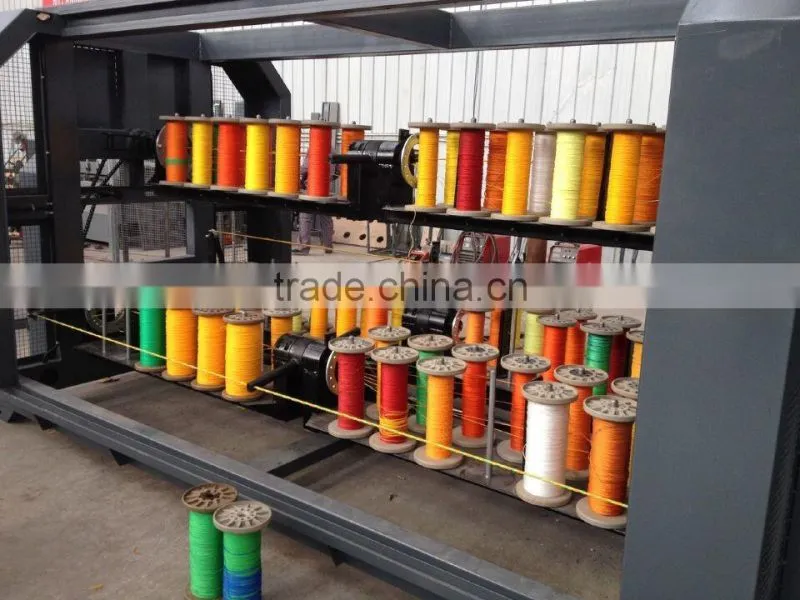

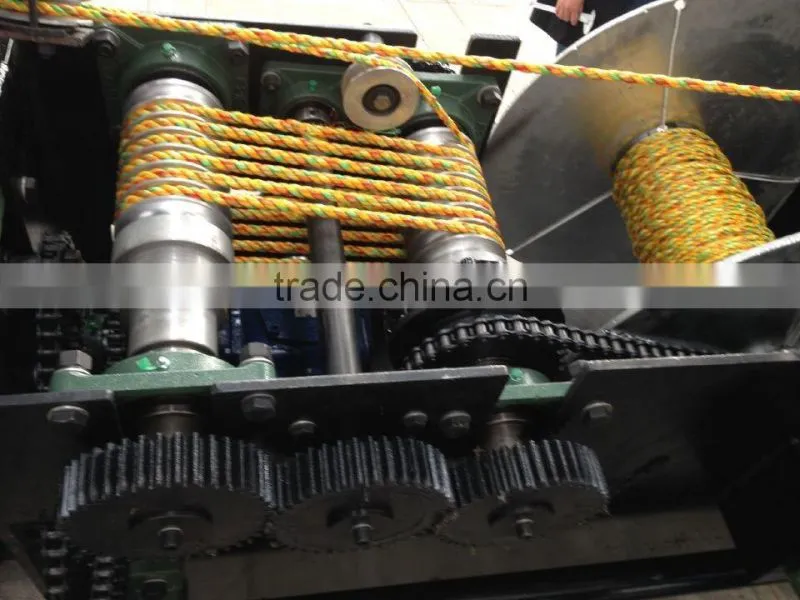

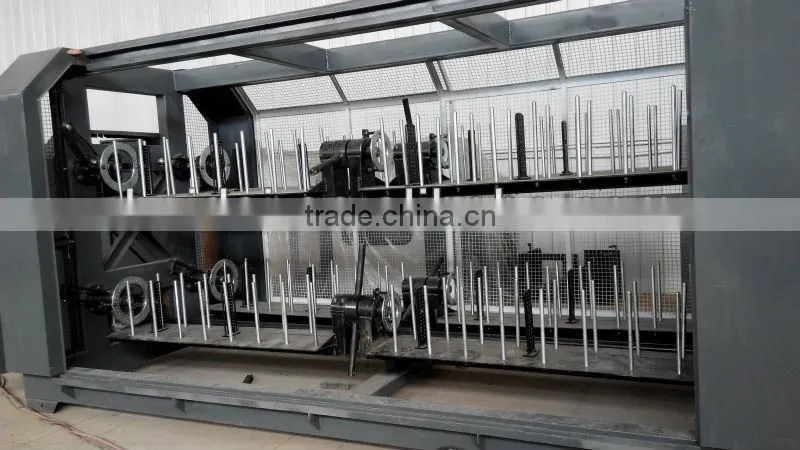

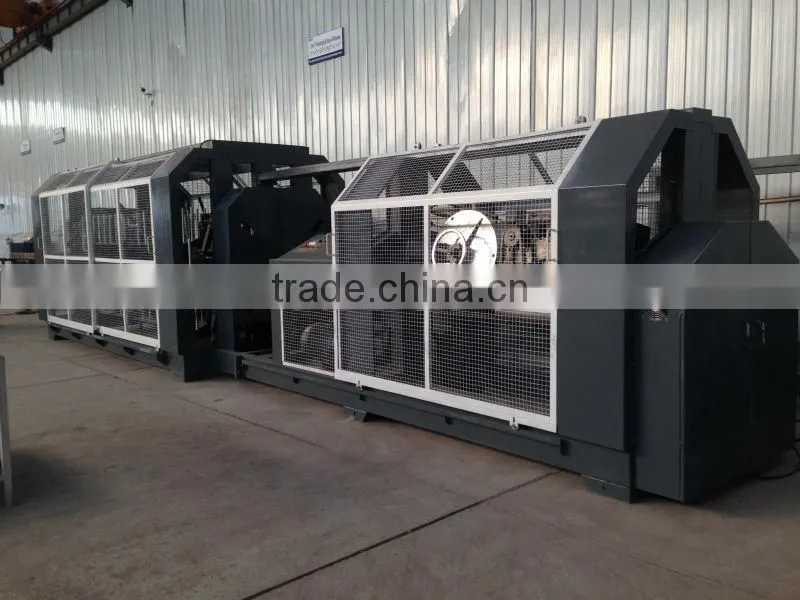

4. Picturer Show of rope making machine
5. Our service
We can supply " the Complete Project for the ROPE MAKING UNIT."service.
Installation:
We will send our technicians to your factory for installation, adjustment and training. Customer should bare all
the charge such as round ticket, accommodation, food etc.
Guarantee Systerm and Matenance
One year guarantee for the machines except the spare part, we will supply lifelong technology service to solve
any problems from you during the guarantee time, not because man-made sabotage, we will change the parts
for free, but customer should pay the delivery cost.

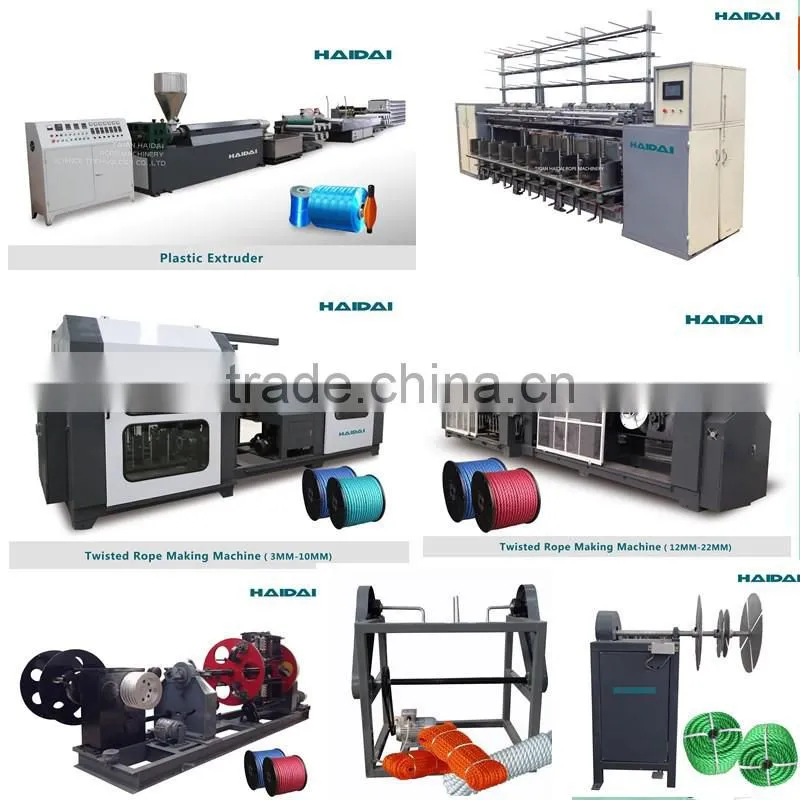

We also manufacture rope, twine, net and webbing production include: all kinds of twisted rope and braided
ropes, nets, twine more than 30 series and 500 kinds of products from the plastic, chemical fiber, natural fiber
and high performance fiber.
Any suggestions from you will help us so much. please feel free to contact me for more information.
