Specifications
monofilament extrusion line1.Takes up small area
2.Simple operation
3.High output
4.Easy to maintaines
We can supply " the Complete Project for the ROPE MAKING UNIT."service.
PP extruder (pp fiber)----Ring twister (strand)---Rope Making Machine (twisted rope, braided
rope)---Packaging Machine(spool winder, ball winder, hank machine, coil machine)

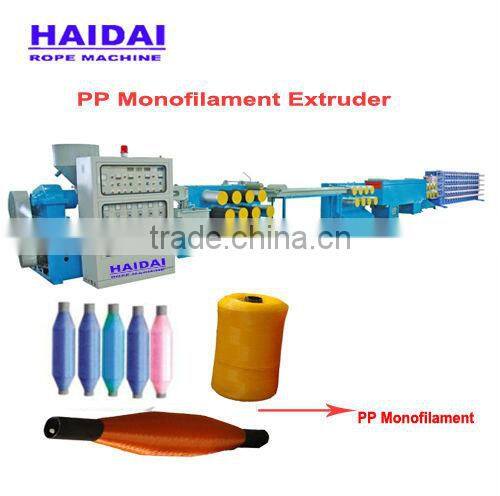

Monofilament extrusion line
Monofilament extrusion line are the ideal equipments with high output, low energy consumption
and better plasticizing.This series extruder can produce many kinds of fiber by different screw and
related equipments, such like HDPE and PP monofilament fiber, danline fiber, flat film fiber, split
film fiber, The fibers can be used for the manufacturing of industry, fishing industry and civilian
use, such like rope, fishing net, construction safety net, PP bag and etc.
1. Main technical parameter
| Item | HMME65*33 |
| Screw Diameter | 65mm |
| Ratio of L/D | 33:1 |
| Ratation Speed of Screw | 20-120r/min |
| Fiber Diameter | 0.15mm-0.35mm |
| Max Extruding Capacity | 1.5tons/24h |
|
Dimension of Machine (L*W*H) |
20(m)*3(m)*2.5(m) |
| Fiber Type |
HDPE and PP monofilament fiber, danline fiber, flat film fiber, split film fiber
|
| Screw and Barrel |
Screw and barrel are made of nitride steel 38CrMoAl with special hardening, with
a good corrosion resistance and wear resistance |
| Cooling Type | Water cooling |

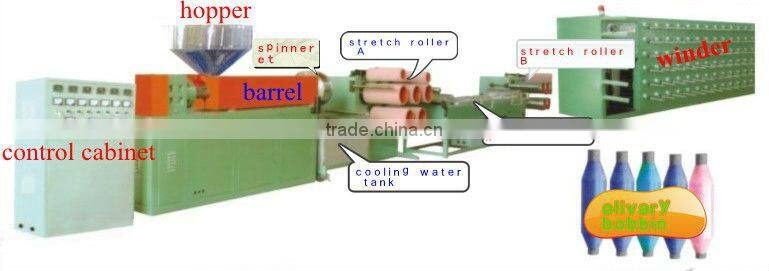

2. Flow Chart:
Raw material ----------Extruder------------water cooling--------stretching-------heating
---------stretching-----------guide roller----------winder.
3. Installation:
We will send our technicians to your factory for installation, adjustment and training. Customer
should bare all the charge such as round ticket, accommodation, food etc.
4. Guarantee Systerm and Matenance
One year guarantee for the machines except the spare part, we will supply lifelong technology
service to solve any problems from you during the guarantee time, not because man-made
sabotage, we will change the parts for free, but customer should pay the delivery cost.

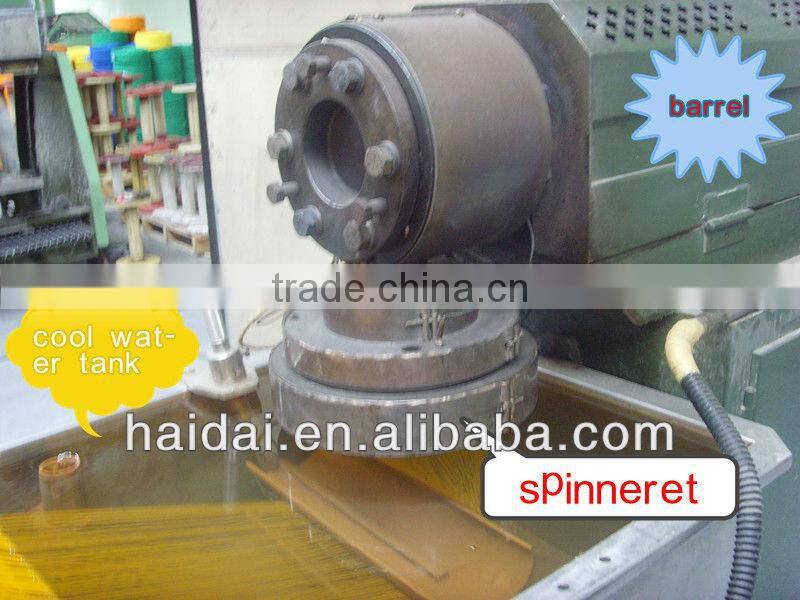

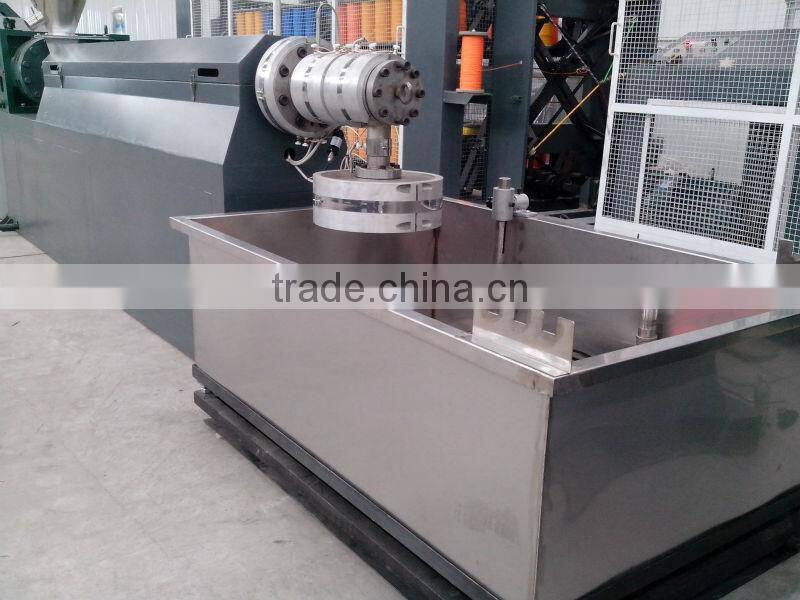

5. Picturer Show

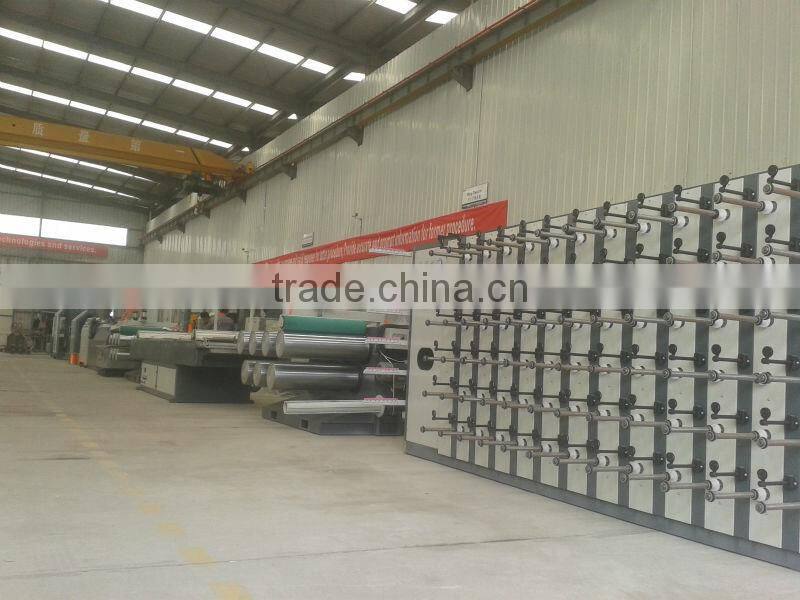

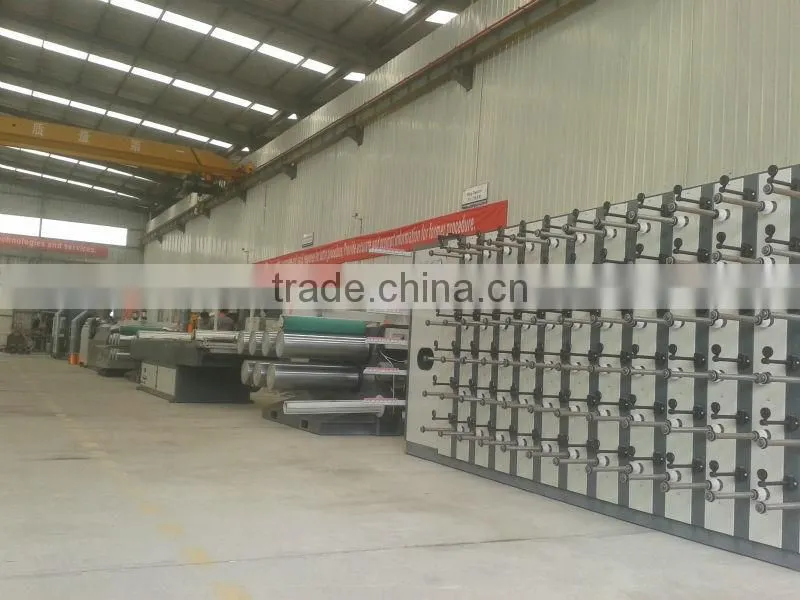

6. Our garden-style factory
Any suggestions from you will help us so much. please feel free to contact me for more information.
