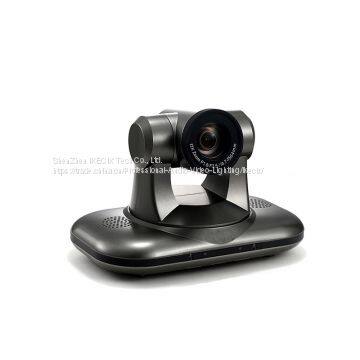

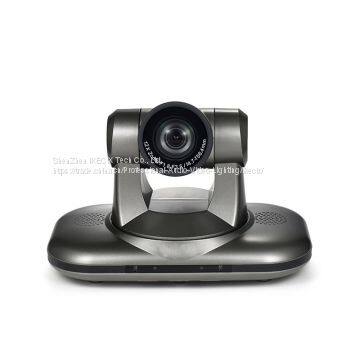

Help Center12X Zoom SDI DVI 1080P 60fps HD Video Conference PTZ Camera
Related Products
-
20X Zoom SDI DVI 1080P 60fps HD Video Conference PTZ CameraUS$ 475 - 722MOQ: 1 Piece -
USB Free Driver Fixed Zoom 1080P HD Video Conference PTZ CameraUS$ 72 - 113MOQ: 1 Piece
-
Vandalproof 1080P 1/2.8" SDI HD Video Camera (GVDZ19D-2PC)US$ 130 - 150MOQ: 1 Piece
-
HD-SDI Video Routing SwitcherNegotiableMOQ: 1 Unit
-
Original EKEN V5 Video Doorbell HD Wireless Wifi Camera Video Intercom DoorbellNegotiableMOQ: 1
Model: SD12X
Lens
Lens Specification: 2.1M Pixels 1/2.8 inch Progressive CMOS
Video output pixels: 1920x1080p@50/60, 1920x1080p@25/30, 1920x1080i@50/60, 720P@50/60
Video
Zoom: 12x Optical Zoom, plus 12x Digital Zoom
Focal Length: F=4.7mm to 56.4mm
Lens Aperture(F#): F1.8-F3.5
Shutter Speed: NTSC:1/30~1/10000s, PAL: 1/25~1/10000s
Horizontal field of view: 3.2° to 58.7°
Pan/Tilt Range: +/-177.5°, +90°/-45°
Pan/Tilt Speed: Minimum pan and tilt: 2º/s, Maximum pan: 80º/s, 60º/s tilt"
Min. illumination: 0.5Lux(Daylight), 0.1Lux (Night)
Singal Noise Ratio(SNR): 52db
Preset Positions: 9, Max 256
Automatic adjustment
AWB(Auto white balance): Auto/ Indoor/Outdoor/Manual
AE(Auto Exposure): Auto/Shutter priority/Aperture priority/Brightness/Manual
AF(Auto Focus): Auto/Manual
Auto Aperture: Auto/Manual
Special Functions
Digital Wide Dynamic Range: YES
Inversion support: YES
Mirror: YES
IR Remote: YES
Instant Focus: YES
Defogging: YES
Frozen: YES
One key to switch frame rate: YES
2D&3D noise reduction: YES
Day/Night switches: YES
Power supply and power
Input Voltage: 100-240V AC 50-60HZ
Work voltage: 12V DC
Power: Max 3.6W
Physical Characteristics
Ambient temperature: -10°C to 50°C
Product Dimensions(L x W x H): 260mm x 170mm x 152mm
Package Dimensions(L x W x H): 310mm x 245mm x 230mm
Net Weight: 1.07kg
Gross Weight: 2.05kg
Hardware interface specifications

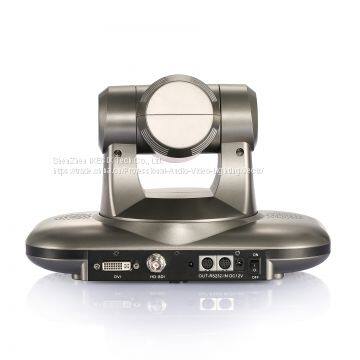

Video Output Interface HD-SDI(3g), DVI
Communication control Interface: RS-232, RS-485
Control Protocol SONY VISCA or PELCO P/D
Accessories
DC 12V Power adapter, IR Remote, User Manual
