We are a professional manufacturer of HD Color Video Conference
1080P Full Video Conference Camera,HD SDI camera
DVI camera video conference camera
hd-sdi ptz camera
Model No.: HD910-K2
W/O LCD Screen
2.1 Megapixel Full HD Camera experience 1080p30fps vivid images, equipped with 51.8 degree HOV, 10x optical zoom lens, enhancing your video conferencing, distance learning, training meeting or courtrooms with natural and smooth video images. HD-SDI CVBS DVI-I multi-interface.
HD SDI camera Features
- Private Tooling design High Definition PTZ camera
- Fast and smooth video handling
- Power ON-OFF switch
- Work & Standby LED indicator
- Speed Match
- Auto/Manual focus/brightness/WB
- RS-232C/VISCA Protocol
- Lens/Dome OSD
- Boundary scanning
- Standby & wakeup status
- HD-SDI/CVBS/DVI-I
- Desktop
- Ceiling mount
- Standard Tripod accessory

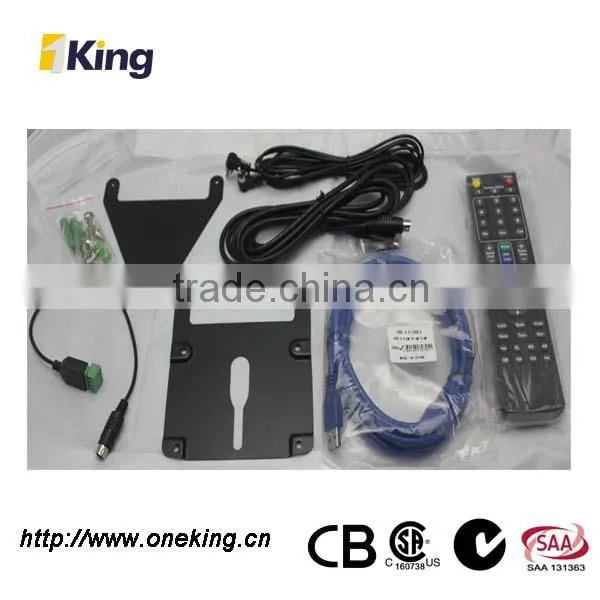

HD SDI camera Accessories kits in package:
- 1x HD8820-DSYC-K4 Video Camera
- 1x DC 12V/2A Power Adaptor
- 1x User’s manual
- 1x Installation brackets & screws
- 1x IR Remote Controller
HD SDI camera Specification Sheet
Model No |
HD910-K2 |
|
Image Sensor |
Sensor |
1/3” SONY CMOS |
Effective Pix |
2.1 Mega Pixel |
|
Mini Lumination |
0.1 Lux |
|
White Balance |
Auto/Manual |
|
Gain Control |
Auto |
|
Backlight Compensation |
On/Off |
|
Shutter Speed |
1/30-1/10,000S |
|
S/N Ratio |
>50db |
|
Lens |
Focus |
f=5-50mm |
Day and Night Conversion Mode |
ICR Filter Plate |
|
Lens |
10x Optical Zoom |
|
HOV |
51.8°(W)~5.86°(T) |
|
Video Output Interface |
HD-SDI, DVI-I |
|
Video Output Mode |
1080P30,1080P25,1080I60,1080I50, |
|
PTZ Control Interface |
RS-232C, RS-485(Bidirectional) |
|
Control Protocol |
VISCA PELCO-D |
|
Baud Rate |
9600/38400bps |
|
Patrol Line |
4 tour lines |
|
Preset Position |
64 preset positions |
|
Speed Match |
Pan/Tilt movement speed depends on camera modulezoom in/out |
|
OSD Menu |
Access to OSD Menu and adjust camera module parameters |
|
Image auto flip |
Support Horizontal/Vertical image flip |
|
Pan movement speed |
1-60°/S |
|
Tilt movement speed |
1-60°/S |
|
Pan movement range |
355° |
|
Tilt movement range |
90°(up) 45° (down) |
|
Auto Horizontal scanning |
Support Pan scanning automatically |
|
Boundary Scanning |
0-355° (Programmable) |
|
Remote Controller |
IR Wireless Remote Controller P/T/Z |
|
Power Supply |
DC12V±10%,2A |
|
Work Temperature |
0-50℃ |
|
Humidity |
0-95% RH |
|
Size(LxWxH) |
145mm×148mm×161mm |
|
Weight |
1100g |
|

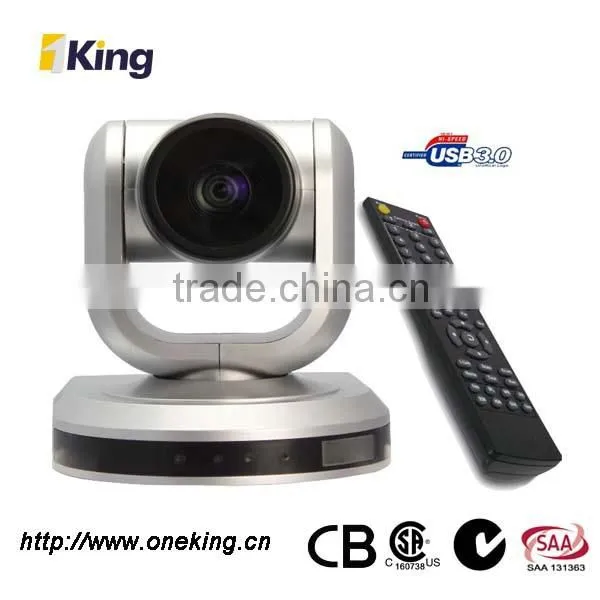

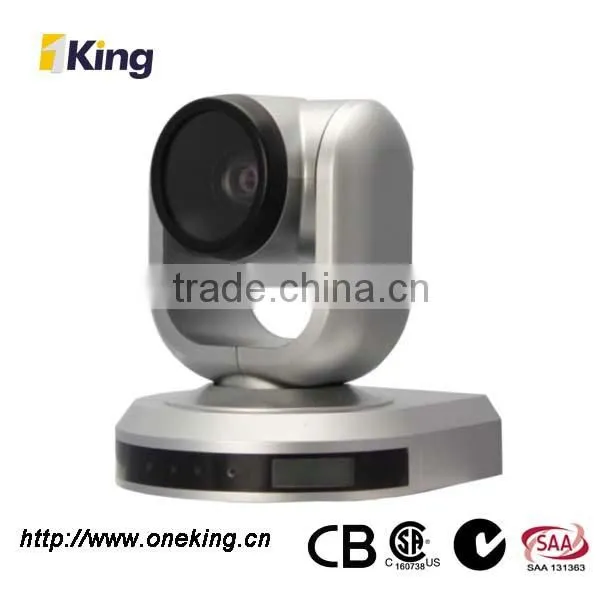

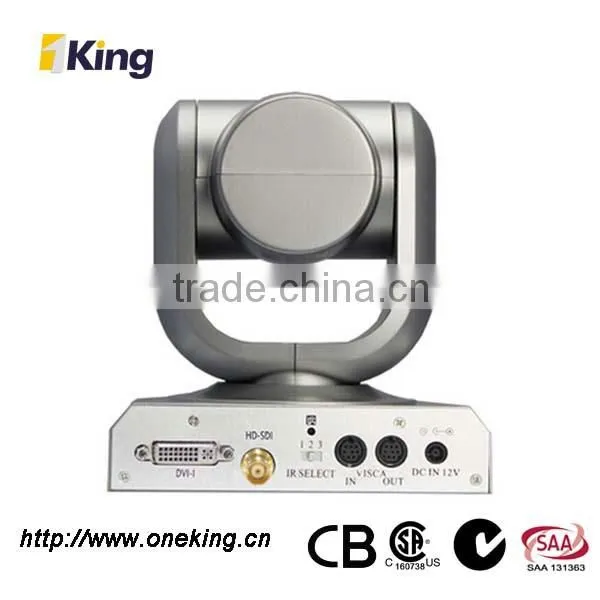

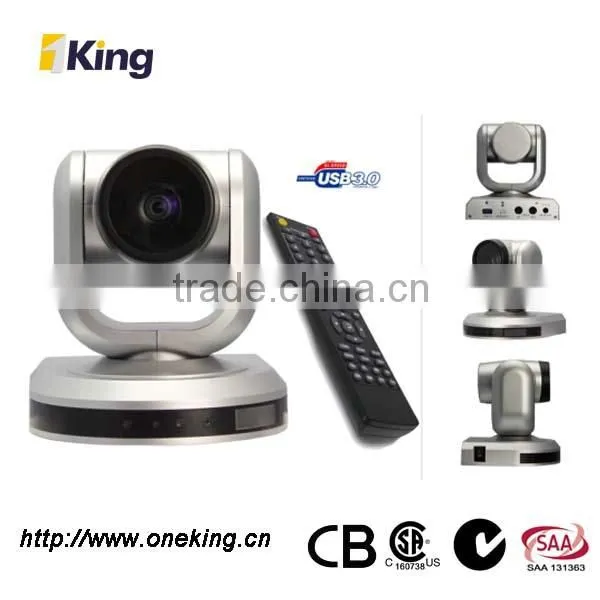

HD SDI camera Images
Guarantees/Warranties/Terms and Conditions
1. Quality is guaranteed within 2 years and delivery is on time.
2. T/T, Western Union or Paypal are accepted.
3. 3-5 working days since payment receipt;
4. Traking No. will be sent to you after delivery. And you will get every important shipping status by email.
5. We ensure our goods with the same quality as the approved one. If not, we will remake them for you.
Certificate:
Cooperate Company:
1. What is including in an Video Conference System ?
In a complete Video Conferencing system, there is Video Camera, Audio equipments, Central control unit, and the Codec or a set Conference software based on PC in stead.
2. What is the highest resolution of this camera ?
It supports 1920x1080p@60fps progressively output, and compatible with 1080p@30fps also 720p@60fps;
3. What is the Video Connetor ?
There are DVI, HDMI, HD-SDI Video output
4. How many time zoom ?
Support 20x optical, 12x digital zoom, and for 10x, 3x, 30x zoom you can refere to
5. How to control this Camera ?
There are RS232, RS485 PTZ Control, and also support VISCA COMMANDs to control through your Codec or PC through RS232;
6. How to connect an Web Conferencing system ?
It requires an Video card connecting to PC Based Web Conference system, and we also suggest our USB Series PTZ Cameras for Web conferening system;
7. Which kind of software or hardware compatible with this Camera ?
Its compatible with PolyCom, ZTE, HUAWEI Codecs, and working with Microsoft Lync Software, and ZOOM.US, SKYPE, VIDYO Etc.
