Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Mill > Energy Saving Grinding Ball Mill

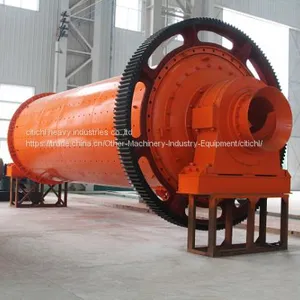

Energy Saving Grinding Ball Mill

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Place of Origin:

China

Model Number:

MQY21×30

Contact Supplier Request Quote Chat Now

Citichl Heavy Industries Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

qiangdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name zs

Place of Origin China

Model Number MQY21×30

Type Ball Mill

Certification ISO9001

After-sales Service Provided Engineers available to service machinery overseas

Warranty 1 year

Weight 45t

Dimension(L*W*H) 8.5×4.65×3m

Condition New

CITICHL is the key large enterprise for the design and manufacture of grinding equipment in China. The manufacture of grinding equipments begins from 1960s. Since 1980s, our company has cooperated with many famous foreign grinding manufacturers on technology introduction, cooperating manufacture and development. We have in particular long experience in mill testing, study, design, made and filed operation, and made advancement and innovation on foreign technologies. Now we have established our own grinding laboratory, formed various type mills to series, totally produced nearly 1000 sets, and exported to Australia, Russia, Pakistan, Zambia, Indonesia, Vietnam, etc. We have produced the overflow ball mill with the largest size Φ5.5×8m, Φ8.5×4m semi-autogenous mill, Φ5m vertical cement raw mill, etc.

Our company possesses the national first-rate study and design group on mills, perfect experiment and testing measures, and superior manufacturing equipment and technology on large-scale mills. We have formed complete supplying system for mill experiment, study, design, manufacture, testing and service.

Application Scope:

For grinding of various ores and rocks, widely used in non-metal mines, ferrous and non-ferrous metal mines, construction material, hydraulic engineering etc.

Working principle:

There are many grinding medium balls inside the continuous rotating drum (there are many rods inside the rod mill). The continuous feeding material is broken by the shooting balls which are coming from a certain height of the wall of the drum; The falling medium and material would produce irregular slip and roll during the rotation of the drum, and the material is pulverized fine by the grinding effect among medium, drum-lining and materials. The dynamic material level different is produced by continuous forced material charge and discharge, consequently more and more fine material is slow out from the drum, and finish the grinding process inside the drum.

Main technical parameter:

Model	Drum diameter	Drum length	Effective volume	Rotate speed	Max. loading capacity	Motor		Size (L×W×H)	Weight
Model	Drum diameter	Drum length	Effective volume	Rotate speed	Max. loading capacity	motor	speed	Size (L×W×H)	Weight
	mm	mm	m3	r/min	t	kw	r/min	m	t
MQY15×30	1500	3000	5	26.6	9	95	742	7.4×3.4×2.8	18.5
MQY15×36	1500	3600	5.7	26.6	10.6	95	742	8.0×3.4×2.8	17.22
MQY18×61	1830	6100	13.4	24.5	24.6	220	736	10.2×5.1×4.0	37.3
MQY21×30	2100	3000	9.4	22.1	15	200	740	8.5×4.65×3	45
MQY24×30	2400	3000	12.2	21	22.5	250	980	8.8×4.7×4.4	55
MQY24×70	2400	7000	26.66	21	48	475	740	14.3×5.8×4.4	67
MQY27×36	2700	3600	18.5	20.5	39	400	187.5	9.8×5.8×4.7	61.34
MQY27×40	2700	4000	20.5	20.24	38	400	187.5	10.4×5.8×4.7	70
MQY27×45	2700	4500	23.5	20.5	43.5	500	187.5	12.5×5.8×4.7	76
MQY27×60	2700	6000	34.34	19.5	53	630	589	13.5×5.9×4.7	71.2
MQY28×54	2800	5400	30	19.5	55.2	630	167	13×5.83×4.7	97.8
MQY28×80	2800	8000	43	20	78.6	800	137	16.5×7.3×5	115
MQY30×11	3000	11000	69.2	17.3	100	1250	429	28.9×3.8×5	227.8
MQY32×36	3200	3600	26.3	18.3	48.4	500	167	14.3×7.3×6	116.94
MQY32×40	3200	4000	29.2	18.2	60	560	980	16.7×7.3×6	121.4
MQY32×45	3200	4500	32.9	18.3	60.5	630	167	13×7.0×5.82	124.23
MQY32×54	3200	5400	39.4	18.3	73	800	167	14.2×7.0×5.82	129
MQY32×64	3200	6400	46.75	18.3	86	1000	167	15.2×7.0×5.8	140
MQY32×75	3200	7500	55.5	18.3	102	1250	743	17.7×8.4×6.3	154
MQY32×90	3200	9000	64.2	18.3	106.6	1250	150	18.5.7.3×6	173
MQY34×45	3400	4500	37	18.4	74.6	800	167	11.5×7×6.1	129.8
MQY34×56	3400	5600	45.8	17.9	84.3	1120	985	16.7×7.6×6.3
MQY36×45	3600	4500	41.4	17.25	76	1000	167	13×7.3×6.3	144.1
MQY36×50	3600	5000	46.7	17.5	85.96	1250	167	15×7.6×6.2	150
MQY36×50	3600	5000	46.7	17.3	85.96	1250	429	23×4.6×6.3	176
MQY36×56	3600	5600	55.4	17.76	106.3	1250	750	14.4×8×6.3	159.7
MQY36×60	3600	6000	55.7	17.3	102.5	1250	429	24×4.6×6.3	138.73
MQY36×60	3600	6000	54	17.3	102	1250	167	15.6×8.3×6.3	162.7
MQY36×61	3600	6100	55.36	17.76	106.3	1200	980	15.8×8.5×6.2	164.1
MQY36×85	3600	8500	79	17.4	131	1800	743	20×8.2×7.1	251.89
MQY36×90	3600	9000	83.5	17.4	138	1800	743	28×4.6×5.6	286
MQY38×67	3800	6700	70	16.5	130	1400	743	19×8.2×7.1	185.2
MQY40×60	4000	6000	69.8	16.0	126	1500	200	17.4×9.5×7.6	203.5
MQY40×67	4000	6700	78	16.0	136.3	1600	200	15.6×9.6×7.3	206.2
MQY40×135	4000	13500	155	16	233	3300	200	23×10×4.9	343
MQY43×61	4270	6100	80	15.67	144	1750	200	14×10×7.7	215.3
MQY50×64	5030	6408	120	14.4	251	2600	200	14.6×11×9.1	318.5
MQY50×83	5030	8300	152.3	14.4	266	3300	200	22×10.5×9	402.6
MQY55×65	5500	6500	143.3	13.8	264	3400	200	18.5×9.8×8.9	451.5
MQY50×85	5500	8500	187.4	13.8	335	4500	200	20.5×12×9.8
MQY55×65	5500	6500	143.3	13.8	264		3400	200
MQY50×85	5500	8500	187.4	13.7	335		4500	200
MQY55×88	5500	8800	191.5	13.7
MQY60×95	6700	9500	249.3	13
MQY67×116	6700	11600	385	12.5
MQY73×115	7300	11500	495	12
MQY80×120	8000	12000	570.5	11.5
