Quality Solid –liquid Separation Equipment Rotary Disc Vacuum Filter for Coal Washing, Nonmetallic Ore and Environmenta

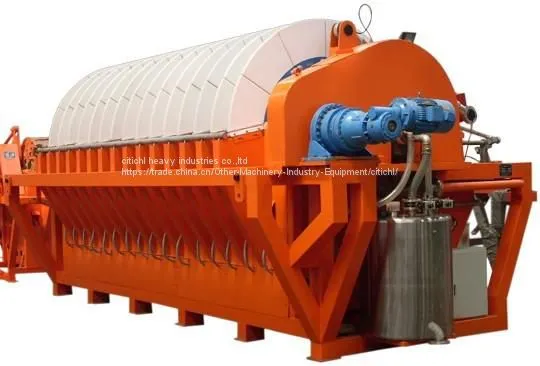

Quality Solid –liquid Separation Equipment Rotary Disc Vacuum Filter for Coal Washing, Nonmetallic Ore and Environmenta thumbnail-1
Quality Solid –liquid Separation Equipment Rotary Disc Vacuum Filter for Coal Washing, Nonmetallic Ore and Environmenta photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
zs
Place of Origin:
China
Model Number:
PG9-2
Contact Supplier Request Quote Chat Now
Citichl Heavy Industries Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
qiangdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name zs
Place of Origin China
Model Number PG9-2
Type Other
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Condition New

This machine is mainly used for floating 0-0.5mm beneficiated ore, and dewatering clean coal, waste coal and other fine materials, it also can be used for solid-liquid separation in metallurgy, chemical industry, petroleum and sewage treatment. The acid-proof filter is used for separation of solid-liquid corrosiveness materials, with using stainless steel materials.



Working principle:

When working, the filter disc circles in the slurry tank. With the help of pressure difference generated by vacuum pump, the particle is absorbed on the cloth of the disc and forming a filter cake with a certain thickness. Filtrate will discharge from the central shaft through the filter cake and cloth, and the filter cake will fall down under the pressure of the scraper and blower, and then drop into the discharging filter cake tank.



 Main technical parameter:

Model

PG9-2

PG18-4

PG27-6

PG39-4

PG58-6

PG78-8

PG97-10

PG116-12

Filtering   area (m2)

9

18

27

39

59

78

97

116

Qty   of filter disc

2

4

6

4

6

8

10

12

Diameter   of disc (mm)

1800

1800

1800

2700

2700

2700

2700

2700

Rotating   speed of filter disc (r/min)

0.135-0.607

0.15-0.67

0.148-0.66

0.254-1.14

0.258-1.258

0.44-1.98

Main   drive motor power (kw)

1.1

1.1

1.1

1.5

2.2

2.2

4

4

Power   of agitating motor (kw)

1.1

1.1

1.1

1.5

2.2

2.2

4

4

Qty   of vacuum pump

1

1

1

1

2

2

1

1

Pump   model

SZ-2

SZ-3

ZYK-27

SZ-4

SZ-4

SD4

2YK-110

2YK-110

Weight   (t)

2.5

3.5

4.6

6

8

9

10

12


Product Tags: Disc vacuum filter , Quality solid –liquid separation equipment , disc vacuum filter for coal washing
