CDZ Marine Low Noise Axial Fan

CDZ Marine Low Noise Axial Fan thumbnail-1
CDZ Marine Low Noise Axial Fan photo-1
US$ 100 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Duct Fan
Blade Material:
Other, Aluminum Alloy
Contact Supplier Request Quote Chat Now
Chongqing Jinbo Marine Equipment Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Mounting Duct Fan
Blade Material Other, Aluminum Alloy
Place of Origin Shandong, China
Brand Name Jinbo
Model Number CDZ
Voltage 220/230/380/400/415/420/440/480V etc
Power 0.09~4KW
Air Volume 1800m3/h~27000m3/h
Speed 970/1460/2900r/min
Certification Other, CCS/ABS/RINA/RS/BV/DNV/LR/GL/VR etc
After-sales Service Provided Engineers available to service machinery overseas

CDZ Marine Low Noise Axial Fan:

General:

CDZ Series marine low-noise axial fans is new-type & enery-save, low-noise marine product. It has the features of high-efficiency, low-noise, stable-turning,meeting the marine conditions, etc. They are suitable for air ventilating and exchanging in every cabin on ships. They are also applicable in other places that suit.



Features:

The fan is designed according to arbitrary vortex flow method.We choose the most reasonable vortex flow coefficient on the basis of the fan specification,distribute every sectional characteristic speed&length of the vanes,make full use of the high peripheral velocity of the vane point.Therefore,they have the features of high- efficiency, low- noise, large-flow&pressure coefficient,light-weight,etc.

In the course of designing & manufacturing, we have thought fully of the marine special conditions, the impellers are strictly made by dynamic balance adjustment & over speed test. Therefore, the fan also has the features of good-corrosive resistance, resistance to swing, resistance to shock and vibration, stable turning, safety & reliability, etc.



Structure:

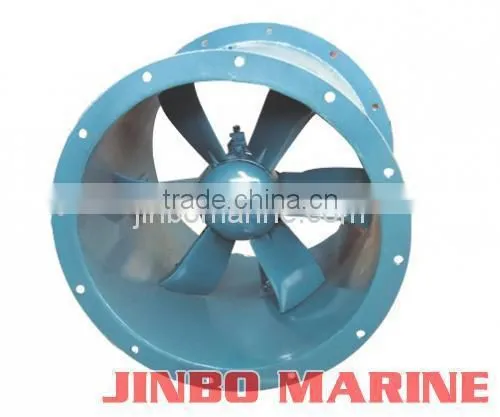

The impeller is riveted by vane which is pressed by aluminium sheet die set and hub boss which is steel-galvanized. The casing and support art made of common steel and they are treated in corrosion resistance.
Look directly from the motor side, the impeller turn counter clockwise.
Because that the fan’s vane are made of aluminium sheet, it suits for using in the conditions of low-pressure, large-flow.

The fan can allocate with the marine AC motor.



Main Parameter:

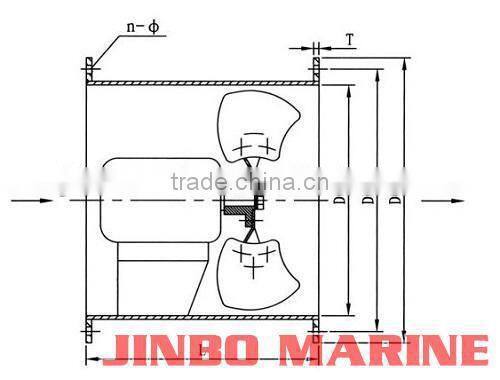

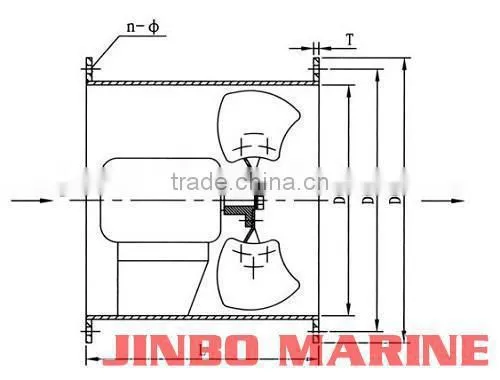

mode Flow rate (m3/h) Total Pressure(Pa) speed(r/min) motor Outline Dimension(mm) weight
freq(Hz) power(kw) model D D1 D2 L T nxd kgs
CDZ-25-2 1800-2000 215-195 2900 50 0.25 Y632-2-H 254 280 298 330 5 8xφ10 15
CDZ-30-2 3600-4000 290-245 2900 50 0.55 Y712-2-H 305 345 381 380 5 8xφ10 26
CDZ-30-4 1800-2000 75-55 1460 50 0.09 Y562-4-H 22
CDZ-40-4 4000-5000 155-135 1460 50 0.75 Y801-4-H 405 445 481 430 8 8xφ12 43
CDZ-50-4 8000-9500 235-205 1460 50 0.75 Y802-4-H 506 560 602 450 8 12xφ15 53
CDZ-50-6 5500-6500 108-98 970 50 0.37 Y802-6-H 45.5
CDZ-60-4 15000-17000 370-320 1460 50 2.2 L100L1-4-H 606 660 712 550 8 12xφ15 92
CDZ-60-6 10000-11500 155-145 970 50 0.75 Y90S-6-H 78
CDZ-70-4 24000-27000 470-420 1460 50 4 Y112M-4-H 706 760 814 600 10 16xφ15 85
CDZ-70-6 16000-18000 205-185 970 50 1.5 Y100L-6-H 73
CDZ-80-6 24000-27000 265-245 970 50 3 Y132S-6-H 807 870 925 720 10 16xφ15 103
