Home > Products > Marine Mooring Equipment > Marine pneumatic Floating fenders yokohama rubber fender
Marine pneumatic Floating fenders yokohama rubber fender
- 500 Piece / Pieces per Month
- Qingdao port
- T/T
You May Like
Product Details
| Place of Origin | Chongqing, China | Brand Name | JINBO | |
| Model Number | All kinds of marine fender | Part | Other, Chain and tyre |
Product Description
Specifications
Pneumatic Rubber Fender:1.High absorption of engery.
2.CCS,BV certificate etc.
3.ISO17357:2002 stanard.
4.easy to op
Pneumatic Rubber Fender :
Marine pneumatic Floating fenders yokohama rubber fender :
Features
1. High energy absorption and low reaction force and surface pressure;
2. No decline in the rate of energy absorption when obliquely compressed, under normal circumstances, and uniform surface pressure for any contact area;
3. Low reaction force to prevent damage from repeated impacts against the hull of ship, quay, jetty or mooring rope;
4. Ability to float and rise and fall with the ebb and flow of tides and the movements of a ship;
5. High standard of uniform quality in compression performance with no deterioration of the rubber;
6. Easy installation.
Application of Pneumatic Rubber Fender:
1.It is installed in the dock or port, it is used when ships berth.
2.It is installed on shipboard, it is used when berthing in the sea.
3.Other applications of Pneumatic Rubber Fender.
a.Can be used as a buoy.
b.Can be used for carrying goods.
c.Can be used as sealing material of pipes.
Specification
No. | Size (Diameter x Length) | Initial pressure | Energy absorption | Reaction force |
| mm x mm | MPa | KJ | KN | |
| 1 | 500 x 1000 | 0.05 | 6 | 64 |
2 | 600 x 1000 | 0.05 | 8 | 74 |
3 | 700 x 1500 | 0.05 | 17 | 137 |
| 4 | 1000 x 1500 | 0.05 | 32 | 182 |
5 | 1000 x 2000 | 0.05 | 45 | 257 |
6 | 1200 x 2000 | 0.05 | 63 | 297 |
7 | 1350 x 2500 | 0.05 | 102 | 427 |
8 | 1500 x 3000 | 0.05 | 153 | 579 |
9 | 1700 x 3000 | 0.05 | 191 | 639 |
10 | 2000 x 3500 | 0.05 | 308 | 875 |
11 | 2500 x 4000 | 0.05 | 663 | 1381 |
12 | 2500 x 5000 | 0.05 | 857 | 1835 |
13 | 2500 x 5500 | 0.05 | 943 | 2019 |
14 | 3000 x 5000 | 0.05 | 1050 | 2000 |
15 | 3000 x 6000 | 0.05 | 1312 | 2488 |
16 | 3300 x 4500 | 0.05 | 1175 | 1884 |
17 | 4500 x 9000 | 0.05 | 4752 | 5747 |
18 | 4500 x 12000 | 0.05 | 6473 | 7984 |

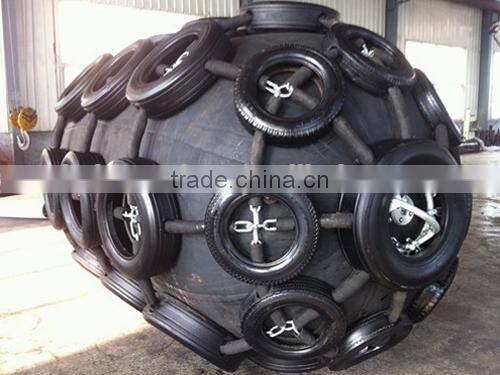

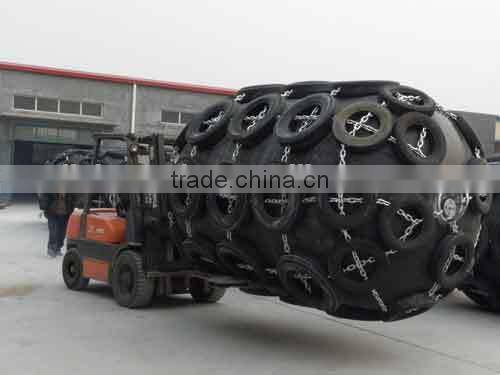

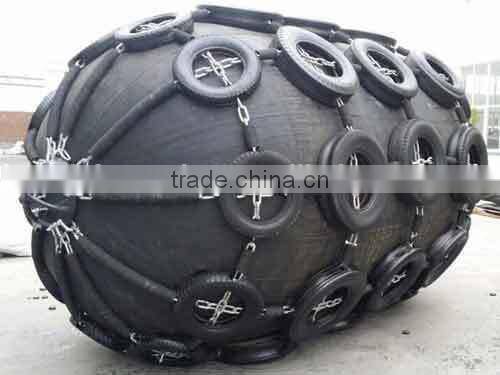

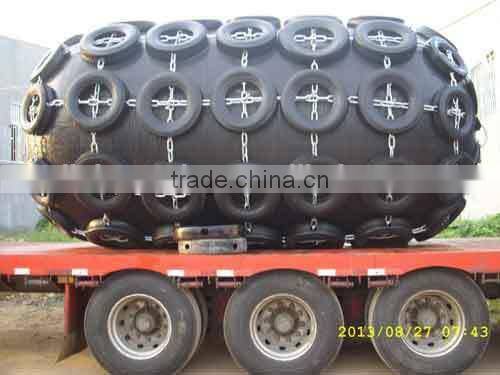

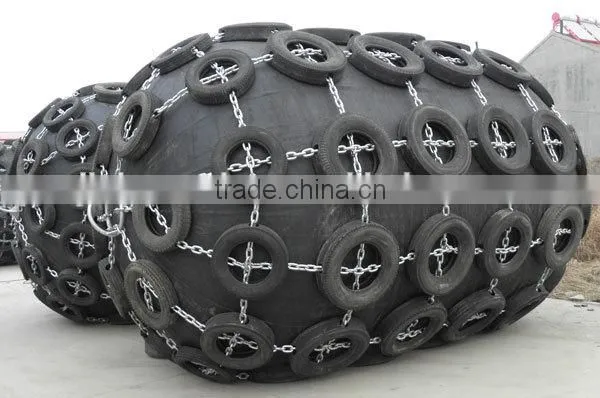

Photo:
