Certified Yokohama Rubber Fender

Specifications

Yokohama Fender:
1.High absorption of engery.
2.CCS,BV certificate etc.
3.ISO17357:2002 stanard.
4.easy to ope

Yokohama Fender :

Certified Yokohama Rubber Fender:

Features

1. High energy absorption and low reaction force and surface pressure;

2. No decline in the rate of energy absorption when obliquely compressed, under normal circumstances, and uniform surface pressure for any contact area;

3. Low reaction force to prevent damage from repeated impacts against the hull of ship, quay, jetty or mooring rope;

4. Ability to float and rise and fall with the ebb and flow of tides and the movements of a ship;

5. High standard of uniform quality in compression performance with no deterioration of the rubber;

6. Easy installation.

Specification

No.	Size (Diameter x Length)	Initial pressure	Energy absorption	Reaction force
	mm x mm	MPa	KJ	KN
1	500 x 1000	0.05	6	64
2	600 x 1000	0.05	8	74
3	700 x 1500	0.05	17	137
4	1000 x 1500	0.05	32	182
5	1000 x 2000	0.05	45	257
6	1200 x 2000	0.05	63	297
7	1350 x 2500	0.05	102	427
8	1500 x 3000	0.05	153	579
9	1700 x 3000	0.05	191	639
10	2000 x 3500	0.05	308	875
11	2500 x 4000	0.05	663	1381
12	2500 x 5000	0.05	857	1835
13	2500 x 5500	0.05	943	2019
14	3000 x 5000	0.05	1050	2000
15	3000 x 6000	0.05	1312	2488
16	3300 x 4500	0.05	1175	1884
17	4500 x 9000	0.05	4752	5747
18	4500 x 12000	0.05	6473	7984

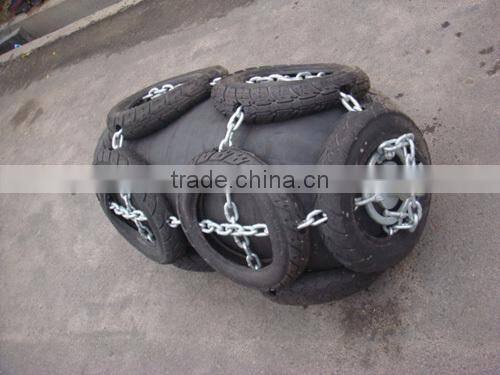

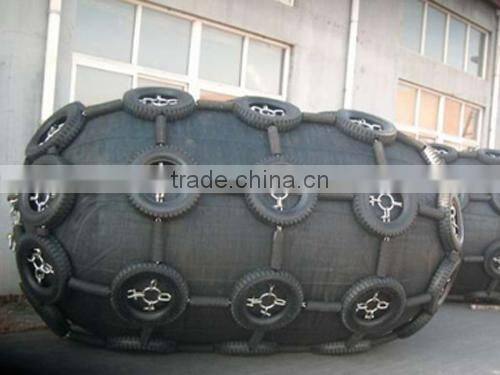

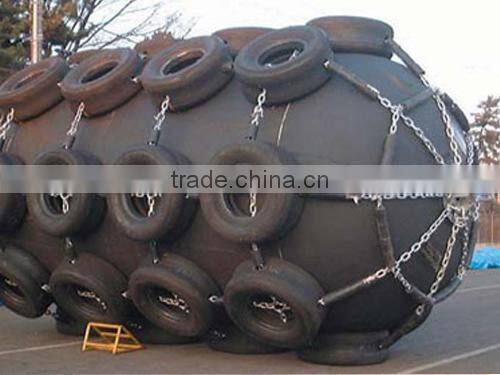

Photo:
