Specifications
Floating Rubber Fender:1.High absorption of engery.
2.CCS,BV certificate etc.
3.ISO17357:2002 stanard.
4.easy to ope
Floating Rubber Fender :

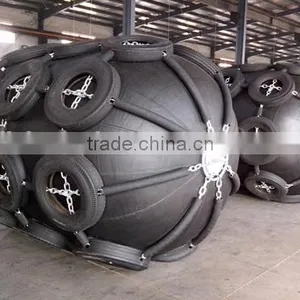

Pneumatic Floating Rubber Fender :
Features
1. High energy absorption and low reaction force and surface pressure;
2. No decline in the rate of energy absorption when obliquely compressed, under normal circumstances, and uniform surface pressure for any contact area;
3. Low reaction force to prevent damage from repeated impacts against the hull of ship, quay, jetty or mooring rope;
4. Ability to float and rise and fall with the ebb and flow of tides and the movements of a ship;
5. High standard of uniform quality in compression performance with no deterioration of the rubber;
6. Easy installation.
Specification
No. |
Size (Diameter x Length) |
Initial pressure |
Energy absorption |
Reaction force |
| mm x mm | MPa | KJ | KN | |
| 1 | 500 x 1000 | 0.05 | 6 | 64 |
2 |
600 x 1000 |
0.05 |
8 |
74 |
3 |
700 x 1500 |
0.05 |
17 |
137 |
| 4 | 1000 x 1500 | 0.05 | 32 | 182 |
5 |
1000 x 2000 |
0.05 |
45 |
257 |
6 |
1200 x 2000 |
0.05 |
63 |
297 |
7 |
1350 x 2500 |
0.05 |
102 |
427 |
8 |
1500 x 3000 |
0.05 |
153 |
579 |
9 |
1700 x 3000 |
0.05 |
191 |
639 |
10 |
2000 x 3500 |
0.05 |
308 |
875 |
11 |
2500 x 4000 |
0.05 |
663 |
1381 |
12 |
2500 x 5000 |
0.05 |
857 |
1835 |
13 |
2500 x 5500 |
0.05 |
943 |
2019 |
14 |
3000 x 5000 |
0.05 |
1050 |
2000 |
15 |
3000 x 6000 |
0.05 |
1312 |
2488 |
16 |
3300 x 4500 |
0.05 |
1175 |
1884 |
17 |
4500 x 9000 |
0.05 |
4752 |
5747 |
18 |
4500 x 12000 |
0.05 |
6473 |
7984 |

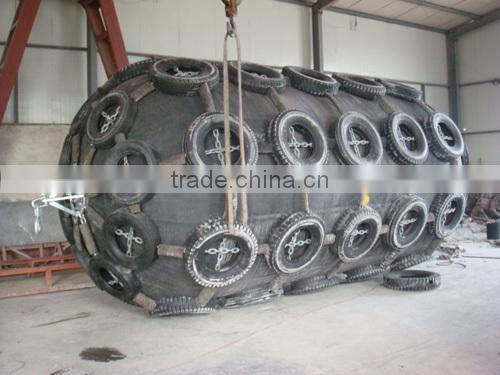

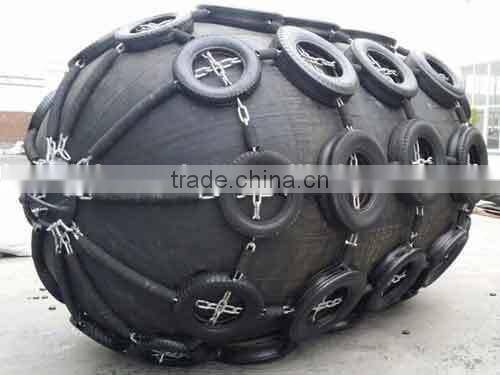

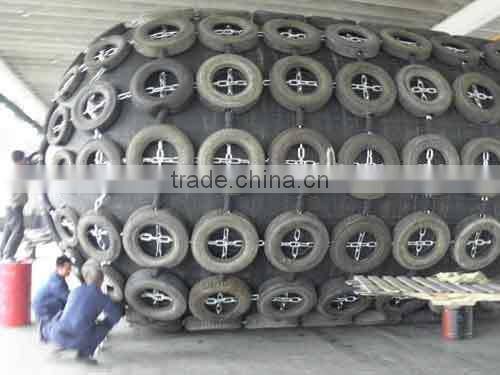

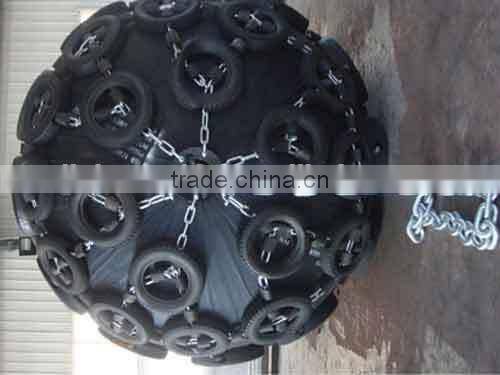

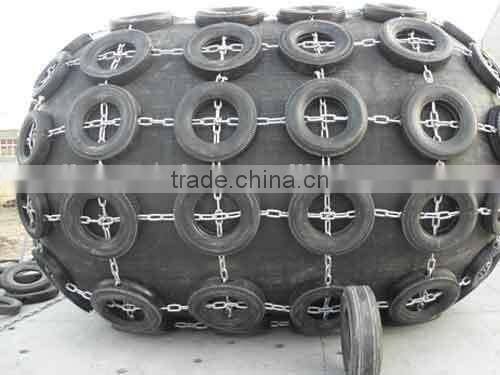

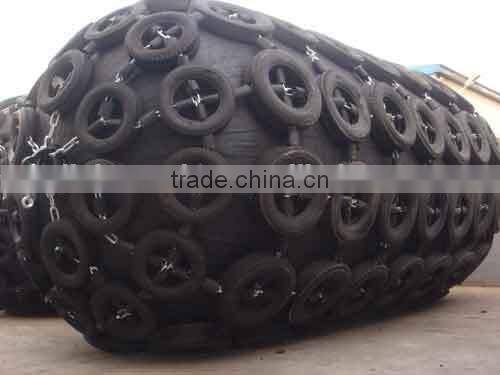

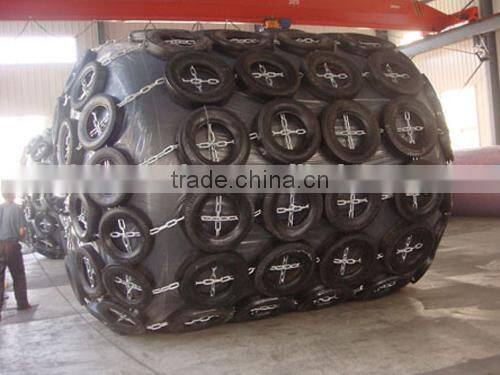

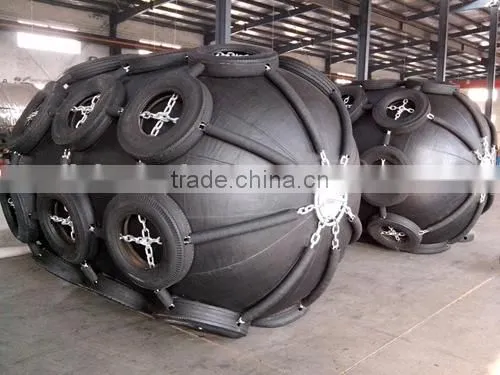

Photo:
