Floating Inflatable Fenders

Specifications

High pressure rubber fender:
1.High absorption of engery.
2.CCS,BV certificate etc.
3.ISO17357:2002 stanard.
4.easy to op

Floating Inflatable Fenders:

Features

1. High energy absorption and low reaction force and surface pressure;

2. No decline in the rate of energy absorption when obliquely compressed, under normal circumstances, and uniform surface pressure for any contact area;

3. Low reaction force to prevent damage from repeated impacts against the hull of ship, quay, jetty or mooring rope;

4. Ability to float and rise and fall with the ebb and flow of tides and the movements of a ship;

5. High standard of uniform quality in compression performance with no deterioration of the rubber;

6. Easy installation.

Application of Pneumatic Rubber Fender:

1.It is installed in the dock or port, it is used when ships berth.

2.It is installed on shipboard, it is used when berthing in the sea.

3.Other applications of Pneumatic Rubber Fender.

a.Can be used as a buoy.

b.Can be used for carrying goods.

c.Can be used as sealing material of pipes.

Specification

No.	Size (Diameter x Length)	Initial pressure	Energy absorption	Reaction force
	mm x mm	MPa	KJ	KN
1	500 x 1000	0.05	6	64
2	600 x 1000	0.05	8	74
3	700 x 1500	0.05	17	137
4	1000 x 1500	0.05	32	182
5	1000 x 2000	0.05	45	257
6	1200 x 2000	0.05	63	297
7	1350 x 2500	0.05	102	427
8	1500 x 3000	0.05	153	579
9	1700 x 3000	0.05	191	639
10	2000 x 3500	0.05	308	875
11	2500 x 4000	0.05	663	1381
12	2500 x 5000	0.05	857	1835
13	2500 x 5500	0.05	943	2019
14	3000 x 5000	0.05	1050	2000
15	3000 x 6000	0.05	1312	2488
16	3300 x 4500	0.05	1175	1884
17	4500 x 9000	0.05	4752	5747
18	4500 x 12000	0.05	6473	7984

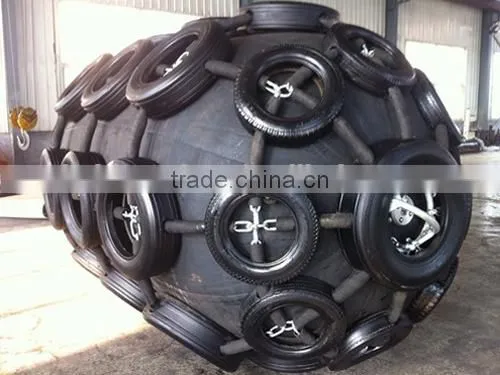

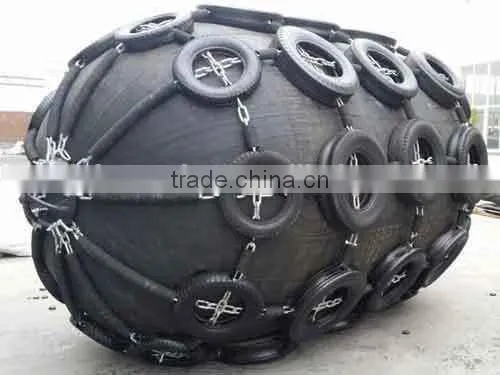

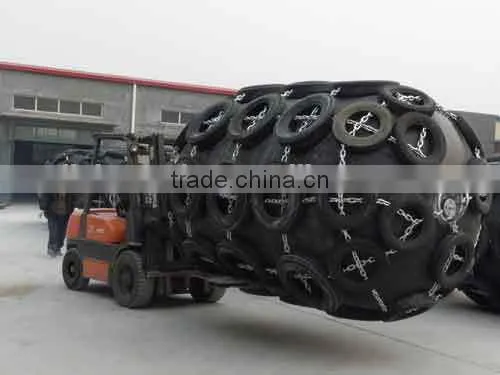

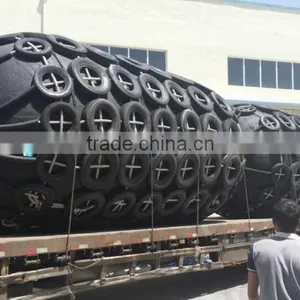

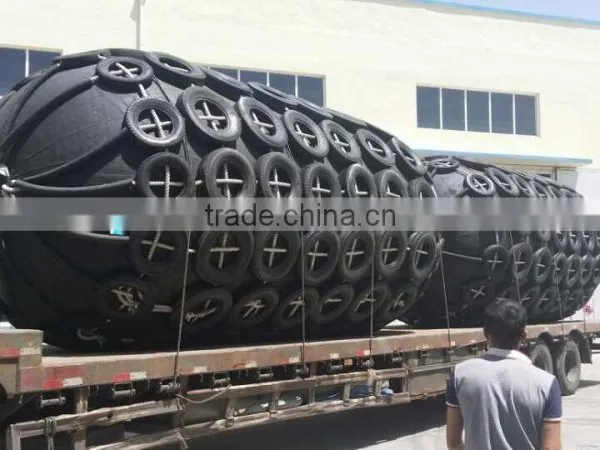

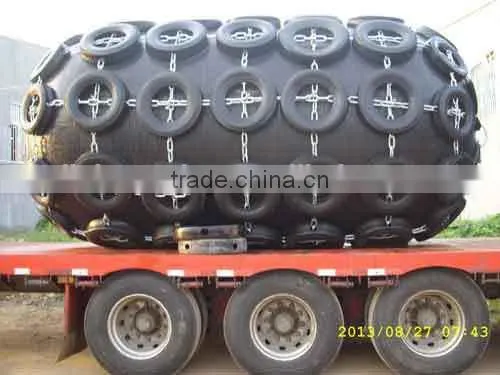

Photo:
