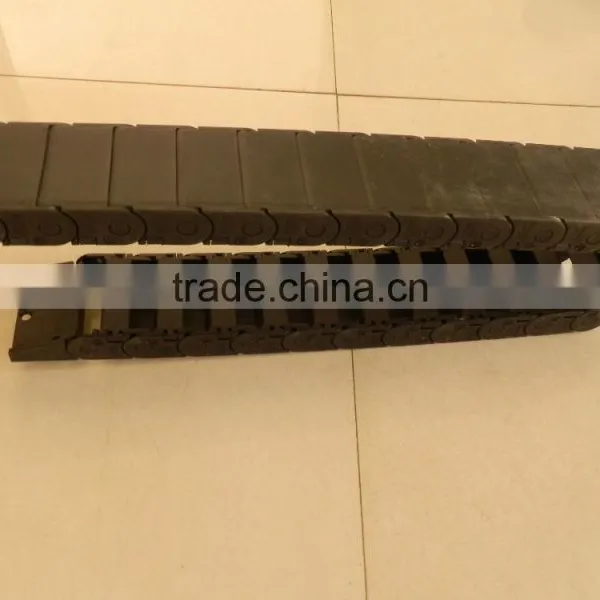

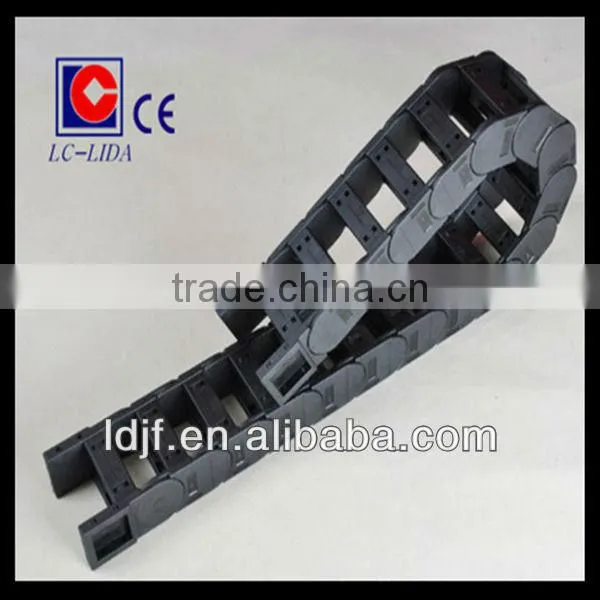

LD56 Series cable and hose carrier
Basic parameters
1material: import engineering plastic, reinforced nylon, has the high pressure and tensile load, good toughness, high elasticity and wear resistance
2anti patience: oil resistance, salt resistance, resistance to abrasion, impact resistance, high strength, suitable for fast moving, and a certain degree of acid, alkali - resistant ability
3convenience: light weight, by joint composition, can adjust length, dismantling is convenient, more kinds of bendin g radius
Data parameters:
| Type | Inside Diameter | Outside Diameter | Bending radius |
| LD56.1 | 50*95 | 83*118 | 150.200.250.300 |
| LD56.2 | 50*125 | 83*150 | 150.200.250.300 |
| LD56.3 | 50*150 | 83*174 | 150.200.250.300 |
| LD56.4 | 50*175 | 83*200 | 150.200.250.300 |
| LD56.5 | 50*200 | 83*224 | 150.200.250.300 |
| LD56.6 | 50*250 | 83*274 | 150.200.250.300 |
| LD56.7 | 50*300 | 83*324 | 150.200.250.300 |
| LD56.8 | 50*350 | 56*374 | 150.200.250.300 |
Structure
(1) The towline shape like tanks, chain link from a large number of units composed of links between the rotating freely.
(2) Inside the same series of towline high, outside the high pitch the same, towline in width; bend radius can have different choices.
(3) The unit chain of the festival from around chain plates and the composition of the upper and lower cover, tow each section can be opened, Assembly and Disassembly convenience, without threading, open the lid to allow a cable, tubing, trachea, dragged into the water, etc. chain.
(4) Also provides separate pieces, the chain separated by space as needed

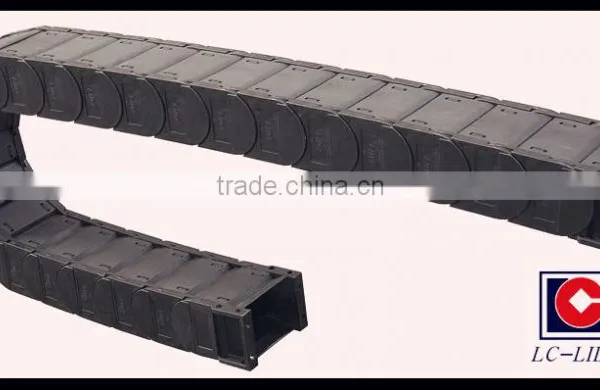

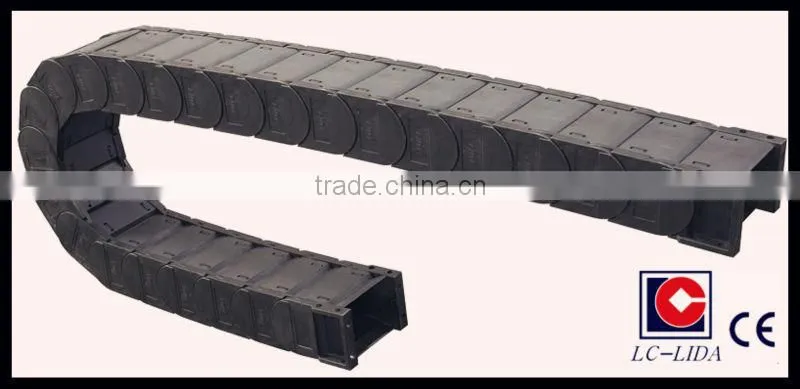

Structure chart
Cable and hose carrier

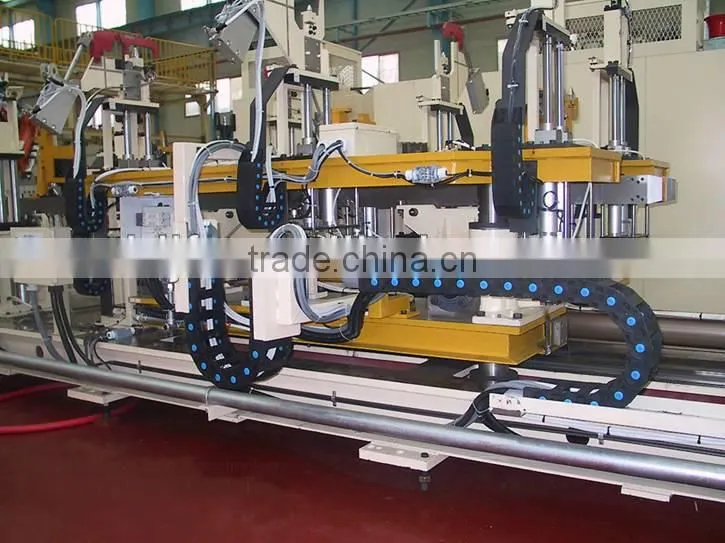

Widely Application
1 CNC machine tools
2 electronic equipment
3 stone machinery
4 glass machinery
5 doors and windows machines
6 injection molding machines
7 mechanical hands
8 overweight transportation equipment
9 automated warehouses
CE certification
