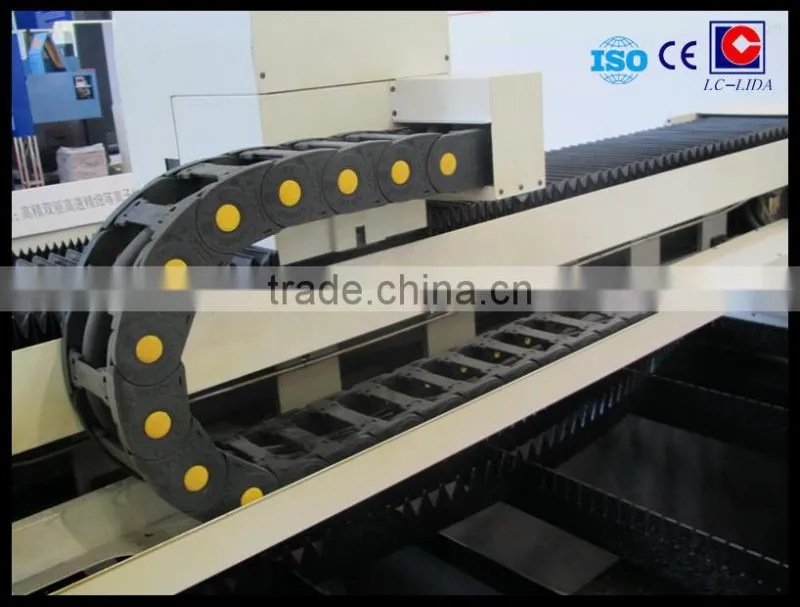

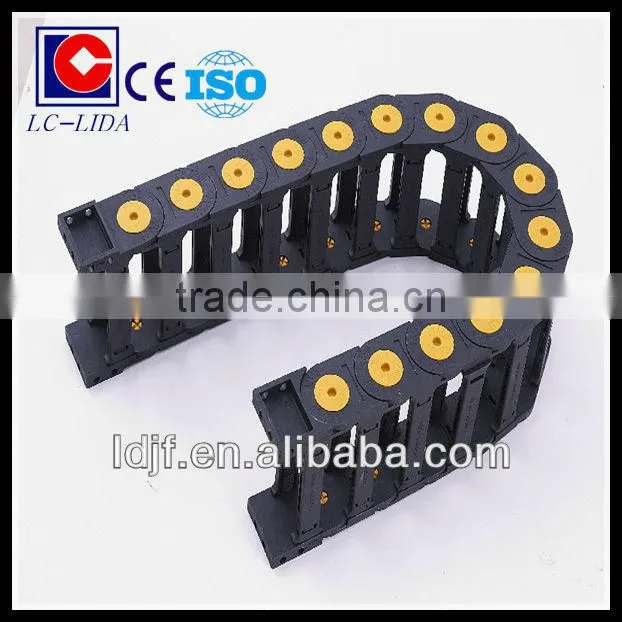

Help CenterLC-LIDA LX80.1-80*95 Series Engineering Plastic Cable Carrier
Related Products
-
JR-2 Rectangle Metalic Hose Reenforced Type High QualityUS$ 5 - 10MOQ: 10 Meters -
LC-LIDA LC LW50*50 Multidimensional Movement Drag ChainUS$ 1 - 10MOQ: 1 Meter
-
LC-LIDA LD35.2 Engineering Plastic Cable Drag Chain Pitch59US$ 0.5 - 10MOQ: 10 Meters
-
LX80.1 Series Engineering Plastic Drag Chain Inner Width 95~350mmUS$ 1 - 20MOQ: 1 Meter
-
LC-LIDA LJ35.1 Noise Elimination Plastic Towline Bending Radius75~200mmUS$ 0.5 - 10MOQ: 10 Meters

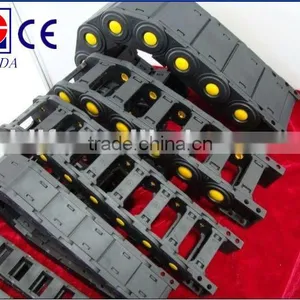

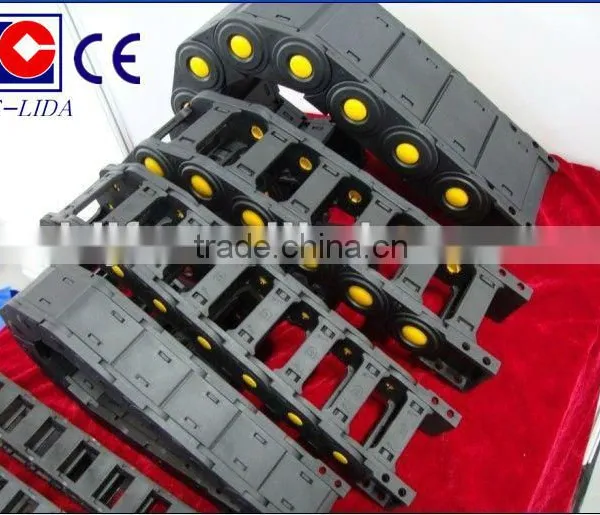

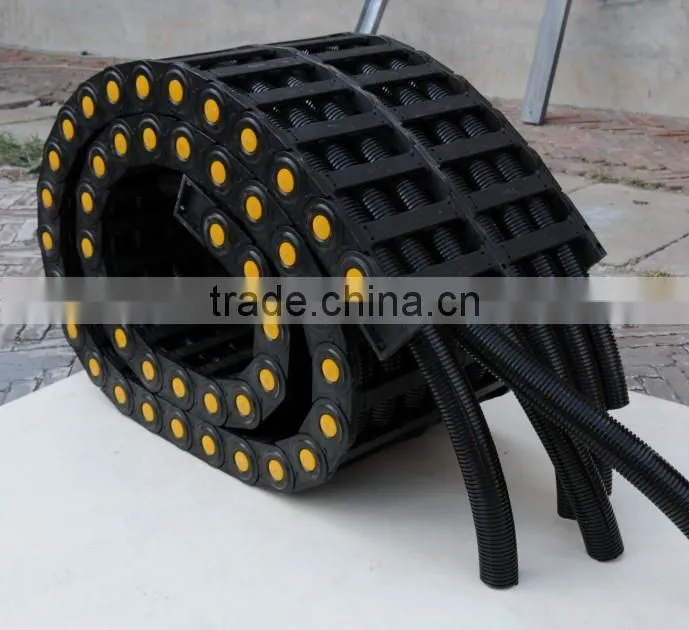

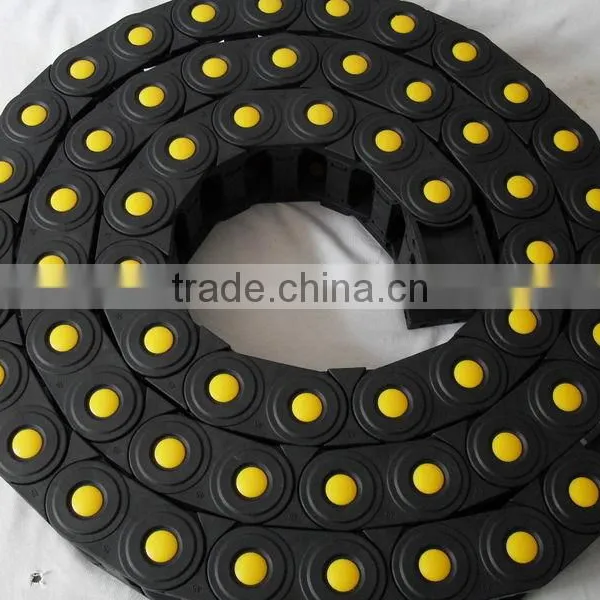

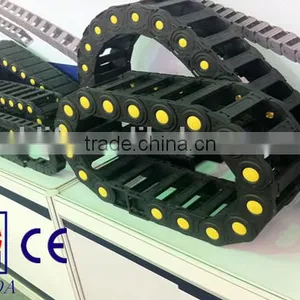

LX80 Series open-style plastic hose and cable carrier
Characteristic
- Open
- closed (protection from dirt and debris, such as woodchips or metal shavings)
- low noise
- cleanroom compliant (minimal wear)
- multi-axis movement
- high load resistant
- chemical, water and temperature resistant
Data parameters:
| Type | Inside Diameter | Outside Diameter | Bending radius |
| LX80.1 | 80*95 | 119*150 | 200.250.300.350.400.500 |
| LX80.2 | 80*125 | 119*180 | 200.250.300.350.400.500 |
| LX80.3 | 80*150 | 119*205 | 200.250.300.350.400.500 |
| LX80.4 | 80*175 | 119*230 | 200.250.300.350.400.500 |
| LX80.5 | 80*200 | 119*255 | 200.250.300.350.400.500 |
| LX80.6 | 80*250 | 119*305 | 200.250.300.350.400.500 |
| LX80.7 | 80*300 | 119*355 | 200.250.300.350.400.500 |
| LX80.8 | 80*350 | 119*405 | 200.250.300.350.400.500 |
Structure
1 Most carriers have a rectangular cross section, inside which the cables lie. Cross
bars along the length of the carrier can be opened from the outside, so that cables
can be easily inserted and plugs connected. Internal separators in the carrier
separate the cables. Cables can also be held in place with an integrated strain
relief. Mounting brackets fix the ends of the carrier to the machine.
2 Besides only bending in one plane due to the rigid jointed structure, cable carriers
also often only permit bending in one direction. In combination with rigid mounting
of the ends of the carrier, this can entirely prevent the enclosed cables from
flopping in undesired directions and becoming tangled or crushed.
Open-style plastic hose and cable carrier
Application:
1 Cable carriers are often used with special highly flexible cables to extend the
cables' service life.

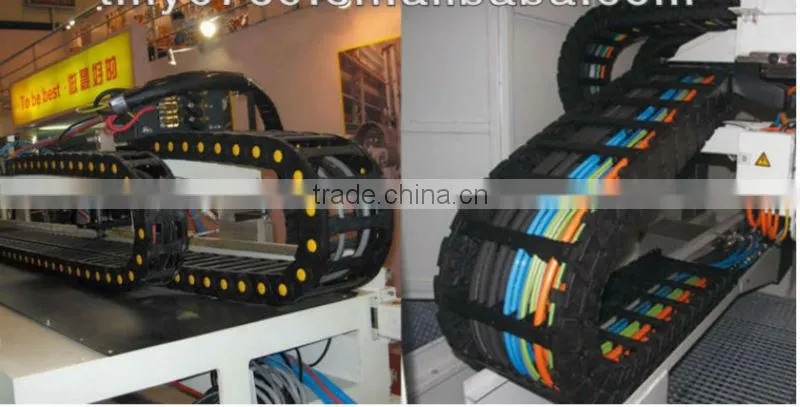

2 Cable carriers are used in a wide variety of machine tools,cranes, car washes,
medical and laboratory equipment, automatic warehousing,forklifts, industrial
robots, offshore oil rigs and stage technology.
Raw material
Advanced equipment
About us
1, ISO9001:2008,CE
2, Specialise in this field for 15years.
3, We are manufacturer.
4, Advanced machine to keep productio running smoothy.
5, Rapid logistics system
6, More than 5000 square meters factory.
7, 150 workers and 10 engineers.
8, Delivery On time.
Dear friends,
Thanks for your attention on our products.
We export machine tool accessory products for more than 30 years,cooperation with many countries.
Pls feel free to contact us with any questions, I will do my utmost to help you.
Wish you every success.
