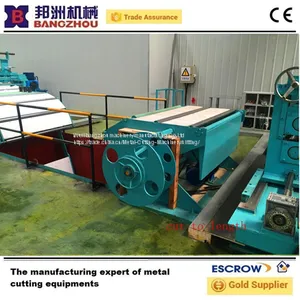

Help CenterHigh Quality Low Price Slitting Machine
Related Products
-
High Quality Low Price Slitting MachineUS$ 135000 - 155000MOQ: 1 Set -
Metal Plate Low Price Slitting MachineUS$ 135000 - 155000MOQ: 1 Set
-
Steel Shear Coil Low Price Slitting MachineUS$ 135000 - 155000MOQ: 1 Set
-
Tinplate Coil Low Price Slitting MachineUS$ 135000 - 155000MOQ: 1 Set
-
Low Price Slitting LinesUS$ 135000 - 155000MOQ: 1 Set
Technical parameters of simple automatic slitting machine
| 1. | application | CRNGO, Galvanzied steel |
| 2. | Thickness of coiled plate | 0.2-3mm |
| 3. | Width of coiled plate | 650-1600mm |
| 4. | width tolerance | ±0.05mm/2M |
| 5. | Slitting speed | 0-120m/min |
| 6. | Loading capacity | 10T |
| 7. | Coil I.D | 480-510mm |
| 8. | Coil O.D | ≤1800mm |
| 9. | Knife pivot diameter of slitting | 200mm |
| 10. | Slitting blade | 200×340×20 |
| 11. | Material of slitting blade | 6CrW2Si |
| 12. | Hardness of blade | HRC58°—60° |
| 13. | Recoiler I.D | 508mm |
| 14. | Power | 380V three-phase 50Hz |
| 15. | Size | 18*5 |
Composed device of simple automatic slitting machine
1.Hydraulic coil car
2.Hydraulic decoiler
3.Hydraulic guiding and press, pinch and pre-leveling device
4.Head-cutting machine
5.Looper I
6.Slitting machine
7.Scrap winder
8. Looper II
9.Tension stand---damping device for pre-dividing and pressing
10.Recoiler
11.Hydraulic unload car
12.Elecronic control system
13.Hydraulic system
layout of machine
Wuxi Bangzhou Machinery Manufacturing Co., Ltd. is located in Changjing Industrial Park, Jiangyin, Wuxi with beautiful environment and very convenient transportation. We are one of the most professional machinery manufacturers in China, integrating design, production, sale and after-sales services.
Our main products are Steel coil slitting lines, cut to length lines, Straightening machines, Automatic crosscut units and Hydraulic shearing machines. Our products are supplied to cold rolling and pipe welding factories and our machine can be also applied to other industril field which connect to the metal material.
With our best service and machines' high quality,we have gained a great reputation in the field and our products are exported to many countries and regions, such as Southeast Asia, Europe, America and Africa.
We welcome all friends to visit us. We are sincerely looking forward to receive your guidance and business cooperation!
Welcome to our company, contact us, more details will send to you.
