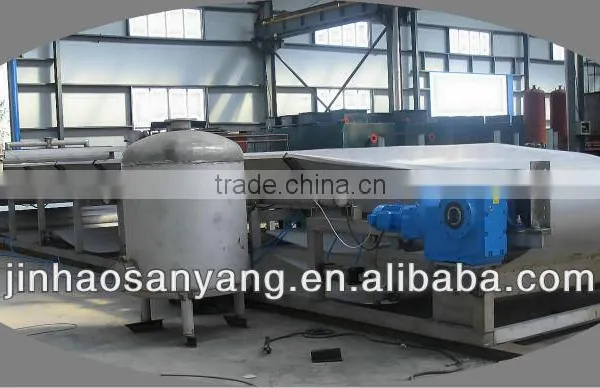

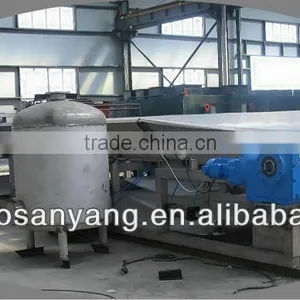

PBF vacuum belt type filter machine for solid liquid separation
Equipment Introduction
PBF vacuum belt type filter machine is the high automatic new-type machine. Use the filter cloth or the net as the filtration medium. Under the working of the slurry’s gravity and the vacuum suction, the solid-liquid separation can be achieved easily. Because the filter can be useful for much different concentration slurry and the character of the high efficiency, it has been priority adopted by many industries.
Working Principle
Technical characteristic
- The process of the feeding, filtering, washing, discharging and the cloth regenerating can be achieved highly automatically.
- It can wash slurry be the methods of the multistage current or the countercurrent washing the filtrate and the washing liquor can be collected separately.
- It can filter a thin layer cake quickly for the hard structure and has high adaptability.
- It is flexible to assemble equipment because of modular structure and has high adaptability.
- It is convenient to mote and centralized for PLC control.
Typical process chart
Washing Device
- Adopts the craft water to spray the filtration cloth and matched with the vacuum sucker seal box. Therefore, it can guarantee the jobsite cleaning.
- The nozzle made by the American sprayer company can guarantee the washing effect well.
Material spraying craft
Adopts the countercurrent washing device or the spray washing device according to the character of the material and the craft of the requirement, it can choose the methods of the current washing or the countercurrent washing and make the washing more thoughly.
Deviation-rectifying mechanism
Under the working of the cylinder of the air-bag, achieve correcting the deviation of the cloth and make sure the cloth run correctly.
Control system
Adopts remote control and scene alternately control, facilitated the operation work, is advantageous for implementing nobody operation.
PBF vacuum belt type filter machine Application examples
Pulp type |
Flocculant addRatio SS% |
containing Wet% |
Filterefficiency kg/m.h |
Pulp type |
Flocculant addRatio SS% |
containing Wet % |
Filterefficiency kg/m.h |
||||||
Industry sludge |
Pulp sludge |
0.2-0.3 |
62-68 |
150-300 |
City sludge |
Original sludge |
0.4-0.9 |
71-75 |
140-390 |
||||
Food industrial waste water |
0.6-1.0 |
75-80 |
60-120 |
Digested sludge |
0.2-2.7 |
65-75 |
140-390 |
||||||
Textile factory waste water |
0.7-1.1 |
60-65 |
120-300 |
Activated sludge
|
0.6-1.1 |
81-84 |
80-120 |
||||||
Coal waste water |
0.025-0.035 |
22-27 |
4000-5000 |
Metallurgy wastewater |
0.013-0.02 |
25-35 |
1000-2000 |
||||||
Our certification
We are professional manufacturer of various bar screen machine, wastewater treatment equipment, filter press, belt filter press, and vacuum filter, dissolved air floatation etc, and can supply you the most cost-effective products with best price!
Belt type Vacuum Filter Machine with good quality
