Specifications
precision disc-type ceramics vacuum filter1.filter area:1-150m2
2.filter board num:12-300
3.running power:2-37kw

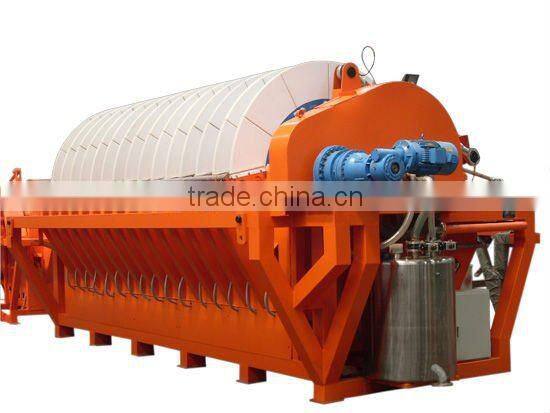

TM wastewater treatment vacuum ceramic filter machine
Product brief
TM precision ceramic vacuum filter, collection and micropore ceramic, ultrasonic technology as a whole, and rely on vacuum suction and capillary function realization of solid-liquid separation of new and high efficient, energy saving filtering equipment. Widely used in mining, metallurgical, chemical industry, environment protection, etc.
Main features
1.high vacuum (vacuum 0.09 ~ 0.098 MPa), low water filter cake.
2.Painted with solid amount filtrate < 50 PPM. Can be used repeatedly and reducing emissions.
3.Compared with the traditional 9:28 filtering equipment energy save about 90% above, low energy consumption, lower cost.
4. compared with traditional ceramic filtering device increased filter cake cleaning, applicable for materials requiring cleaning.
5. PLC and computer integrated with automatic control valve, a high degree of automation, the reduction of labor intensity.
pact structure, cover an area of an area small, easy installation and maintenance.
7. advanced drainage system, can be suitable for use any operating conditions.

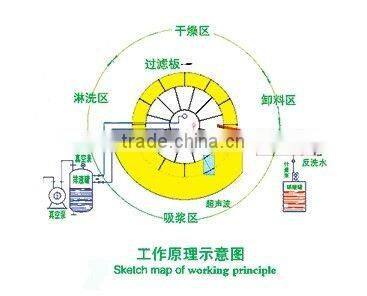

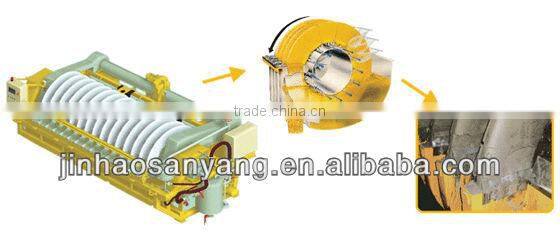

Working principle
Suck plasma area: work submerged in pulp filter plate in capillary function combination under vacuum pressure, surface adsorption into a layer cake, filtrate through the filter board into distributing to row a tank.
Elution area: the filter cake turn a pulp measures after, to filter cake for spray washing.
Dry area: in high vacuum filter cake to continue under the action of forces dehydration.
Unloading area: into a vacuum, scraper automatic discharging.
Reverse wash: industrial water or by distributing ceramic plate into leachate from inside to outside for cleaning. Cleaning blocked pore. In the ceramic plate use in a cycle, the ultrasonic with a low concentration mixed acid cleaning, keep the efficient use of ceramic plate.

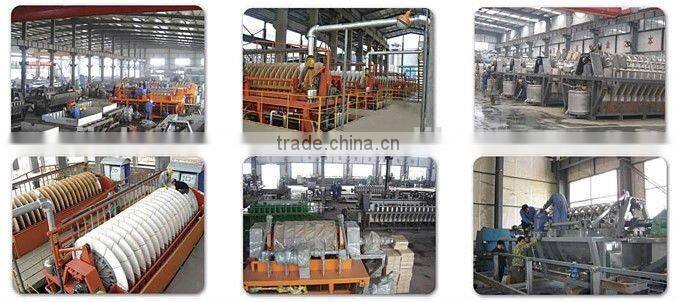

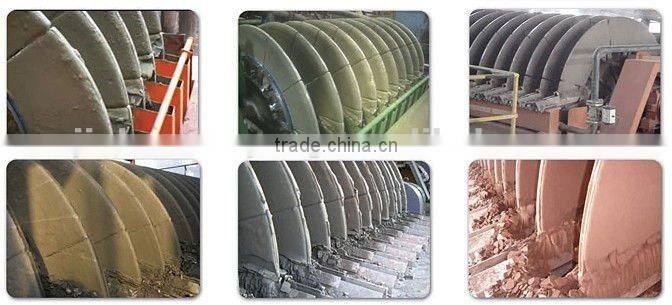

Site pictures
